Description

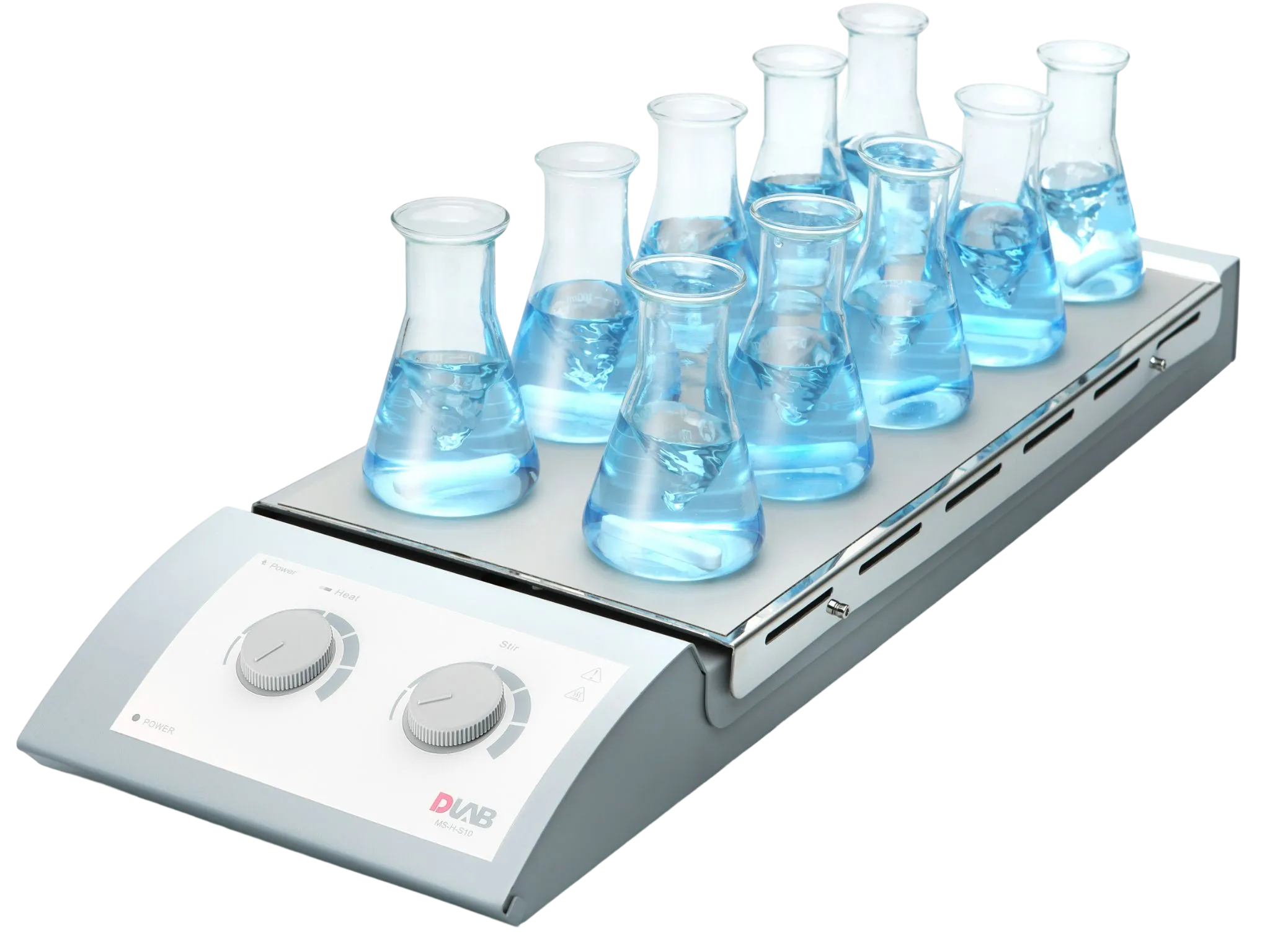

The MS-H-S10 10-Position Magnetic Hotplate Stirrer is engineered to support efficient parallel processing in demanding laboratory environments. Equipped with a durable stainless-steel work plate covered with a silicone cushion, it delivers excellent heating uniformity and strong skid resistance for a variety of containers. A maintenance-free brushless DC motor provides smooth stirring with adjustable speeds from 0?1100 rpm, while temperature control reaches up to 120 ?C for reliable sample heating. With ten independent stirring positions and consistent thermal performance, this device simplifies multi-sample protocols such as solution preparation, homogenization, and routine analysis. Its robust construction and intuitive operation make it a valuable instrument for chemistry, biology, educational, and quality-control laboratories.
Specifications
MS-H-S10 10-Position Magnetic Hotplate Stirrer Specifications
The MS-H-S10 is a high-performance multi-position magnetic stirrer designed for space-saving batch processing. It features 10 stirring positions on a single work plate, ensuring uniform temperature distribution and consistent stirring conditions across all samples.
Technical Parameters
-
Stirring Positions: 10
-
Max. Stirring Quantity per Position: 0.4 Liters
-
Total Max. Stirring Quantity ($H_{2}O$): 4 Liters
-
Speed Range: 0 – 1100 RPM
-
Speed Display: Scale
-
Heating Temperature Range: Room temperature to 120°C
-
Temperature Display: Scale
-
Temperature Control Accuracy: ±1°C (below 100°C)
-
Heating Output: 470 W
-
Total Power: 490 W
-
Motor Type: Brushless DC motor
-
Max. Magnetic Bar Length: 40 mm
-
Overheating Protection: 140°C
Physical & Material Data
-
Work Plate Dimension: 180 x 450 mm
-
Work Plate Material: Stainless steel with silicone film
-
Unit Dimensions (W x D x H): 182 x 622 x 65 mm
-
Unit Weight: 3.2 kg
-
Protection Class: IP42
-
Voltage/Frequency: 100-120V / 200-240V, 50/60 Hz
-
Permissible Ambient Temperature: 5 – 40°C
-
Permissible Relative Humidity: 80% RH
Functional & Safety Features
-
Uniform Temperature Distribution: The internal heating plate is designed to provide consistent thermal energy across all positions simultaneously.
-
Synchronized Stirring: All positions operate at the same speed to ensure identical reaction conditions for batch testing.
-
Skid Resistance: The silicone-covered work plate prevents containers from moving during high-speed operation.
-
Electronic Speed Control: Automatically maintains a constant speed even if the liquid viscosity changes.
-
Quiet Operation: The brushless DC motor is designed for silent running and long-term durability without the need for internal maintenance.
