Description

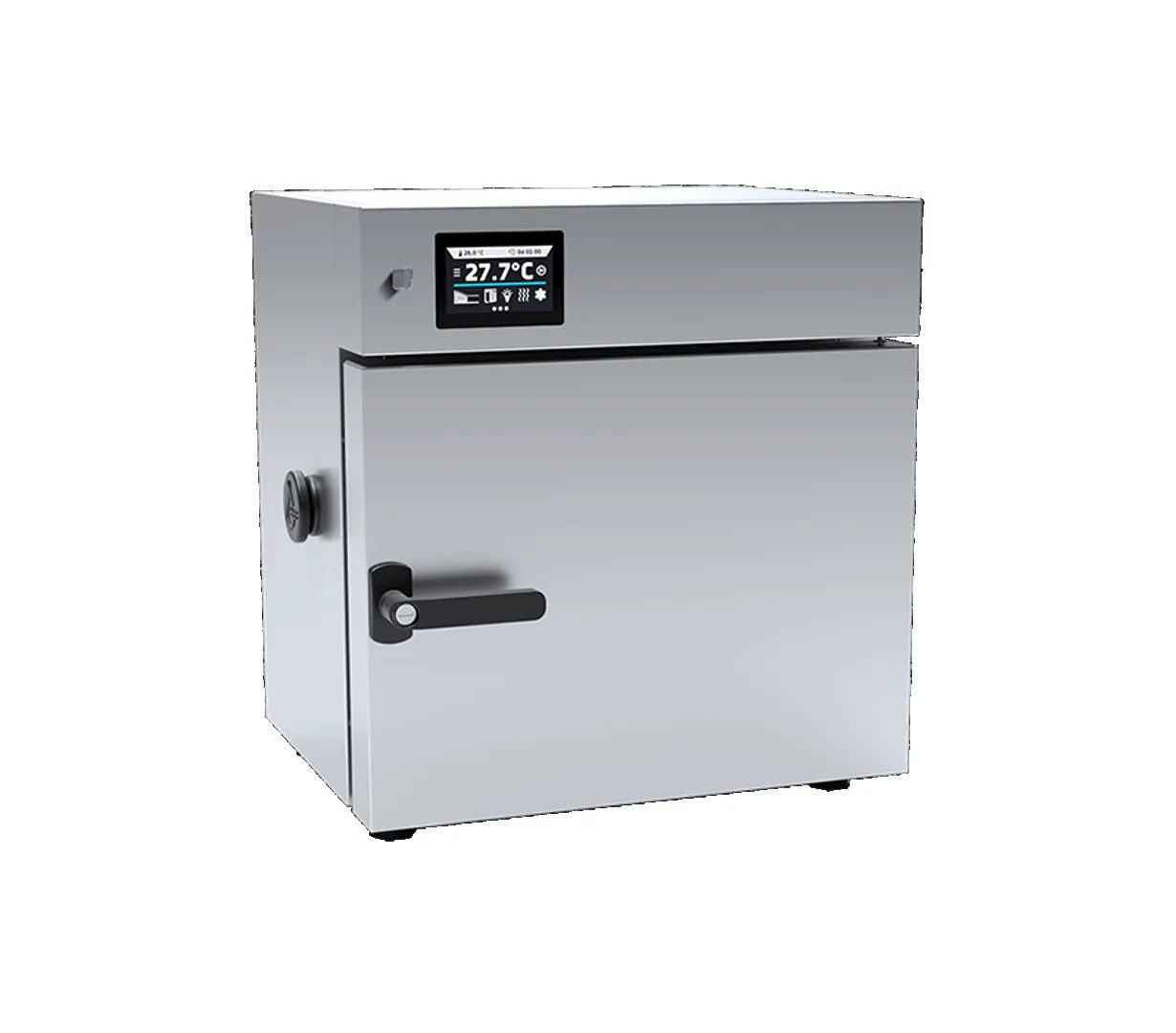

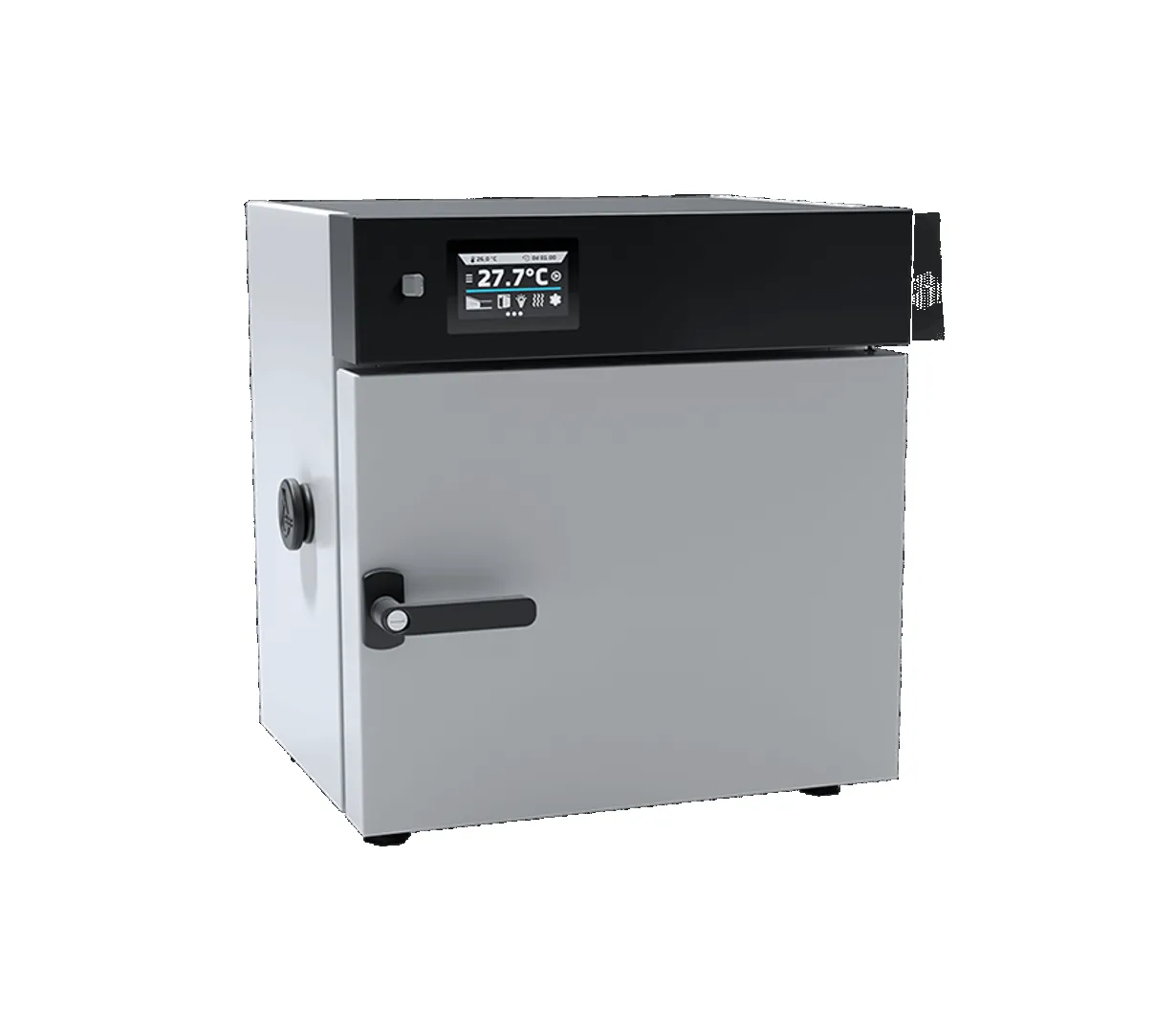

The Laboratory Incubator CLN 15 is a high-precision, compact incubator designed to provide stable and uniform temperature conditions for biological, chemical, and industrial laboratory processes. With a 15?L capacity, it is ideal for small-scale sample incubation, culture growth, enzyme reactions, and other controlled laboratory tasks.
The incubator operates within a temperature range of +5??C to +70??C, allowing for precise temperature regulation to suit a variety of laboratory applications. Forced air circulation ensures even temperature distribution inside the chamber, eliminating hotspots and supporting reproducible results.
Temperature control is handled via a microprocessor-based controller, which provides intuitive operation, accurate monitoring, and programmable settings for various incubation protocols. The interior includes stainless-steel wire shelves for flexible sample arrangement and internal LED lighting for clear visibility.
The CLN 15 is engineered for reliability and consistent performance in research laboratories, clinical facilities, and industrial testing environments. Its compact design allows it to fit efficiently in laboratory workspaces while maintaining high-quality incubation standards for critical laboratory applications.
Specifications
POL-EKO Laboratory Incubator CLN 15 Full Specifications
The CLN 15 is the most compact benchtop incubator in the series, featuring natural air convection.1 Its small footprint and double-door design make it ideal for space-constrained labs performing microbiological determinations or antibody testing where sample dehydration must be minimized.2
Physical & Capacity Data
-
Chamber Capacity (Gross): 15 Liters3
-
Working Capacity: 15 Liters4
-
External Width: 510 mm5
-
External Height: 550 mm6
-
External Depth: 470 mm (excludes 50 mm power cable)
-
Internal Width: 320 mm7
-
Internal Height: 230 mm8
-
Internal Depth: 200 mm9
-
Net Weight: 27 kg10
-
Standard Shelves: 1 (Stainless steel wire INOX)11
-
Maximum Shelves: 2
-
Max Shelf Workload: 10 kg12
-
Max Unit Workload: 20 kg13
-
Access Port: Ø9 mm (located on the left wall)14
-
Door Type: Double (solid external door and internal glass door)15
Performance & Heating
-
Temperature Range: 16$5°C$ above ambient up to 17$+100°C$
-
Temperature Resolution: 18$0.1°C$
-
Temperature Fluctuation (at 37°C): 19$pm 0.2°C$
-
Temperature Variation (at 37°C): 20$pm 0.7°C$
-
Air Convection: Natural (Gravity)21
-
Air-flap: Manual, Ø40 mm22
Electrical & Build
-
Voltage: 230V, 50/60 Hz (115V option available)23
-
Nominal Power: 350 W24
-
Interior Material: Acid-proof stainless steel to DIN 1.430125
-
Housing Material: Powder-coated sheet (Standard) or Stainless steel linen finish (IG version)26
-
Warranty: 24 months27
Controller Feature List
The CLN 15 is typically equipped with the Smart Controller.28 While larger models often offer the “Smart PRO” as a standard upgrade, the CLN 15 focuses on the compact Smart interface.
Smart Controller Features:
-
Display: 4.3″ Full-color touch screen29
-
Connectivity: LAN and USB ports for data transfer30
-
Programs: 5 user programs with up to 6 segments each
-
Data Log: Internal memory for 10,000 data points (stored for up to 6 months)
-
Safety: Class 2.0 (DIN 12880) over-temperature protection (Class 3.1 optional)31
-
Alarms: Open door alarm, visual and acoustic temperature deviation signals32
-
Utility: Operation possible with laboratory gloves
