Description

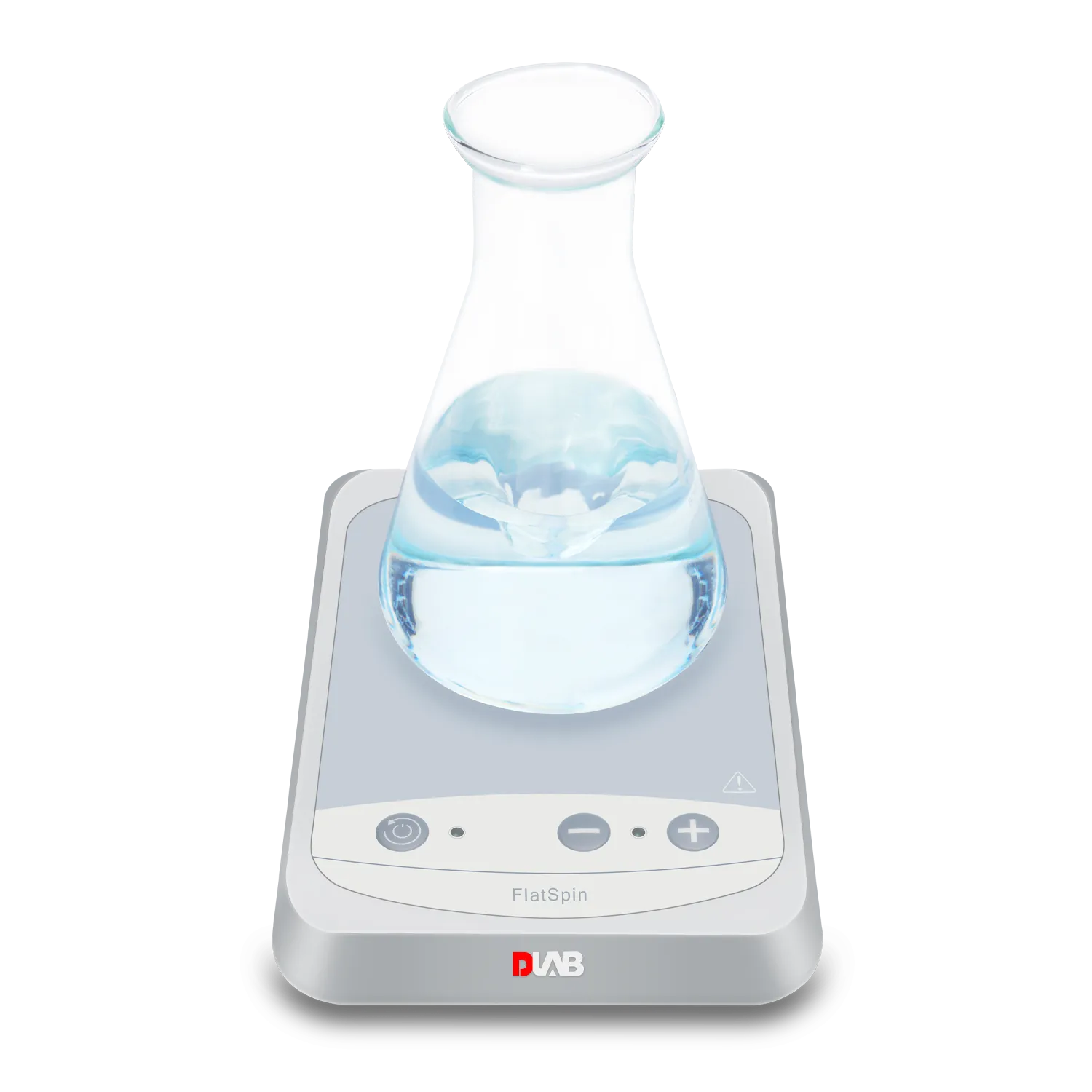

The FlatSpin Ultra?flat Compact Magnetic Stirrer is a high?performance yet compact laboratory instrument engineered for reliable and consistent magnetic stirring. It features an ultra?thin profile that minimizes bench space and simplifies storage without compromising performance. The stirrer provides a wide adjustable speed range from 15 to 1500?rpm with automatic reverse rotation for thorough mixing. Its PET top work plate offers excellent resistance to chemicals, while the motorless design ensures ultra?quiet, vibration?free operation. With a maximum stirring capacity of approximately 0.8?L and IP65 protection, FlatSpin is suitable for a variety of applications including analytical chemistry, biology reagent mixing, and routine laboratory workflows.
Specifications
DLAB FlatSpin Ultra-flat Magnetic Stirrer Specs
The FlatSpin is an ultra-thin, space-saving magnetic stirrer featuring motorless technology. This allows for a completely silent, vibration-free operation and an incredibly low profile of only 15 mm.
-
Work Plate Diameter: 90 mm
-
Work Plate Material: PET (Polyethylene terephthalate)
-
Max. Stirring Quantity ($H_2O$): 0.8 Liters
-
Speed Range: 15 – 1500 rpm
-
Speed Setting: Touch-sensitive buttons
-
Mixing Features: Automatic reverse rotation (every 15 seconds)
-
Drive System: Motorless (Magnetic coil)
-
Protection Class: IP65 (Dust-tight and water-resistant)
-
Max. Magnetic Bar Length: 40 mm
-
Max. Load Capacity: 2.0 kg
-
Voltage: 100–240V, 50/60 Hz
-
Power Consumption: 5 W
-
Dimensions (W x D x H): 175 x 120 x 15 mm
-
Weight: 0.3 kg
-
Permissible Ambient Temp: 5 to 40°C
DLAB EcoStir Economical Magnetic Stirrer Specs
The EcoStir is a standard-profile economical stirrer designed for routine liquid mixing. It uses a brushless DC motor and is available in both round and square plate configurations.
-
Max. Stirring Quantity ($H_2O$): 1.5 Liters
-
Speed Range: 300 – 2000 rpm
-
Speed Setting: Stepless rotary knob with scale
-
Work Plate Material: PET (Polyethylene terephthalate)
-
Work Plate Dimensions: φ120 mm (Round) or 120 x 115 mm (Square)
-
Motor Type: Brushless DC motor (Maintenance-free)
-
Max. Magnetic Bar Length: 40 mm
-
Protection Class: IP21
-
Voltage: 100–240V, 50/60 Hz (DC 12V available)
-
Total Power: 7.2 W
-
Dimensions (W x D x H): 150 x 145 x 50 mm (Round)
-
Weight: 0.3 kg
-
Special Feature: Square version includes a pH sensor holder and clamp
