Description

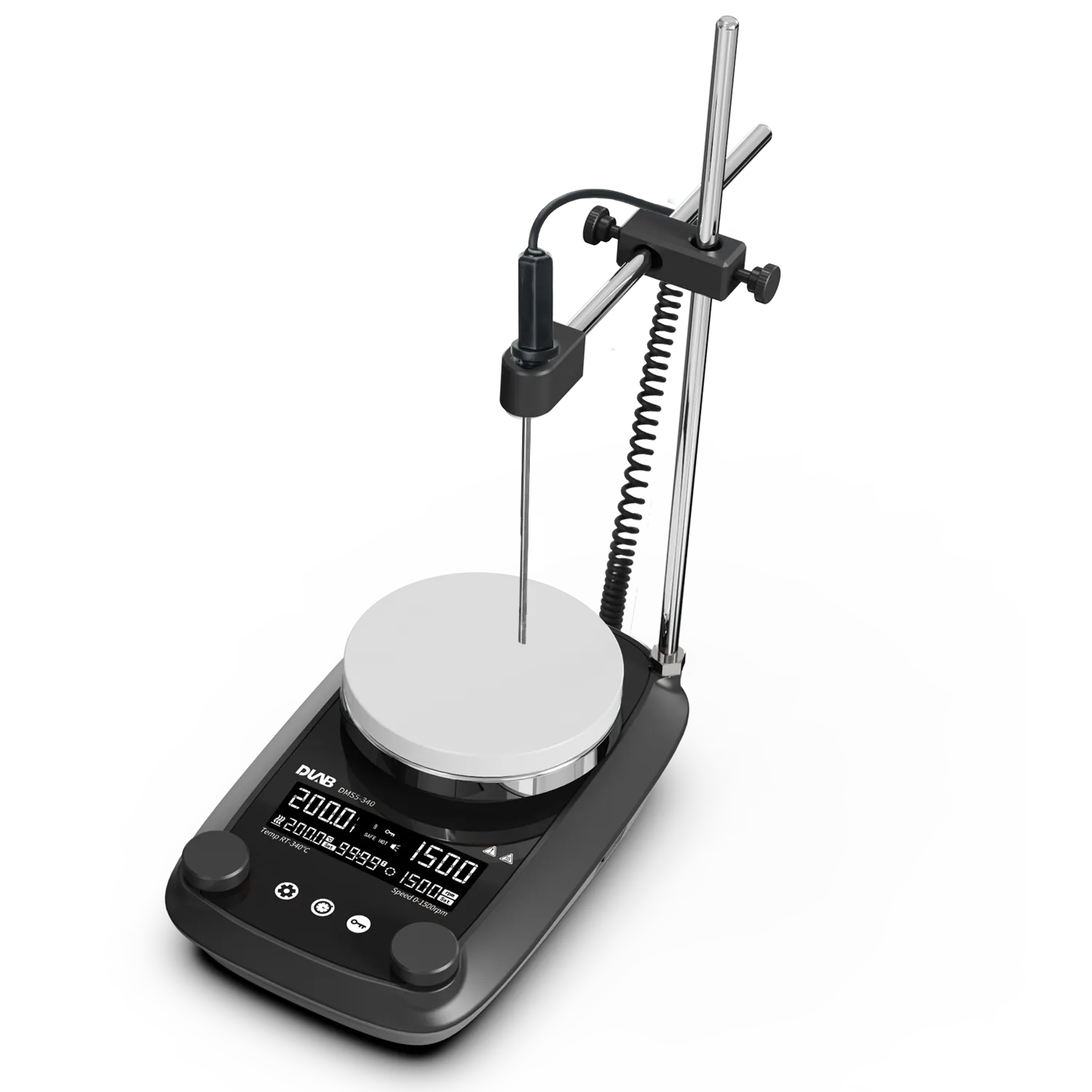

The DMS5?340 LCD Heating Magnetic Stirrer with Timer is a robust and versatile laboratory device designed for efficient mixing and precise thermal control of liquid samples. It features a brushless DC motor for quiet, maintenance?free operation and supports stirring speeds from approximately 50?to?1500?rpm to handle both simple and viscous solutions. A high?resolution LCD panel displays actual and set values for speed, temperature, and remaining time, while the programmable timer offers a wide range from 1?minute up to 99?hours and 59?minutes. The unit?s ceramic?coated glass?ceramic work surface is highly resistant to corrosion and easy to clean, and built?in safety circuits provide overheat protection and residual heat warnings. With a maximum heating range up to 340??C and compatibility with external temperature sensors, the stirrer delivers reliable performance for professional research, educational, and industrial laboratory environments.
Specifications
DMS5-340 LCD Heating Magnetic Stirrer with Timer Specifications
The DMS5-340 (often cataloged as part of the DLAB or AELAB series) is a high-capacity digital stirrer featuring a 5-inch ceramic-coated aluminum work plate and a programmable timer.1
-
Work Plate Dimension: 135 mm diameter (5 inch)2
-
Work Plate Material: Aluminum with ceramic coating3
-
Motor Type: Brushless DC motor (maintenance-free)4
-
Max. Stirring Quantity ($H_{2}O$): 20 Liters5
-
Max. Magnetic Bar Length: 80 mm6
-
Speed Range: 50 – 1500 rpm7
-
Speed Display: LCD8
-
Speed Increment: 1 rpm9
-
Heating Temperature Range: Room Temperature to 340°C10
-
Temperature Increment: 1°C11
-
Temperature Control Accuracy: ±1°C (12$< 100$°C) and ±1% (13$> 100$°C)14
-
Temperature Display Accuracy: ±0.1°C15
-
External Temperature Sensor: PT1000 compatible (Accuracy ±0.2°C)16
-
Heating Modes: 3 selectable modes (A: Rapid, B: Standard, C: Stable)17
-
Timer Function: 1 minute to 99 hours 59 minutes18
-
Safety Overheating Protection: 420°C (automatic cutoff)19
-
“Hot” Warning Indicator: Flashes above 50°C (works even after power-off)20
-
Safety Lock: Prevents accidental setting changes during operation21
-
Protection Class: IP4222
-
Data Connector: RS232 (for PC control/data logging)23
-
Heating Output: 600 W24
-
Total Power: 650 W25
-
Voltage/Frequency: 100-120V / 200-240V, 50/60 Hz26
-
Dimensions (W x D x H): 270 x 175 x 98 mm27
-
Weight: 2.2 kg28
-
Permissible Ambient Conditions: 5 to 40°C, 80% RH29
Key Features
-
Intelligent Timer: When the countdown reaches zero, the heating function automatically stops to protect the sample, but the stirring continues to ensure uniform cooling.30
-
Dual Monitoring: The high-resolution LCD independently shows set and actual values for speed, temperature, and time.31
-
Chemical Resistance: The ceramic-coated aluminum plate offers high thermal conductivity while remaining resistant to acids, alkalis, and solvents.32
-
Strong Magnetic Drive: Designed to maintain consistent torque even when processing viscous samples at larger volumes.33
