Description

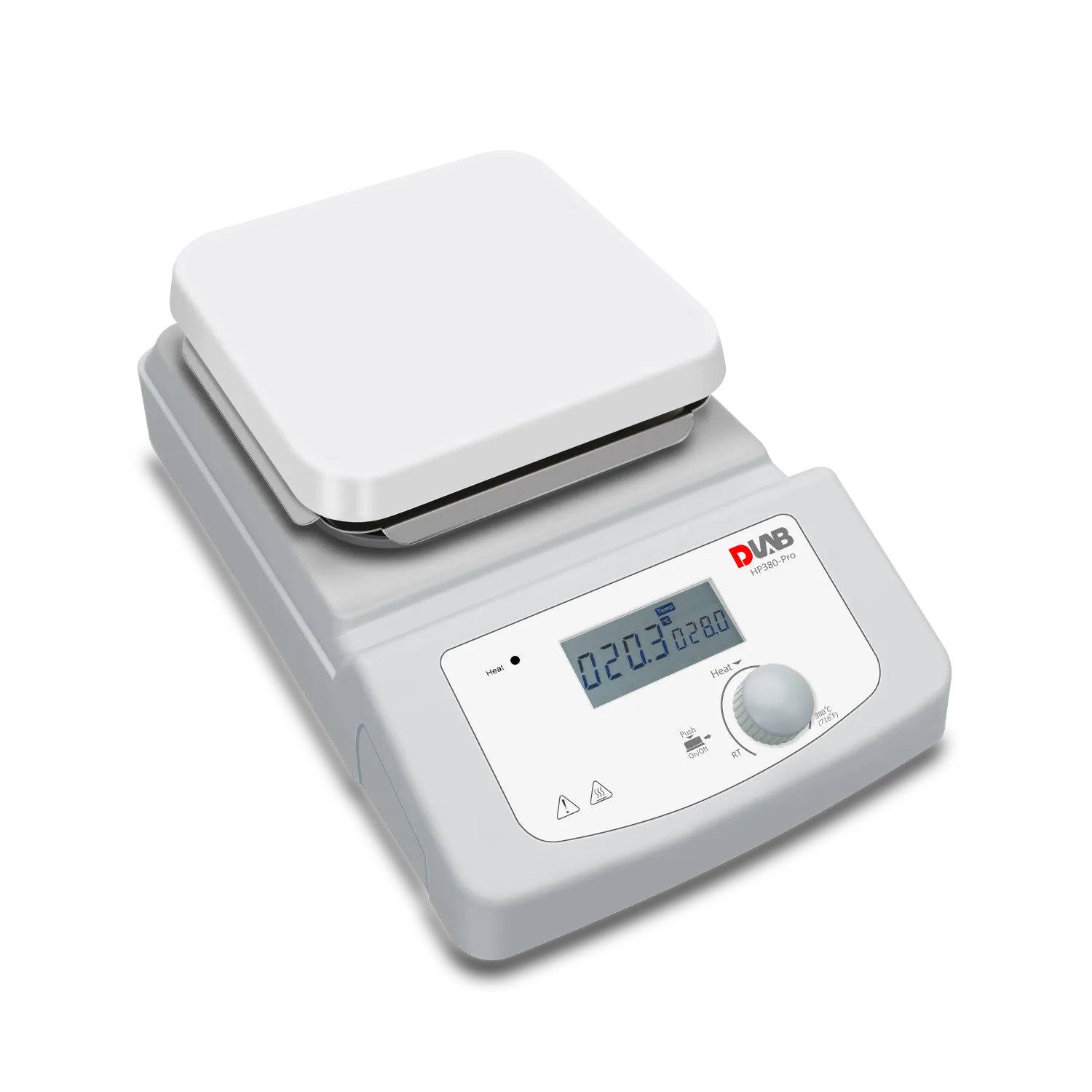

The HP380?Pro LCD Digital Hotplate is designed for reliable and accurate heating in laboratory environments, offering a maximum temperature of 380??C that suits a variety of applications in chemistry, biology, and analytical work. Its high?resolution LCD shows actual temperature readings for precise control, while the aluminum work surface with a ceramic coating enables rapid and uniform heat transfer. External temperature measurement is supported through a PT1000 sensor to enhance accuracy and consistency during thermal procedures. With robust construction and digital control, this hotplate provides dependable performance for routine lab tasks requiring stable and adjustable heating.
Specifications
DLAB HP380-Pro LCD Digital Hotplate Specs
The HP380-Pro is a high-precision digital hotplate designed for professional laboratory heating applications. It features a ceramic-coated aluminum work plate that balances the fast thermal conductivity of aluminum with the chemical resistance of a ceramic surface.
-
Work Plate Dimensions: 140 x 140 mm ($5.5 times 5.5$ inches)
-
Work Plate Material: Aluminum cover with ceramic coating
-
Heating Temperature Range: Room Temp $+5°C$ to $380°C$ (in $1°C$ increments)
-
Temperature Display: High-resolution LCD
-
Temperature Display Accuracy: $pm 1°C$ (or $pm 0.1°C$ on certain high-precision packages)
-
External Temperature Sensor: PT1000 compatible (Accuracy $pm 0.2°C$ to $pm 0.5°C$)
-
Overheat Protection: Safety hardware cutoff at $420°C$
-
Heating Output: 500 W
-
Total Power: 510 W
-
Protection Class: IP21
-
Dimensions (W x D x H): 180 x 320 x 108 mm
-
Weight: 2.2 kg
-
Voltage: 100–120V / 200–240V, 50/60 Hz
-
Permissible Ambient Conditions: $5–40°C$, 80% RH
Core Features & Benefits
-
Fast Heat Transfer: The aluminum core allows for rapid heating, while the white ceramic coating provides a high-contrast background for monitoring color changes in samples and resists corrosive chemicals.
-
Precise Monitoring: By using the external PT1000 sensor, the unit can control the heating based on the actual liquid temperature rather than just the plate surface temperature.
-
Safety “Hot” Warning: The display indicates when the plate is hot to touch, even after the heating function is turned off, reducing the risk of laboratory burns.
-
Durable Design: Constructed with a brushless DC motor (for the internal fan/components), it is designed for long-term maintenance-free operation.
