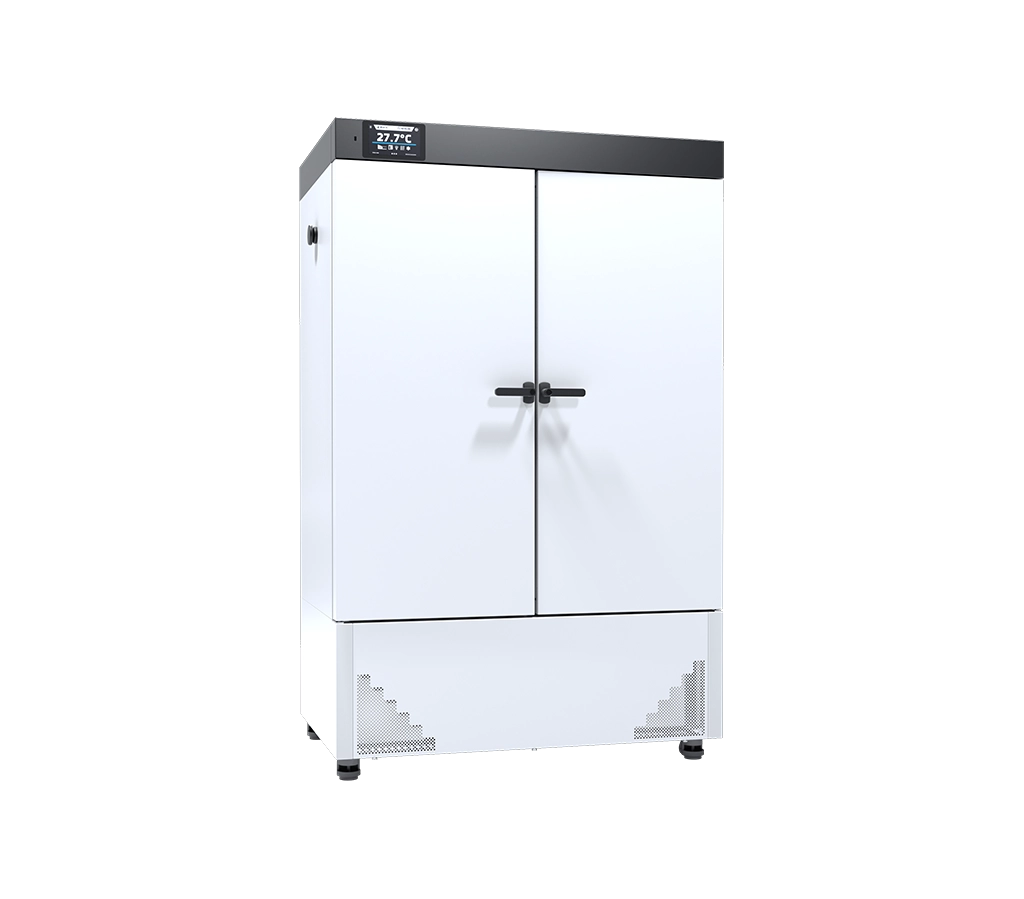

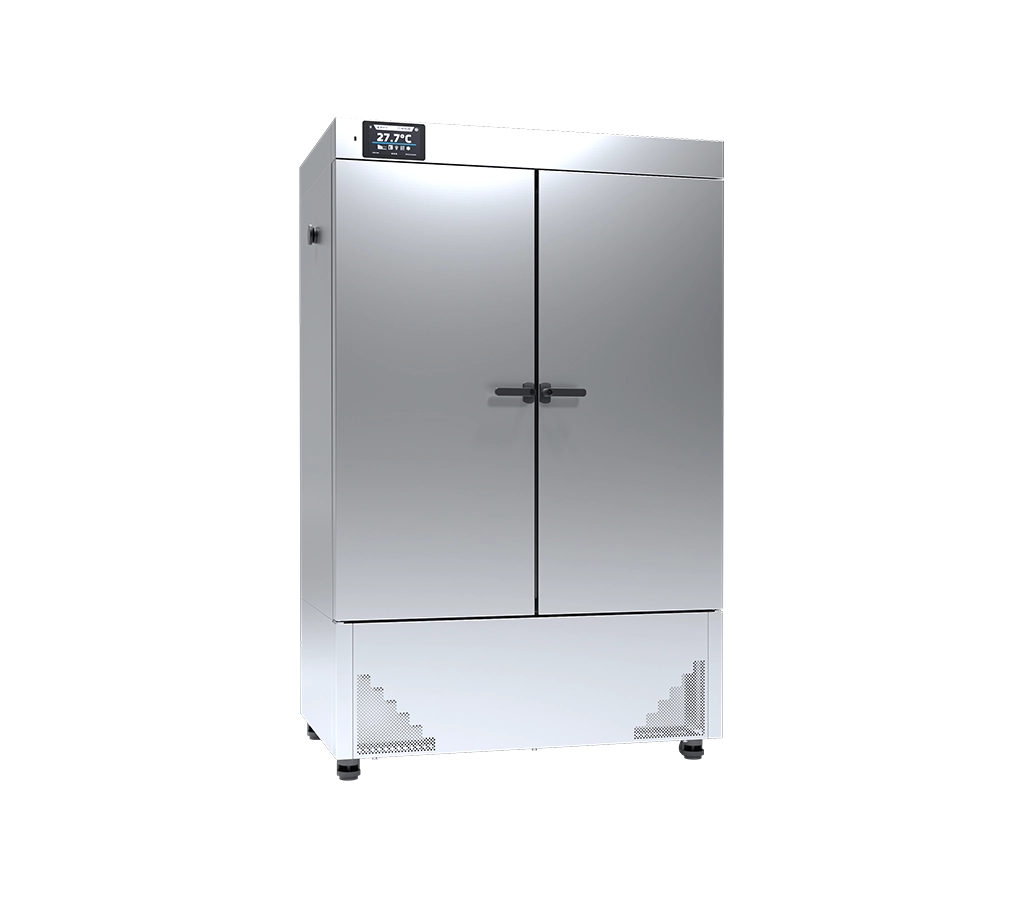

Climatic Chamber KKS 750

POL-EKO KKS 750 Climatic Chamber The KKS 750 is a high-capacity, 749-liter climatic chamber designed for high-throughput environmental simulation. Utilizing a vibration-free steam humidification system, it offers a broad temperature range of 0?C to +100?C and humidity control from 10% to 90% RH. Managed by the Smart PRO 7-inch touchscreen controller, it features advanced data logging, Wi-Fi connectivity, and multi-segment programming. This unit is the ultimate solution for large-scale ICH pharmaceutical stability testing, building material aging, and sensitive biological breeding.

SKU: KKS 750 Categories: , Brand: Product ID: 21630

Description

The POL-EKO KKS 750 Climatic Chamber is the ideal choice for laboratories requiring maximum throughput and uncompromising precision. With a massive 749-liter internal capacity, this floor-standing unit allows researchers to consolidate multiple testing cycles into a single chamber. The hallmark of the KKS series is its steam-based humidification, which provides a distinct advantage over ultrasonic systems: it operates without high-frequency vibrations, making it safe for delicate biological research (such as Drosophila breeding), and it reliably maintains high humidity at temperatures up to +100?C.

The Smart PRO Advantage: Control is effortless via the Smart PRO interface, featuring a 7-inch color touchscreen. The controller allows for the creation of 40 custom programs with up to 100 segments each, simulating complex daily cycles or long-term stability ramps.

Safety First: Equipped with Class 3.3 over-temperature protection (DIN 12880), an “Alarm Bar” for instant visual status, and power failure memory.

Connectivity: Integrated Wi-Fi, LAN, and USB ports ensure that data is always accessible, while the LabDesk software enables full GLP/GMP-compliant reporting.

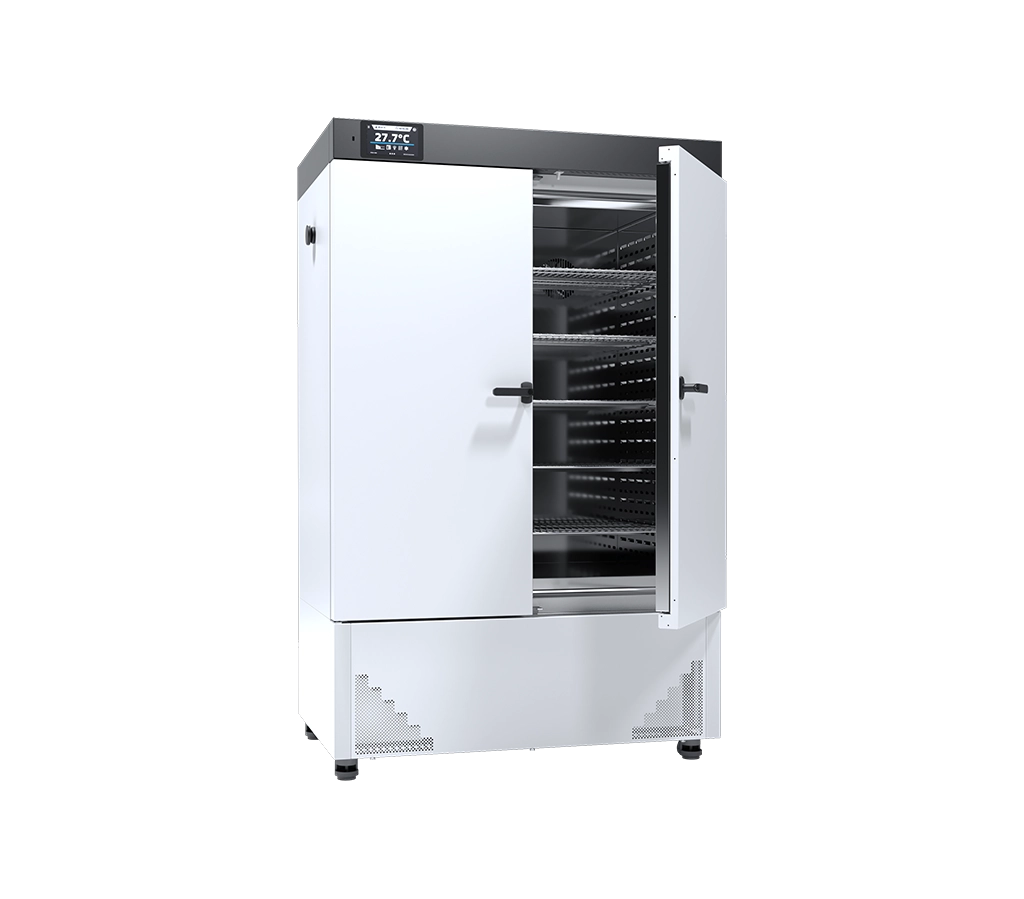

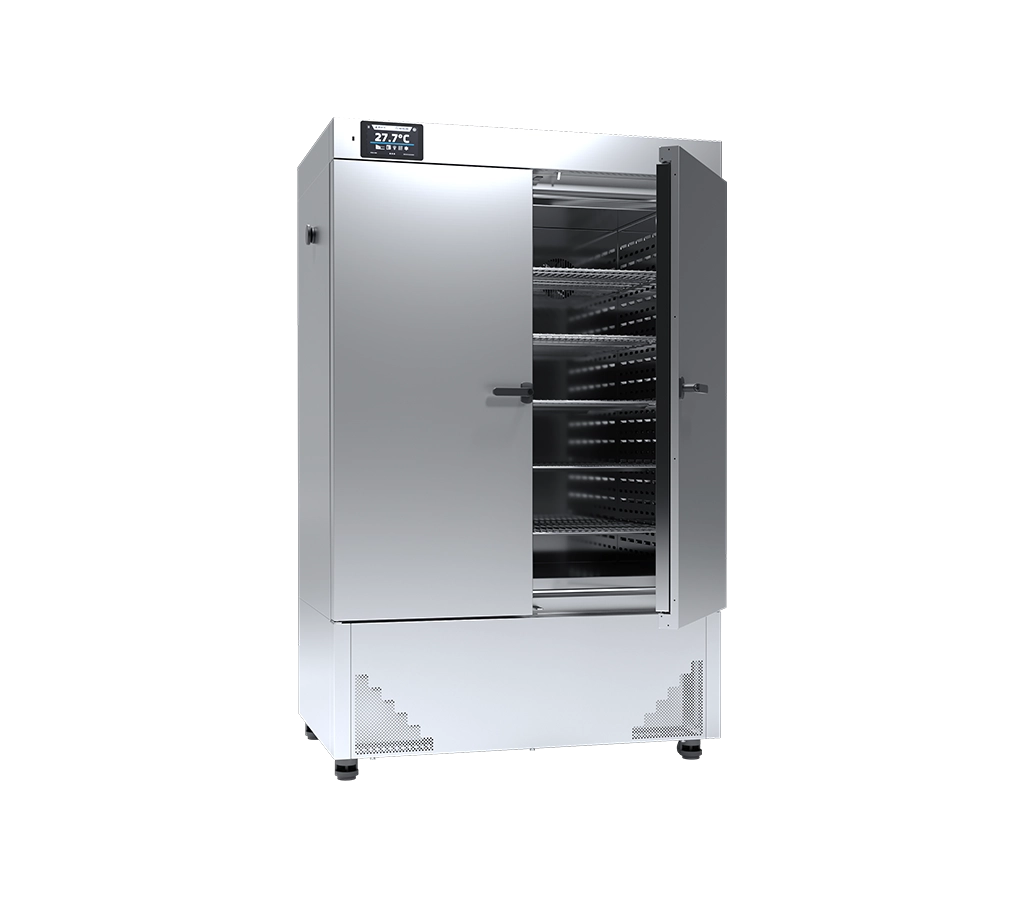

Premium Construction for Industrial Use: The KKS 750 is built for heavy-duty use, featuring an acid-proof stainless steel interior and a double-door system. The solid outer door is lockable to prevent unauthorized access, while the internal glass door permits sample observation without disturbing the internal microclimate. Forced air convection with adjustable fan speeds ensures that even a fully loaded chamber maintains exceptional temperature and humidity uniformity.

Key Applications:

Pharmaceutical Stability: Large-scale ICH Q1A (R2) stability testing and sample storage.

Industrial Material Testing: Aging and stress tests for building materials, polymers, and large electronic assemblies.

Large-Scale Biology: Mass breeding of insects or large-batch plant growth and seed germination.

Food & Packaging: Comprehensive shelf-life studies and packaging integrity tests.

Datasheet

Specifications

Here are the specifications for the KKS 750 Smart PRO in a clean, copy-paste-ready format without citations or referral links.

Specifications: KKS 750 Smart PRO

Capacity and Convection

Air Convection: Forced

Chamber Capacity: 923 Liters

Working Capacity: 749 Liters

Temperature and Humidity

Temperature Range: 0 to +100°C

Temperature Resolution: 0.1°C

Temperature Variation (at 25°C/60%rH): +/- 1°C

Relative Humidity Range: 10% to 90%

Humidity Resolution: 0.1%

Humidity Variation (at 25°C/60%rH): +/- 2%

Chamber and Build

Internal Material: Acid-proof stainless steel (DIN 1.4301)

Door Type: Double door (solid external, glass internal)

Shelves: 5 standard (up to 16 maximum)

Max Shelf Workload: 100 kg (reinforced version)

Max Unit Workload: 140 kg

Dimensions and Weight

External Dimensions (WxHxD): 1270 x 1990 x 980 mm

Internal Dimensions (WxHxD): 1040 x 1200 x 600 mm

Weight: 275 kg

Electrical and Controller

Controller: Microprocessor PID with 7″ full-color touch screen

Communication: LAN, USB, and WiFi

Voltage: 230V 50/60Hz

Nominal Power: 2700W

Refrigerant: R290 (GWP=3)
