Climatic Chamber KKS 1450

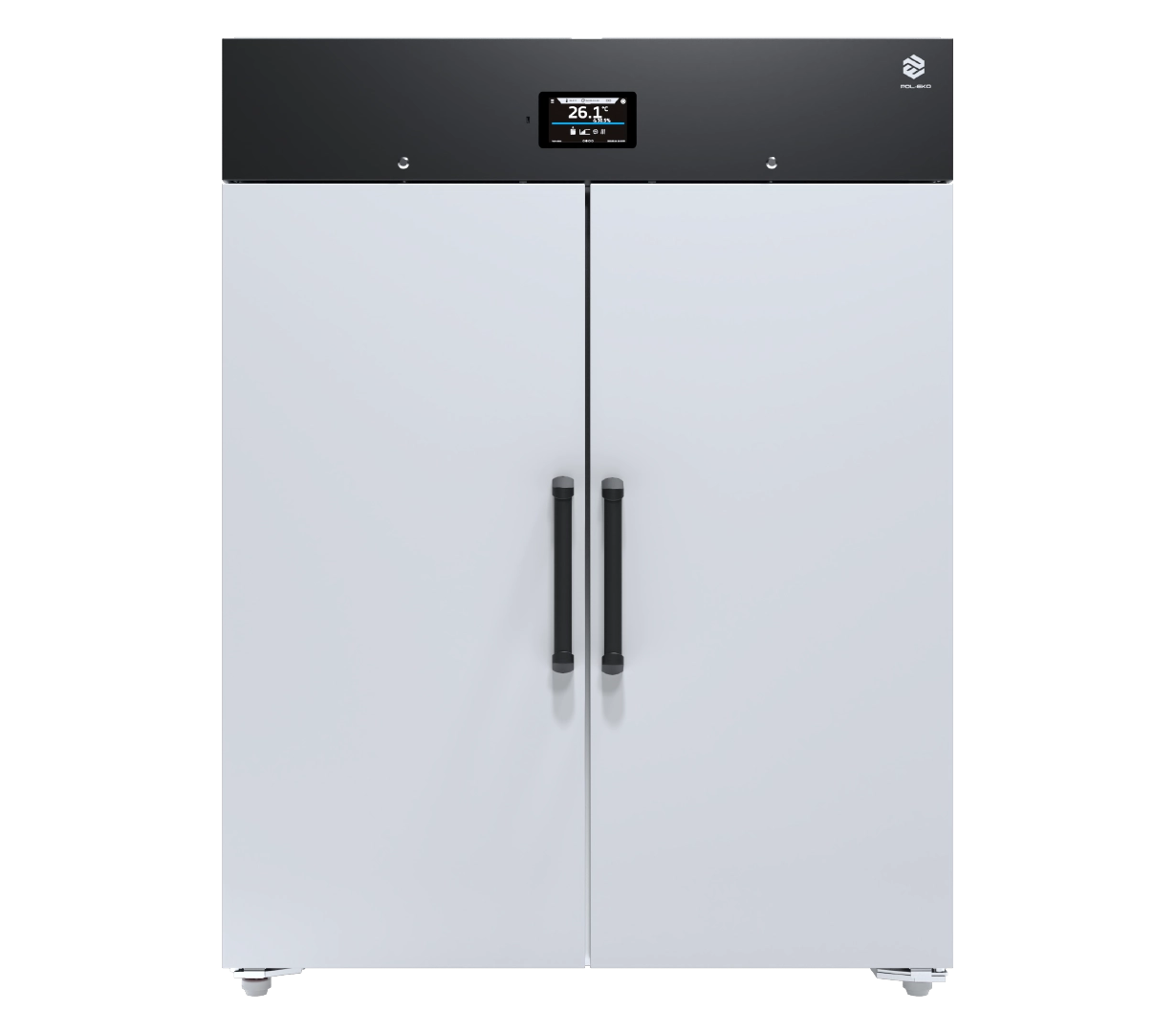

POL-EKO KKS 1450 Climatic Chamber The KKS 1450 is a high-capacity, 1564-liter double-door climatic chamber engineered for the most demanding large-scale stability and environmental tests. Featuring a silent, vibration-free steam humidification system, it provides a stable temperature range of 0?C to +60?C and humidity from 10% to 90% RH. Managed by the Smart PRO 7-inch touchscreen controller, the KKS 1450 offers advanced multi-segment programming, Wi-Fi connectivity, and full GLP-compliant data logging. It is the premier choice for high-throughput ICH pharmaceutical trials, large-batch seed germination, and insect breeding.

SKU: KKS 1450 Categories: , Brand: Product ID: 21634

Description

The POL-EKO KKS 1450 represents the pinnacle of capacity and precision in climatic simulation. With its massive 1564-liter internal volume and double-door architecture, this unit is designed for laboratories and industrial facilities that must manage thousands of samples or oversized components simultaneously. By employing steam humidification technology, the KKS 1450 avoids the high-frequency vibrations and noise of ultrasonic systems, creating a stable, “silent” environment that is essential for delicate biological applications, such as the mass breeding of Drosophila melanogaster and long-term plant growth studies.

Intelligent Control & Global Connectivity: Equipped with the top-tier Smart PRO controller, the KKS 1450 offers a high-resolution 7-inch color touchscreen interface. Users can program up to 40 custom profiles with 100 segments each, simulating complex day/night cycles or multi-week stability ramps.

Data Integrity: Integrated Wi-Fi, LAN, and USB ports allow for remote monitoring and effortless data export. The system includes an internal memory for 10,000 records and is fully compatible with LabDesk software for GLP/GMP-compliant reporting.

Unmatched Safety: Standard features include Class 3.3 over-temperature protection (DIN 12880), “Open Door” alarms, and the signature “Alarm Bar” for immediate visual status recognition across the laboratory.

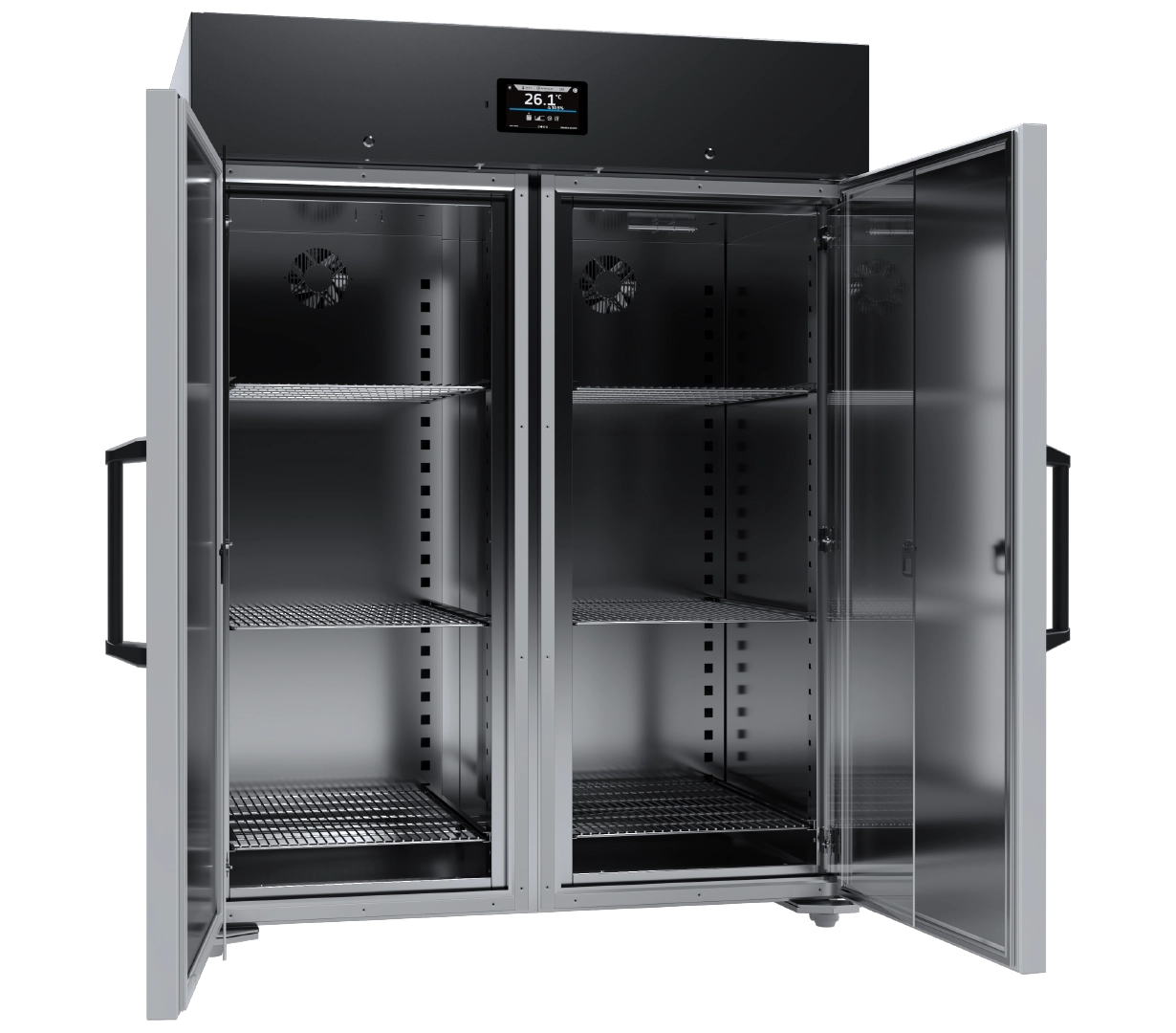

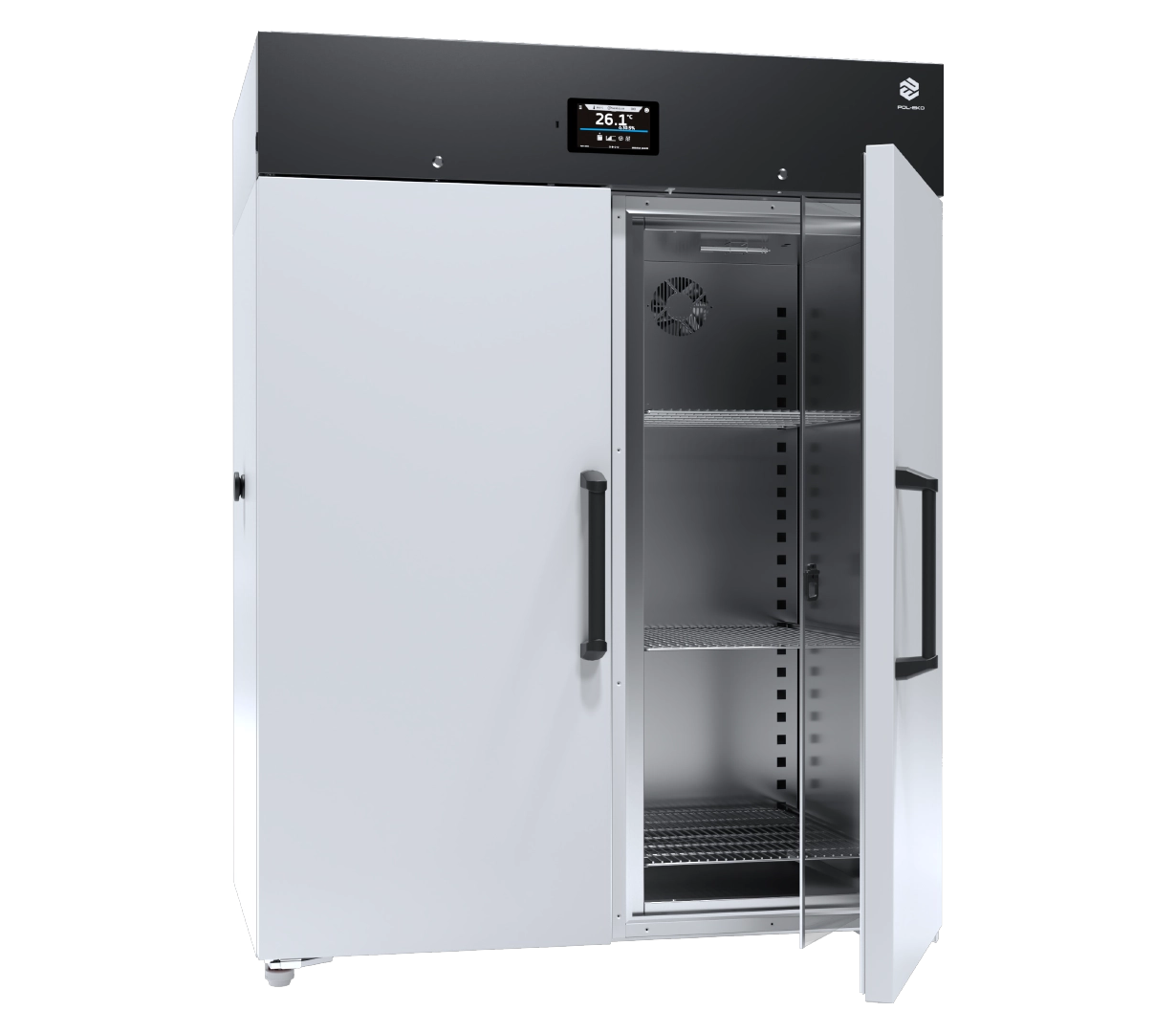

Industrial-Grade Construction: The KKS 1450 is built for longevity with an interior of acid-proof stainless steel (DIN 1.4301). Its double-door system?comprising two insulated solid outer doors and two internal glass doors?allows researchers to access or inspect specific sections of the chamber without a total loss of the internal microclimate. The unit is mounted on heavy-duty lockable castors for mobility and includes a standard 30mm access port for external validation sensors.

Primary Applications:

Pharmaceuticals: High-throughput stability testing according to ICH Q1A (R2) guidelines.

Agriculture & Botany: Large-scale phytotron research, seed germination, and plant physiology (available with FIT options).

Industrial Testing: Accelerated aging and stress testing of large electronics, plastics, and packaging.

Life Sciences: Vibration-free mass breeding of insects and microorganisms.

Specifications

Pol-Eko Climatic Chamber KKS 1450 — Technical Specifications
🌡 Temperature & Humidity

Temperature range: 0 … +60 °C (standard) (optional –10 … +60 °C available)

Temperature resolution: 0.1 °C

Temperature variation: ±1 °C (at 25 °C / 60 % RH)

Humidity range: 10 … 90 % RH

Humidity resolution: 0.1 %

Humidity variation: ±2 % RH (at 25 °C / 60 % RH)

Humidity control: Steam humidification system

🧪 Chamber Volume & Construction

Total chamber capacity: ~1,564–1,565 L

Working (usable) capacity: ~1,326 L

Interior: Acid-proof stainless steel (DIN 1.4301)

Exterior: Powder-coated sheet (option: stainless steel linen finish)

Door configuration: Double-door (solid outer + glass inner)

Forced air convection for uniform environment

📟 Controller & Interface

Controller: Smart PRO microprocessor PID controller

Display: 7″ full-colour touchscreen

Connectivity: Wi-Fi, LAN, USB (remote monitoring & data export)

Programming: Multi-segment time/temperature profiles & internal storage

Safety: Over-temperature protection per DIN 12880 class 3.3

🧰 Shelves & Accessories

Standard shelves: 2 × 3 shelves (total 6)

Max number of shelves: up to 11 with optional kits

Max shelf load: 30 kg per shelf (option: reinforced 100 kg)

Max total load: ~300 kg inside chamber

External sensor port: Ø 30 mm access hole

🔌 Electrical & Physical Data

Voltage: 230 V, 50/60 Hz (single or three-phase options possible)

Nominal power: ~2,500–2,800 W

Refrigerant: R290 (low GWP)

Weight: ~230 kg

Mobility: Castors included

📌 Standard Features / Extras

Automatic defrosting

Open-door alarm

Password user protection & lockable doors

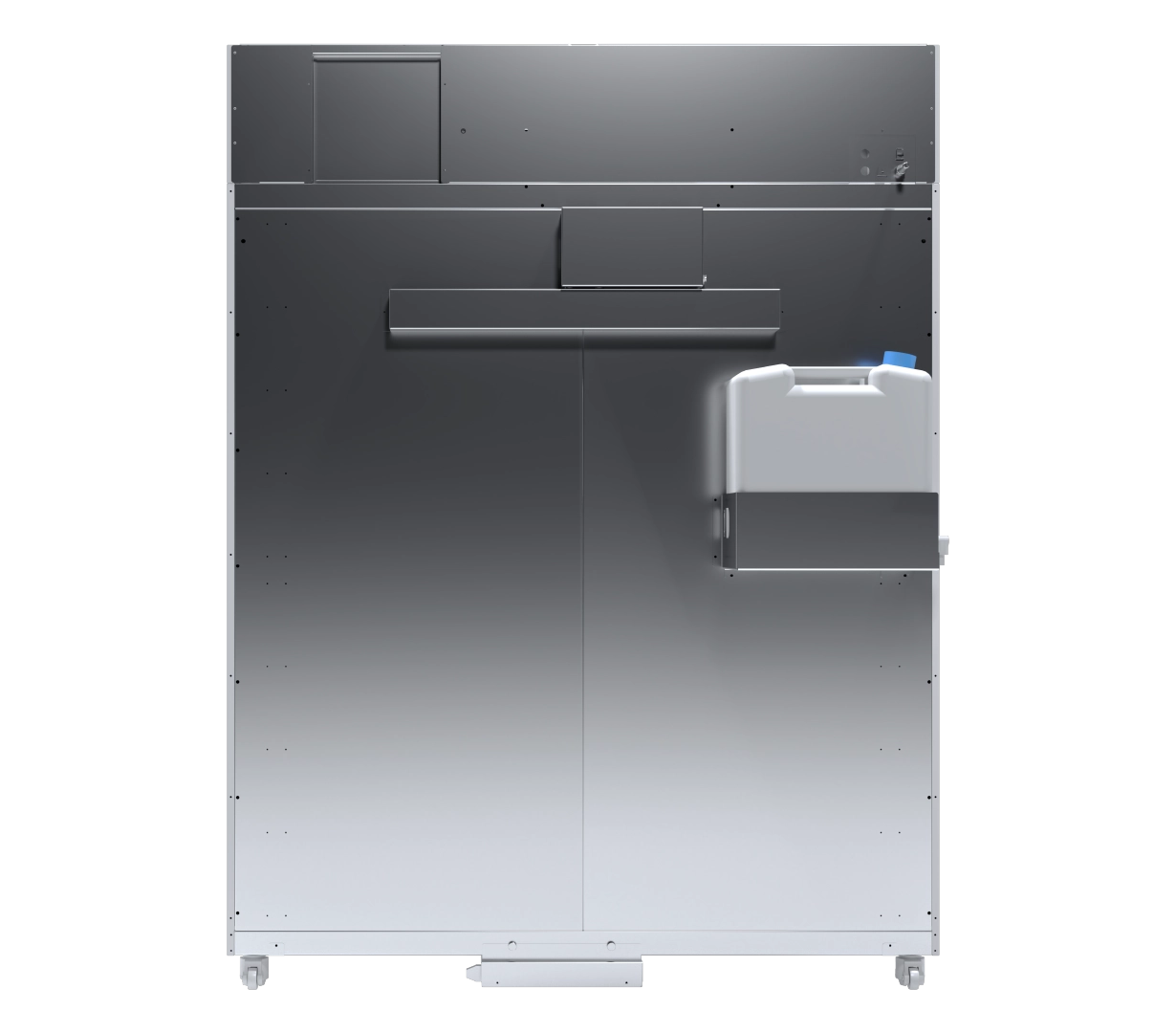

Deionized water container integrated

Remote management with LabDesk software
