Climatic Chamber KKS 115

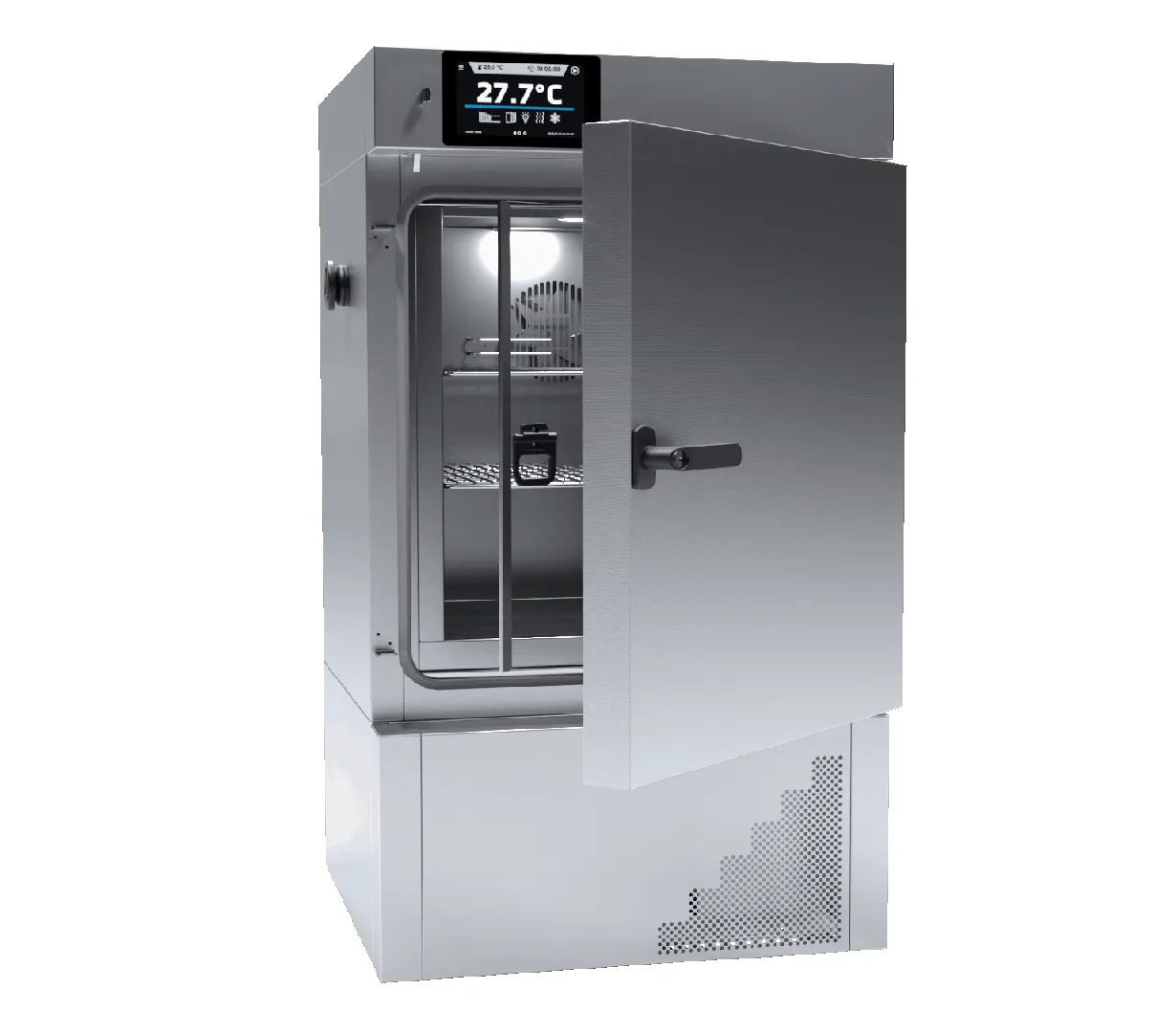

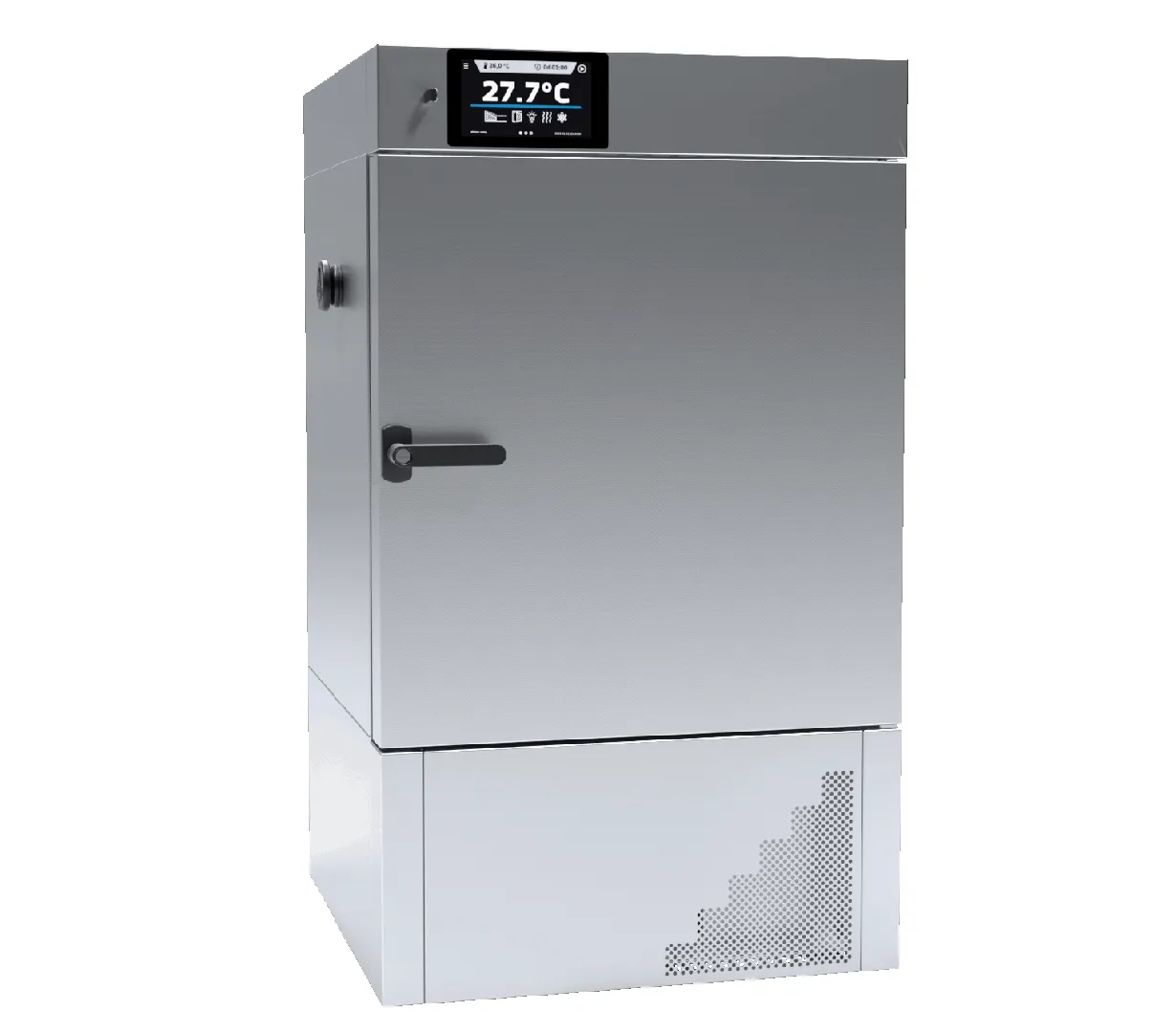

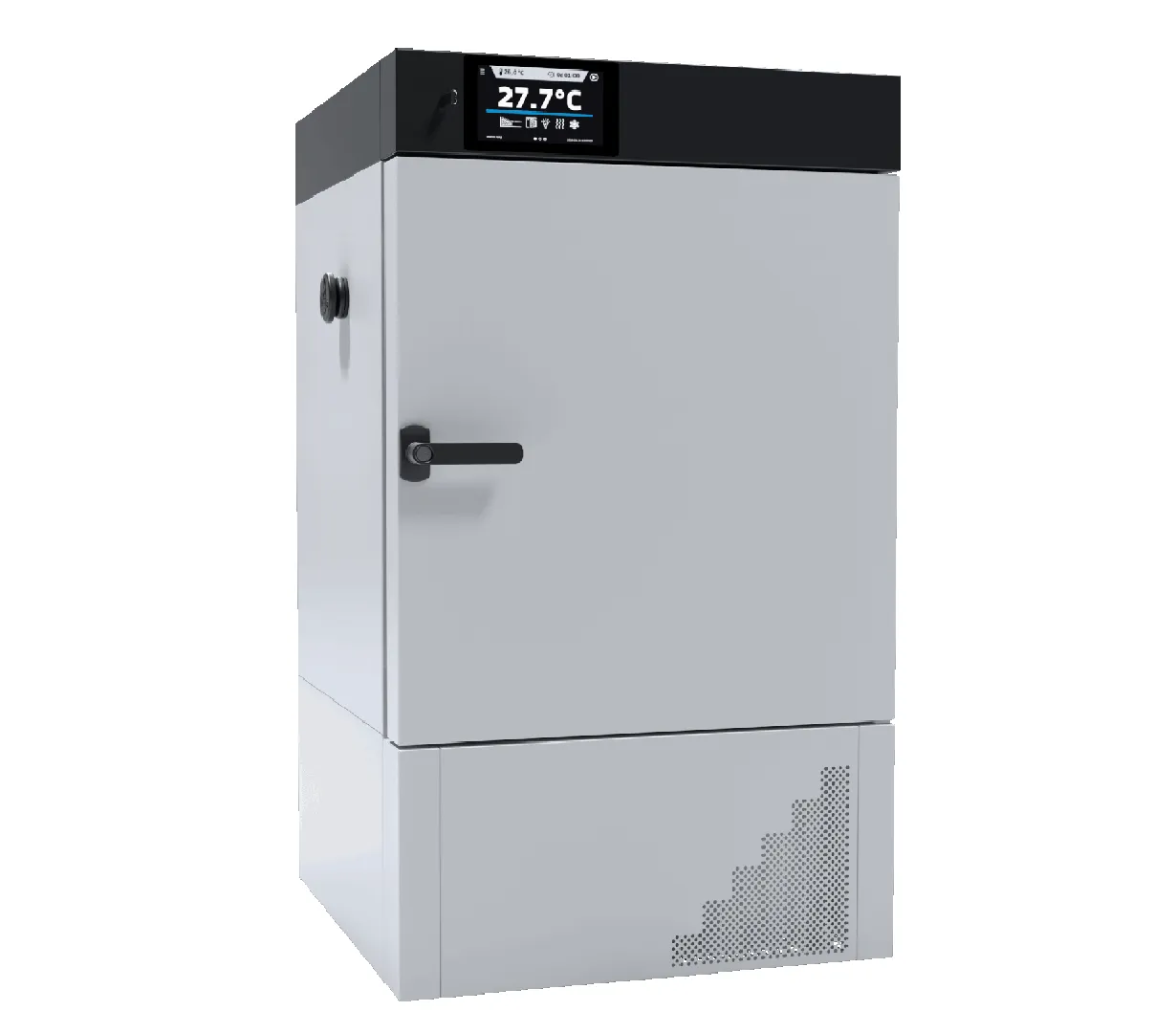

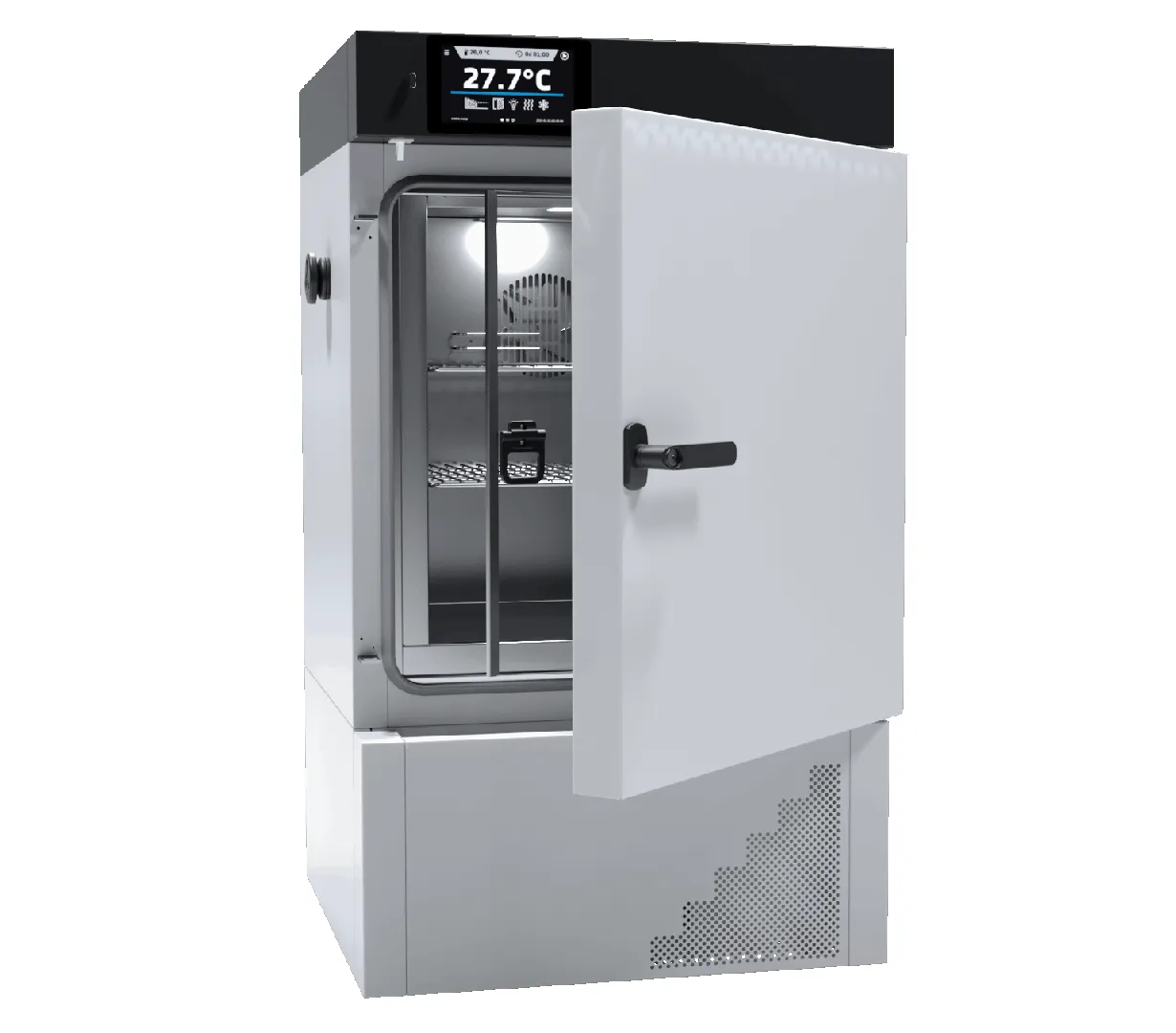

POL-EKO KKS 115 Climatic Chamber The KKS 115 is a high-performance 109-liter climatic chamber featuring a specialized steam humidification system. Designed for precise environmental simulation, it offers an extended temperature range of 0?C to +100?C and humidity control from 10% to 90%. Equipped with the advanced Smart PRO touch-screen controller, it is the ideal choice for stability testing in pharmaceuticals, electronics stress testing, and insect breeding (e.g., Drosophila melanogaster) where ultrasonic interference must be eliminated.

SKU: KKS 115 Categories: , Brand: Product ID: 21627

Description

KKS 115: Precision Environmental Control with Steam Humidification

The POL-EKO KKS 115 Climatic Chamber represents the pinnacle of reliability for laboratories requiring a stable and reproducible environment. While standard climatic chambers often use ultrasonic humidifiers, the KKS 115 utilizes a built-in steam generator. This technological choice offers two distinct advantages: it allows for a higher maximum temperature (+100?C) and ensures a vibration-free environment, making it uniquely suited for entomology and sensitive microbiological research.

Advanced Control & Connectivity: Powered by the Smart PRO controller, the KKS 115 features a 7-inch color touchscreen that acts as the nerve center for your research. It supports up to 40 user programs and 100 segments, allowing for complex temperature and humidity ramps. With integrated Wi-Fi, LAN, and USB ports, data logging is fully automated and GLP-compliant, providing easy access to event registries and measurement data via the included LabDesk software.

Superior Construction: The chamber is built for longevity with an interior made of acid-proof stainless steel (DIN 1.4301). A double-door system?comprising a solid outer door with a lock and an internal glass door?allows users to inspect samples without disrupting the internal atmosphere. Forced air convection ensures uniform conditions throughout the 109-liter workspace, even when the chamber is fully loaded.

Key Applications:

Pharmaceuticals: Stability testing according to ICH Q1A guidelines.

Electronics & Materials: High-temperature humidity stress tests for components and plastics.

Life Sciences: Vibration-free breeding of insects (Drosophila) and microorganisms.

Food Industry: Preservation and shelf-life testing under varied climates.

Specifications

General

Forced air convection for uniform conditions.

Model: KKS 115 with Smart PRO controller (microprocessor PID, 7″ full-colour touchscreen).

Over-temperature protection: class 3.3 per DIN 12880.

Double door: external solid door + internal glass (optional external glass).

Access port: Ø 30 mm for external sensors.

Open-door alarm, LAN & USB ports, Wi-Fi communication and LabDesk software included.

Castors (wheels) included for mobility.

Automatic defrosting and door lock standard.

Temperature & Humidity

Temperature range: 0 to +100 °C.

Temperature resolution: 0.1 °C.

Temperature variation: ~±2 °C at +25 °C & 60 % RH.

Humidity range: approx. 10 % to 90 % RH.

Humidity resolution: ~1 %.

Humidity variation: ~±5 % RH at +25 °C & 60 % RH.

Chamber Capacity

Chamber capacity: ~109 L.

Working capacity: ~109 L.

Interior & Shelving

Interior: Acid-proof stainless steel to DIN 1.4301.

Shelves: Typically 2 stainless steel wire shelves; optional up to 7.

Max shelf load: ~10 kg (standard), reinforced option ~50 kg.

Max unit load: ~60 kg.

Dimensions & Weight

External dims (approx): 660 × 1330 × 820 mm (W×H×D).

Internal dims (approx): ~460 × 530 × 440 mm (W×H×D).

Weight: ~122 kg.

Electrical

Voltage: 230 V, 50/60 Hz.

Nominal power: ~2900 W.

Refrigerant: R1234ze (low GWP).

Applications
Used for environmental and stability testing, seed germination and plant growth trials, material testing, food and product conditioning, quality control, and R/D requiring controlled temperature & humidity.

Datasheet
