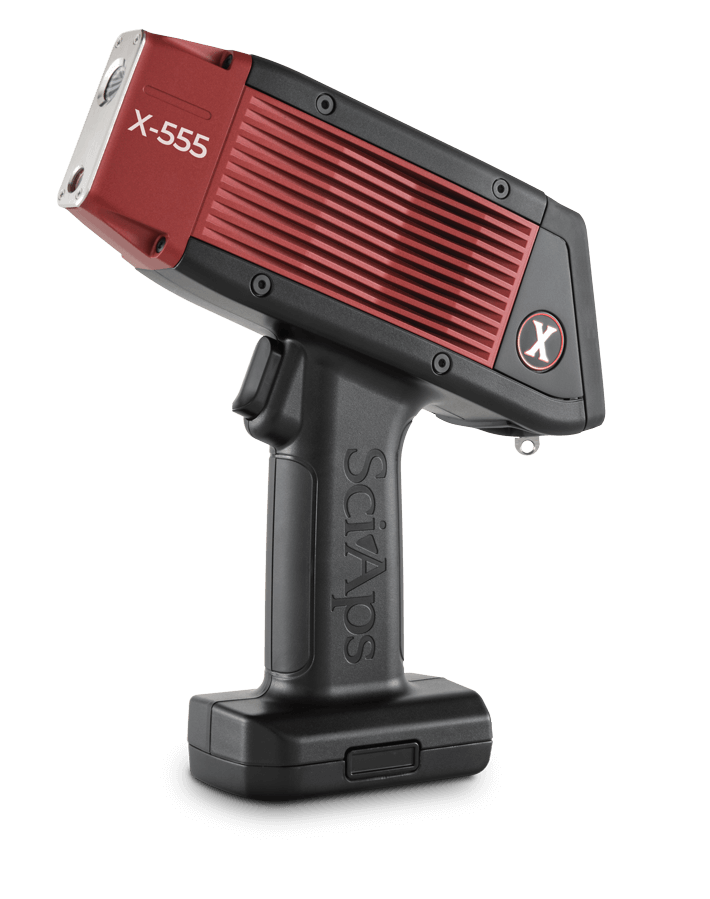

X-555 XRF Analyzer

X-555 XRF Analyzer

Premium performance begins with the most advanced handheld XRF technology available, led by a 55 kV X-ray tube for extra low detection limits on key elements like Ag, Cd, Sn, Sb, and Ba. Up to three automated beam settings provide optimal performance across the entire periodic table from Mg to U. All in a rugged instrument with state-of-the-art software and outstanding thermal dissipation.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: X-555 Categories: , , , Brand: Product ID: 23166

Description

In Use Globally

Mining
Best-in-class light element performance for ultra low detection limits of elements like Mg, Al, Si, P, and S, while also packing enough power to achieve impressive precision on heavy elements like pathfinders Ag, Sn, Sb, and rare earth elements. Read more: SciAps for Geochemistry and X-555 Geochemistry Specifications.

‍Soils
Appropriate filtering to optimize sensitivity — 2x better analysis of cadmium detection than any other XRF!  Packs the industry’s most powerful X-ray tube for superior limits of detection—especially for cadmium, silver, tin, antimony and barium. When combined with the new Z-901 Beryllium, get 13 EPA Priority Pollutant Metals. Operators can upgrade the Z-901 Lithium to include lithium, boron, carbon, nitrogen, fluorine, and sodium in their tests, too. Read more: SciAps for Environmental Analysis and X-555 Environmental Specifications.

‍Regulatory Markets
Next-generation connectivity, test data management and reporting for the full range of compliance testing applications, including RoHS, Halogen Free, CPSIA, and lead paint in children’s playgrounds. State-of-the-art data management incorporated into a flexible Android system allows for the greatest customization and data management capabilities. Read more: SciAps for Regulatory Compliance.

‍Electric Vehicle and Strategic Metals
The 55 kV operation, rather than the industry typical 50 kV, delivers higher performance for critical “light” REEs and some “heavy” REEs, making it a superior option for REE analysis globally. Read more: SciAps for Electric Vehicle & Strategic Metals.

SciAps XRF analyzers are the lightest ever made, weighing in at just under 3 lbs. with battery. The durable aerospace-grade aluminum frame passes the Oops Test and the falling-from-a-35-foot-tower test. Redesigned housing with improved heat dissipation allows for high throughput testing that our customers demand. A narrow, slender form factor accesses the toughest test locations, with a 2.7″ display for rear viewing of grade and chemistry. Download the specifications.

Specifications

Core Analytical Components

  • Excitation Source: 5 W X-ray tube. Operates at a maximum of 55 kV and 200 µA. It typically uses a Gold (Au) anode.




  • Detector: 50 mm² Large Area Silicon Drift Detector (SDD). It features a resolution of <140 eV FWHM at the 5.95 Mn K-alpha line.




  • X-Ray Filtering: 6-position automated filter wheel for optimizing the beam across different elemental ranges.



  • Pulse Processor: 12-bit with a digitization rate of 80 MSPS; 8K channel MCA. Uses FPGA-based digital filtering for high throughput (20 ns – 24 µs peaking time).




Performance & Capabilities

  • Analytical Range: Standard calibration for 32 elements, covering the periodic table from Magnesium (Mg) to Uranium (U).



  • Primary Applications: Specifically optimized for Geochemistry (Rare Earth Elements), Environmental Soil (EPA Method 6200), Mining, and RoHS/WEEE compliance.



  • Beam Settings: Up to three automated beam settings to ensure optimal sensitivity for light, transition, and heavy elements.



  • Calibration Method: Fundamental Parameters (FP). Geochem and Soil apps can also utilize Compton Normalization or empirical calibrations.




Hardware & System Architecture

  • Weight: Approximately 2.98 lbs (1.35 kg) including the battery.



  • Dimensions: 8.5 x 9.5 x 2.4 inches.



  • Processor: 1.2 GHz ARM Cortex-A53 quad-core (64/32-bit).



  • Memory & Storage: 2 GB LPDDR3 RAM and 16 GB eMMC internal storage.



  • Operating System: Android-based platform with an app-driven interface.



  • Display: 2.7-inch high-brightness color capacitive touchscreen. It features a rear-facing design for easy viewing during active testing.




Connectivity & Power

  • Data Transfer: Built-in Wi-Fi, Bluetooth, and USB. Compatible with SciAps Profile Builder software for PC/tablet and SciAps Cloud Services.



  • Power Source: On-board rechargeable Li-ion battery. Supports hot-swap capability (up to 60 seconds) to maintain power during battery changes.




  • Cameras: Internal high-resolution camera for sample targeting and a second macro-camera for photo documentation and barcode/QR code reading.



Environmental & Regulatory

  • Temperature Range: 10°F to 130°F (-12°C to 54°C) at a 25% duty cycle.



  • Construction: Durable aerospace-grade aluminum frame.



  • Regulatory Compliance: CE, RoHS, USFDA registered, and Canada RED Act compliant.



  • Security: Password-protected multi-user support with configurable access levels.

Datasheet

Download Datasheet
