Description

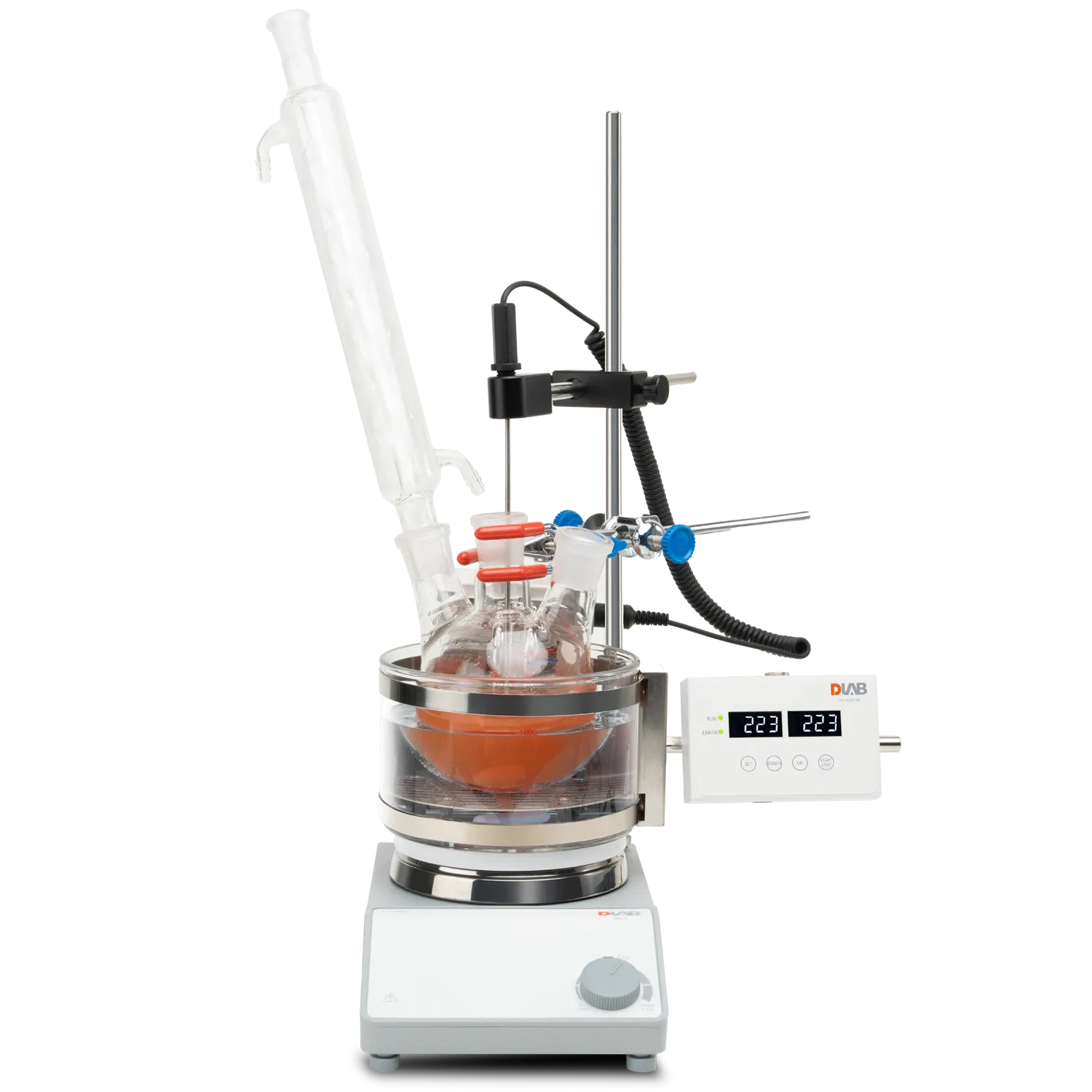

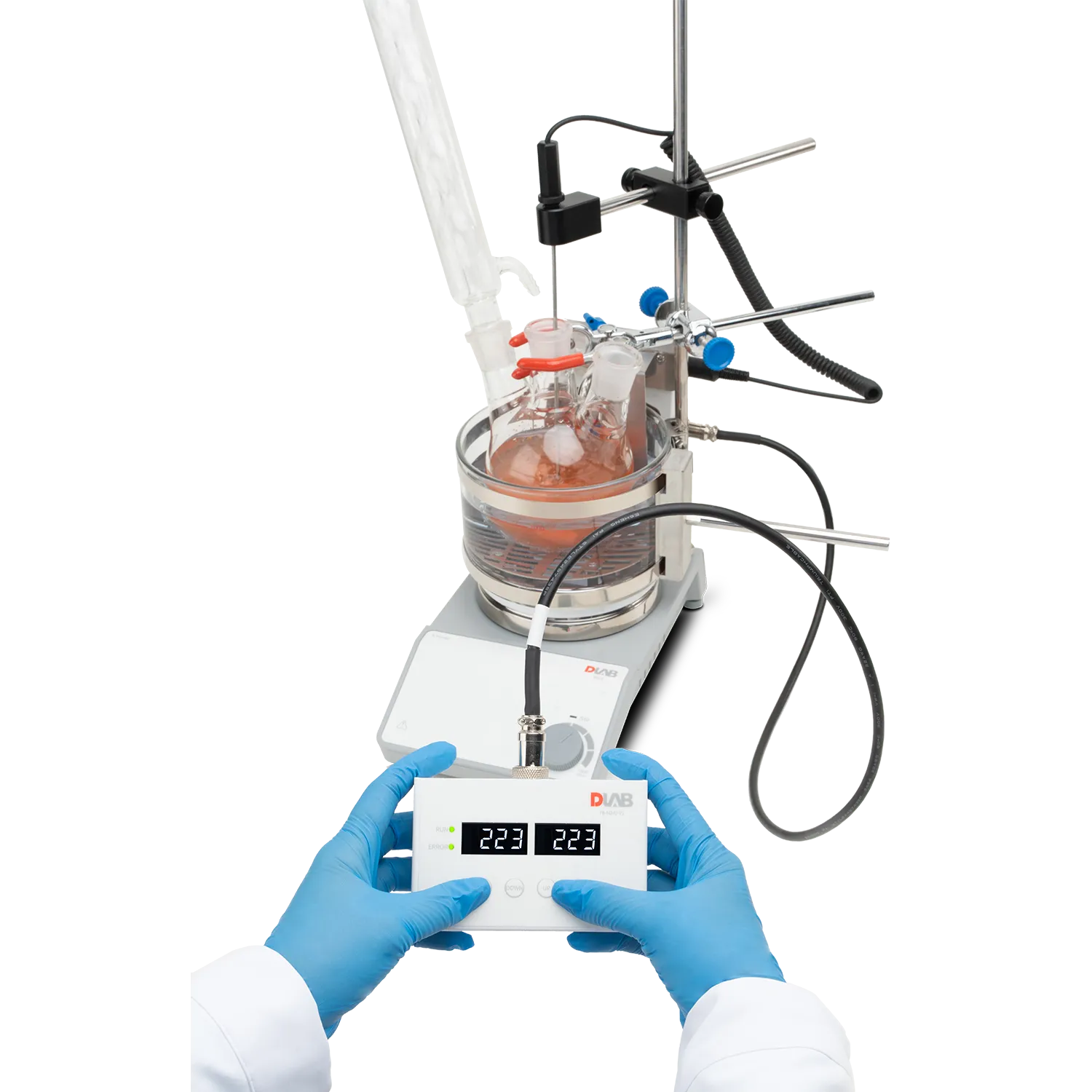

The TB?H240?V1 Constant Temperature Bath is engineered for laboratory processes requiring stable and uniform heating across a wide temperature range. With intelligent PID temperature control and a clear glass bath tub, the unit ensures efficient heat transfer and visible sample observation during experiments. Its temperature range of 25??C to 240??C with ?0.5??C control accuracy supports diverse applications such as pharmaceutical research, chemical synthesis, polymer testing, and academic labs. Safety and convenience are enhanced by features including a remote controller, protective guard design, over?temperature protection, and intuitive interface with calibration and reset functions. Compact and reliable, this temperature bath is a versatile tool for precise, repeatable laboratory heating tasks.
Specifications
TB-H240-V1 Constant Temperature Bath Specifications
The TB-H240-V1 is a high-precision digital water bath designed for applications requiring extremely stable temperature environments, such as calibration, sample incubation, and chemical reactions. It features a sophisticated circulation system to ensure high uniformity throughout the entire tank volume.
Technical Parameters
-
Chamber Capacity: 24 Liters
-
Temperature Range: Ambient +5°C to 100°C
-
Temperature Resolution: 0.1°C
-
Temperature Uniformity at 37°C: ±0.1°C
-
Temperature Fluctuation at 37°C: ±0.05°C
-
Controller: Microprocessor PID with LCD display
-
Temperature Sensor: Pt100
-
Nominal Power: 1200 W
-
Voltage: 230V 50/60 Hz
Physical and Material Data
-
Internal Dimensions (W x H x D): 300 x 240 x 300 mm
-
Overall Dimensions (W x H x D): 380 x 450 x 420 mm
-
Internal Material: Acid-proof stainless steel (DIN 1.4301)
-
Housing Material: Powder-coated sheet or Stainless steel linen finish (IG models)
-
Unit Weight: 18 kg
-
Drain Valve: Standard (located at the rear or side)
Functional and Safety Features
-
Internal Circulation: Equipped with a high-efficiency pump that ensures forced water movement, eliminating cold spots and providing superior uniformity compared to static baths.
-
Digital Control Interface: Features a clear LCD screen displaying both set and actual temperatures, with timer functions for precise process control.
-
Safety Protection: Includes an independent over-temperature protection system (Class 1.0) and a low-liquid level sensor to prevent heating when the tank is empty or low.
-
Insulated Construction: Double-walled housing with high-quality thermal insulation reduces energy loss and keeps the external surface safe to touch even at high operating temperatures.
-
Stability Design: Non-slip rubber feet ensure the unit remains stable on laboratory benches during operation.
-
Connectivity: Optional RS232 or USB port for data logging and remote monitoring of temperature profiles.
