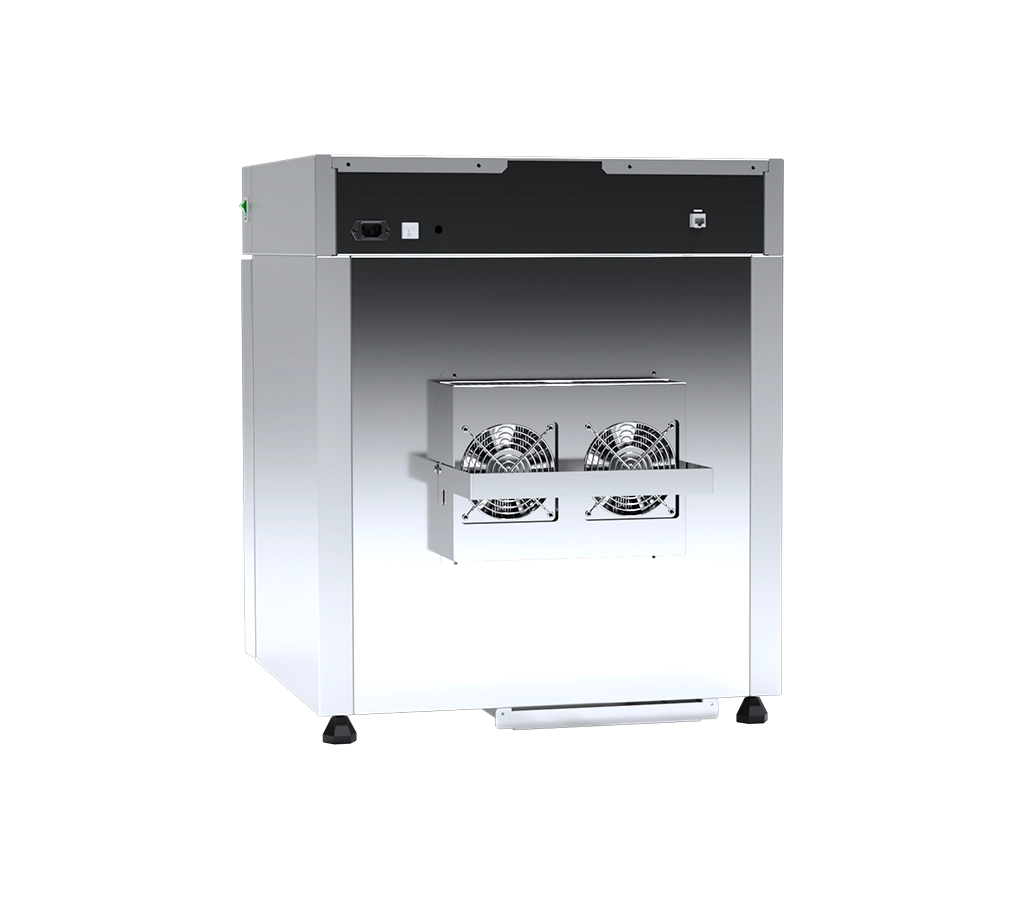

Peltier-Cooled Incubator ILP 53 - Image 2

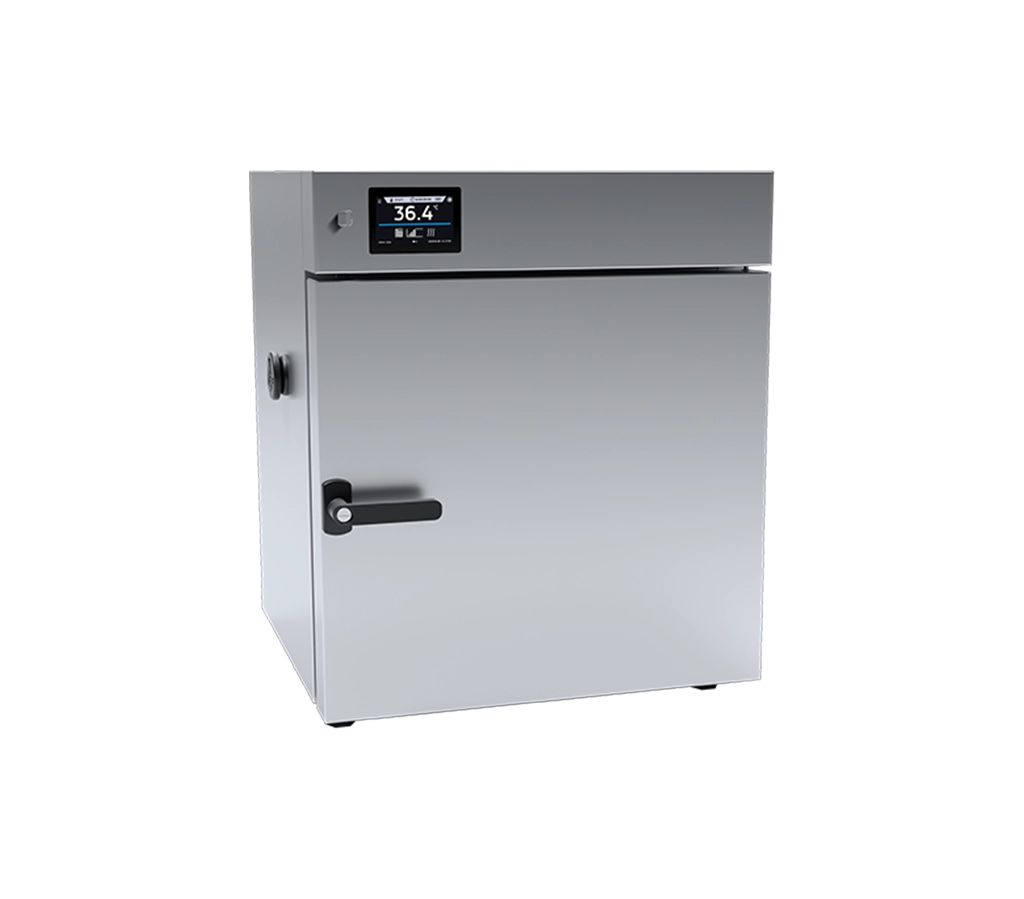

Peltier-Cooled Incubator ILP 53 - Image 3

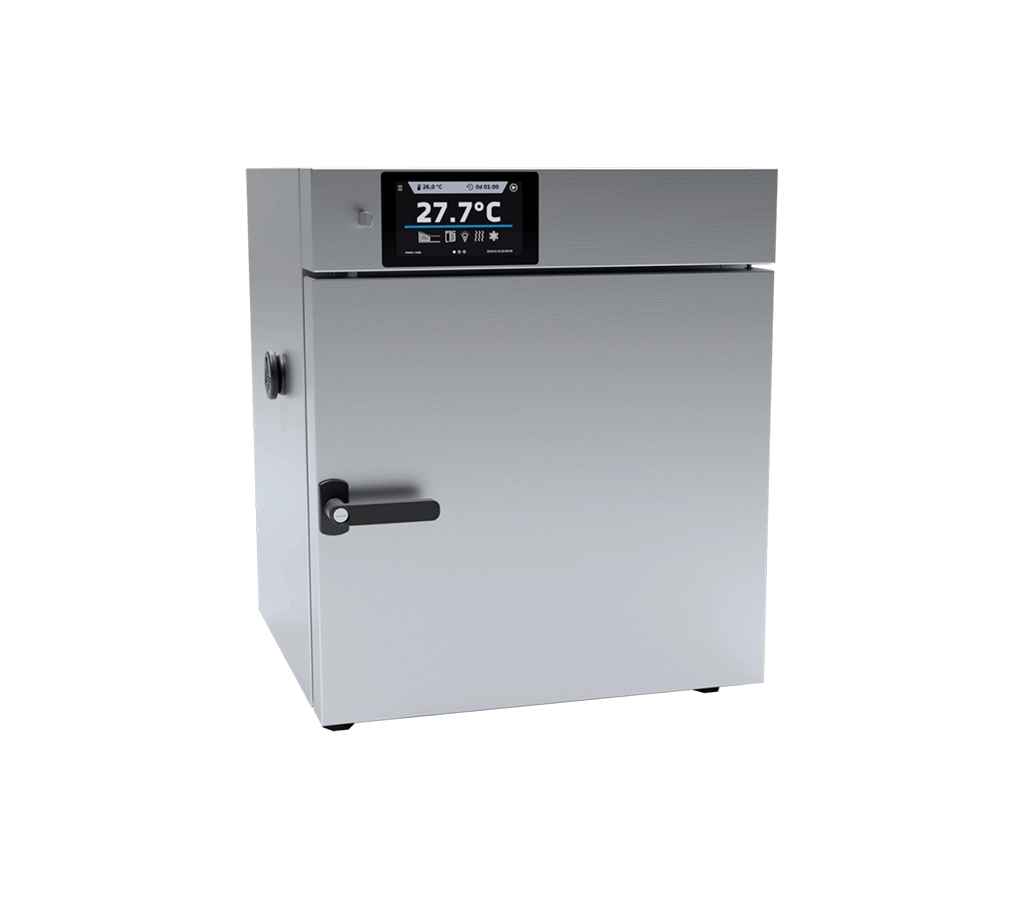

Peltier-Cooled Incubator ILP 53 - Image 4

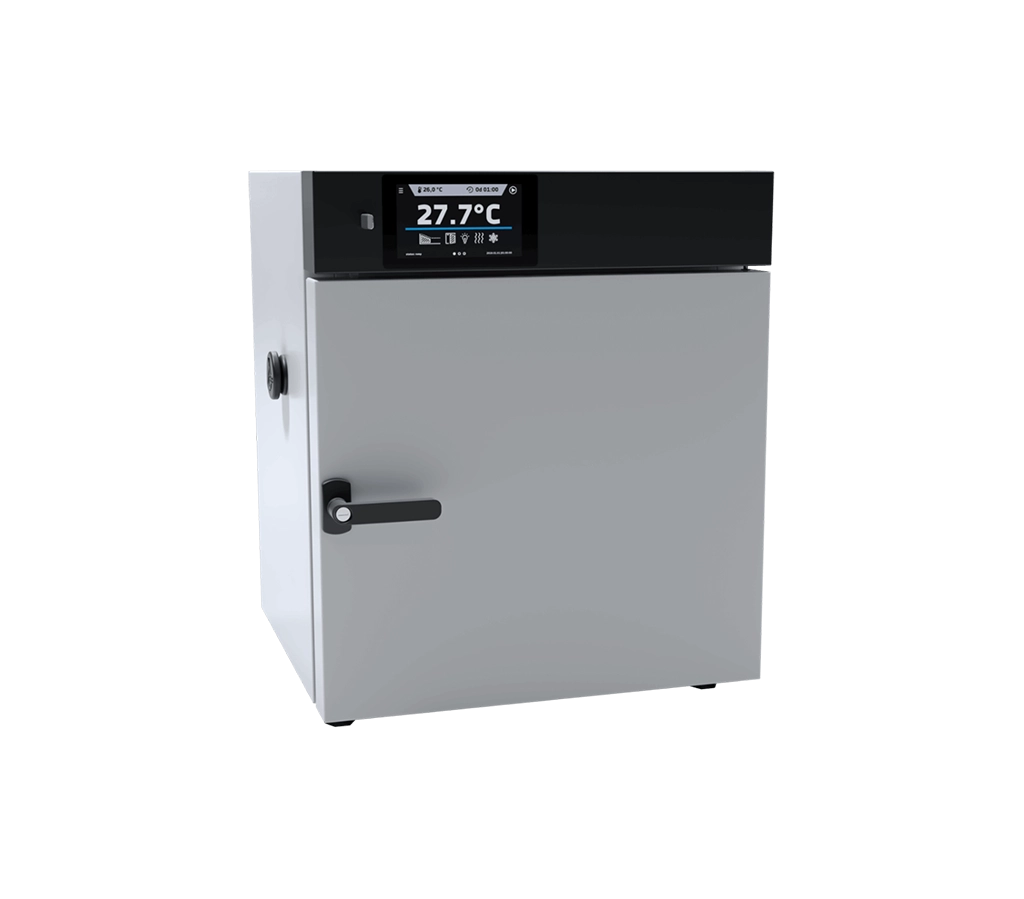

Peltier-Cooled Incubator ILP 53 - Image 5

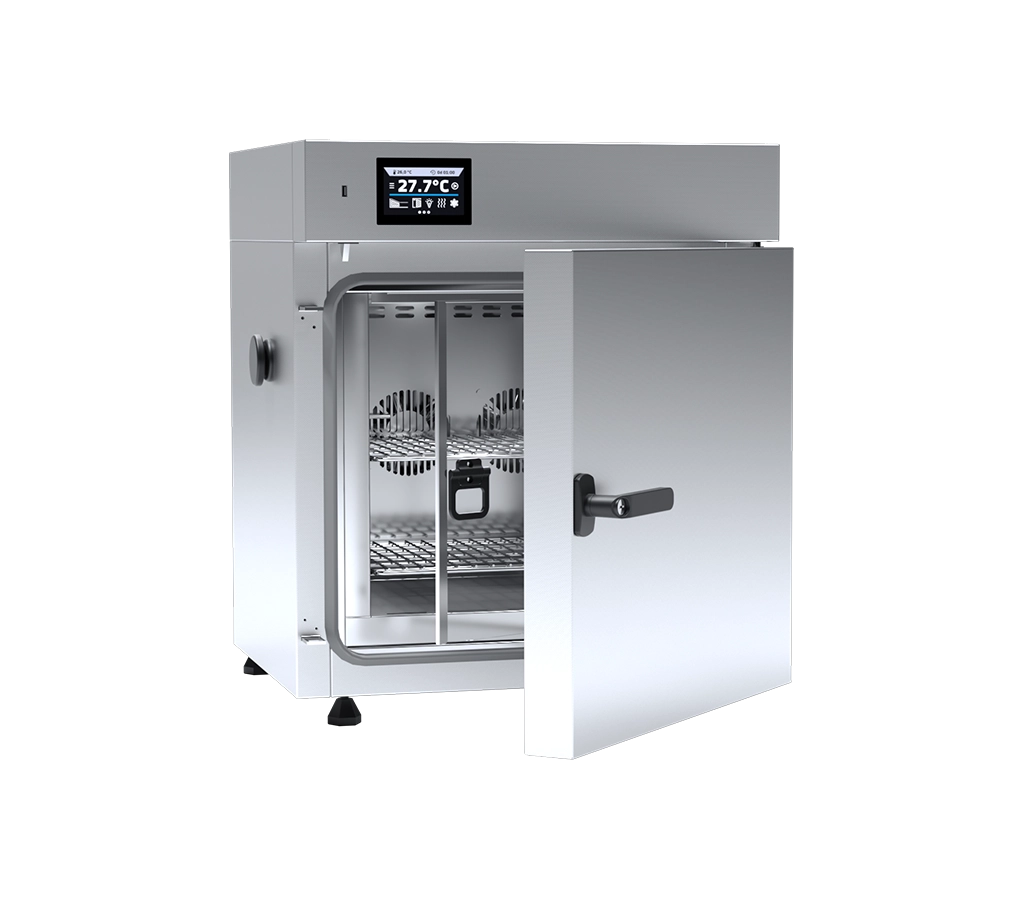

Peltier-Cooled Incubator ILP 53 - Image 6

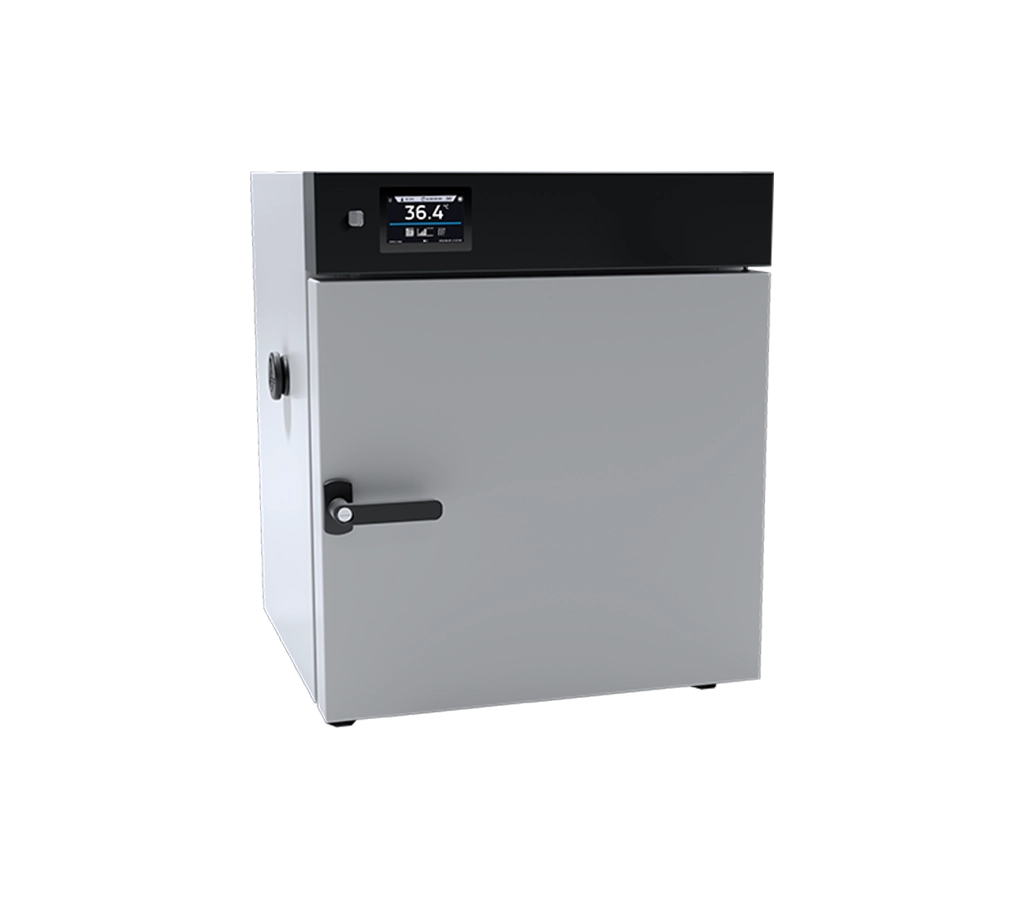

Peltier-Cooled Incubator ILP 53

A compact, energy?efficient laboratory incubator with 53?L capacity using Peltier thermoelectric cooling for vibration?free and quiet operation. It offers a precise temperature range from +5??C above ambient up to +70??C, microprocessor PID control, internal LED lighting, stainless?steel shelves, open?door alarm, door lock, and external access ports ? perfect for sensitive sample incubation, culture work, and conditioning in research, clinical, and industrial labs.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: ILP 53 Categories: , Brand: Product ID: 21357

Description

The Peltier?Cooled Incubator ILP?53 is a high?precision laboratory incubator that incorporates thermoelectric Peltier cooling technology for efficient and quiet temperature control without the need for traditional refrigerants or compressors. With a 53?L chamber capacity, it offers a stable thermal environment for biological samples, cultures, reagents, and temperature?sensitive materials in research, clinical, and industrial laboratory applications.

Operating over a temperature range from +5??C above ambient up to +70??C, the ILP?53 uses advanced Peltier thermoelectric modules to provide smooth, vibration?free cooling and heating. This makes it especially suitable for applications that demand minimal disturbance, such as biological culture incubation, enzyme assays, and precision conditioning tasks.

Temperature regulation is managed via a microprocessor PID controller with intuitive controls and precise settings, allowing users to easily program and monitor incubation parameters. The internal workspace is equipped with stainless?steel shelves for flexible sample placement and easy cleaning, while internal LED lighting ensures excellent visibility inside the chamber.

User convenience and safety are enhanced with features such as an open?door alarm to notify users of unintended openings or temperature deviations and a secure door lock to protect valuable contents. External access ports enable integration of optional sensors or third?party monitoring devices to support data capture, quality assurance, and compliance with laboratory protocols.

Compact yet robust in design, the ILP?53 is ideal for laboratories where quiet operation, precise temperature control, and energy efficiency are priorities. Its combination of thermoelectric cooling, microprocessor control, and reliable performance supports efficient workflows in both routine and specialized incubation tasks.

Specifications

Peltier-Cooled Incubator ILP 53 Specifications

The ILP 53 is a compact, eco-friendly laboratory incubator that utilizes Peltier cell technology for precise heating and cooling. By removing the traditional compressor, it offers a vibration-free environment and a significantly smaller footprint, making it ideal for laboratories with limited space or those conducting vibration-sensitive research.




Technical Parameters

  • Chamber Capacity: 56 Liters



  • Working Capacity: 56 Liters



  • Air Convection: Forced



  • Temperature Range: 0 to 70C (maximum 20C below ambient temperature)



  • Temperature Resolution: 0.1C



  • Temperature Fluctuation at 37C: ±0.1C



  • Temperature Variation at 37C: ±0.2C



  • Temperature Protection: Class 2.0 (Smart) or Class 3.3 (Smart PRO) according to DIN 12880



  • Controller: Microprocessor PID with 4.3 inch (Smart) or 7 inch (Smart PRO) touch screen



  • Nominal Power: 500 W



  • Voltage: 230V 50/60 Hz



Physical and Material Data

  • Internal Dimensions (W x H x D): 400 x 390 x 360 mm



  • Overall Dimensions (W x H x D): 590 x 710 x 690 mm



  • Internal Material: Acid-proof stainless steel (DIN 1.4301)



  • Housing Material: Powder-coated sheet or Stainless steel linen finish (IG models)



  • Unit Weight: 69 kg



  • Shelves (Standard / Max): 2 / 5



  • Max. Shelf Workload: 25 kg



  • Max. Unit Workload: 50 kg



Functional and Safety Features

  • Peltier Cell Technology: Ensures silent, vibration-free operation and eliminates the need for refrigerant gases, making the unit environmentally friendly.



  • Dual Door System: Equipped with an external solid door and an internal glass door to allow for sample viewing while maintaining temperature uniformity.



  • Smart/Smart PRO Control: Features multi-segment temperature-time profiles, event registry, and a high-resolution color touch screen.



  • Connectivity: Standard USB and LAN ports; the Smart PRO version adds Wi-Fi for remote monitoring and data management.



  • Safety Alarms: Includes visual and audible alarms for open doors and temperature deviations.



  • Access Port: Features a 30 mm diameter access port on the left wall for external monitoring probes.



  • Internal Lighting: Energy-efficient LED light for clear visibility of the chamber contents.

Datasheet

Download ILP 53 Smart Pro Datasheet

DownloadILP 53 Smart Datasheet
