Description

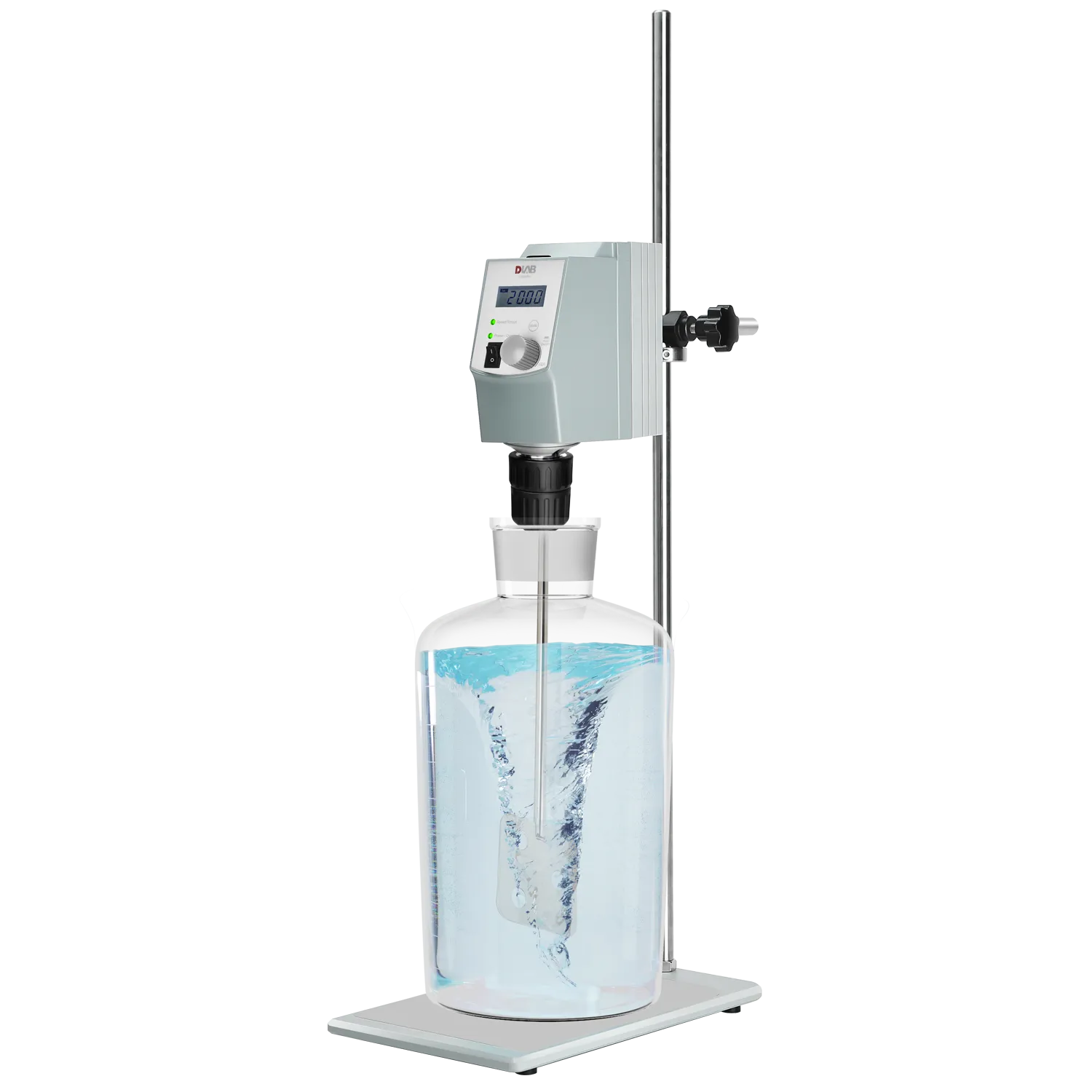

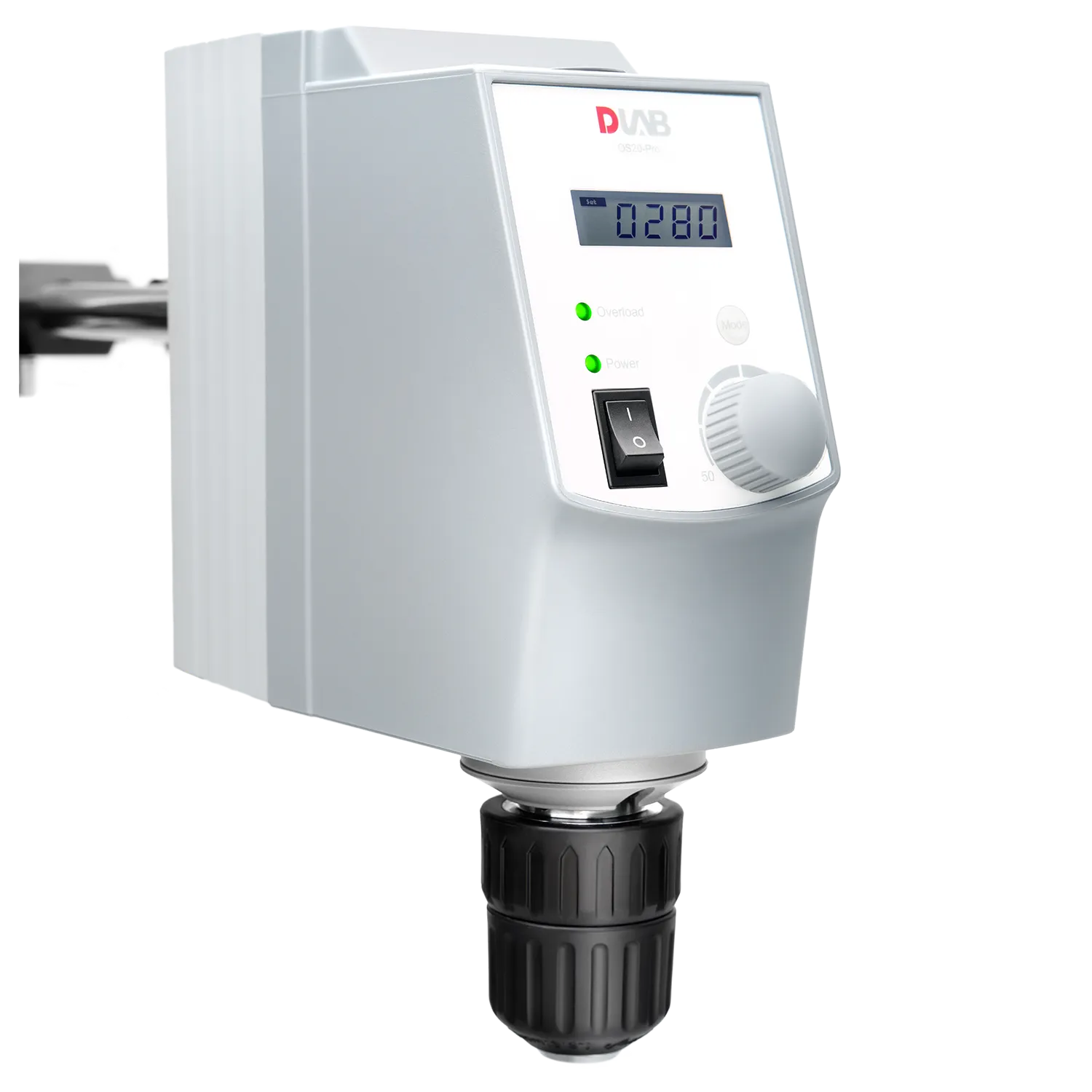

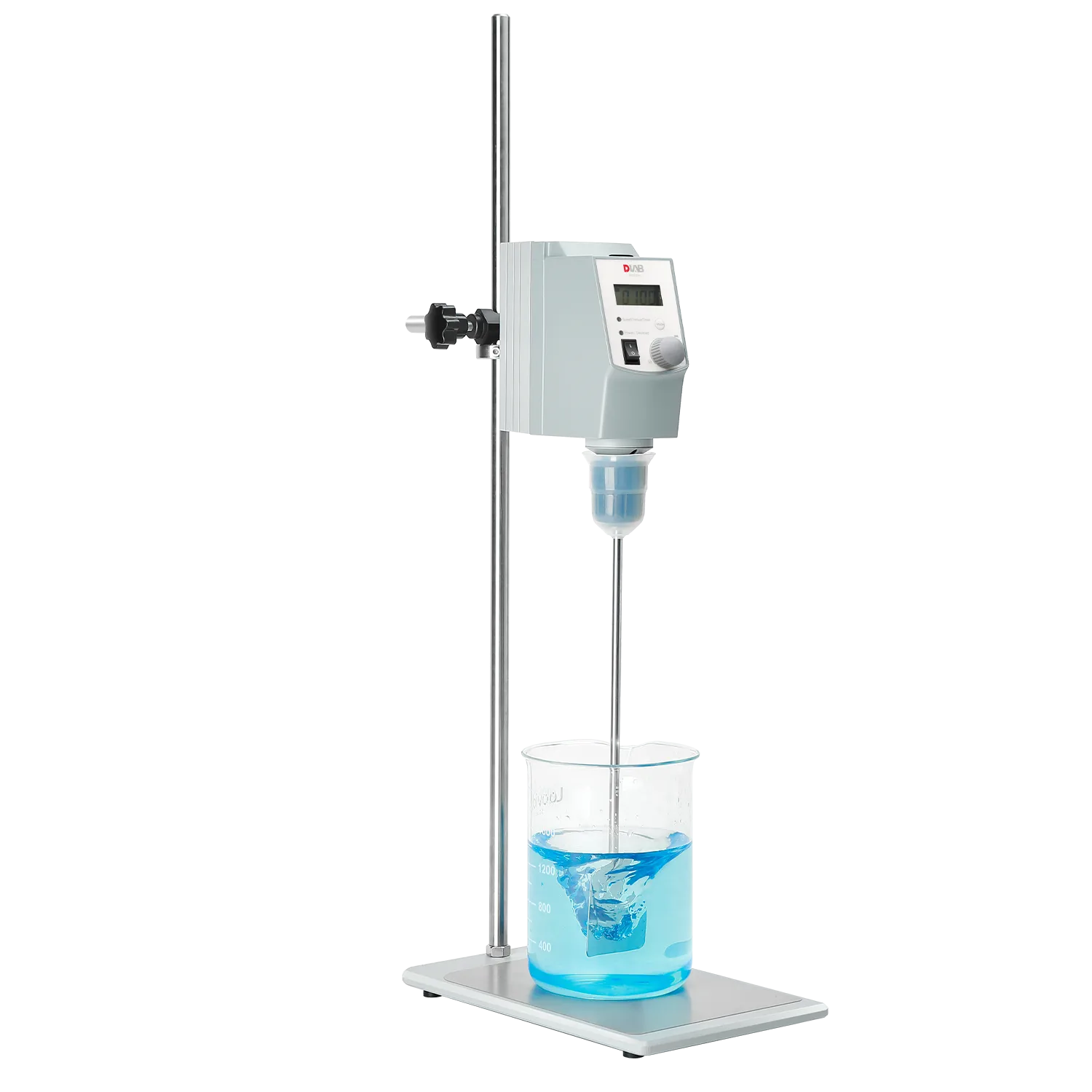

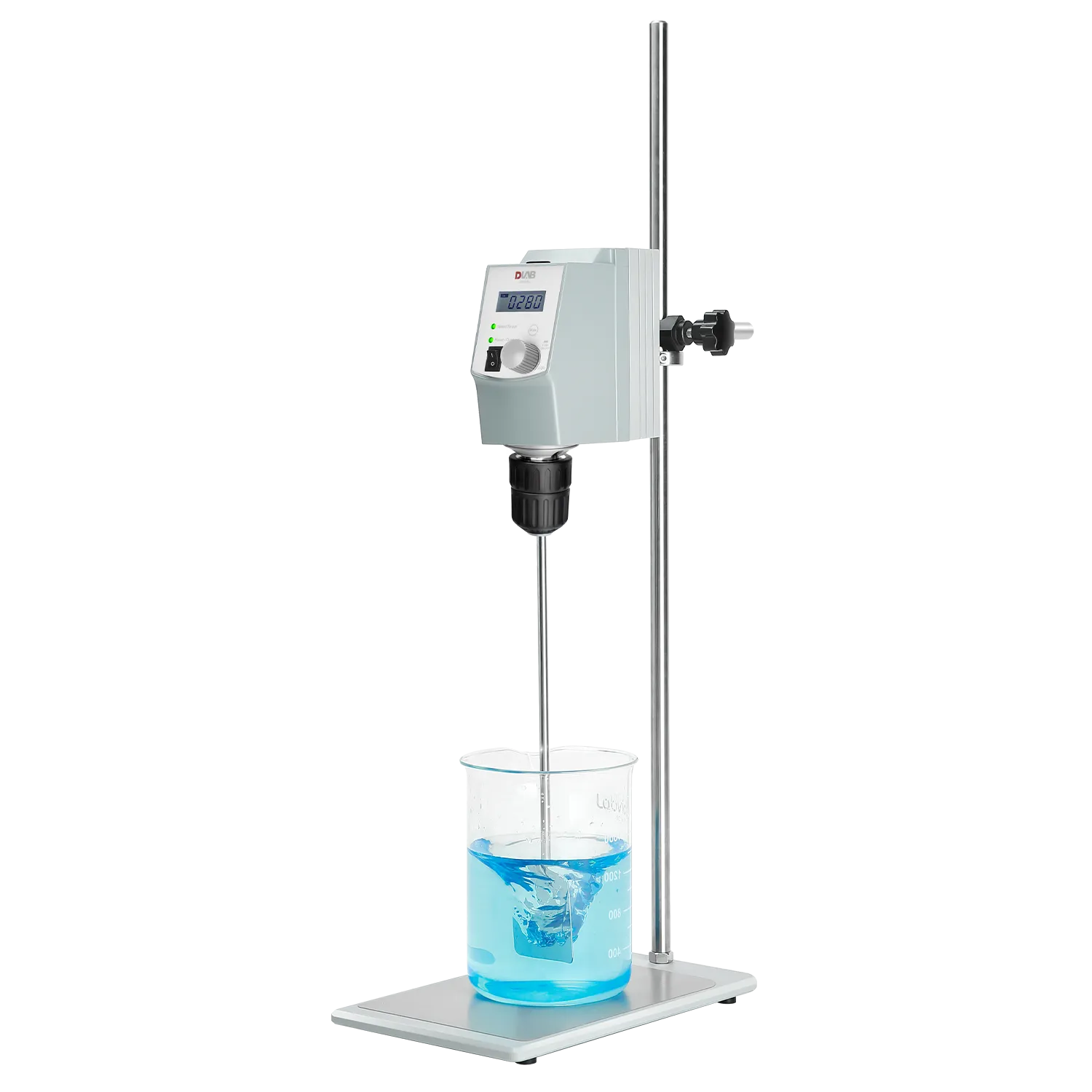

The OS20?Pro LCD Digital Overhead Stirrer is a robust and versatile lab instrument engineered for demanding mixing tasks. It features a high?efficiency brushless DC motor that provides stable and consistent stirring even as fluid viscosity changes, and the bright LCD display allows real?time monitoring of speed and torque for precise control. Operating within a wide range of 50???2200?rpm with ?3?rpm accuracy, this stirrer delivers smooth operation with safety circuits to prevent accidental spillage or overload conditions. Additional functions include PC connectivity via RS232 for remote control and data transmission, and an auto?restart feature in case of power interruptions, making it suitable for extended or overnight experiments. With a maximum stirring capacity of 20?litres and a compact, durable build, the OS20?Pro is ideal for use in chemical synthesis, formulation labs, and quality control environments.
Specifications
OS20-Pro LCD Digital Overhead Stirrer Specifications
The OS20-Pro is a precise, digital overhead stirrer designed for medium-viscosity liquid mixing in laboratory environments. It features an advanced LCD display for real-time monitoring and is engineered for safety and reliability during continuous operation.
Technical Parameters
-
Max. Stirring Quantity (H2O): 20 Liters
-
Speed Range: 50 – 2200 RPM
-
Speed Display Accuracy: ±3 RPM
-
Max. Torque: 40 Ncm
-
Max. Viscosity: 10,000 mPas
-
Chuck Clamping Range Diameter: 0.5 – 10 mm
-
Motor Type: Brushless DC motor
-
Motor Input Power: 70 W
-
Motor Output Power: 50 W
-
Power Consumption: 70 W
Physical and Material Data
-
Unit Dimensions (W x D x H): 83 x 220 x 186 mm
-
Unit Weight: 2.8 kg
-
Protection Class: IP21
-
Voltage and Frequency: 100-240V, 50/60 Hz
-
Permissible Ambient Temperature: 5 – 40°C
-
Permissible Relative Humidity: 80% RH
Functional and Safety Features
-
LCD Digital Display: Provides accurate real-time display of the set speed and actual stirring speed.
-
Constant Speed Control: Microprocessor control technology ensures constant speed even during changes in sample viscosity.
-
Maintenance-Free Drive: The brushless DC motor provides long-term reliability and quiet operation without internal servicing.
-
Overload Protection: Features automatic stop functionality to protect the motor from damage during high-resistance tasks.
-
Through-Shaft Design: The shaft can pass through the unit for easy adjustment of the stirring paddle height.
-
Remote Control: Equipped with an RS232 interface for PC control and data documentation
