Description

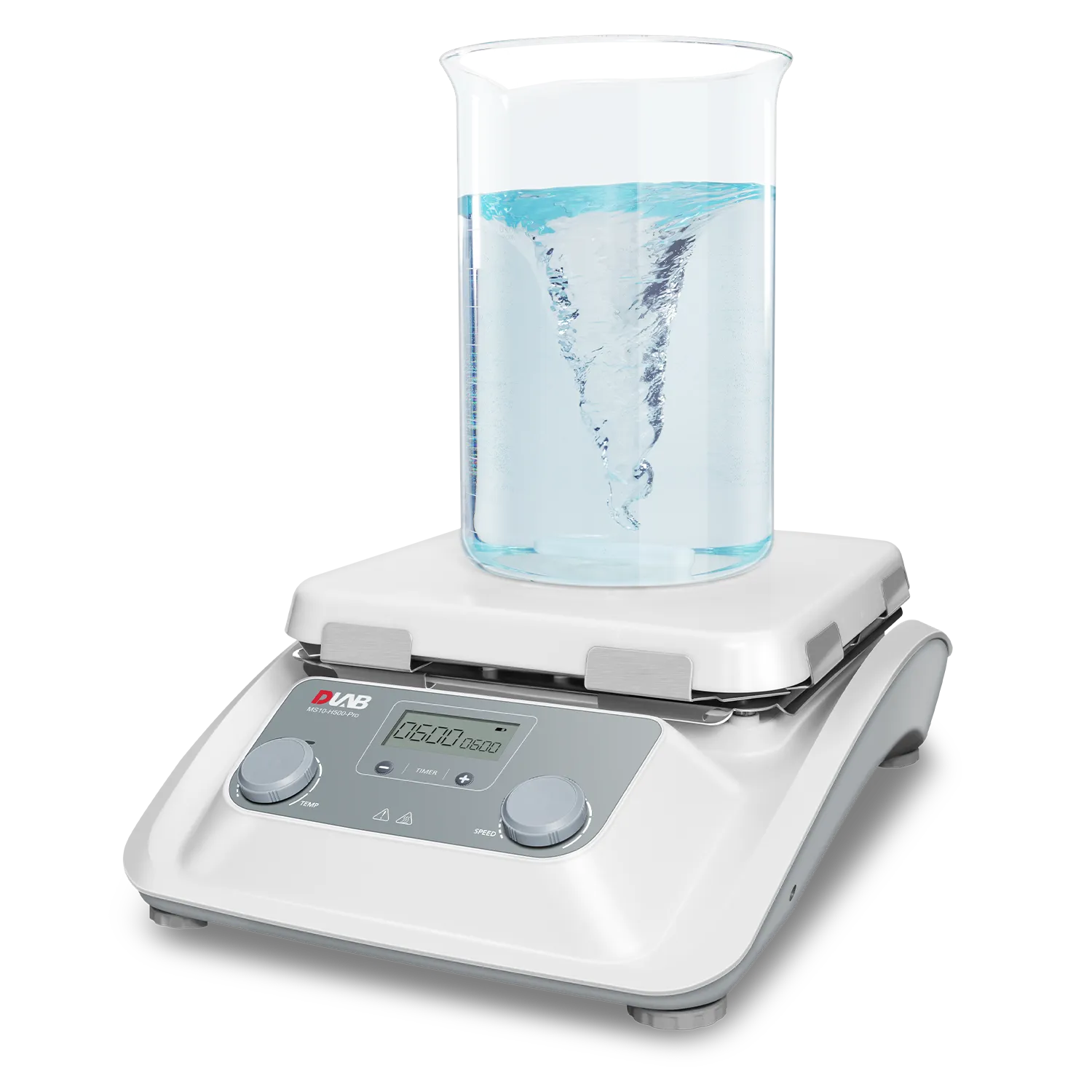

The MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer with a 10-inch glass ceramic work plate combines robust stirring performance with precise temperature control for demanding laboratory tasks. Designed to handle up to 30 L of liquid, it uses a brushless DC motor to deliver smooth, adjustable stirring from 100 to 1500 rpm, while the ceramic plate ensures excellent chemical resistance and efficient heat distribution. The advanced LCD interface provides real-time monitoring of both stirring speed and heating up to 500 ?C, and an external PT1000 temperature probe can be connected for sample-level control with ?0.2 ?C accuracy. Built-in safety features include overheating protection, a ?HOT? warning indicator above 50 ?C, SD-card data logging, and a programmable timer from 1 minute to 99 hours 59 minutes, making this stirrer ideal for research labs, educational facilities, and industrial applications.
Specifications
MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer Specifications
The MS10-H500-Pro is a high-capacity digital hotplate stirrer featuring a large square ceramic work plate. It is specifically designed for large volume applications in chemical synthesis and physical analysis that require precise temperature control and powerful stirring.
Technical Parameters
-
Heating Temperature Range: Room temperature to 500°C
-
Temperature Control Accuracy: ±1°C (below 100°C) or ±1% (above 100°C)
-
Temperature Display Accuracy: ±0.1°C
-
Stirring Speed Range: 100 – 1500 RPM
-
Speed Display Resolution: ±1 RPM
-
Max. Stirring Quantity ($H_{2}O$): 30 Liters
-
Max. Magnetic Bar Length: 80 mm
-
Heating Output: 1500 W
-
Motor Type: Brushless DC motor
-
External Temperature Sensor: PT1000
-
Safety Temperature Cut-off: 540°C
Physical & Material Data
-
Work Plate Dimension: 254 x 254 mm (10 inch)
-
Work Plate Material: Glass Ceramic
-
Unit Dimensions: 328 x 424 x 138 mm
-
Unit Weight: 7.1 kg
-
Protection Class: IP21
-
Data Connector: RS232
-
Permissible Ambient Temperature: 5 – 40°C
-
Permissible Relative Humidity: 80% RH
Functional & Safety Features
-
Large Glass Ceramic Work Plate: Extremely resistant to chemical corrosion and capable of handling high thermal shocks.
-
Dual LCD Display: High-resolution digital screens independently show the target and actual temperatures and stirring speed.
-

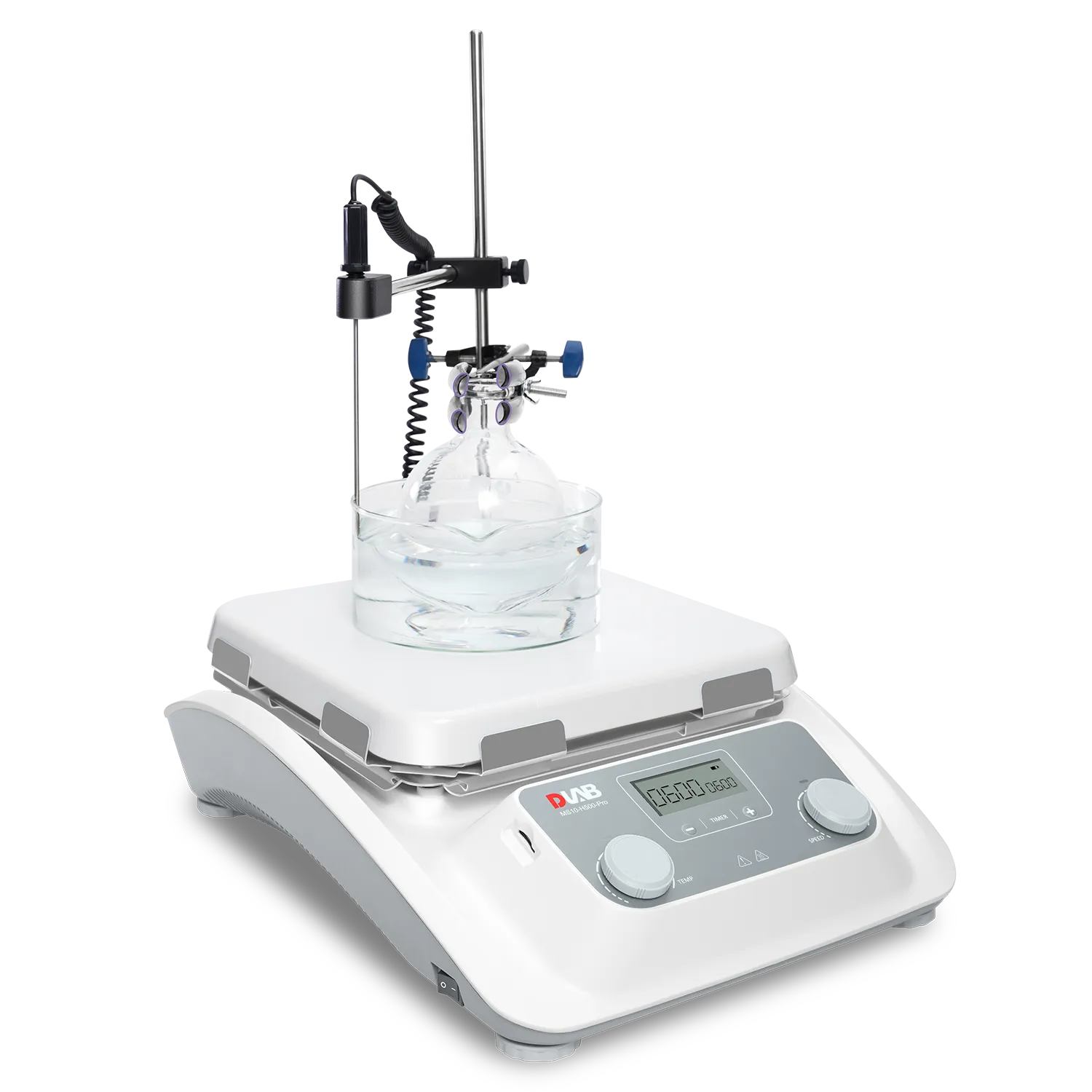

External Control: Automatic identification and control when the PT1000 temperature sensor is connected for direct liquid monitoring.
-
Residual Heat Warning: A visual warning flashes if the work plate temperature is above 50°C to prevent burns, even when the power is off.
-
Robust Stirring Power: Powerful motor and magnetic coupling designed to handle volumes up to 30 liters of water.
