Description

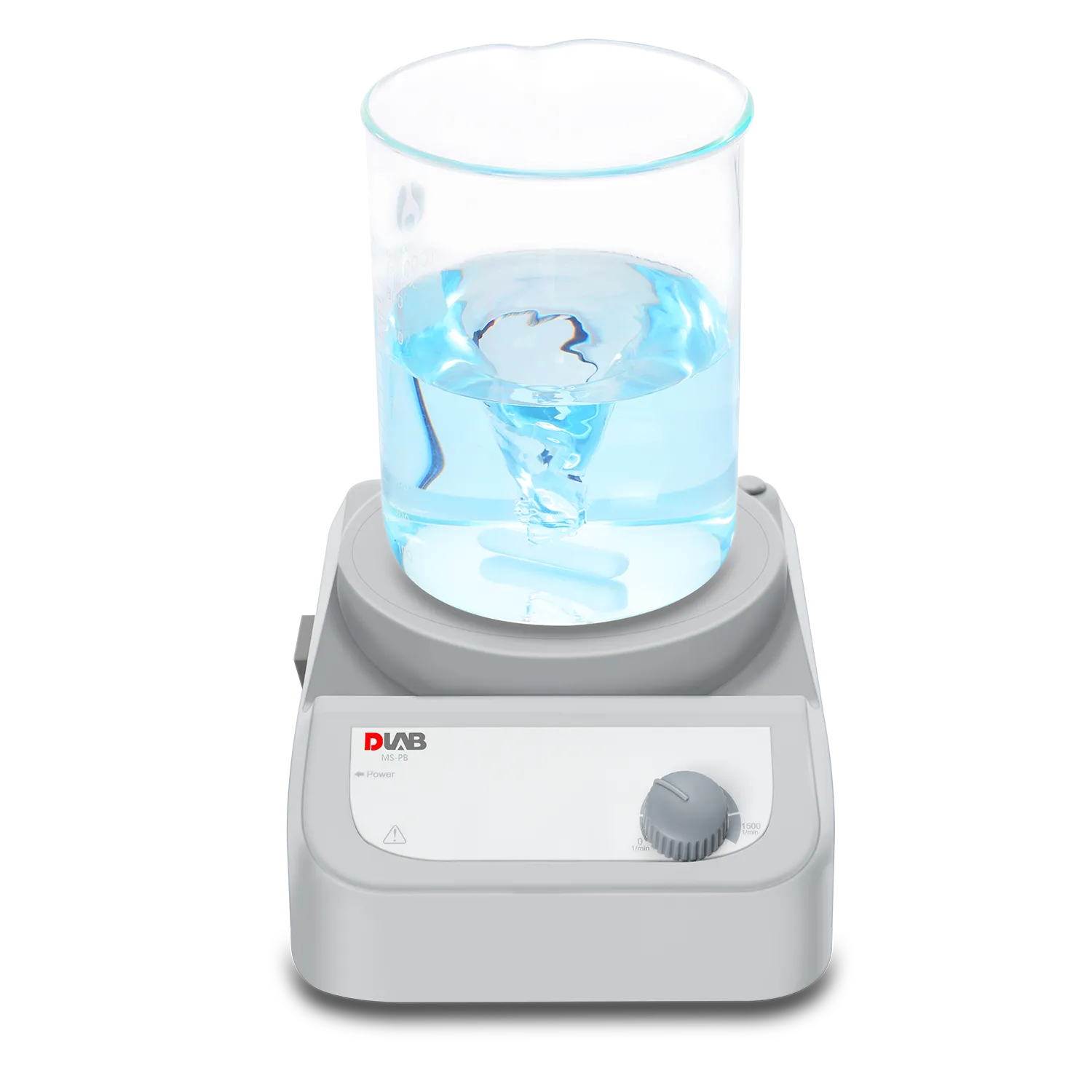

The MS?PB Magnetic Stirrer offers dependable magnetic stirring performance for laboratory applications requiring uniform and consistent mixing. It supports a maximum stirring volume of up to 3?L of water and provides adjustable speed control from 0 to 1500?rpm, allowing precise control over experimental conditions. The work plate is made from a robust nylon and glass?fiber composite, offering excellent chemical resistance, while the compact design saves valuable bench space. Built with a brushless DC motor for smooth and quiet operation, this magnetic stirrer is ideal for routine mixing tasks in research, educational, and analytical lab settings. Safety features include automatic shut?off in the event of overheating or voltage irregularities, ensuring reliable and secure performance.
Specifications
MS-PB Magnetic Stirrer Specifications
The MS-PB is a compact, economy-class magnetic stirrer designed for basic liquid mixing in laboratory, industrial, and educational settings. It utilizes a simple analog interface for reliable, day-to-day operation.
Technical Parameters
-
Stirring Speed Range: 0 – 1500 RPM
-
Speed Display: Scale
-
Max. Stirring Quantity ($H_{2}O$): 3 Liters
-
Max. Magnetic Bar Length: 50 mm
-
Motor Type: Brushless DC motor
-
Motor Input Power: 5 W
-
Motor Output Power: 3 W
-
Total Power: 15 W
Physical & Material Data
-
Work Plate Dimension: 135 mm
-
Work Plate Material: Nylon and Glass Fiber
-
Unit Dimensions: 150 x 260 x 80 mm
-
Unit Weight: 1.8 kg
-
Protection Class: IP42
-
Voltage and Frequency: 100-120V / 200-240V, 50/60 Hz
-
Permissible Ambient Temperature: 5 – 40°C
-
Permissible Relative Humidity: 80% RH
Functional & Safety Features
-
Analog Dial Control: Features a stepless speed control knob for easy and immediate manual adjustment of stirring intensity.
-
Chemical Resistant Surface: The work plate is constructed from a nylon and glass fiber composite to withstand common laboratory spills and corrosive agents.
-
Quiet Operation: The internal brushless DC motor ensures a low-noise environment during extended mixing tasks.
-
Maintenance-Free Design: Engineered for durability with a motor that does not require regular internal servicing.
-
Electronic Speed Control: Designed to maintain a stable speed even during initial startup or changes in sample load.
