Description

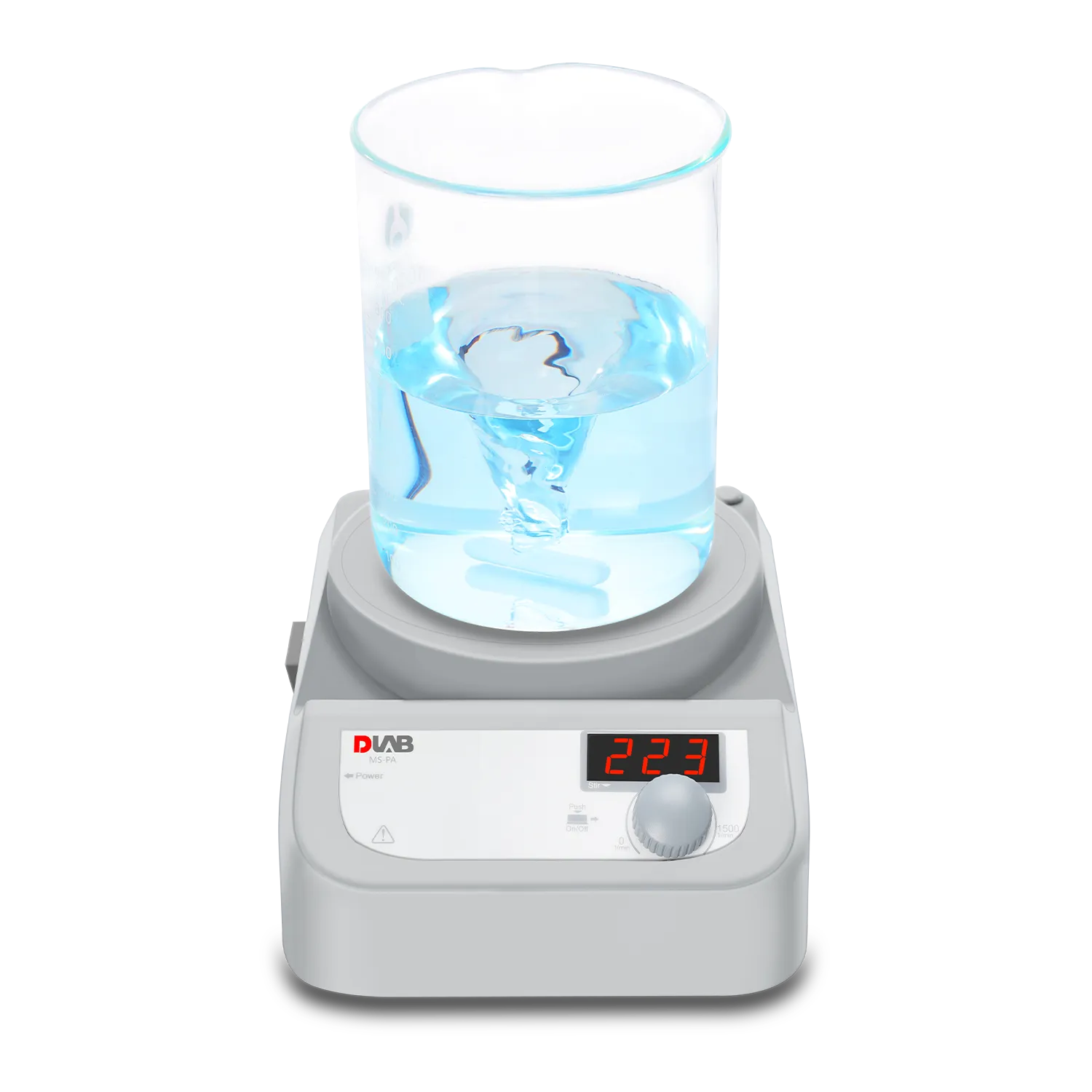

The MS?PA LED Digital Magnetic Stirrer is a dependable and user?friendly laboratory instrument designed for efficient magnetic stirring of solutions up to 3?L. It offers precise digital speed control up to 1500?rpm with feedback shown on a bright LED display, allowing accurate monitoring of stirring performance. The stirrer?s robust construction and chemically resistant housing ensure durability and consistent operation in busy lab environments. With its compact design and reliable stirring functionality, the MS?PA is suitable for a range of applications in chemistry, biology, analytical work, and educational settings.
Specifications
MS-PA LED Digital Magnetic Stirrer Specifications
The MS-PA is a compact, non-heating digital magnetic stirrer designed for routine laboratory mixing. It features a bright LED display for precise speed monitoring and a chemically resistant work plate, making it ideal for educational and research environments.
Technical Parameters
-
Stirring Speed Range: 100 – 1500 RPM
-
Speed Display: LED
-
Speed Display Resolution: ±1 RPM
-
Max. Stirring Quantity ($H_{2}O$): 3 Liters
-
Max. Magnetic Bar Length: 50 mm
-
Motor Type: Brushless DC motor
-
Motor Input Power: 5 W
-
Motor Output Power: 3 W
-
Total Power: 15 W
Physical & Material Data
-
Work Plate Dimension: 135 mm
-
Work Plate Material: Nylon and Glass Fiber
-
Unit Dimensions: 150 x 260 x 80 mm
-
Unit Weight: 1.8 kg
-
Protection Class: IP42
-
Voltage and Frequency: 100-120V / 200-240V, 50/60 Hz
-
Permissible Ambient Temperature: 5 – 40°C
-
Permissible Relative Humidity: 80% RH
Functional & Safety Features
-
LED Speed Control: Allows for easy and precise setting of the stirring speed with immediate visual feedback.
-
Chemical Resistance: The Nylon and glass fiber work plate provides excellent protection against weak acids and alkalis.
-
Microprocessor Control: Advanced control technology ensures speed accuracy and stability even during changes in load.
-
Maintenance-Free Drive: The brushless DC motor provides long-term reliability and quiet operation.
-
Safety Certification: Often manufactured in compliance with international safety standards such as CE, cTÜVus, and FCC.
