Description

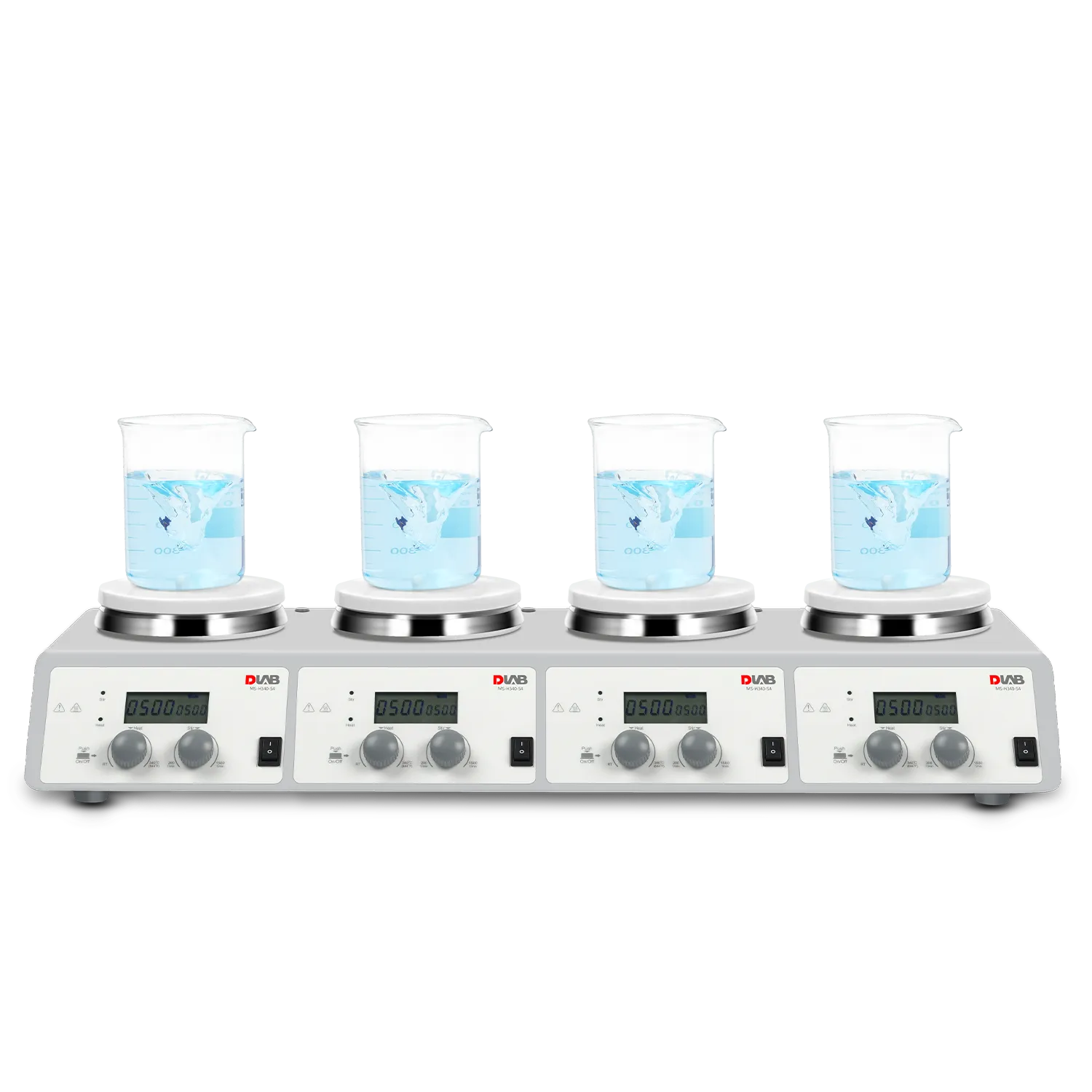

The MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer combines powerful magnetic stirring and accurate heating for multi-sample processing in research, chemistry, and bio-pharmaceutical labs. Each of the four channels operates independently, allowing customized temperature and stirring control with real-time feedback on the LCD display. A built-in PID controller ensures stable and precise heating up to 340 ?C, while a brushless DC motor delivers quiet, reliable, and maintenance-free stirring. An external PT1000 temperature sensor enhances measurement accuracy, and the ceramic-coated stainless steel work plates offer excellent chemical resistance. Safety features include high-temperature protection up to 420 ?C, making this stirrer suitable for demanding laboratory workflows.
Specifications
MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer Specifications
The MS-H340-S4 is a high-efficiency multi-position stirrer designed for simultaneous sample processing. It features four independent channels, allowing for different temperatures and stirring speeds to be set for each position, significantly increasing laboratory throughput.
Technical Parameters
-
Stirring Positions: 4 (Independent control)
-
Heating Temperature Range: Room temperature to 340°C
-
Temperature Control Accuracy: ±1°C
-
Temperature Display Accuracy: ±0.1°C
-
Stirring Speed Range: 100 – 1500 RPM
-
Speed Display Resolution: ±1 RPM
-
Max. Stirring Quantity per Position ($H_{2}O$): 10 Liters
-
Max. Magnetic Bar Length: 40 mm
-
Heating Output: 500 W per channel
-
Motor Type: Brushless DC motor
-
External Temperature Sensor: PT1000 (Available for each channel)
-
Safety Temperature Cut-off: 420°C
Physical & Material Data
-
Work Plate Dimension: 135 mm diameter per position
-
Work Plate Material: Stainless steel with ceramic coating
-
Unit Dimensions (W x D x H): 698 x 270 x 128 mm
-
Unit Weight: 9.5 kg
-
Protection Class: IP21
-
Data Connector: RS232
-
Permissible Ambient Temperature: 5 – 40°C
Functional & Safety Features
-
Independent Operation: Each of the four channels can be programmed with unique parameters, providing maximum flexibility for diverse experiments.
-
Dual LCD Displays: Four high-resolution screens independently display target and actual temperatures and stirring speeds for each station.
-
PID Technology: Ensures precise temperature control and rapid heating while minimizing overshoot.
-
Residual Heat Warning: Each position features a “HOT” warning light that flashes if the plate temperature exceeds 50°C, active even when the unit is off.
-
Automatic Sensor Identification: The system automatically detects when a PT1000 sensor is connected to any of the four channels.
