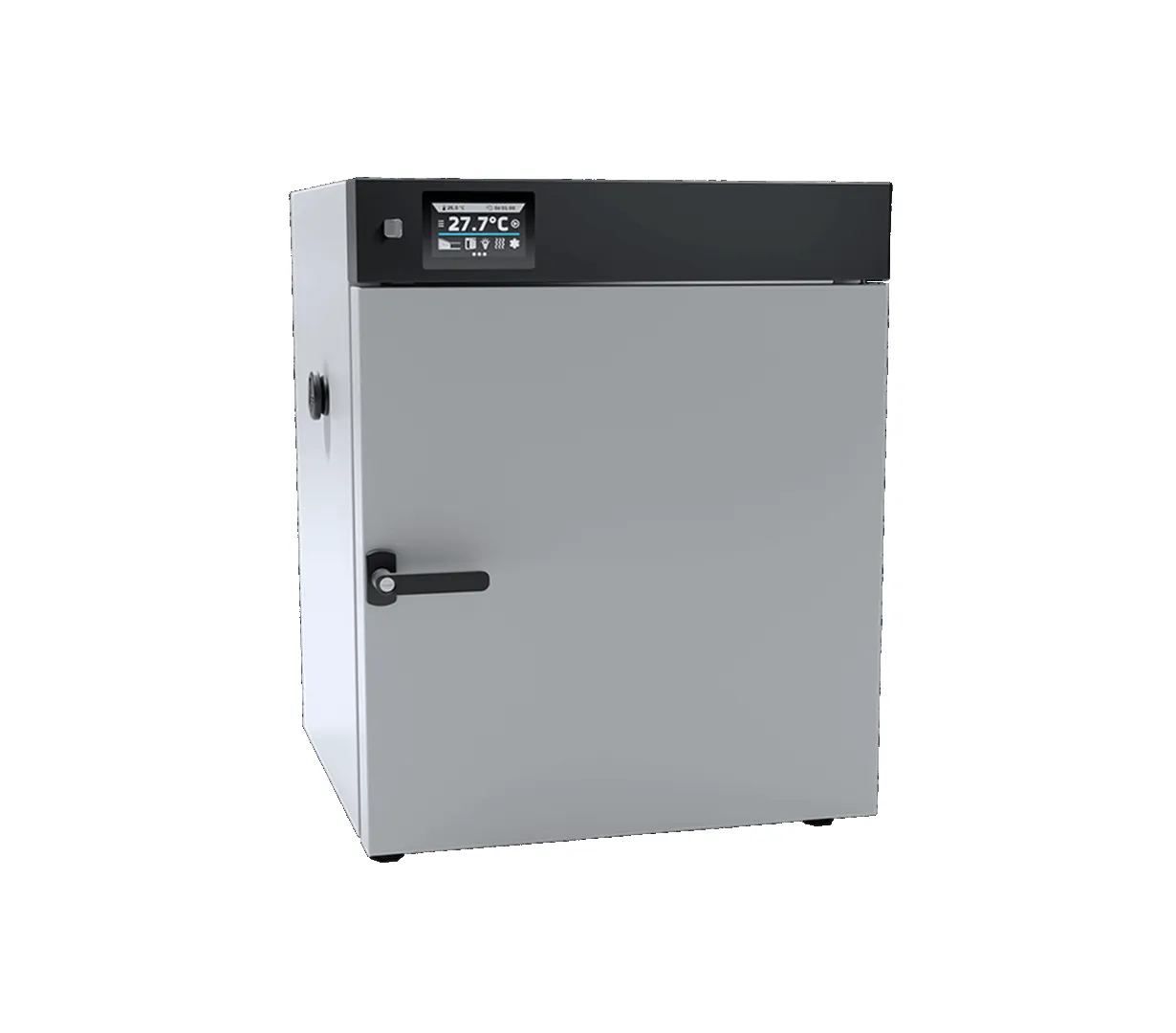

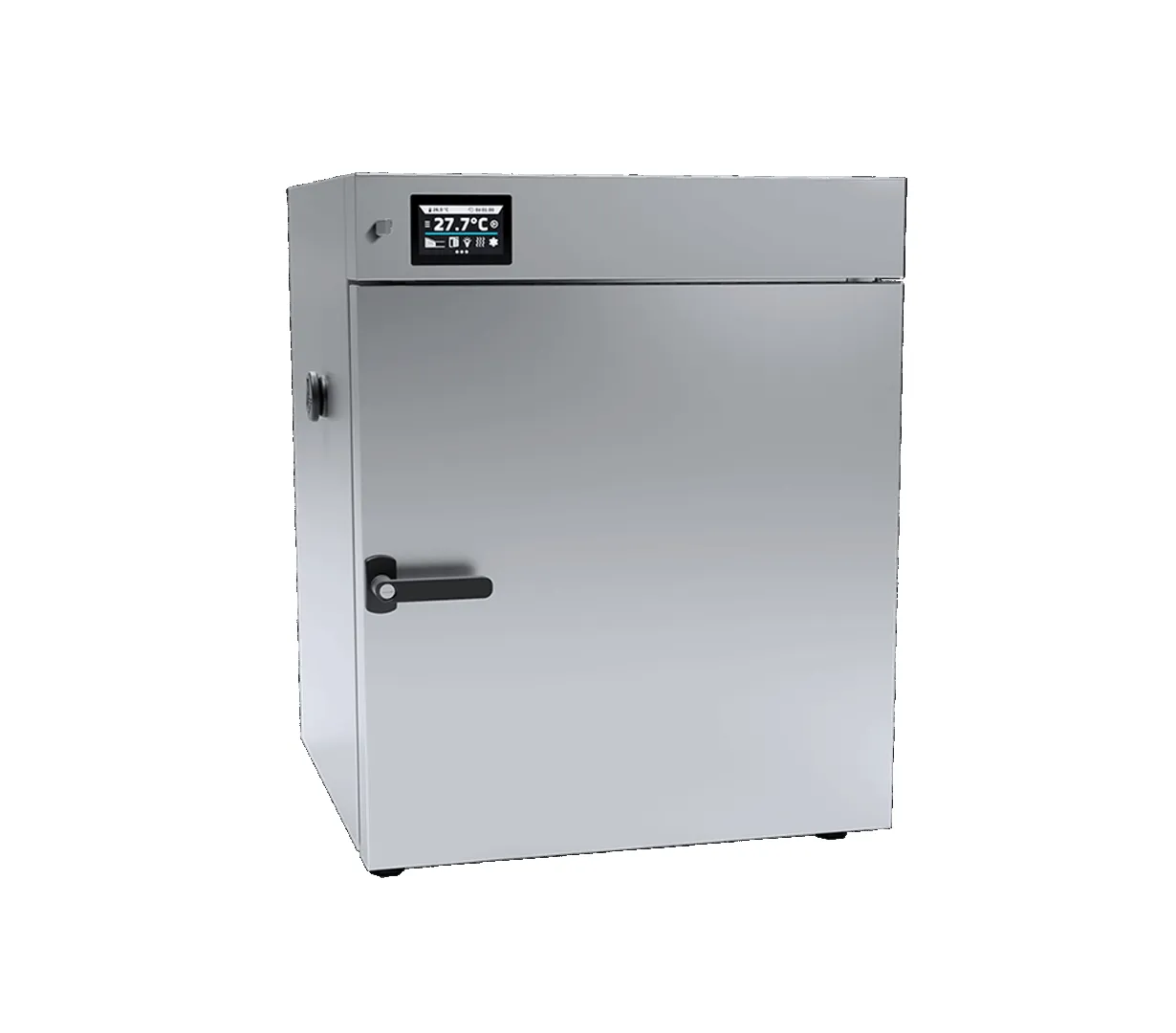

Laboratory Sterilizer SRN 115

POL-EKO Laboratory Sterilizer SRN 115 The SRN 115 is a 112-liter hot-air sterilizer optimized for the precise sterilization of laboratory instruments and drying of glassware. Operating within a temperature range of ambient +5?C to +250?C, it utilizes natural air circulation to maintain sample integrity. Managed by the Smart 4.3-inch color touchscreen controller, the unit features an automatic door-locking mechanism during cycles and pre-installed sterilization programs. With an acid-proof stainless steel interior and integrated data logging, it is a robust solution for medical, industrial, and pharmaceutical laboratories.

SKU: SRN 115 Categories: , Brand: Product ID: 21645

Description

The POL-EKO SRN 115 is a vertical, floor or benchtop sterilizer engineered for reliability and user safety.8 Its 112-liter capacity provides significant internal space, allowing for the sterilization of larger batches or taller laboratory vessels.9 The Natural Convection (N) system is particularly advantageous when sterilizing light materials, fine powders, or delicate objects that might be scattered or damaged by the high-velocity air of forced-convection models.+1Advanced Safety & Smart Control:The SRN 115 is equipped with the Smart controller, which simplifies complex laboratory workflows through an intuitive 4.3-inch touchscreen:10Automatic Door Lock: A critical safety feature that mechanically locks the door the moment a sterilization cycle begins.11 It remains locked until the program is successfully completed or manually safely aborted.12+1Specialized Programs: Comes factory-preloaded with standard sterilization cycles and a dedicated mask disinfection program for N95 and surgical masks.13Compliance: Features an internal event registry and data logger.14 Data can be exported via USB or LAN ports for GLP-compliant record-keeping.15+1Visual Status: The signature “Alarm Bar” provides instant visual feedback on the unit?s status, easily visible from across the laboratory.16Premium Build Quality:The interior is crafted from acid-proof stainless steel (DIN 1.4301) to ensure longevity even with frequent high-temperature exposure. The unit features a 17$emptyset$40 mm ventilation air-flap that automatically closes during sterilization to ensure the chamber is sealed and the heat is concentrated for maximum efficacy.18 Standard units include two stainless steel wire shelves, with the capacity to hold up to seven shelves for maximum load organization.Primary Applications:General Microbiology: Sterilization of dry tools, containers, and culture media.19Medical & Healthcare: Hot-air sterilization of heat-resistant surgical and dental instruments.Pharma & Cosmetics: Quality control drying and sterilization of production-line glassware.Crisis Management: Disinfection of documents and personal protective equipment (PPE).

Specifications

POL-EKO Laboratory Sterilizer SRN 115 Full Specifications

The SRN 115 is a professional natural air convection laboratory sterilizer with a 112-liter capacity. It is specifically designed for the thermal sterilization of laboratory glassware, instruments, and materials that can withstand high temperatures. It utilizes dry heat, ensuring the destruction of microorganisms through oxidation.



Physical & Capacity Data

  • Chamber Capacity (Gross): 112 Liters


  • Working Capacity: 112 Liters


  • External Width: 660 mm

  • External Height: 850 mm

  • External Depth: 710 mm (excludes 50 mm power cable)

  • Internal Width: 460 mm

  • Internal Height: 540 mm

  • Internal Depth: 450 mm

  • Net Weight: 65 kg to 84 kg (depending on build)

  • Standard Shelves: 2 (Stainless steel wire INOX)

  • Maximum Shelves: 7

  • Max Shelf Workload: 25 kg


  • Max Unit Workload: 60 kg

  • Access Port: Ø30 mm (located on the left wall)


  • Door Type: Solid (Optional door with viewing window available)



Performance & Heating

  • Temperature Range: +5°C above ambient to +250°C


  • Temperature Resolution: every 0.1°C


  • Temperature Fluctuation (at 170°C): ± 0.6°C

  • Temperature Variation (at 170°C): ± 3.0°C

  • Air Convection: Natural


  • Sterilization Time: Adjustable via controller (1 minute to 99 days or continuous)

Electrical & Build

  • Voltage: 230V, 50/60 Hz

  • Nominal Power: 2100 W

  • Interior Material: * C Version: Stainless steel (DIN 1.4016)

    • P Version: Acid-proof stainless steel (DIN 1.4301)

  • Housing Material: Powder-coated sheet or polished stainless steel


  • Warranty: 24 months


Controller Variant Features

Smart Controller (Standard)

  • Display: 4.3″ Full-color touch screen

  • Connectivity: LAN, USB ports


  • Programs: 5 user programs (6 segments each)

  • Memory: 10,000 data points (stored for 6 months)

  • Security: Class 2.0 (DIN 12880) temperature protection



Smart PRO Controller (Advanced)

  • Display: 7.0″ Full-color touch screen

  • Connectivity: LAN, USB, and integrated WiFi

  • Programs: 40 user programs (100 segments each)

  • User Accounts: Up to 5 user accounts

  • Security: Class 3.1 (DIN 12880) temperature protection


  • Data Recording: Advanced tabular and graphic data view (12 months storage)

Datasheet
