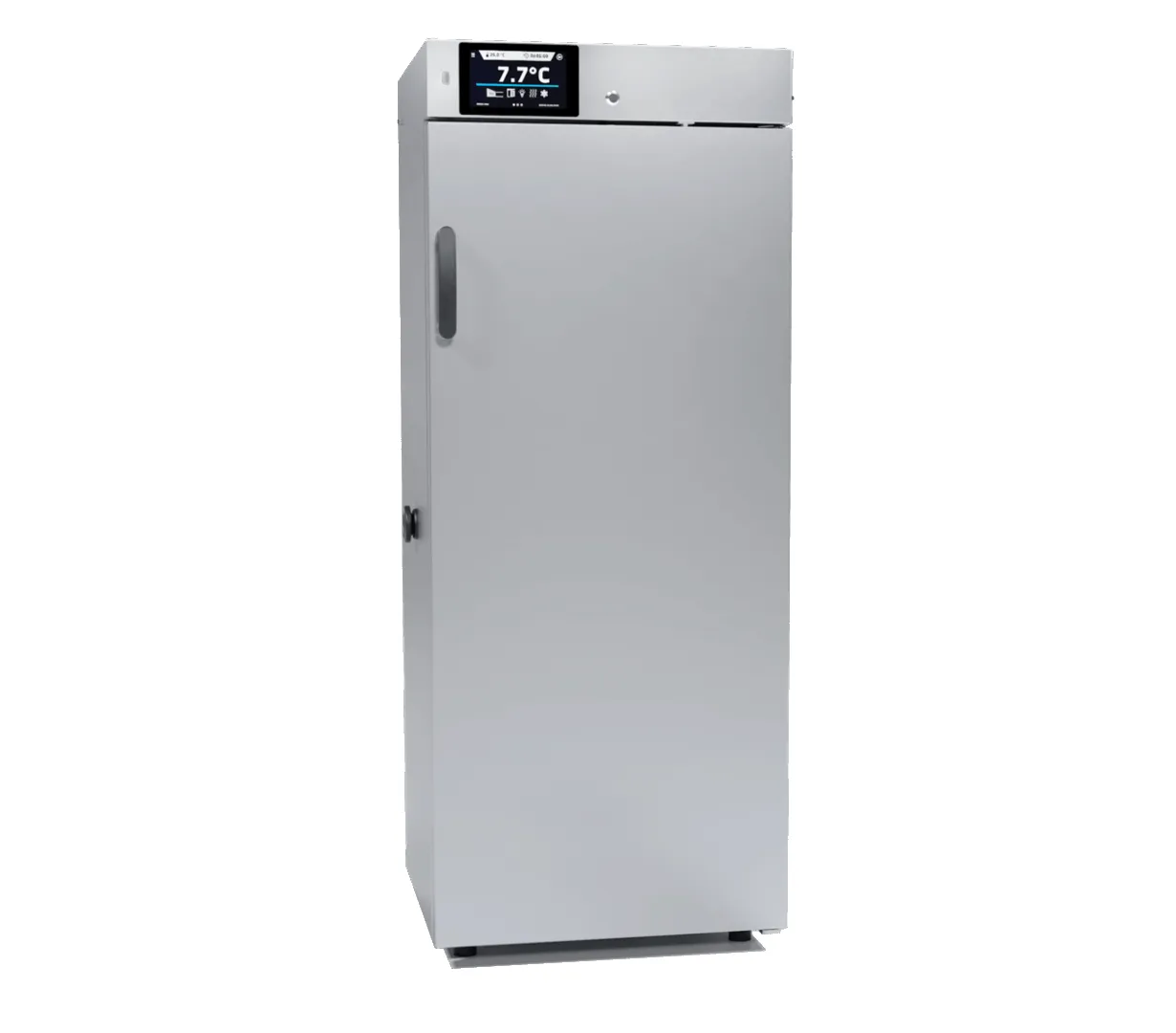

Laboratory Refrigerator CHL 5

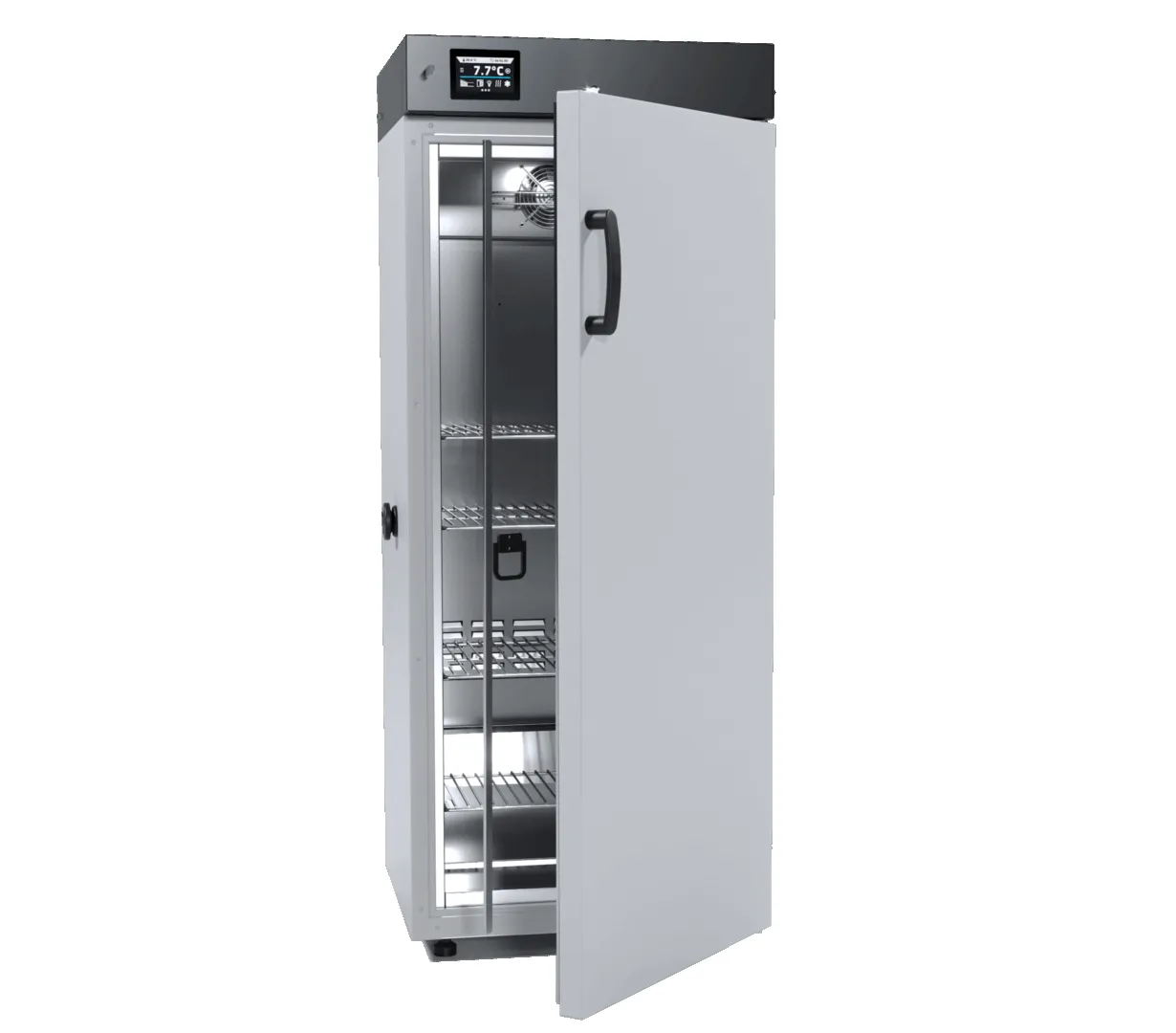

Laboratory Refrigerator CHL 5 - Image 2

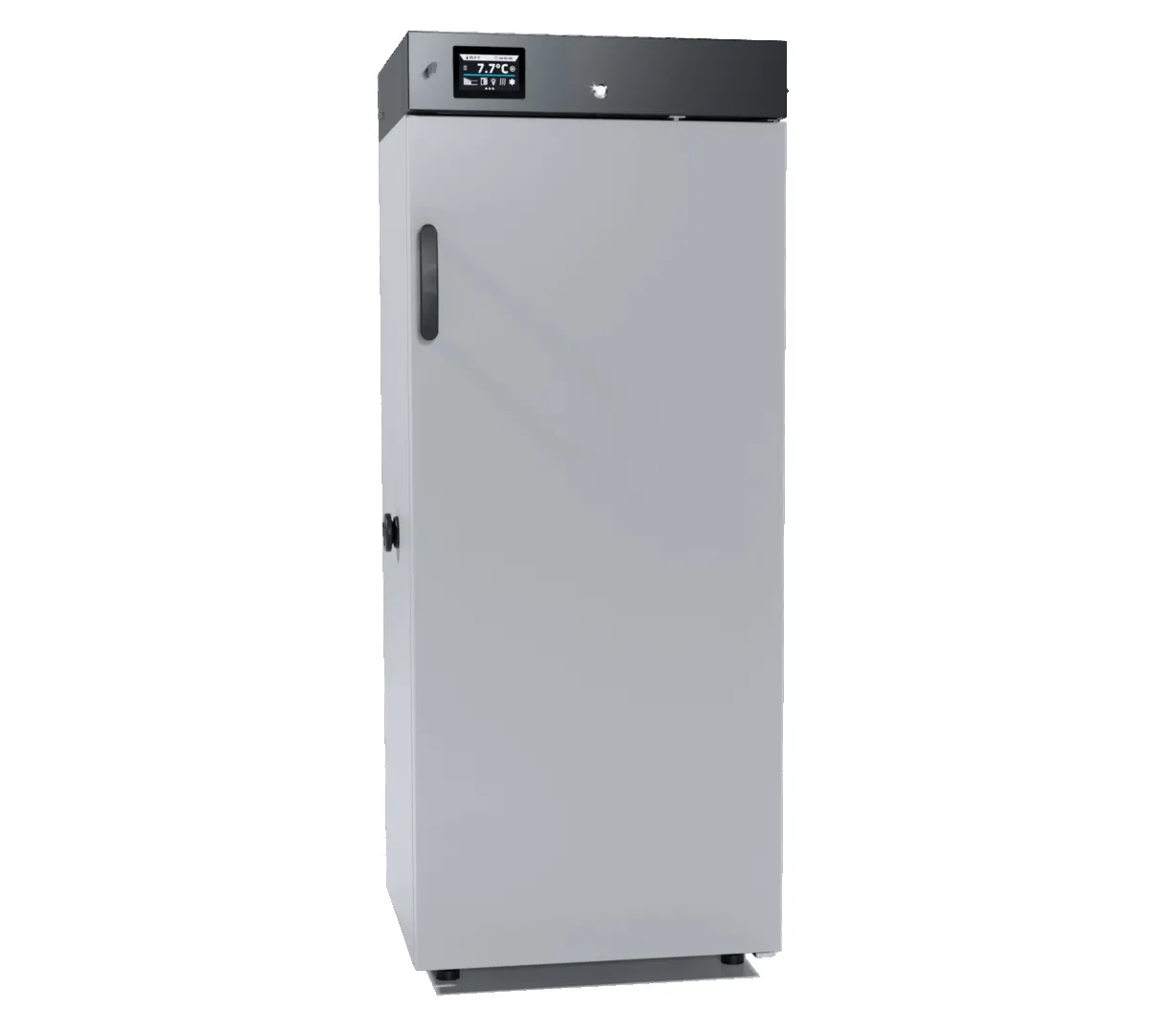

Laboratory Refrigerator CHL 5 - Image 3

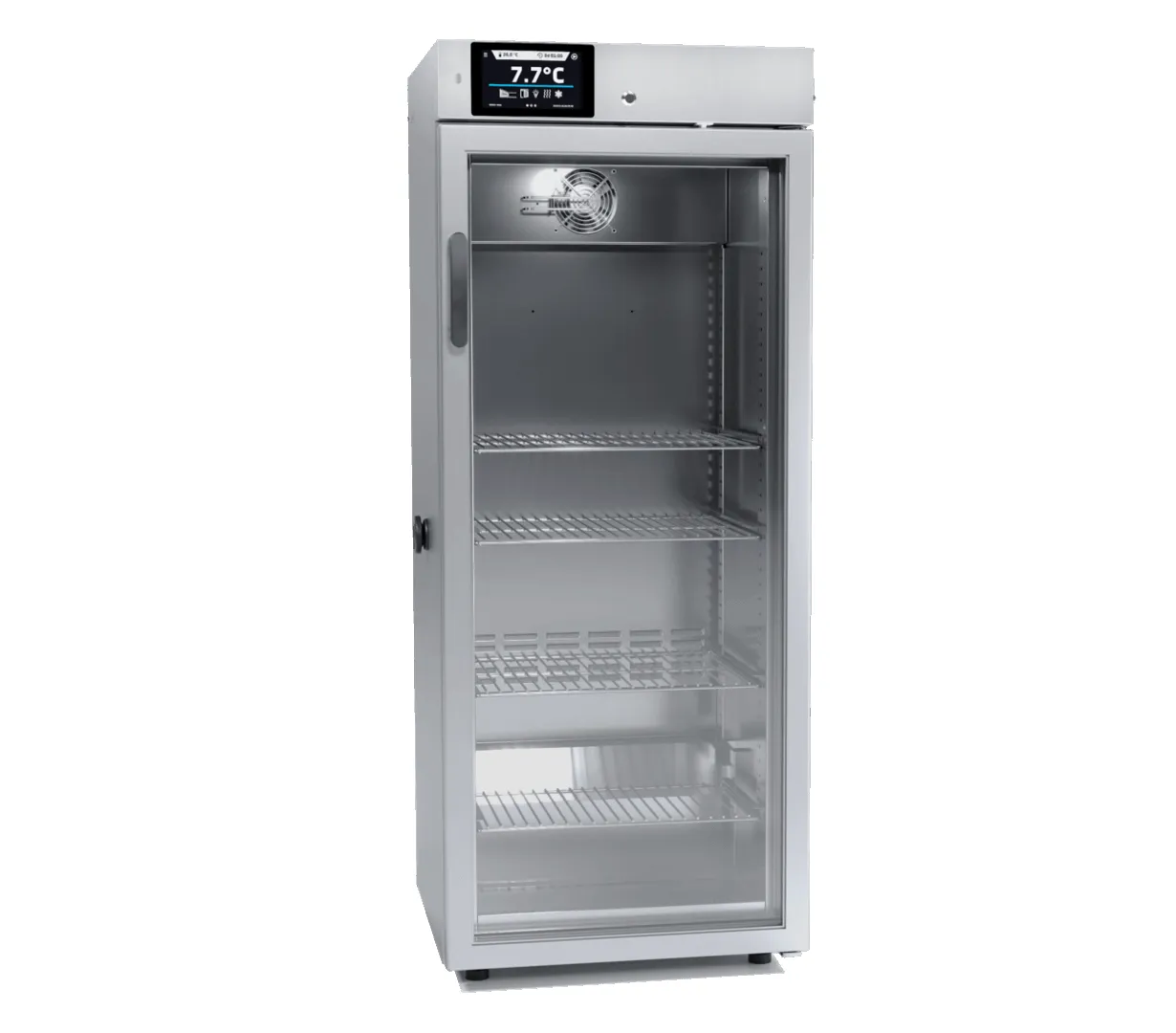

Laboratory Refrigerator CHL 5 - Image 4
Laboratory Refrigerator CHL 5 - Image 5

Laboratory Refrigerator CHL 5

The Pol-Eko CHL 5 is a mid-size laboratory refrigerator with a 300 L chamber (243 L usable) designed for precise cold storage of temperature-sensitive samples, reagents, and medicines at 0 ?C to +15 ?C. It features a microprocessor-controlled Smart or Smart PRO touchscreen interface, forced air circulation for uniform cooling, open-door alarm, LAN & USB ports, internal LED lighting, and a door lock for sample security. The unit supports stainless-steel shelving, external sensor access, and optional Wi-Fi connectivity (Smart PRO), making it ideal for research, clinical, or industrial laboratories requiring reliable, controlled refrigeration.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: CHL 5 Categories: , Brand: Product ID: 20766

Description

The Pol-Eko CHL 5 is a robust mid-size laboratory refrigerator engineered for precise and reliable cold storage of temperature-sensitive materials in scientific, clinical, and industrial environments. With a **300 L chamber capacity (243 L working)** and a controlled temperature range of **0 ?C to +15 ?C**, the CHL 5 delivers consistent cooling performance with minimal temperature fluctuation and uniform air distribution thanks to **forced air convection**.

This refrigerator comes equipped with a **microprocessor-controlled Smart or Smart PRO touchscreen controller** that provides intuitive operation, accurate temperature regulation, and advanced data handling capabilities. The control system includes **LAN and USB connectivity** for data transfer, **internal LED lighting** for easy chamber access, an **open-door alarm** for safety, and a **door lock** to protect valuable samples. A **30 mm external sensor access port** allows for precise external monitoring, making the CHL 5 suitable for regulated laboratory workflows.

The interior and exterior offer flexibility in material finishes, including stainless-steel options for enhanced durability and chemical resistance. Standard equipment includes multiple adjustable shelves, with space for additional shelves to optimize storage layout. Optional features such as automatic defrosting, reinforced shelving, internal sockets, and software integration (LabDesk) further enhance performance and usability based on laboratory needs.

Designed for applications ranging from reagent and calibrator storage to medicines and vaccine preservation, the CHL 5 meets stringent laboratory demands and supports data integrity and traceability with advanced control and logging functions.

Specifications

POL-EKO Laboratory Refrigerator CHL 5 Full Specifications

The CHL 5 is a single-chamber laboratory refrigerator with a 300-liter capacity. It serves as a versatile mid-to-large sized unit, offering significantly more vertical storage space than the CHL 4 while maintaining a similar floor footprint. It is ideal for the stable storage of vaccines, reagents, and clinical samples using forced air convection for high thermal uniformity.




Physical & Capacity Data

  • Chamber Capacity (Gross): 300 Liters



  • Working Capacity: 243 Liters



  • External Width: 620 mm



  • External Height: 1500 mm



  • External Depth: 650 mm (excludes 50 mm power cable)

  • Internal Width: 480 mm (max 520 mm)



  • Internal Height: 1260 mm



  • Internal Depth: 420 mm (max 480 mm)



  • Net Weight: 75 kg to 89 kg (depending on build)

  • Standard Shelves: 4 (Stainless steel wire INOX)



  • Maximum Shelves: 7



  • Max Shelf Workload: 10 kg



  • Max Unit Workload: 60 kg



  • Access Port: Ø30 mm (located on the left wall)



  • Door Type: Solid (External glass door or double internal glass doors optional)



Performance & Cooling

  • Temperature Range: 0°C to +15°C



  • Temperature Resolution: every 0.1°C



  • Temperature Fluctuation (at 4°C): ± 0.4°C



  • Temperature Variation (at 4°C): ± 0.9°C



  • Air Convection: Forced (Fan-assisted)



  • Defrosting: Automatic



Electrical & Build

  • Voltage: 230V, 50/60 Hz



  • Nominal Power: 350 W



  • Refrigerant: R1234ze (GWP=7)



  • Interior Material: Available in Stainless steel (DIN 1.4016) or Acid-proof stainless steel (DIN 1.4301)



  • Housing Material: Powder-coated sheet or polished stainless steel



  • Warranty: 24 months



Controller Variant Features

Smart Controller (Standard)

  • Display: 4.3″ Full-color touch screen



  • Connectivity: LAN, USB ports



  • Programs: 5 user programs (6 segments each)

  • Security: Class 1.0 (DIN 12880) temperature protection



Smart PRO Controller (Advanced)

  • Display: 7.0″ Full-color touch screen



  • Connectivity: LAN, USB, and integrated WiFi



  • Programs: 40 user programs (100 segments each)



  • User Accounts: Up to 5 user accounts (Admin/Super-Admin)



  • Security: Class 3.2 (DIN 12880) temperature protection



  • Data Recording: Advanced tabular and graphic data view (12 months storage)

Datasheet

Download CHL 5 Smart ATEX Datasheet
