Laboratory Refrigerator CHL 2/2

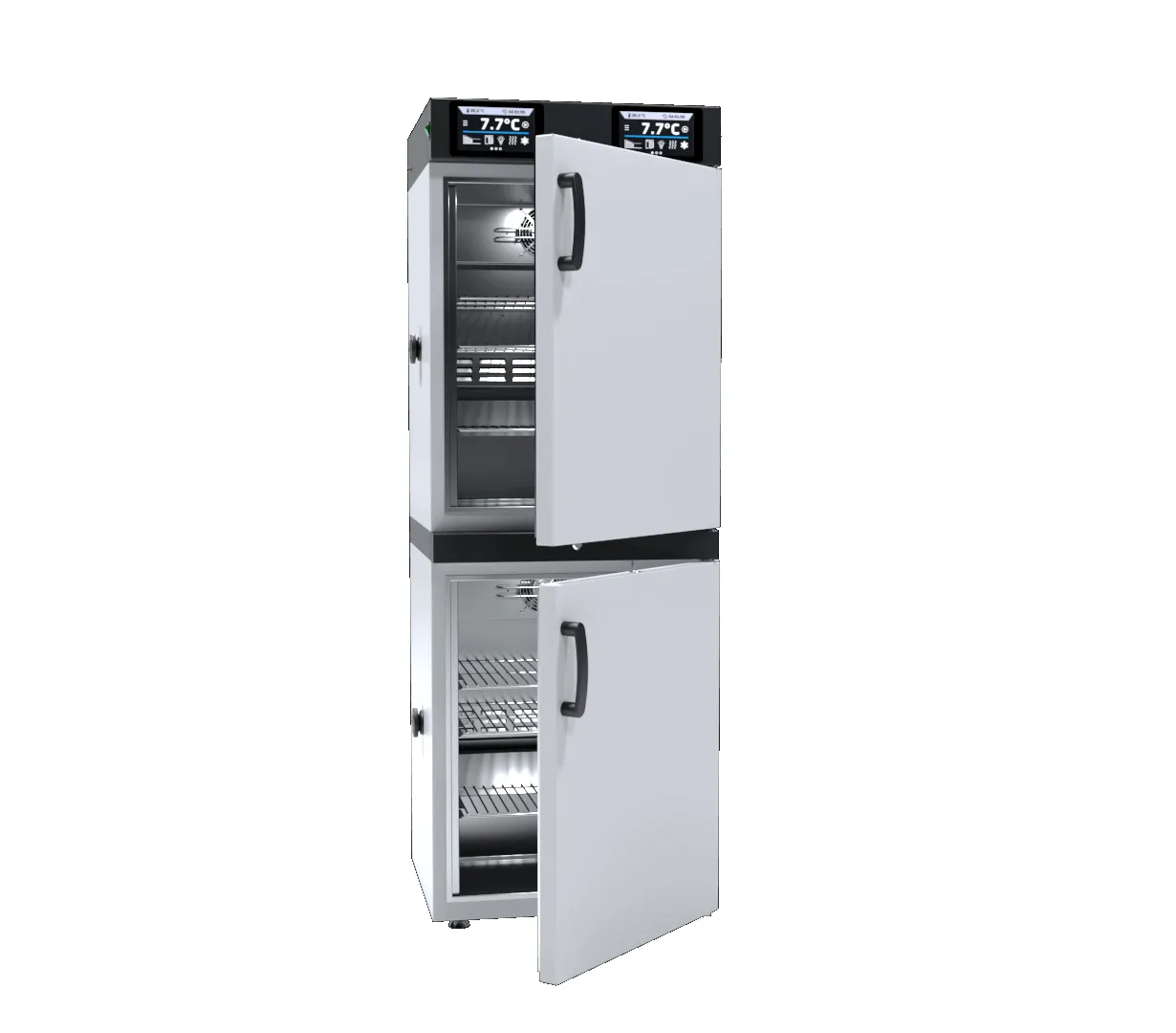

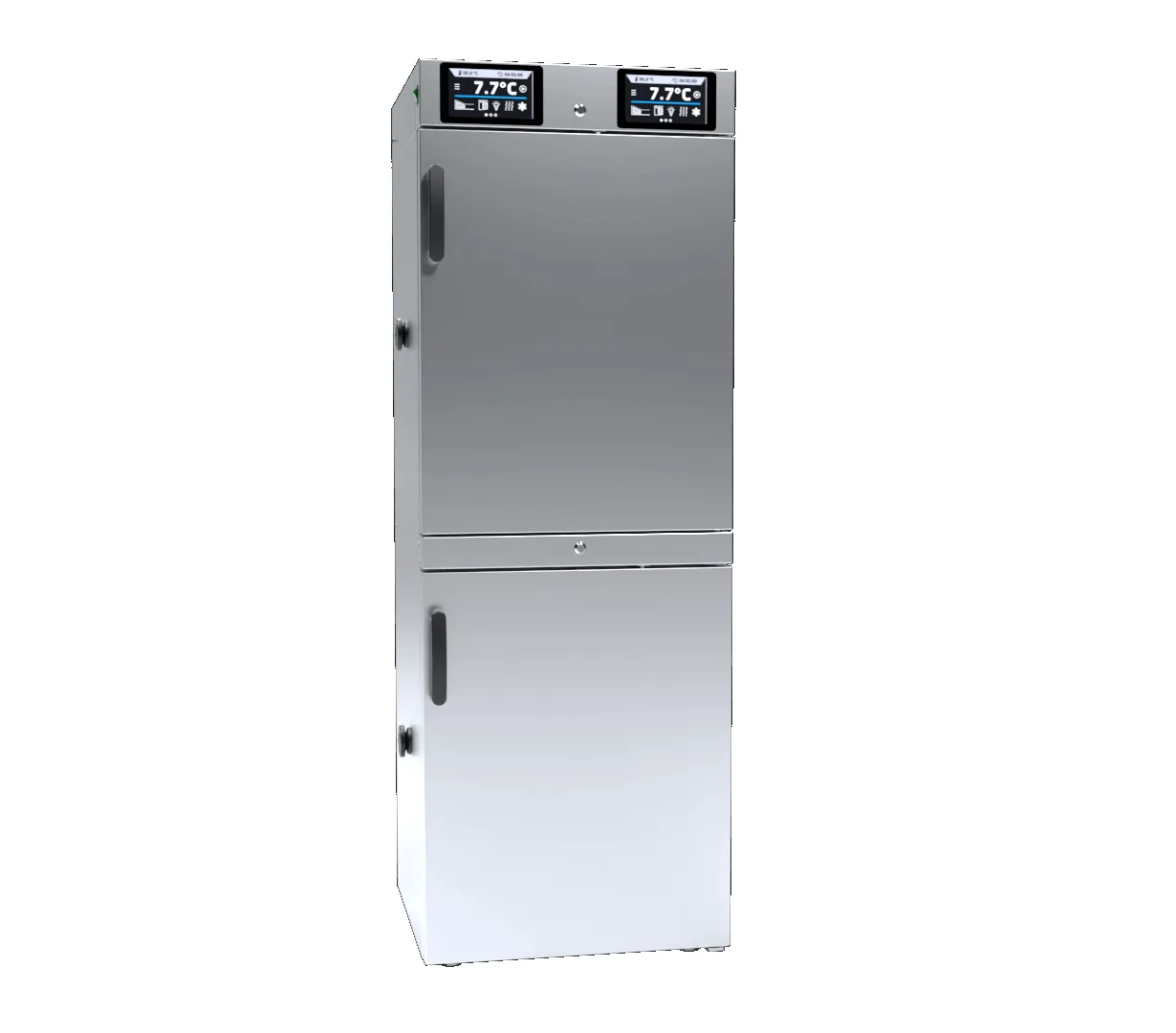

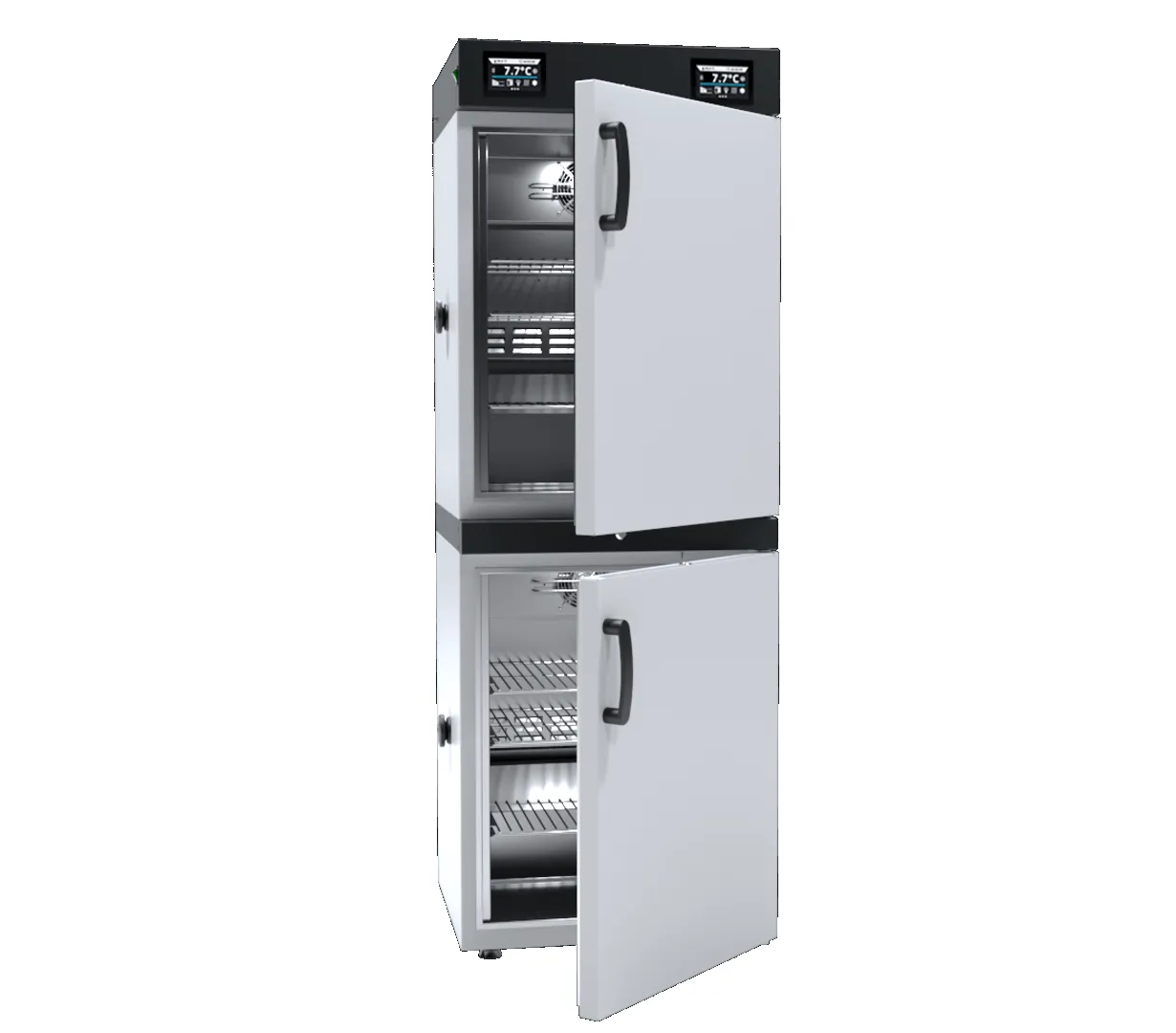

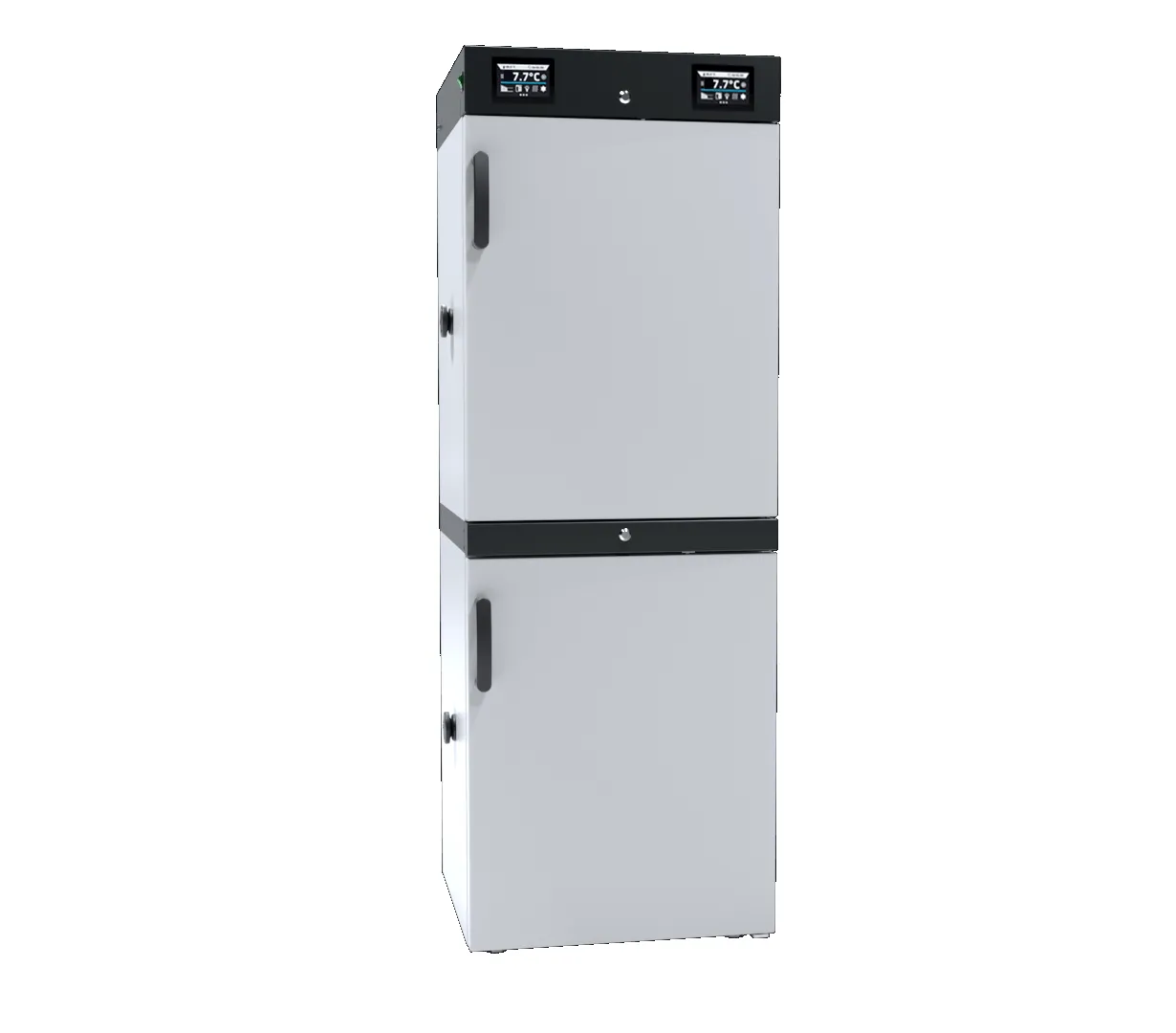

The Pol?Eko CHL?2/2 is a double?chamber laboratory refrigerator featuring two 150?L chambers (122?L usable each) designed to maintain a stable 0??C to +15??C temperature range for secure storage of samples, reagents, medicines, and other temperature?sensitive materials. It includes forced air circulation, a Smart or Smart?PRO touchscreen controller with LAN & USB connectivity (Wi?Fi optional), internal LED lighting, open?door alarm, door lock, stainless?steel wire shelves, and a wall?mount kit ? ideal for clinical, research, and industrial labs requiring reliable cold storage and advanced monitoring.

SKU: CHL 2/2 Categories: , Brand: Product ID: 20776

Description

The Pol?Eko CHL?2/2 is a professional double?chamber laboratory refrigerator engineered to deliver dependable and uniform cold storage for temperature?sensitive materials in scientific, clinical, pharmaceutical, and industrial environments. Each chamber provides 150?L capacity with 122?L usable space, maintaining a controlled 0??C to +15??C temperature range using forced air circulation to ensure even temperature distribution throughout the interiors.

Equipped with an advanced microprocessor?based Smart or Smart?PRO touchscreen controller, the CHL?2/2 offers intuitive control, precise temperature management, and advanced monitoring. The controller supports LAN and USB ports for data transfer, with the Smart?PRO version adding Wi?Fi communication for enhanced connectivity and data logging. Standard safety and convenience features include internal LED lighting, an open?door alarm for sample protection, a door lock to secure contents, and a 30?mm external sensor access port for integrating optional probes.

The refrigerator includes stainless?steel wire shelves (INOX) for robust and adjustable storage, full external doors for easy access, and an assembly kit for wall mounting to support secure installation in varied laboratory layouts. Designed for applications where separation of samples or workflows is important, the dual?chamber CHL?2/2 enables independent storage zones while maintaining uniform temperature control and compliance with DIN 12880 standards.

With its combination of precise temperature control, advanced monitoring capabilities, and practical design features, the CHL?2/2 is ideal for laboratories that require reliable, documented refrigeration for a wide range of research, medical, and quality?assurance applications.

Specifications

  • POL-EKO Laboratory Refrigerator CHL 2/2 Full Specifications

    The CHL 2/2 is a double-chamber laboratory refrigerator featuring two independent 150-liter chambers stacked in a single vertical housing. Each chamber is equipped with its own dedicated microprocessor controller and cooling system, allowing for different temperature setpoints or independent operation of each compartment.

    Physical & Capacity Data

    • Total Capacity (Gross): 300 Liters ($150 + 150$ Liters)

    • Working Capacity: 244 Liters ($122 + 122$ Liters)

    • External Width: 600 mm (excludes 20 mm rubber plug)

    • External Height: 1720 mm

    • External Depth: 650 mm (excludes 50 mm power cable)

    • Internal Width (per chamber): 480 mm (max 520 mm)

    • Internal Height (per chamber): 660 mm

    • Internal Depth (per chamber): 420 mm (max 480 mm)

    • Net Weight: 109 kg

    • Standard Shelves: 6 (3 per chamber, Stainless steel wire INOX)

    • Maximum Shelves: 8 (4 per chamber)

    • Max Shelf Workload: 10 kg

    • Max Unit Workload: 60 kg ($30 kg$ per chamber)

    • Access Ports: 2 x Ø30 mm (one on the left wall of each chamber)

    • Door Type: 2 x Solid doors (External glass or internal glass doors optional)

    Performance & Cooling

    • Temperature Range: $0°C$ to $+15°C$ (Independent for each chamber)

    • Temperature Resolution: every $0.1°C$

    • Temperature Fluctuation (at 4°C): $pm 0.4°C$

    • Temperature Variation (at 4°C): $pm 0.7°C$

    • Air Convection: Forced (Fan-assisted in both chambers)

    • Defrosting: Automatic

    Electrical & Build

    • Voltage: 230V, 50/60 Hz

    • Nominal Power: 500 W (combined total)

    • Refrigerant: R1234ze ($GWP=1$)

    • Interior Material: Available in Stainless steel (DIN 1.4016) or Acid-proof stainless steel (DIN 1.4301)

    • Housing Material: Powder-coated sheet or polished stainless steel

    • Warranty: 24 months


    Controller Variant Features

    You can specify different controller types for the top and bottom chambers depending on your data logging needs.

    Smart Controller

    • Display: 4.3″ Full-color touch screen

    • Connectivity: LAN, USB ports

    • Programs: 5 user programs (6 segments each)

    • Security: Class 1.0 (DIN 12880) temperature protection

    Smart PRO Controller

    • Display: 7.0″ Full-color touch screen

    • Connectivity: LAN, USB, and integrated WiFi

    • Programs: 40 user programs (100 segments each)

    • Data Recording: Tabular and graphic data view (stored for 12 months)

    • Security: Class 3.2 (DIN 12880) temperature protection
