Description

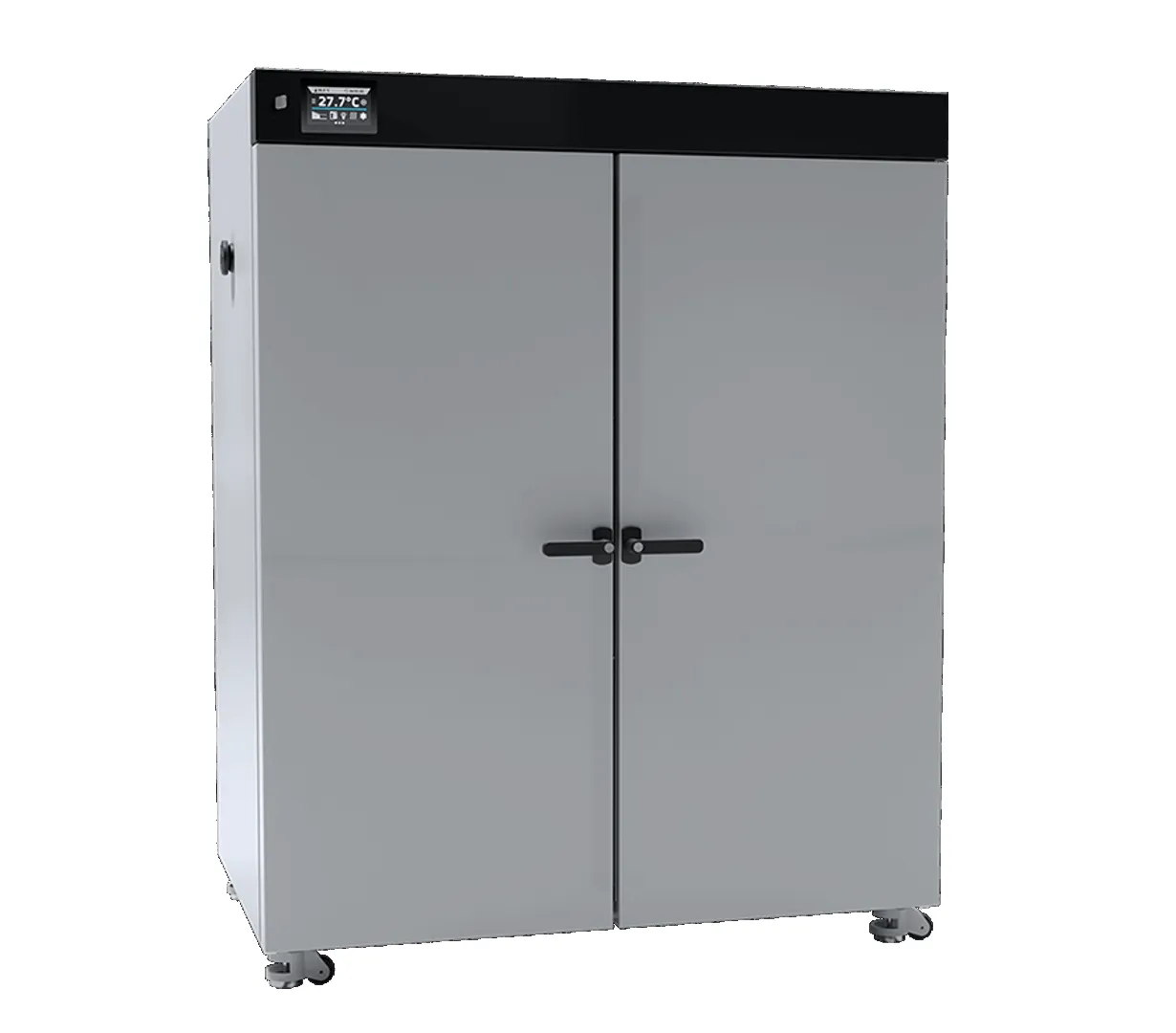

The Laboratory Incubator CLW?750 is an advanced high?capacity forced?air incubator engineered to deliver precise and uniform temperature control for demanding laboratory applications. With a 750?L chamber, it provides ample space for incubating biological samples, microbial and cell cultures, enzyme reactions, thermal conditioning tests, product testing, and a wide range of controlled?temperature procedures that require stability, repeatability, and performance.
Operating over a broad temperature range from +5??C above ambient up to +100??C, the CLW?750 uses forced air circulation to quickly and evenly distribute heat throughout the chamber. This design minimizes temperature gradients, enhances reproducibility, and improves recovery after door openings, making it suitable for high?usage environments requiring uniform conditions and dependable results.
Temperature regulation and monitoring are managed via an advanced microprocessor PID touchscreen controller, allowing precise temperature settings, intuitive operation, and clear real?time display of both actual and set values. External sensor access ports enable integration of optional third?party probes or monitoring devices for enhanced data logging and quality?assurance needs.

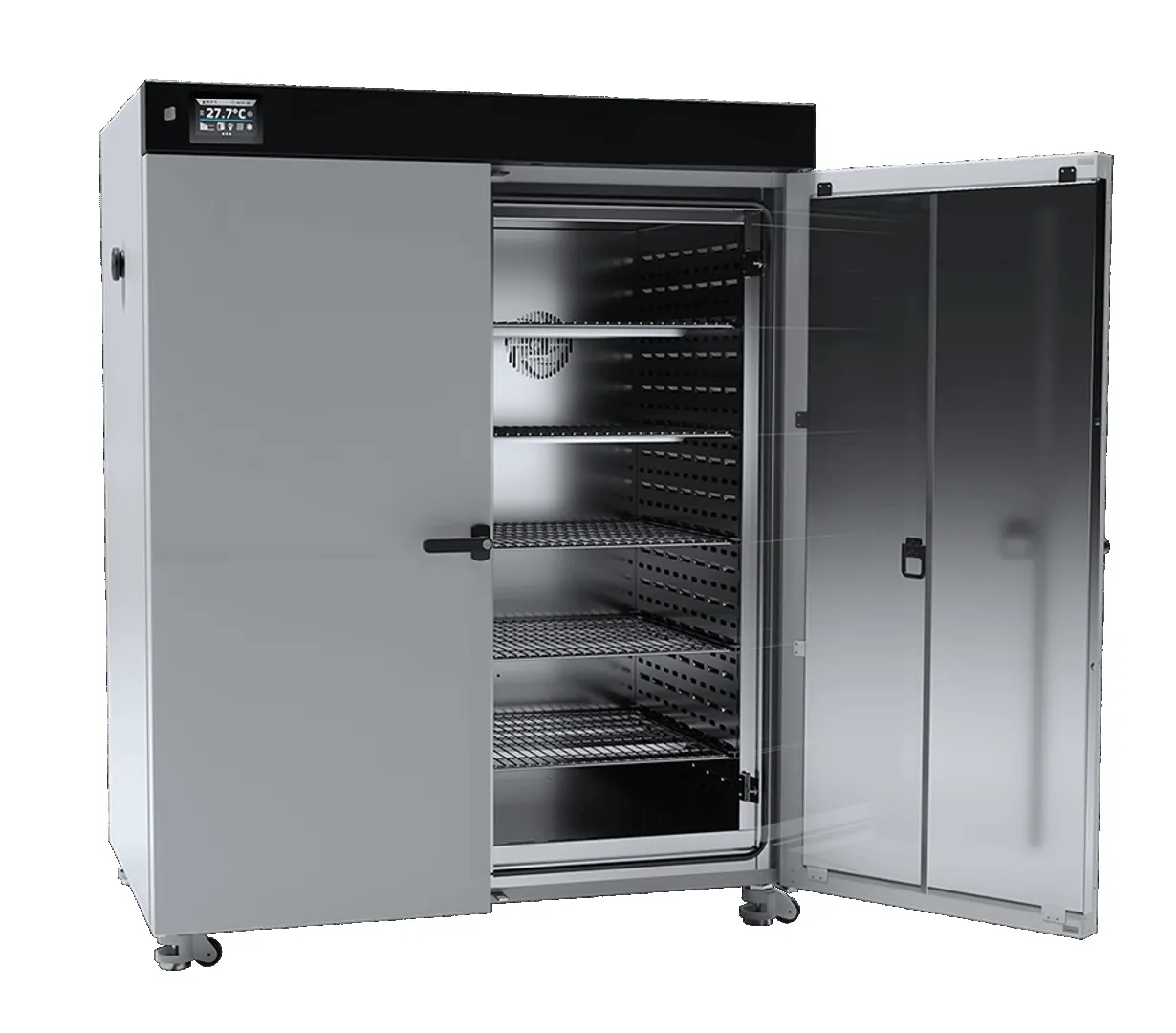

The interior is equipped with stainless?steel wire shelves that provide flexible, hygienic sample placement and easy cleaning. Internal LED lighting ensures excellent visibility throughout the chamber for fast sample inspection and handling. Safety and usability are supported by an open?door alarm, which alerts users to unintended openings or temperature deviations, and a secure door lock to protect valuable contents.
Built for reliability and performance in busy laboratory settings, the CLW?750 is suitable for research institutions, clinical labs, quality control departments, and industrial R&D centers. Its combination of large capacity, precise forced?air performance, and user?friendly controls supports efficient workflows and reproducible incubation results across routine and specialized applications.
Specifications
POL-EKO Laboratory Incubator CLW 750 Full Specifications
The CLW 750 is a large-scale 749-liter laboratory incubator featuring forced air convection (fan-assisted). It is designed for high-capacity applications such as pharmaceutical stability tests, microbiological determinations, and food industry denaturalizing tests where rapid heat distribution and superior temperature uniformity are critical.
Physical & Capacity Data
-
Chamber Capacity (Gross): 749 Liters
-
Working Capacity: 749 Liters
-
External Width: 1260 mm
-
External Height: 1600 mm
-
External Depth: 880 mm (excludes 50 mm power cable)
-
Internal Width: 1040 mm
-
Internal Height: 1200 mm
-
Internal Depth: 600 mm
-
Net Weight: 260 kg
-
Standard Shelves: 5 (Stainless steel wire INOX)
-
Maximum Shelves: 16
-
Max Shelf Workload: 30 kg (standard)
-
Max Unit Workload: 140 kg
-
Reinforced Shelf Version (Optional): 100 kg
-
Reinforced Unit Version (Optional): 300 kg
-
Access Port: Ø30 mm (located on the left wall)
-
Door Type: Double (solid external door and internal glass door)
-
Castors: Included as standard equipment
-
Air-flap: Manual/Automatic, Ø60 mm (rear chimney)
Performance & Heating
-
Temperature Range: $5°C$ above ambient up to $+100°C$
-
Temperature Resolution: every $0.1°C$
-
Temperature Fluctuation (at 37°C): $pm 0.1°C$
-
Temperature Variation (at 37°C): $pm 0.5°C$
-
Air Convection: Forced (Fan-assisted)
-
Fan Speed Control: $10–100%$ (adjustable in $10%$ increments)
Electrical & Build
-
Voltage: 230V, 50/60 Hz
-
Nominal Power: 1900 W
-
Interior Material: Acid-proof stainless steel (DIN 1.4301)
-
Housing Material (Standard): Powder-coated sheet
-

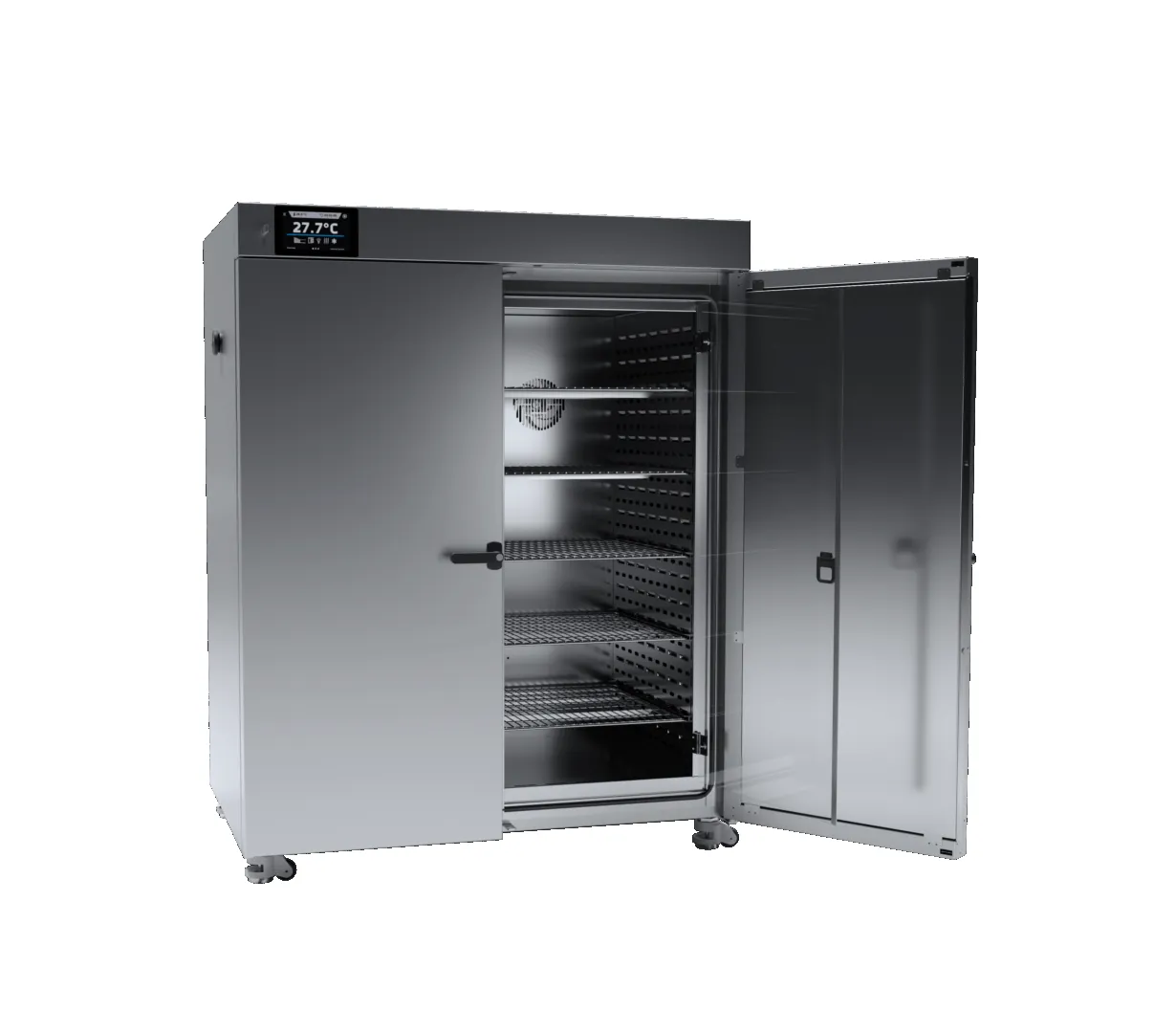

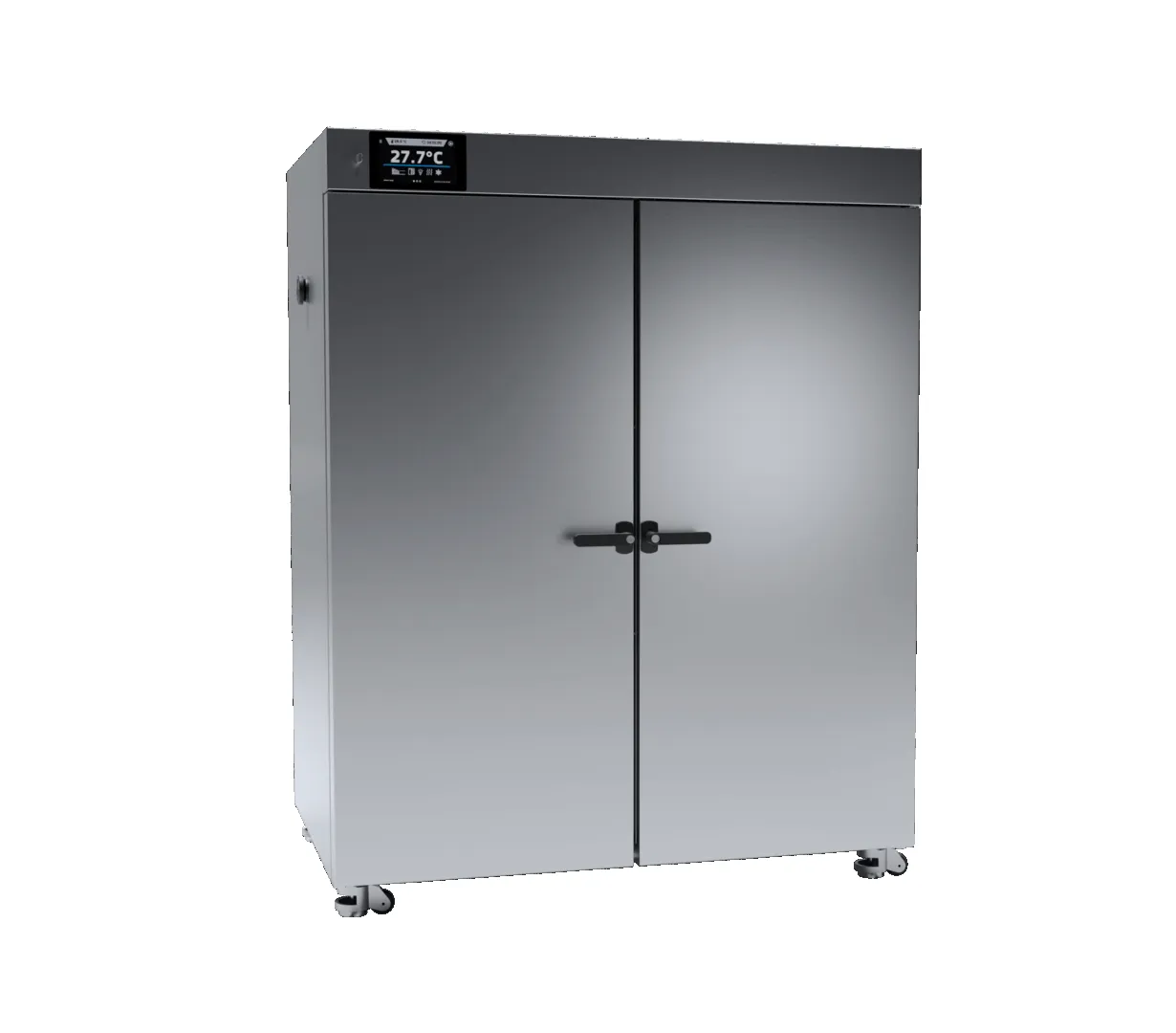

Housing Material (IG Version): Stainless steel linen finish
-
Warranty: 24 months
Controller Variant Features
Smart Controller (Standard)
-
Display: 4.3″ Full-color touch screen
-
Connectivity: LAN, USB ports
-
Programs: 5 user programs (6 segments each)
-
Data Log: 10,000 measurements (stored for 6 months)
-
Security: Class 2.0 (DIN 12880) temperature protection (Class 3.1 optional)
-
Keypad: Numeric

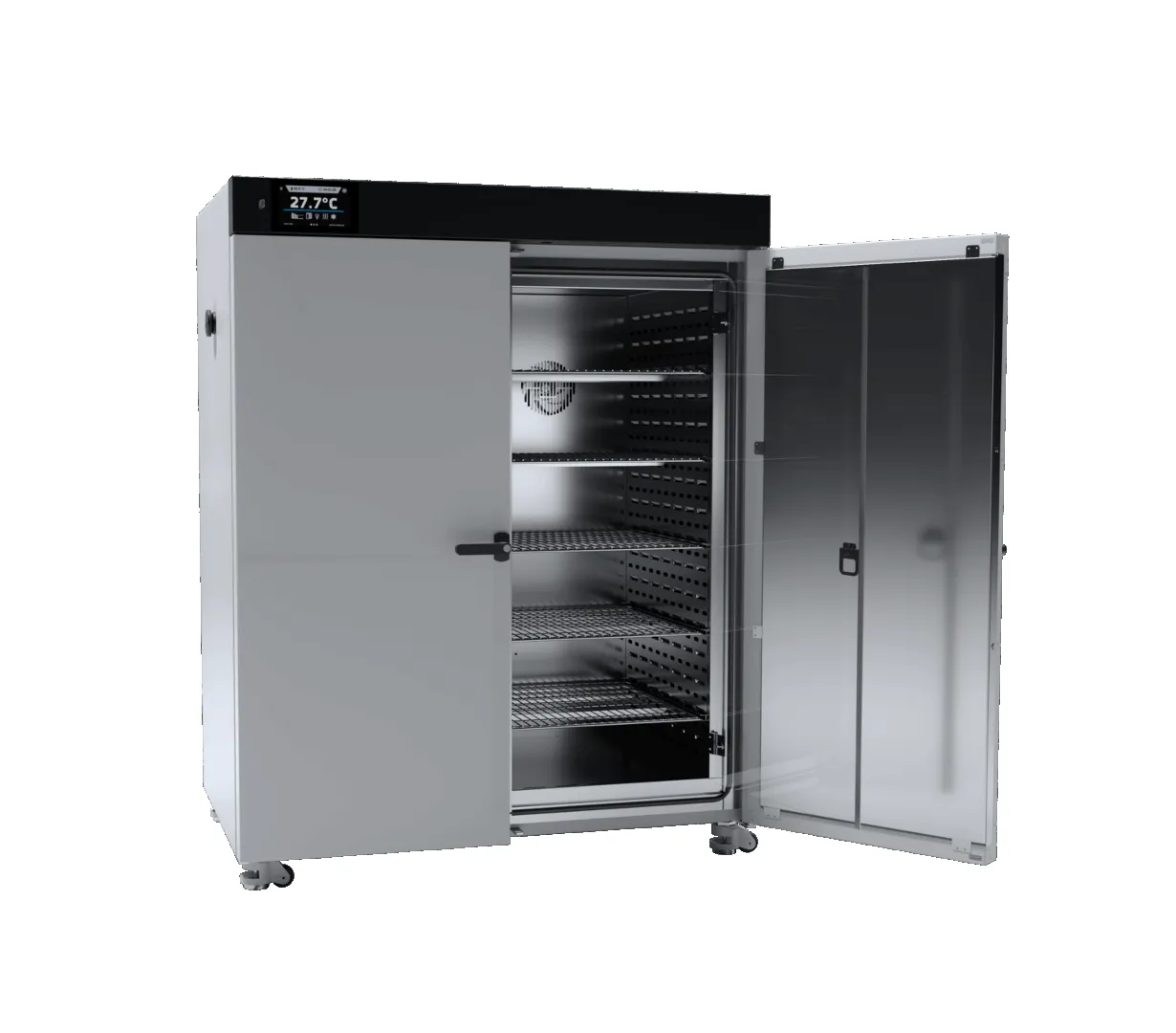

Smart PRO Controller (Advanced Upgrade)
-
Display: 7.0″ Full-color touch screen
-
Connectivity: LAN, USB, and integrated WiFi
-
Programs: 40 user programs (100 segments each)
-
User Accounts: Up to 5 user accounts (Admin/Super-Admin roles)
-
Security: Class 3.1 (DIN 12880) temperature protection
-
Data Recording: Advanced tabular and graphic data view (stored for 12 months)
-
Software: Includes LabDesk for remote management and PC data export
-
Keypad: Alphanumeric
