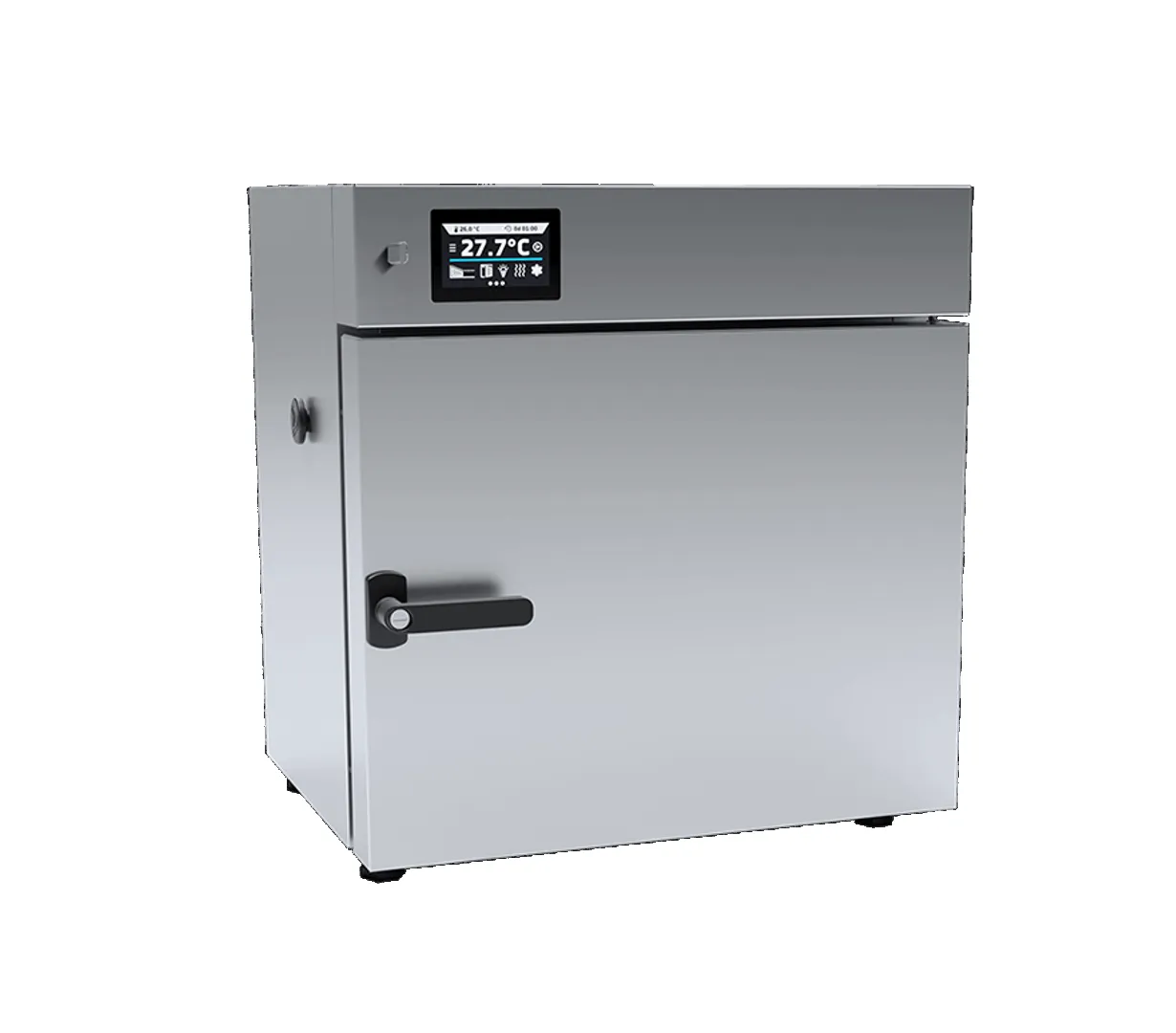

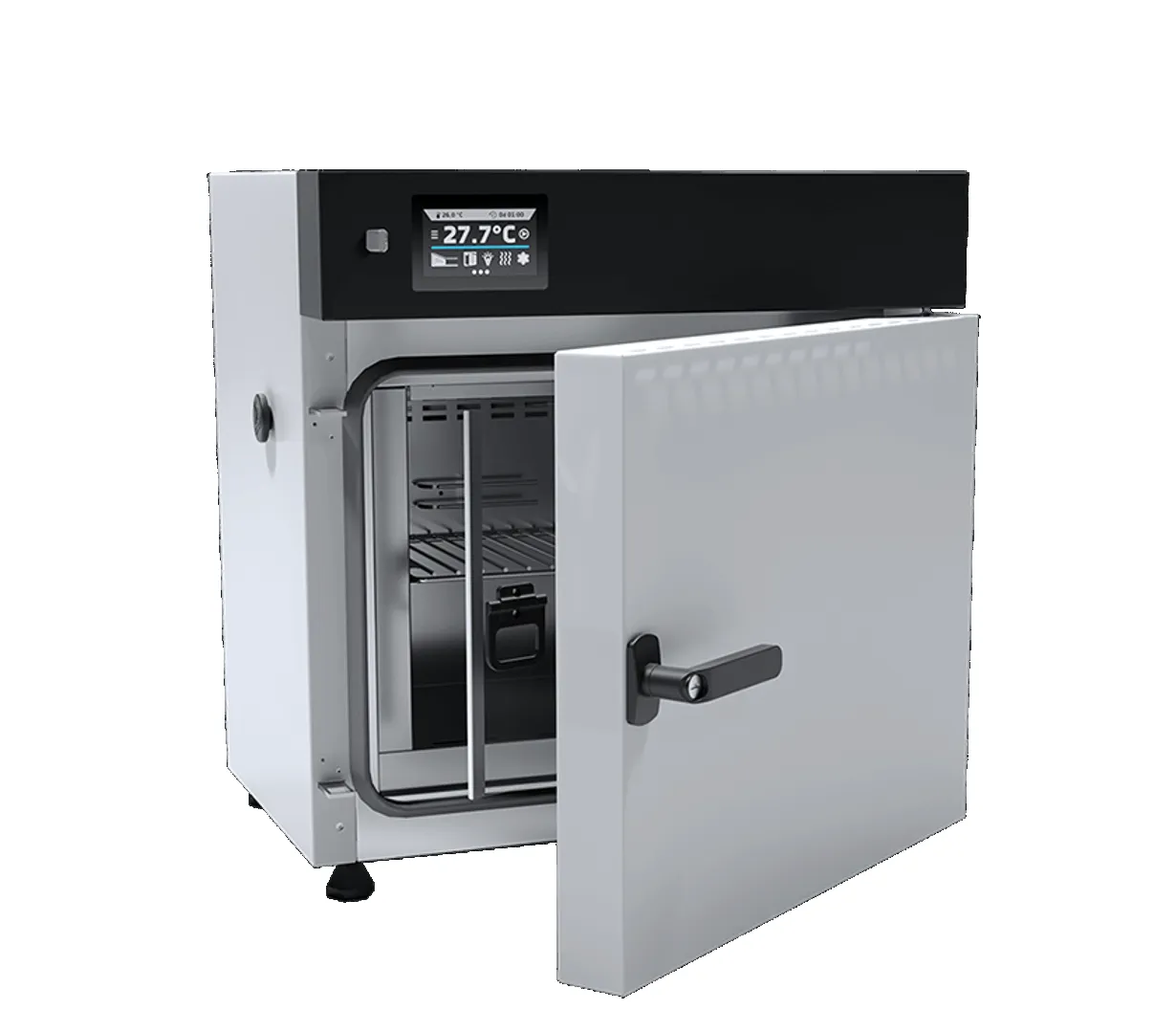

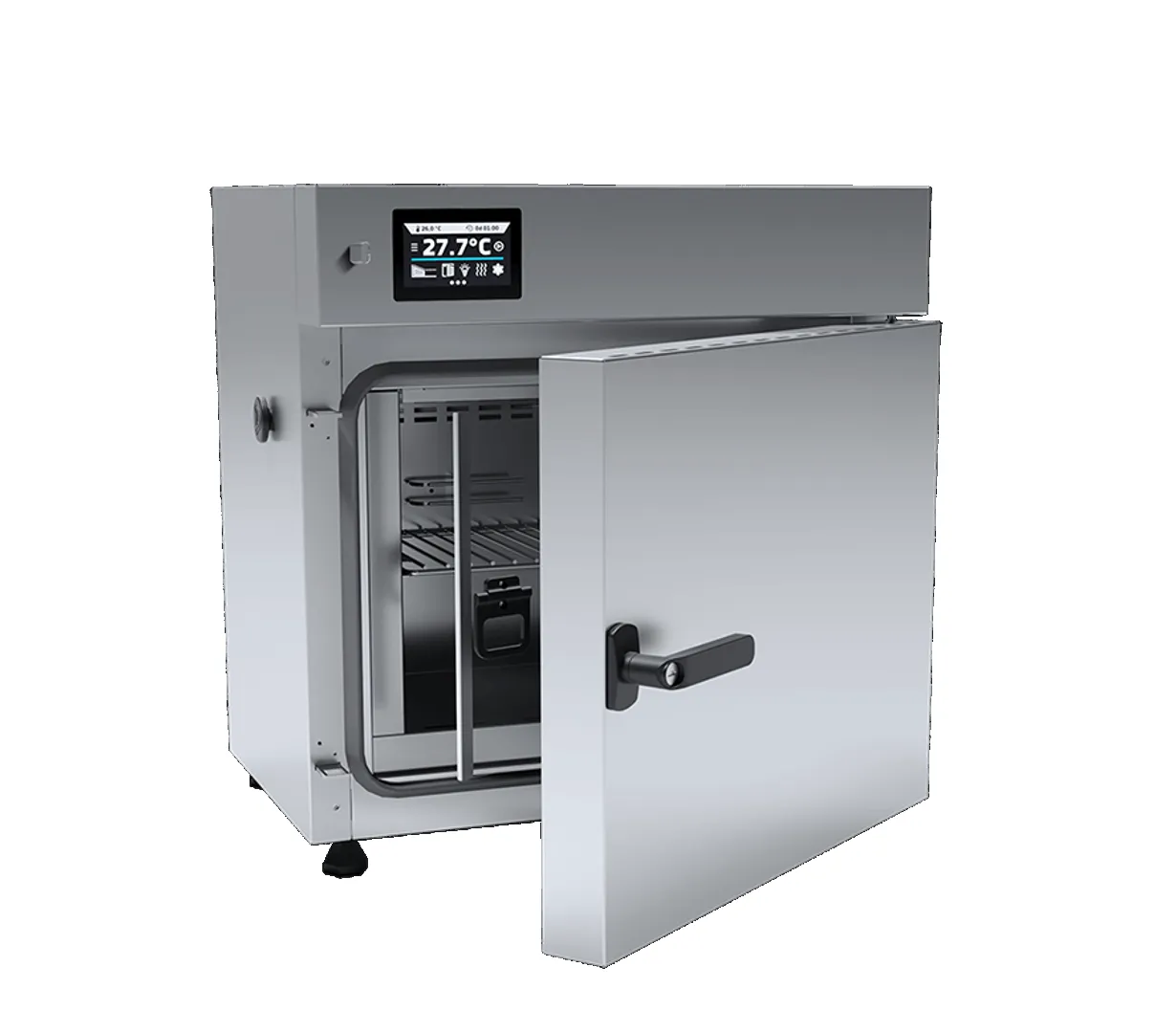

Laboratory Incubator CLN 32
Laboratory Incubator CLN 32 - Image 2
Laboratory Incubator CLN 32 - Image 3
Laboratory Incubator CLN 32 - Image 4

Laboratory Incubator CLN 32

A compact laboratory incubator with 32?L capacity and a temperature range from +5??C above ambient up to +100??C, designed for stable and reliable incubation of biological samples, cultures, and reagents. Features include natural air convection, microprocessor PID touchscreen controller, internal LED lighting, stainless?steel wire shelves, open?door alarm, door lock, and external access ports for sensors ? ideal for research, clinical, and industrial labs.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: CLN 32 Categories: , , Brand: Product ID: 21343

Description

The Laboratory Incubator CLN?32 is a high?precision, compact incubator engineered to provide stable and uniform temperature conditions for a wide range of laboratory applications. With a 32?L chamber, it supports tasks such as biological sample incubation, bacterial culture growth, enzyme reactions, material conditioning, and other controlled temperature processes.

This incubator operates within a broad temperature range from +5??C above ambient up to +100??C, allowing it to accommodate diverse laboratory needs. Its natural air convection design ensures even heat distribution throughout the chamber, minimizing temperature gradients and providing consistent performance.

Temperature regulation and control are managed by an advanced microprocessor PID controller with a user?friendly interface, enabling precise adjustments, intuitive operation, and clear display of set and actual values. Connectivity options include external ports for sensor integration, allowing additional monitoring capabilities as needed.

The interior is equipped with stainless?steel wire shelves for flexible sample arrangement and easy cleaning. Safety and usability features include internal LED lighting for enhanced visibility, an open?door alarm to alert users of unintended access or temperature deviations, and a secure door lock to protect valuable contents.

The compact and robust design of the CLN?32 makes it suitable for research laboratories, clinical facilities, quality?control environments, and industrial laboratories where reliable and precisely controlled incubation conditions are essential. Its balance of performance, capacity, and ease of use supports efficient workflow in both daily routine and specialized laboratory tasks.

Specifications

POL-EKO Laboratory Incubator CLN 32 Full Specifications

The CLN 32 is a compact benchtop laboratory incubator featuring natural air convection.1 Its 32-liter capacity and double-door design make it suitable for smaller laboratories or specialized tasks such as microbiological determinations, antibody testing, and crystallization observations where minimal airflow is required.2






Physical & Capacity Data

  • Chamber Capacity (Gross): 32 Liters3





  • Working Capacity: 32 Liters4





  • External Width: 590 mm (standard) to 600 mm

  • External Height: 630 mm (standard) to 640 mm

  • External Depth: 520 mm (excludes 50 mm power cable)

  • Internal Width: 400 mm5





  • Internal Height: 320 mm6





  • Internal Depth: 250 mm7





  • Net Weight: 35 kg8





  • Standard Shelves: 1 (Stainless steel wire INOX)9





  • Maximum Shelves: 310





  • Max Shelf Workload: 10 kg11





  • Max Unit Workload: 30 kg12





  • Access Port: Ø9 mm (located on the left wall)13





  • Door Type: Double (solid external door and internal glass door)14





Performance & Heating

  • Temperature Range: 15$5°C$ above ambient up to 16$+100°C$





  • Temperature Resolution: every 17$0.1°C$





  • Temperature Fluctuation (at 37°C): 18$pm 0.2°C$





  • Temperature Variation (at 37°C): 19$pm 0.7°C$





  • Air Convection: Natural (Gravity)20





  • Air-flap: Manual, Ø40 mm (rear chimney)21





Electrical & Build

  • Voltage: 230V, 50/60 Hz (115V option available)22





  • Nominal Power: 350 W23





  • Interior Material: Acid-proof stainless steel to DIN 1.430124





  • Housing Material: Powder-coated sheet (Standard) or Stainless steel linen finish (IG version)25





  • Warranty: 24 months26





Controller Feature List

The CLN 32 is equipped with the Smart Controller.27





Smart Controller Features:

  • Display: 4.3″ Full-color touch screen28





  • Connectivity: LAN and USB ports for data transfer29





  • Programs: 5 user programs with up to 6 segments each

  • Data Log: Internal memory for 10,000 data points (stored for up to 6 months)

  • Safety: Class 2.0 (DIN 12880) over-temperature protection (Class 3.1 optional)30





  • Alarms: Open door alarm, visual and acoustic temperature deviation signals31





  • Operating: Optimized for use with laboratory gloves32

Datasheet

Download CLN 32 Smart Datasheet
