Description
The POL-EKO DCL 1500 SS is engineered for laboratories that require a larger working volume without sacrificing safety or chemical resistance. Its frame and housing are manufactured from galvanized steel finished with chemically resistant epoxy powder paint, ensuring long-term structural integrity in corrosive environments.3Sophisticated Airflow and Safety Monitoring:Designed to provide absolute protection for the operator, the DCL 1500 SS utilizes a double rear-wall extraction system.4 This configuration features exhaust slots at both the upper and lower levels of the chamber to effectively remove vapors regardless of their density, eliminating turbulence and “dead zones.”5+1Real-time Monitoring: The standard Schneider FM 550-A-0-E monitoring set continuously measures face velocity.6 If the airflow drops below safe levels ($<0.3text{ m/s}$), the system triggers visual and audible alarms to alert the operator immediately.Emergency Decompression: An integrated safety flap in the ceiling ensures immediate pressure relief in the event of an uncontrolled reaction or pressure increase within the working chamber.7Ergonomics and High-Quality Components:Workspace: The interior features a monolithic ceramic worktop with a raised marine edge to contain spills, complemented by a suspended ceramic sink (8$280 times 80 text{ mm}$ or 9$250 times 95 text{ mm}$).10Dynamic Sash: The tempered glass window is balanced by a counterweight system for smooth manual operation.11 It includes a safety lock at 12$500 text{ mm}$ and horizontal sliding glass panes for precise, localized access.13+1Integrated Utilities: The front panel comes pre-installed with two IP44-rated 14$230text{V}$ electrical sockets and two water spouts with high-quality BROEN valves.15Lighting: High-efficiency LED lighting is positioned outside the working chamber, protected by a glass pane to prevent chemical degradation of the fixture.16
Specifications

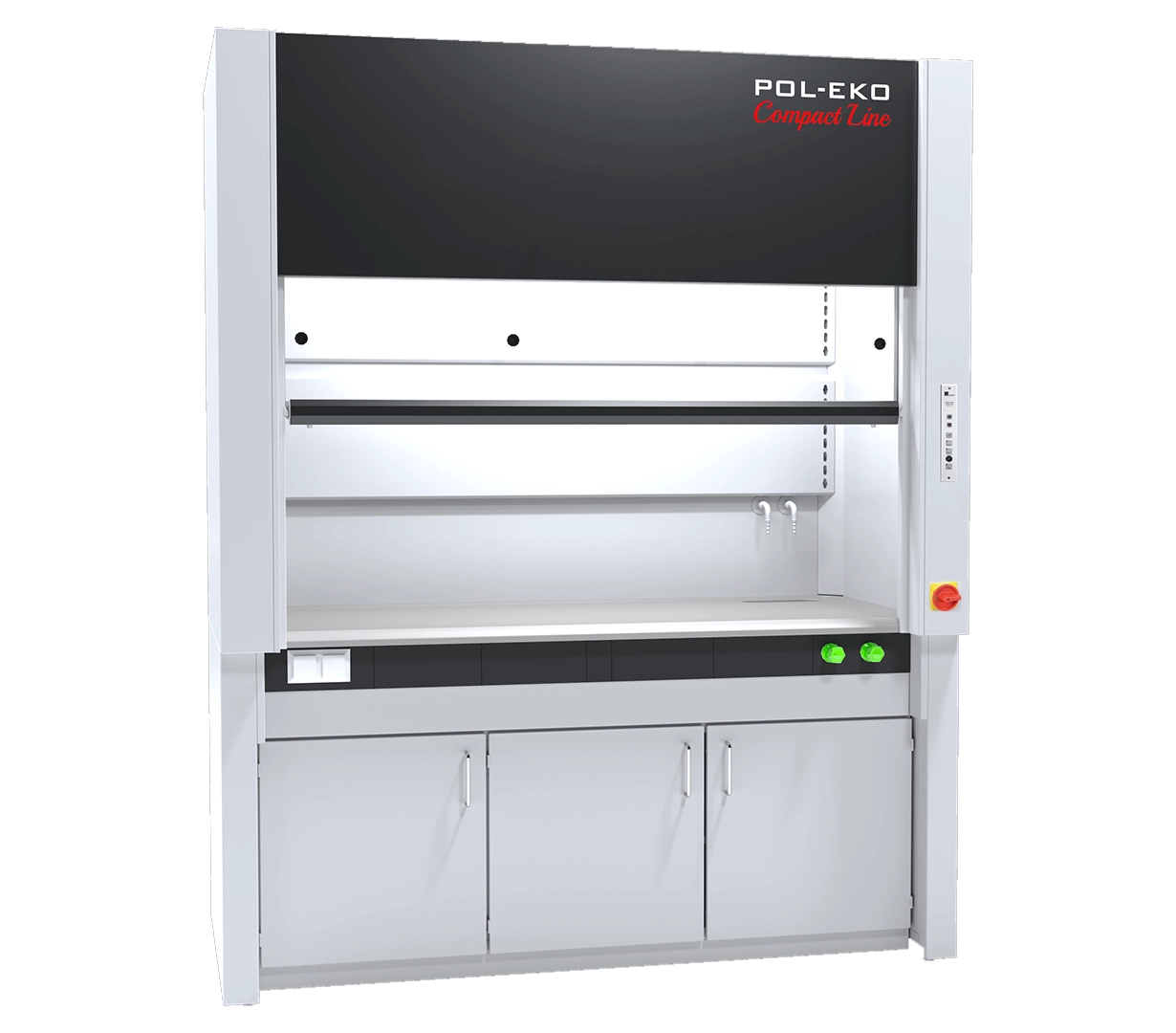

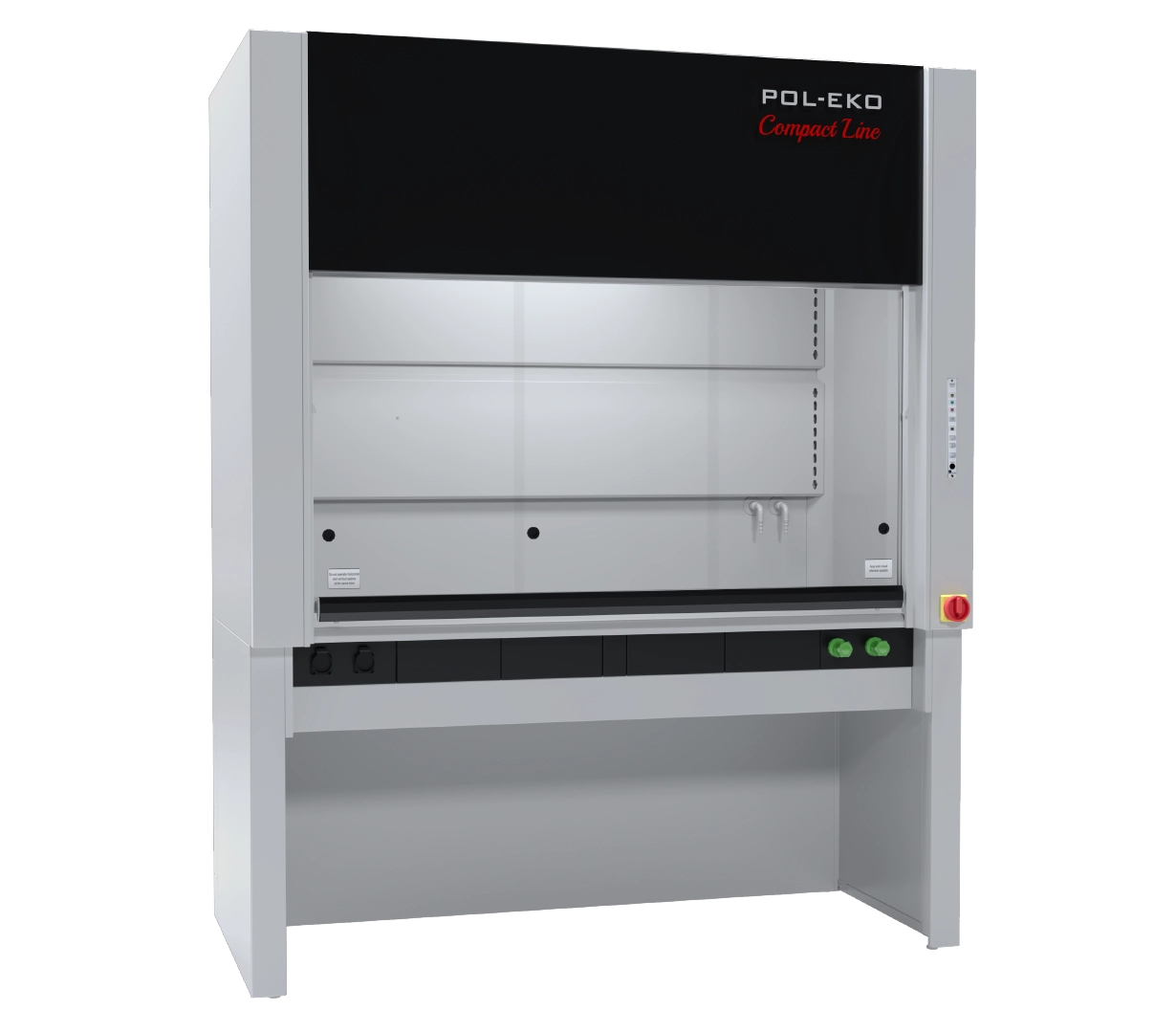

Fume Hood CompactLine DCL 1800 SS Specs
The DCL 1800 SS is the largest standard-model fume hood in the CompactLine series with a steel interior. The “SS” variant uses galvanized steel protected by chemically resistant epoxy powder coating, making it a robust and cost-effective choice for general laboratory work that does not involve high-concentration acid fuming.
-
Internal Chamber Material: Galvanized steel with chemically resistant epoxy coating
-
Worktop Material: Monolithic ceramics with an integrated marine edge (Standard)
-
External Dimensions (W x H x D): 1880 x 2325–2600 x 960 mm
-
Working Space Dimensions (W x H x D): 1750 x 1220 x 750 mm (Window width: 1565 mm)
-
Front Window: Toughened glass, manually operated with a counterweight; opens upwards with a lock at 500 mm (max opening 810 mm), including horizontal sliding glass panels.
-
Airflow Management: Double back-wall system with upper and lower extraction slots to remove vapors of varying densities without turbulence.
-
Monitoring System: Schneider FM 550-A-0-E controller with an air velocity sensor (compliant with EN 14175).
-
Lighting: Energy-saving linear LED lighting, separated from the working chamber by glass.
-
Standard Fittings:
-
2 x Water spouts with front-panel valves (BROEN)
-
1 x Ceramic sink (280 x 80 mm)
-
2 x Electrical sockets (230V, 50Hz, IP44)
-
Safety Features: * Decompression safety flap in the ceiling.
-
Recommended Airflow: 900 – 1500 m³/h
-
Exit Air Duct Diameter: Ø 250 mm
-
Nominal Power: 82 W
-
Voltage: 230V, 50Hz
-
Construction: Entirely made of galvanized steel with epoxy powder coating (no wood-based materials).
Key Performance Highlights
-
Expansive Workspace: At 1750 mm internal width, it provides the maximum standard horizontal space for wide equipment or complex distillation setups.
-
Mechanical Strength: The steel interior is highly resistant to mechanical impact and provides a durable, non-combustible working environment.
-
Safety Compliance: Fully compliant with PN-EN 14175 standards, featuring real-time face velocity monitoring to ensure hazardous vapors are properly contained.
