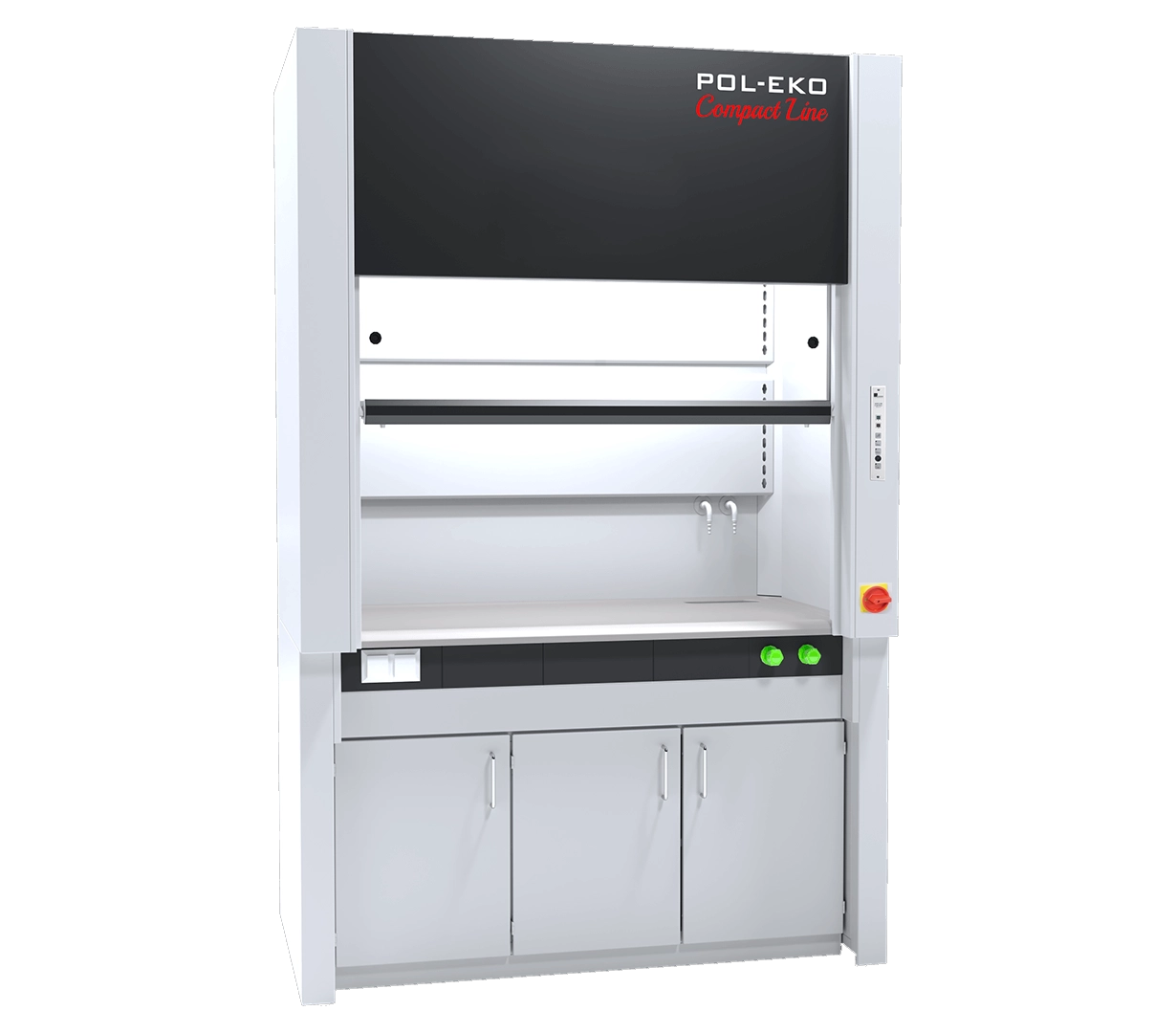

Fume Hood CompactLine DCL 1500 SS
Fume Hood CompactLine DCL 1500 SS - Image 2

Fume Hood CompactLine DCL 1500 SS

POL-EKO CompactLine Fume Hood DCL 1500 SS The DCL 1500 SS is a high-performance 1.5-meter laboratory fume cupboard designed for the safe handling of volatile chemicals and hazardous substances. Constructed entirely from epoxy-coated galvanized steel (free from wood-based materials), it features a monolithic ceramic worktop with a marine edge and a built-in ceramic sink. The unit is equipped with a double back-wall system for efficient extraction of both light and heavy vapors and a Schneider airflow monitoring system compliant with EN 14175. Featuring a counterweighted tempered glass sash and energy-saving LED lighting, it provides a safe, durable, and spacious environment for industrial and research chemistry.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: DCL 1500 SS Categories: , , Brand: Product ID: 21695

Description

The POL-EKO DCL 1500 SS is engineered for laboratories that require a larger working volume without sacrificing safety or chemical resistance. Its frame and housing are manufactured from galvanized steel finished with chemically resistant epoxy powder paint, ensuring long-term structural integrity in corrosive environments.Sophisticated Airflow and Safety Monitoring:Designed to provide absolute protection for the operator, the DCL 1500 SS utilizes a double rear-wall extraction system. This configuration features exhaust slots at both the upper and lower levels of the chamber to effectively remove vapors regardless of their density, eliminating turbulence and “dead zones.”Real-time Monitoring: The standard Schneider FM 550-A-0-E monitoring set continuously measures face velocity. If the airflow drops below safe levels ($<0.3text{ m/s}$), the system triggers visual and audible alarms to alert the operator immediately.Emergency Decompression: An integrated safety flap in the ceiling ensures immediate pressure relief in the event of an uncontrolled reaction or pressure increase within the working chamber.Ergonomics and High-Quality Components:Workspace: The interior features a monolithic ceramic worktop with a raised marine edge to contain spills, complemented by a suspended ceramic sink ($280 times 80 text{ mm}$ or $250 times 95 text{ mm}$).Dynamic Sash: The tempered glass window is balanced by a counterweight system for smooth manual operation. It includes a safety lock at $500 text{ mm}$ and horizontal sliding glass panes for precise, localized access.Integrated Utilities: The front panel comes pre-installed with two IP44-rated $230text{V}$ electrical sockets and two water spouts with high-quality BROEN valves.Lighting: High-efficiency LED lighting is positioned outside the working chamber, protected by a glass pane to prevent chemical degradation of the fixture.

Specifications

Fume Hood CompactLine DCL 1500 SS Specs

The DCL 1500 SS is a wide-format laboratory fume hood (1500 mm nominal width) featuring an epoxy-coated galvanized steel internal chamber. This “SS” (Steel/Standard) variant is designed for general-purpose laboratory applications where broad chemical resistance and high mechanical durability are required.



  • Internal Chamber Material: Galvanized steel painted with chemically resistant epoxy paint



  • Worktop Material: Monolithic ceramics with an integrated marine edge (Standard)



  • External Dimensions (W x H x D): 1580 x 2325–2600 x 960 mm



  • Working Space Dimensions (W x H x D): 1450 x 1220 x 635 mm



  • Front Window: Toughened glass, manually operated with a counterweight; opens upwards with a lock at 500 mm (max opening 810 mm), including horizontal sliding glass panels.



  • Airflow Management: Double back-wall system with upper and lower extraction slots to remove vapors of varying densities without turbulence.



  • Monitoring System: Schneider FM 550-A-0-E controller with an air velocity sensor (compliant with EN 14175).



  • Lighting: Energy-saving linear LED lighting, separated from the working chamber by a glass pane.



  • Standard Fittings: * 2 x Water spouts with front-panel valves (BROEN)



    • 1 x Ceramic sink (280 x 80 mm)



    • 2 x Electrical sockets (230V, 50Hz, IP44)



  • Safety Features: * Decompression safety flap in the ceiling.



    • Protection system to prevent uncontrolled window drops.



  • Recommended Airflow: 750 – 1200 m³/h



  • Exit Air Duct Diameter: Ø 200 mm



  • Nominal Power: 82 W



  • Voltage: 230V, 50Hz



  • Weight: ~460 kg (Gross)



  • Construction: Frame and housing made entirely of galvanized steel with epoxy powder coating (no wood-based materials).



Key Performance Highlights

  • Enhanced Work Area: The 1450 mm internal width provides ample room for complex glass assemblies or large instruments while maintaining efficient airflow.



  • Robust Interior: The epoxy-coated steel is impact-resistant and suitable for a wide range of organic solvents and non-corrosive chemical handling.

  • Precise Safety Monitoring: The built-in Schneider controller continuously monitors face velocity at the sash, providing visual and audible alarms to ensure operator protection.

Datasheet

Download Compact Line DCL-1500 SS Datasheet
