Drying Oven SLN 115 SIMPLE

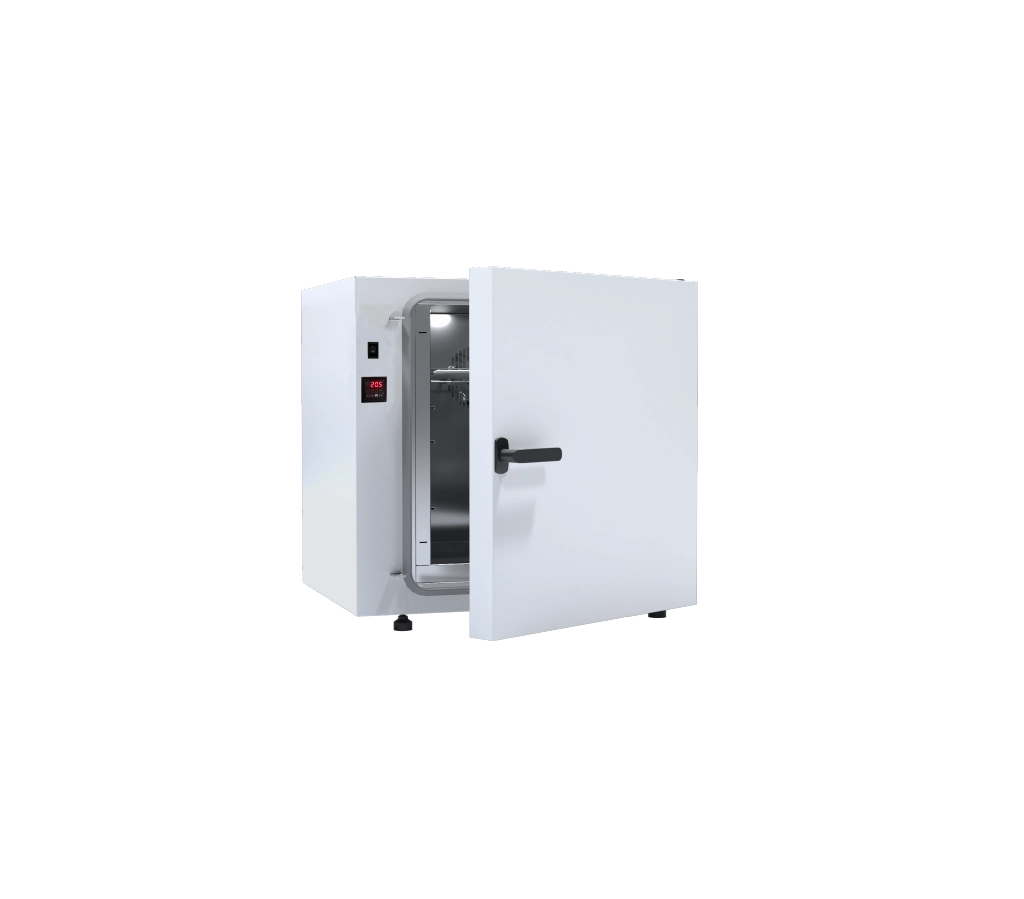

POL-EKO Laboratory Drying Oven SLN 115 SIMPLE The SLN 115 SIMPLE is a 112-liter laboratory drying oven designed for straightforward heating and drying tasks where ease of use is the priority. Operating with natural air convection and a temperature range of ambient +5?C to +250?C, it provides a gentle, fan-free heating environment. Controlled by a basic LED display and membrane keypad, it focuses on “set and forget” operation for glassware drying and basic thermal processing. It retains the professional acid-proof stainless steel interior of the standard series but offers a more economical solution for laboratories with basic requirements.

SKU: SLN 115 SIMPLE Categories: , Brand: Product ID: 21673

Description

The POL-EKO SLN 115 SIMPLE is engineered for laboratories that value simplicity and reliability over complex digital features. With its 112-liter internal capacity, it offers ample space for drying large batches of glassware or performing standard thermal treatments. The Natural Convection (N) system allows air to circulate via thermal buoyancy, making it the perfect choice for drying light powders or sensitive materials that could be disturbed by the airflow of a fan-assisted model.
+1

Simplified Control & Operation: The “SIMPLE” designation refers to the streamlined control system, which replaces the color touchscreen of the higher-tier models:

LED Display: Features a clear, high-contrast LED display showing the current and set temperatures.

Basic Timer: Includes a simple countdown timer function for scheduled shut-off.

Easy Navigation: Controlled via a tactile membrane keypad, making it easy to set parameters even when wearing heavy safety gloves.

Economic Efficiency: By removing complex data interfaces (USB/LAN) and multi-segment programming, the SIMPLE version provides a cost-effective alternative for routine laboratory work.

Durable Construction and Safety: Despite being the entry-level model, the SLN 115 SIMPLE makes no compromises on build quality:

High-Grade Interior: The chamber is made from acid-proof stainless steel (DIN 1.4301), ensuring excellent chemical resistance and easy cleaning.

Safety Class 1.0: Equipped with basic over-temperature protection to ensure the safety of the laboratory environment.

Reliable Insulation: Features high-density insulation to keep the exterior housing cool and maintain temperature stability inside the chamber.

Primary Applications:

Glassware Drying: Ideal for the daily drying of laboratory beakers, flasks, and tools.

Basic Thermal Treatment: Heating of materials that do not require complex temperature ramps.

Sterilization (Basic): Dry heat sterilization of metal instruments.

Warming: Pre-heating of samples or containers.

Specifications

POL-EKO SLN 115 SIMPLE Drying Oven Specifications

The SLN 115 SIMPLE is the basic version of the SLN 115 series, designed for straightforward drying applications where advanced data logging or touch screens are not required. It utilizes natural air convection and is characterized by its simplified LED interface.


  • Air Convection: Natural (Gravity)


  • Chamber Capacity: 112 Liters

  • Working Capacity: 112 Liters


  • Controller: Microprocessor PID

  • Display: LED

  • Temperature Range: +5°C above ambient to +250°C

  • Temperature Resolution: 0.1°C


  • Temperature Fluctuation at 105°C: ±0.4°C

  • Temperature Variation at 105°C: ±2.2°C

  • Over Temperature Protection: Class 1.0 (Standard)

  • Interior Material: Stainless steel (DIN 1.4301)

  • Housing Material: Powder coated sheet

  • Internal Dimensions (W x H x D): 460 x 540 x 450 mm

  • External Dimensions (W x H x D): 660 x 850 x 710 mm


  • Shelves (Standard / Max): 2 / 7

  • Max. Shelf Workload: 25 kg

  • Max. Total Unit Workload: 60 kg

  • Voltage: 230V, 50/60 Hz


  • Nominal Power: 2400 W

  • Weight: 65 kg



Key Features of the SIMPLE Version

  • Streamlined Control: Focused on core functionality with a clear LED display for temperature and time settings.

  • Safety Class 1.0: Includes basic thermal protection to safeguard the unit from overheating.


  • Natural Convection: Ideal for drying powders or light samples that could be disturbed by a fan-driven air current.


  • Durability: Features the same high-quality stainless steel interior as the more advanced models in the series.

Datasheet

Download SLN 115 SIMPLE Datasheet
