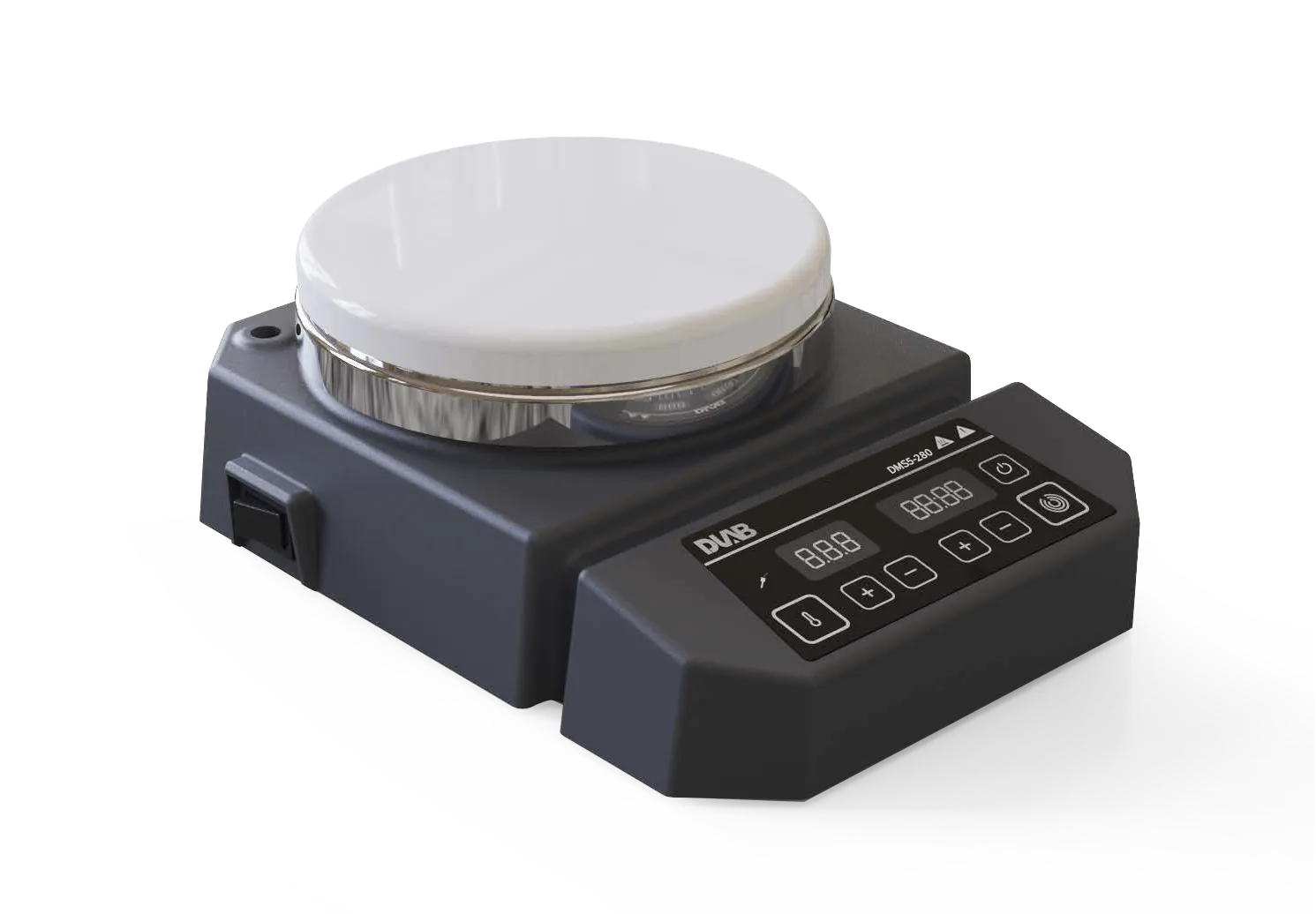

The DMS5?280/120 LED Heating Magnetic Stirrer is a reliable laboratory device that provides precise temperature control up to 280??C (or 120??C for the 120 model) and consistent magnetic stirring. It features a clear LED display for real?time monitoring of temperature and speed, making it ideal for routine lab mixing and heating tasks.
The DMS5?280/120 LED Heating Magnetic Stirrer is designed for efficient and uniform stirring and controlled heating of liquid samples in laboratory settings. It offers adjustable temperature control?up to 280??C for the DMS5?280 model and up to 120??C for the DMS5?120?along with stable stirring speeds ranging from approximately 50?to?1500?rpm. The bright LED display presents real?time data on both temperature and stirring speed, enhancing ease of use and accuracy during experiments. Dual temperature sensor support improves heating efficiency and safety by monitoring both the hotplate and solution temperatures. Built?in overheat protection and a ceramic?coated heating plate ensure durability and safe long?term use. Compact and user?friendly, this stirrer is suitable for chemistry, biology, research, and quality control laboratories.
DMS5-280/120 LED Heating Magnetic Stirrer Specifications
This model is a compact, digital laboratory stirrer designed for daily tasks involving small to medium volumes.1The model designation “280/120” refers to the two available temperature versions: one reaching 280°C and the other 120°C.2
Work Plate Dimension: 135 mm diameter (5 inch)3
Work Plate Material: Aluminum with ceramic coating4
Motor Type: Brushless DC motor5
Stirring Positions: 16
Max. Stirring Quantity ($H_{2}O$): 5 Liters7
Max. Magnetic Bar Length: 40 mm8
Speed Range: 50 – 1500 rpm9
Speed Display: LED10
Speed Increment: 10 rpm11
Heating Temperature Range (DMS5-280): Room Temp. to 280°C12
Heating Temperature Range (DMS5-120): Room Temp. to 120°C13
Temperature Display: LED14
Temperature Display Accuracy: ±1°C15
External Temperature Sensor: PT1000 compatible (Accuracy ±0.2°C)16
“Hot” Warning Indicator: Flashes above 50°C (works even when powered off)17
Safety Overheating Protection: 320°C18
Protection Class: IP2119
Heating Output (280°C model): 600 W20
Heating Output (120°C model): 400 W21
Total Power: 610 W (DMS5-280) / 410 W (DMS5-120)22
