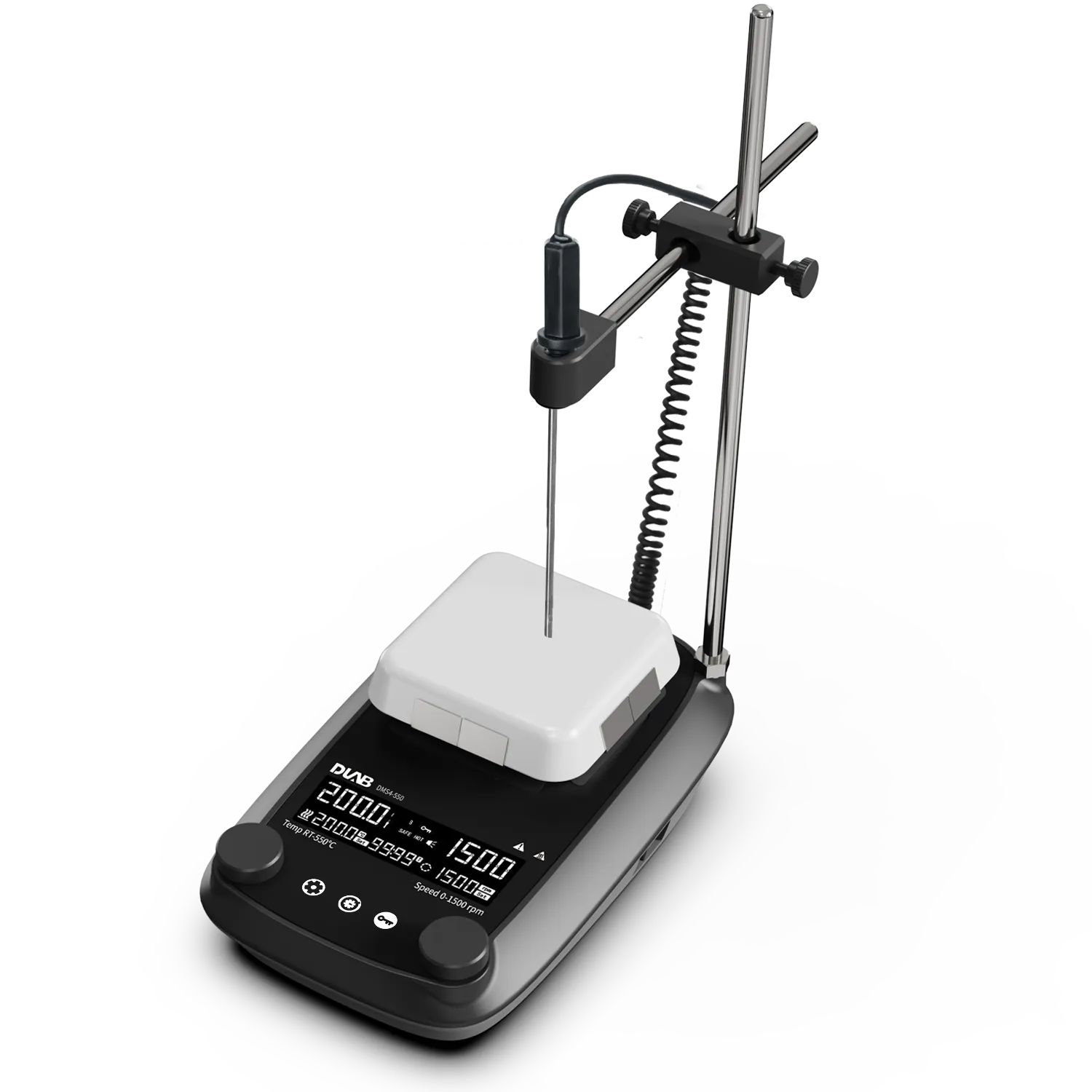

DMS4-550 LCD Glass Ceramic Heating Magnetic Stirrer with Timer

DMS4-550 LCD Glass Ceramic Heating Magnetic Stirrer with Timer

The DMS4?550 LCD Glass Ceramic Heating Magnetic Stirrer with Timer is a compact laboratory instrument that delivers precise magnetic stirring and uniform heating with adjustable timer control. Its intuitive LCD display provides real?time readouts of speed, temperature, and elapsed time for reliable performance in research, analytical, and teaching labs.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: 8021492211(Main Unit)/8121492211(Set) Categories: , , Brand: Product ID: 21987

Description

The DMS4?550 LCD Glass Ceramic Heating Magnetic Stirrer with Timer combines efficient magnetic stirring with accurate temperature control to support a variety of laboratory workflows. Designed with a corrosion?resistant glass?ceramic work plate, it ensures even heat transfer and easy cleaning while withstanding high?temperature applications. A brushless DC motor provides stable, low?noise stirring across a wide speed range, and the integrated LCD clearly shows set and actual values for stirring speed, temperature, and timer countdown. The adjustable timer allows users to set durations from 1?minute up to 99?hours and 59?minutes, automatically stopping heating at the end of the cycle while maintaining stirring to protect sensitive samples. Built?in safety features such as overheating protection and a ?HOT? warning indicator enhance safe operation, making this stirrer suitable for routine chemistry, biology, pharmaceutical, and QC lab tasks.

Datasheet

Download datasheet

Specifications

DMS4-550 LCD Glass Ceramic Heating Magnetic Stirrer Specifications

  • Work Plate Dimension: 100 x 100 mm (4 inch)1





  • Work Plate Material: Glass ceramic2





  • Motor Type: Brushless DC motor3





  • Stirring Positions: 14





  • Max. Stirring Quantity (5$H_{2}O$): 10 Liters6





  • Max. Magnetic Bar Length: 40 mm7





  • Speed Range: 50 – 1500 rpm8





  • Speed Display: LCD9





  • Speed Resolution: ± 1 rpm

  • Heating Temperature Range: Room Temperature to 550°C10





  • Temperature Increment: 1°C

  • Temperature Control Accuracy: ±1°C (11$< 100$°C) and ±1% (12$> 100$°C)13





  • Temperature Display Accuracy: 0.1°C14





  • External Temperature Sensor: PT1000 compatible (Accuracy ±0.2°C)

  • Heating Modes: 3 selectable modes (A: Rapid, B: Standard, C: Stable)15





  • Timer Function: 1 minute to 99 hours 59 minutes16





  • Safety Overheating Protection: 580°C

  • “Hot” Warning Indicator: Flashes above 50°C (even if unit is powered off)

  • Safety Lock: Prevents accidental setting changes17





  • Protection Class: IP2118





  • Data Connector: RS232 (for PC control and data logging)19





  • Heating Output: 380 W20





  • Total Power: 430 W21





  • Voltage/Frequency: 100-120V / 200-240V, 50/60 Hz22





  • Dimensions (W x D x H): 270 x 175 x 108 mm23





  • Weight: 2.2 kg24





  • Permissible Ambient Temp/Humidity: 5 to 40°C, 80% RH25





Core Functionality Note

  • Sample Protection: The integrated timer automatically stops the heating process once the countdown ends.26 However, the stirrer continues to run to prevent thermal damage to the sample and ensure uniform cooling.





  • Durability: The glass-ceramic surface is exceptionally resistant to strong acids, alkalis, and extreme temperatures, making it easy to clean after accidental spills.27
