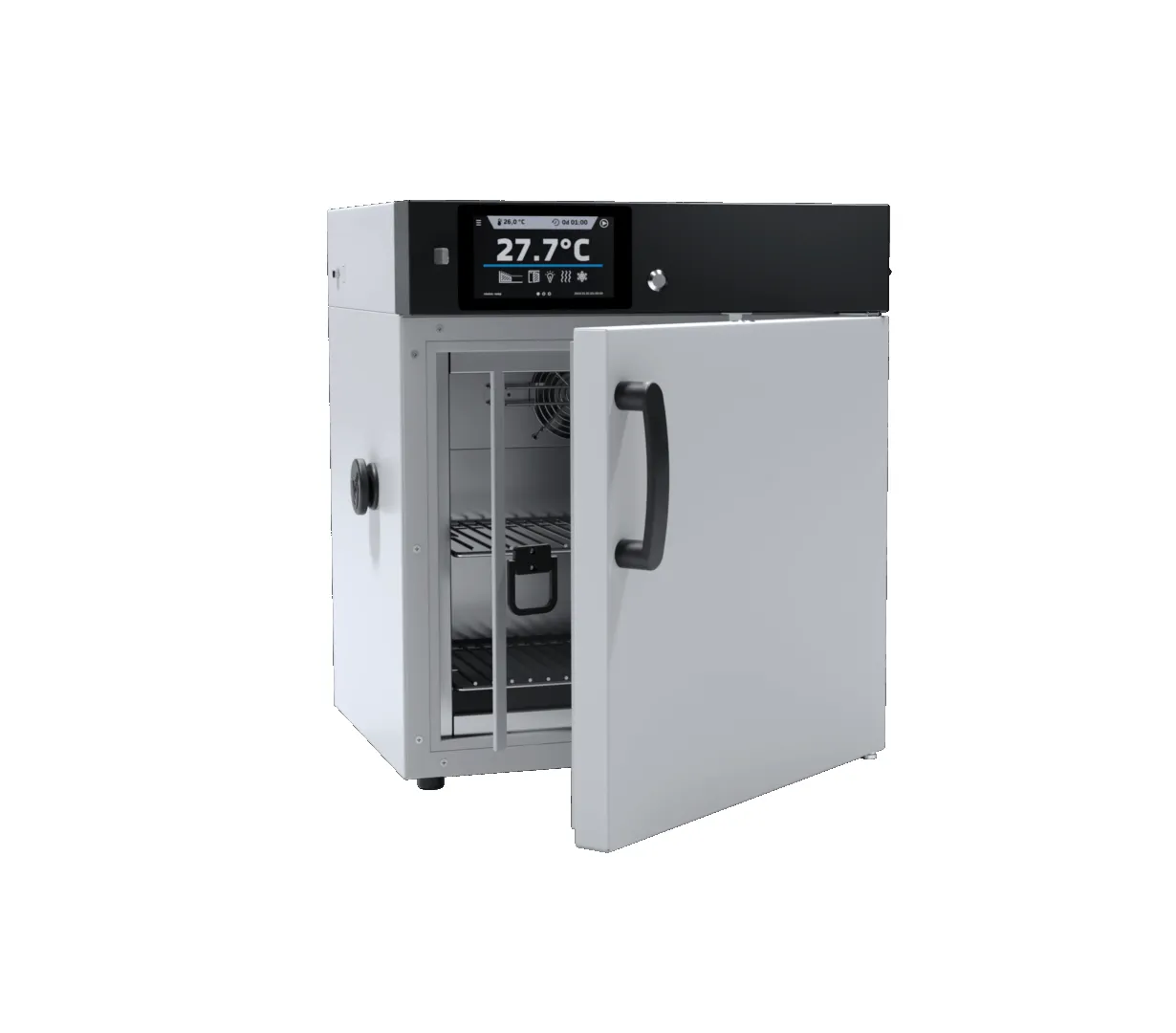

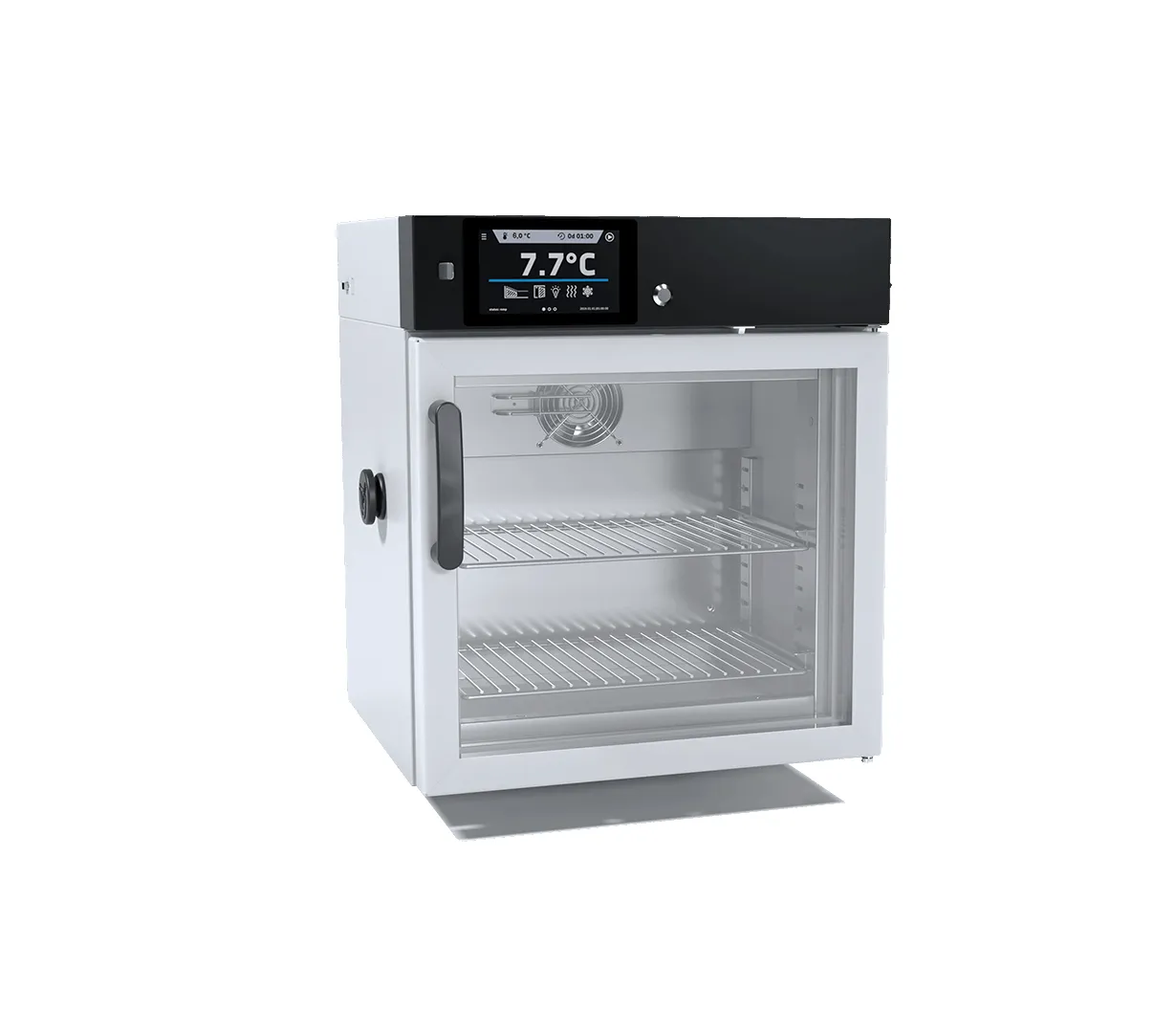

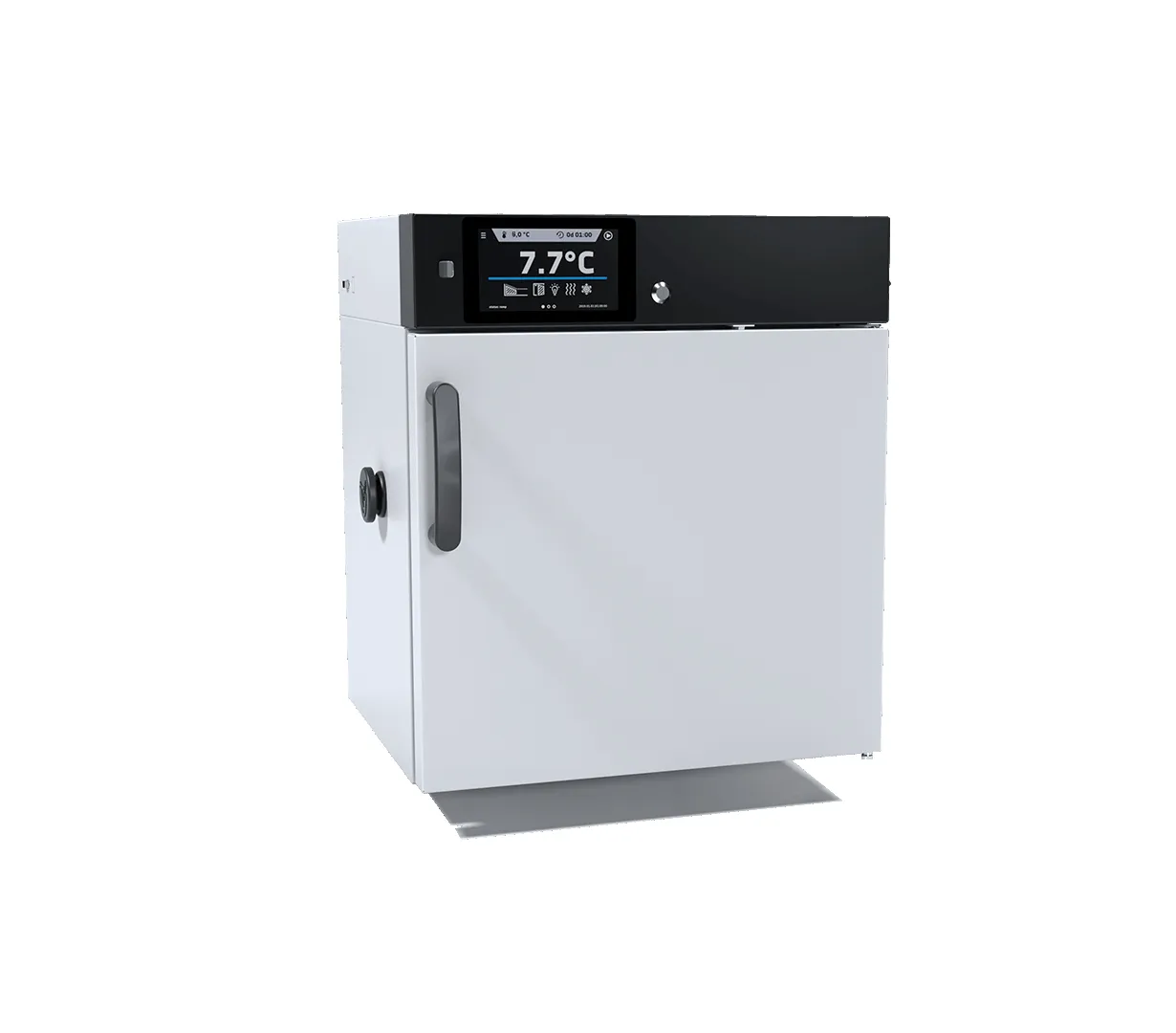

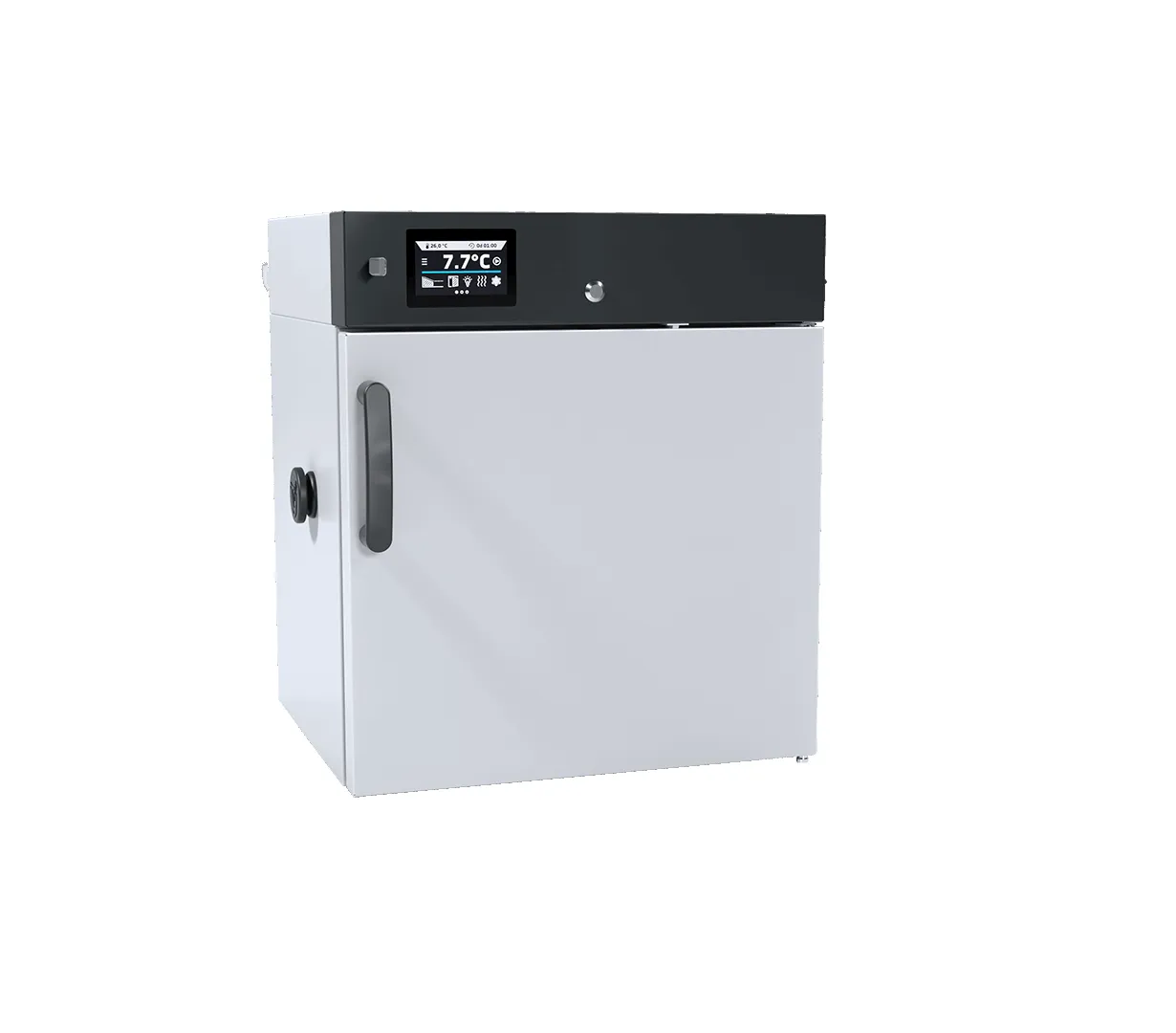

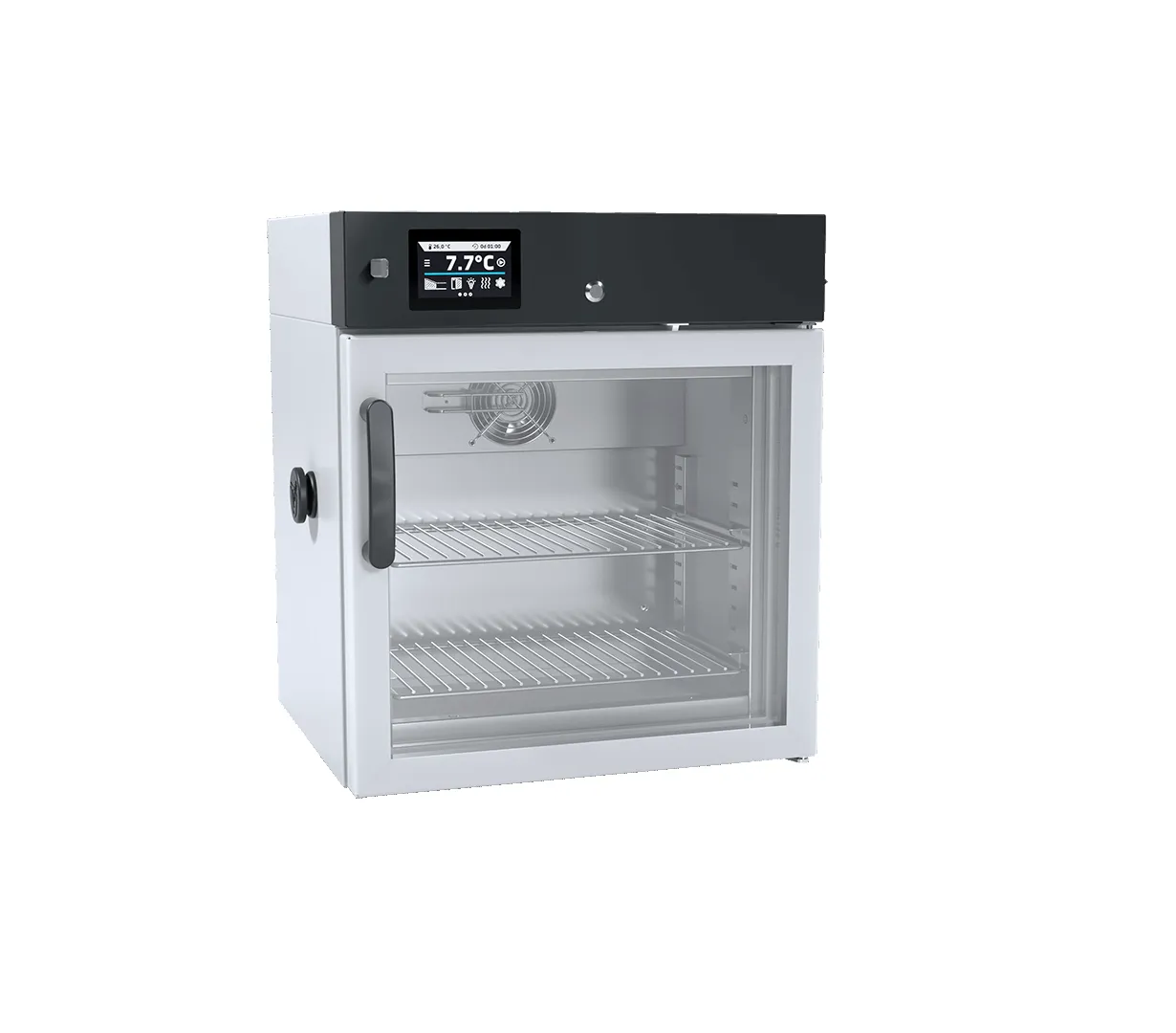

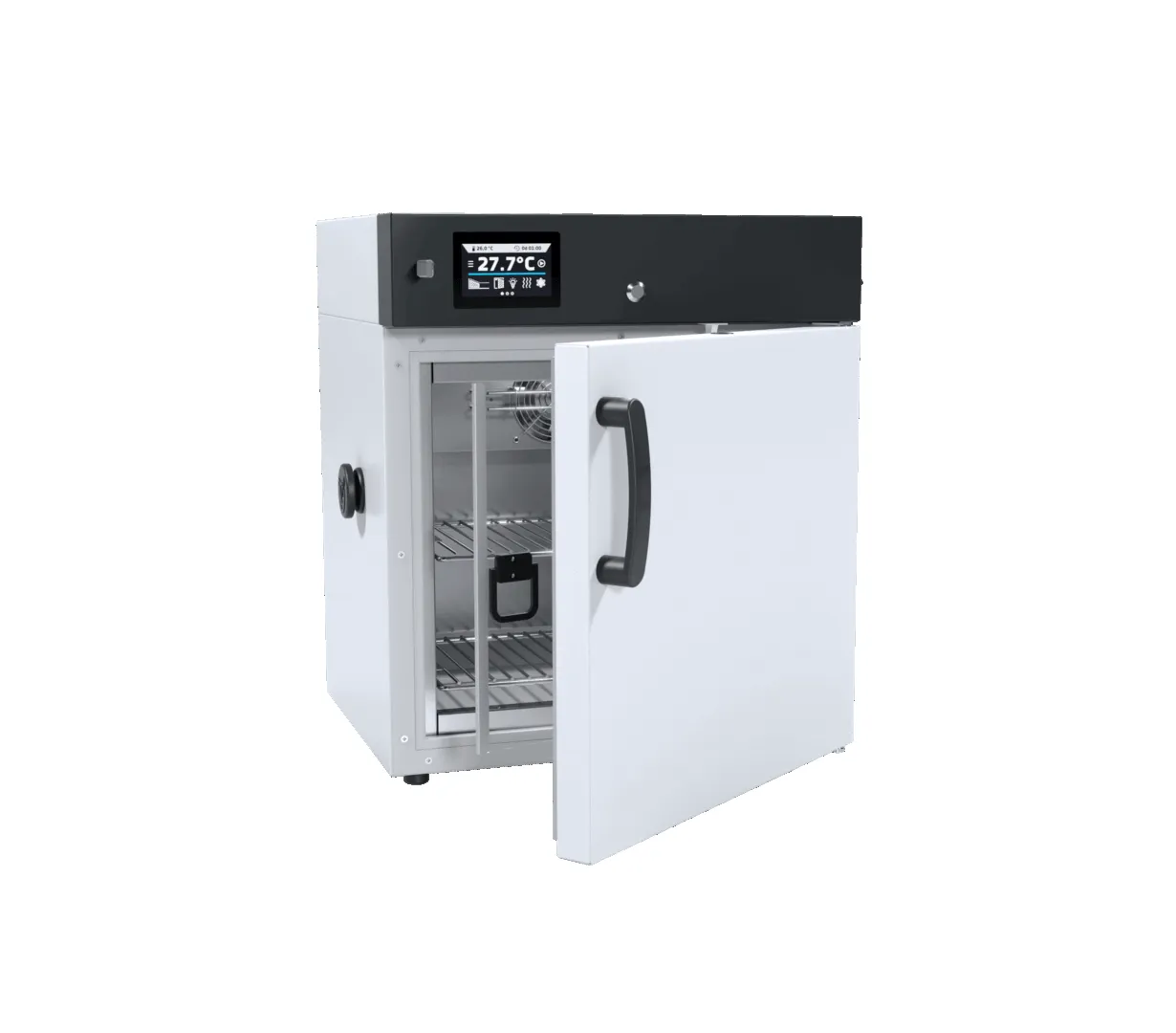

Cooled Incubator ST 1

The POL-EKO ST 1 is a compact, benchtop 70-liter cooled incubator designed for space-efficient laboratory operations. Ideal for BOD determination, stability testing, and microbiological research, it features a temperature range of +3?C to +40?C (expandable to +70?C with the Smart PRO controller). With a 55-liter working capacity and forced air convection, it ensures consistent internal conditions for sensitive samples, all while being small enough to fit on or under a laboratory bench.

SKU: ST 1 Categories: , Brand: Product ID: 21369

Description

The Cooled Incubator ST 1 is the most economical and space-saving solution in the POL-EKO ST series, engineered for laboratories that require high temperature accuracy within a small footprint. Despite its compact size, the ST 1 provides a robust “Perfect Environment” for applications ranging from vaccine storage to plant growth and physicochemical analysis.

Precise Thermostatic ControlEquipped with a heating and cooling system, the ST 1 operates independently of ambient conditions. The forced air convection system, featuring adjustable fan speeds, guarantees rapid temperature recovery and uniformity. While the standard range is +3?C to +40?C, the Smart PRO version extends this performance up to +70?C. It also includes an automatic defrosting function and an open-door alarm to maintain the integrity of your research.

Smart Control & Customization

Choose the interface that fits your workflow:

Smart Controller: A 4.3-inch color touch screen with multi-segment programming, an internal memory, and USB/LAN ports for data export.

Smart PRO Controller: A premium 7-inch color touch screen with Wi-Fi connectivity, alphanumeric keyboard, and advanced multi-user management.Both controllers are designed for operation with gloves and feature an intuitive Alarm Bar for instant visual status updates.

Durability and VersatilityThe unit is available in several versions, including Comfort (stainless steel DIN 1.4016 interior) and Premium (acid-resistant stainless steel DIN 1.4301 interior). For specialized light-sensitive research, the ST 1 can be ordered with the FOT photoperiodic system for day and night simulation. Standard safety features include a door lock, over-temperature protection (up to Class 3.3), and a ?30 mm access port for external sensors.

Datasheet

Specifications

Pol-Eko ST 1 (Cooled Incubator)

The ST 1 is a compact, benchtop thermostatic cabinet designed for applications like BOD determination and microbiological research. It is available in Smart and Smart PRO versions.

  • Chamber Capacity: 70 Liters


  • Working Capacity: 55 Liters


  • Air Convection: Forced


  • Temperature Range (Smart): +3 to +40°C (Optional: +3 to +70°C)


  • Temperature Range (Smart PRO): +3 to +70°C


  • Temperature Resolution: 0.1°C


  • Temperature Fluctuation (at 37°C): +/- 0.3°C

  • Temperature Variation (at 37°C): +/- 0.5°C


  • Temperature Protection: * Smart: Class 1.0 (Optional Class 3.3)


    • Smart PRO: Class 3.3 (DIN 12880)


  • Internal Dimensions (W x H x D): 430 x 430 x 300 mm

  • External Dimensions (W x H x D): 560 x 660 x 690 mm


  • Shelves (Standard / Max): 2 / 2


  • Max Shelf Workload: 10 kg


  • Max Unit Workload: 20 kg


  • Controller: Smart (4.3″ touch screen) or Smart PRO (7″ touch screen)


  • Connectivity: * Smart: LAN, USB


    • Smart PRO: Wi-Fi, LAN, USB


  • Interior Material: * Comfort (C): Stainless steel (DIN 1.4016)


    • Premium (P): Acid-proof stainless steel (DIN 1.4301)


  • Voltage: 230V 50-60Hz


  • Nominal Power: 250 W


  • Net Weight: 43 kg (Approx. 32-37 kg depending on housing version)


  • Standard Accessories: Internal LED light, Ø30 mm access port, door lock, open door alarm.
