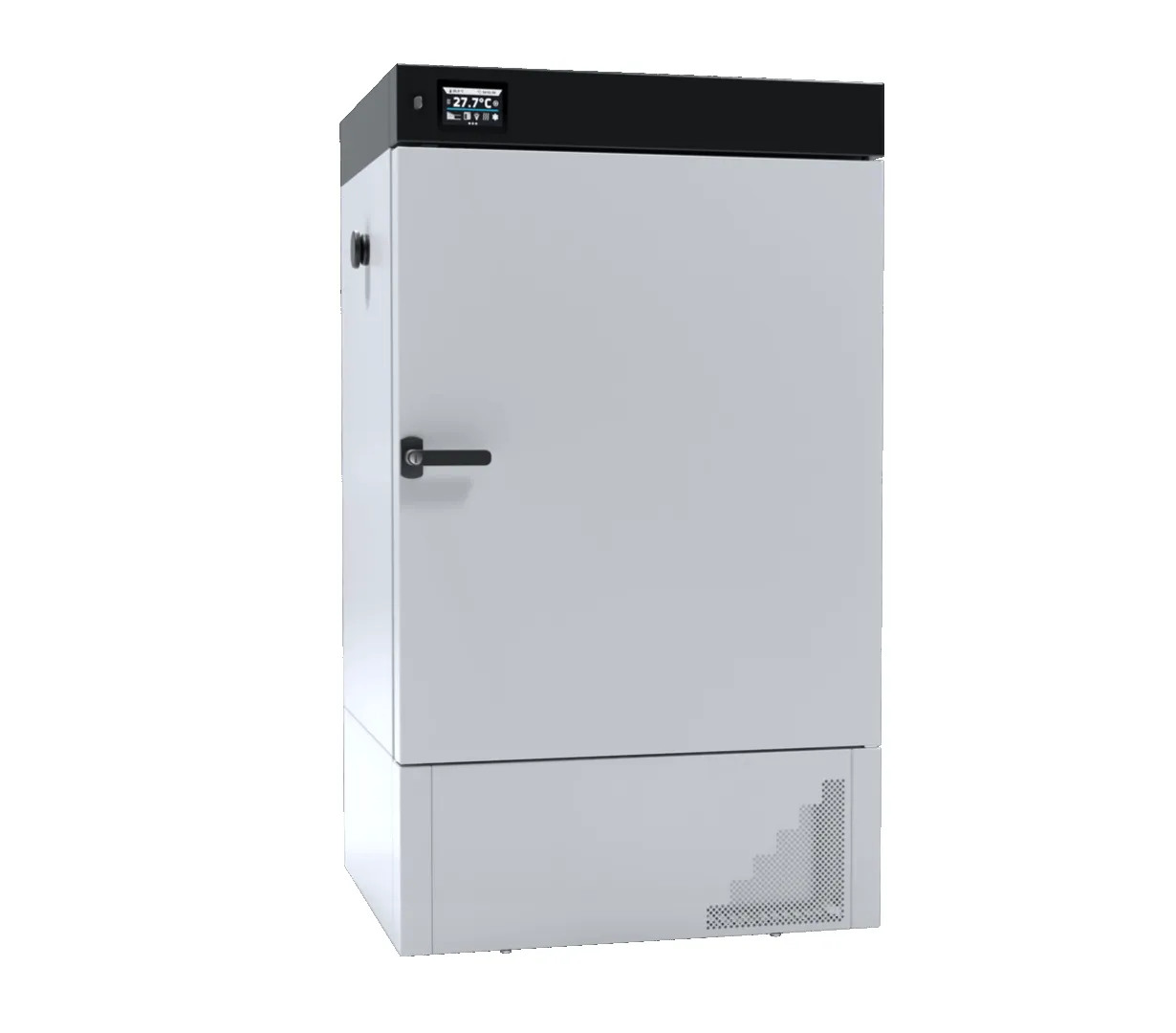

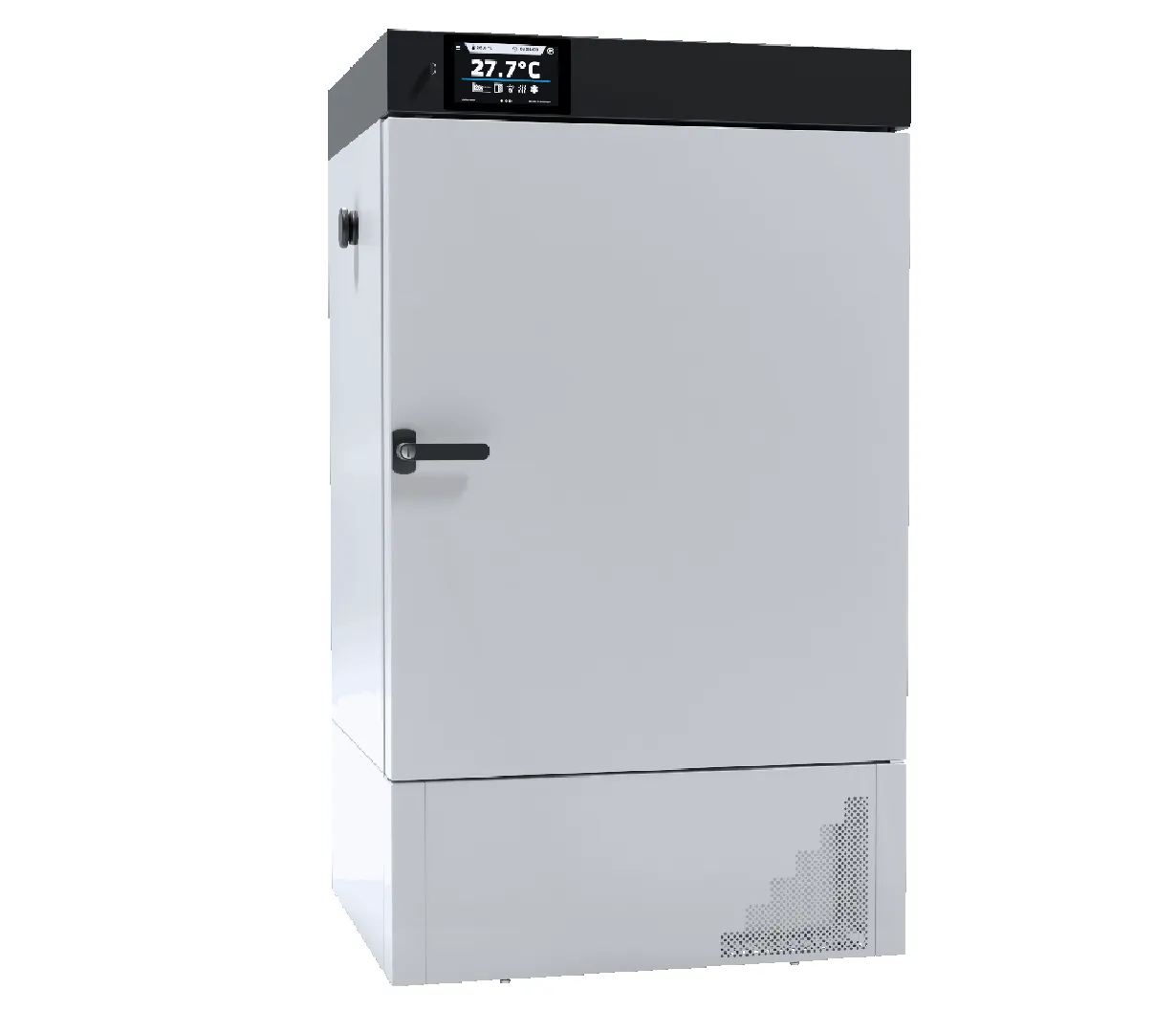

Cooled Incubator (IL) ILW 240

The POL-EKO ILW 240 is a high-capacity 245-liter cooled incubator designed for large-scale microbiological research, plant growth simulation, and BOD determination. It features a forced air convection system for superior temperature uniformity across its spacious chamber, operating within a range of 0?C to +70?C (expandable to +100?C with the Smart PRO controller). With its double-door design and high-tech touch-screen interface, it offers a reliable, large-volume “Perfect Environment” for professional laboratory applications.

Description

The Cooled Incubator (IL) ILW 240 is a professional, high-volume thermostatic solution engineered by POL-EKO for labs that require both precision and significant storage capacity. With a 245-liter working volume, this model is built to handle intensive microbiological tests, microorganism breeding, and long-term sample incubation in a highly stable environment, regardless of ambient conditions.

The unit utilizes forced air convection with an adjustable fan speed (0-100%), ensuring that even with a full load, the temperature remains uniform throughout the chamber. The standard temperature range of 0?C to +70?C provides a resolution of 0.1?C, while optional upgrades allow for sub-zero cooling (down to -10?C) or extended high-temperature performance.

Users can choose between two advanced control systems:

Smart Controller: Features a 4.3″ color touch screen, 5 user programs, and a LAN port.

Smart PRO Controller: Offers a 7″ color touch screen, Wi-Fi connectivity, multi-user management (up to 5 users), and 40 programmable segments for complex time-temperature profiles.

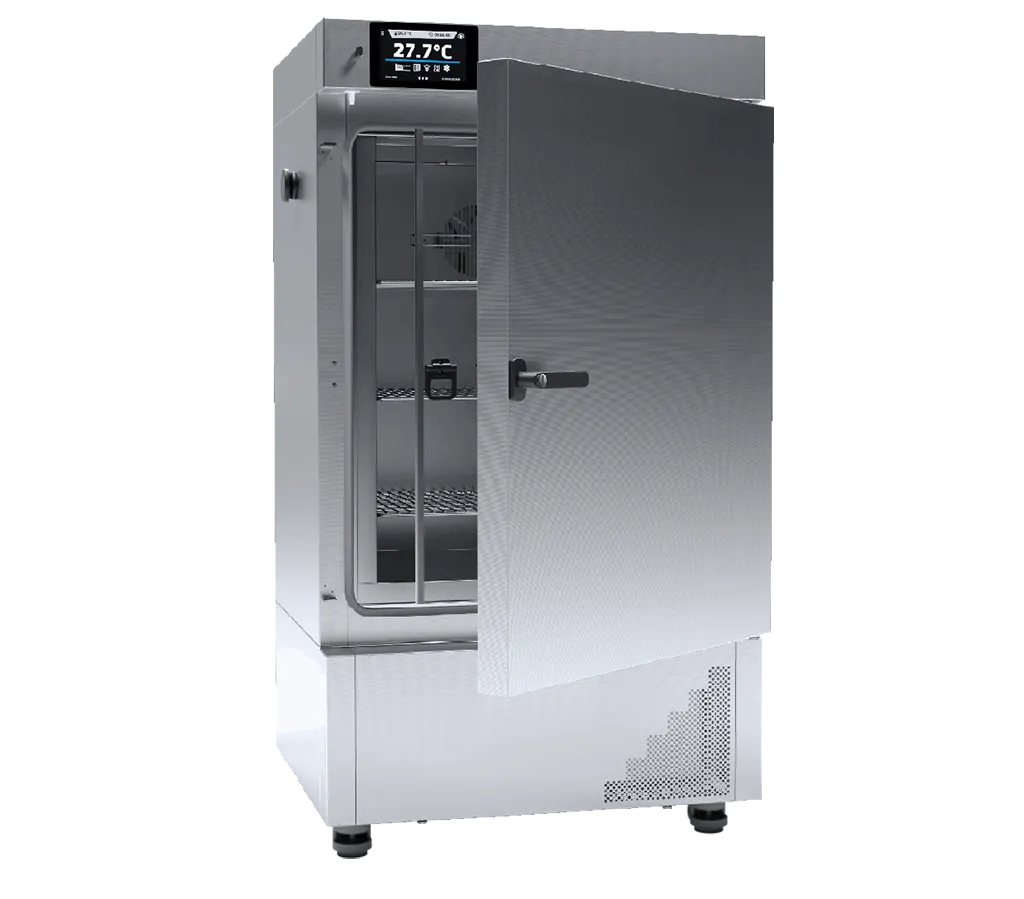

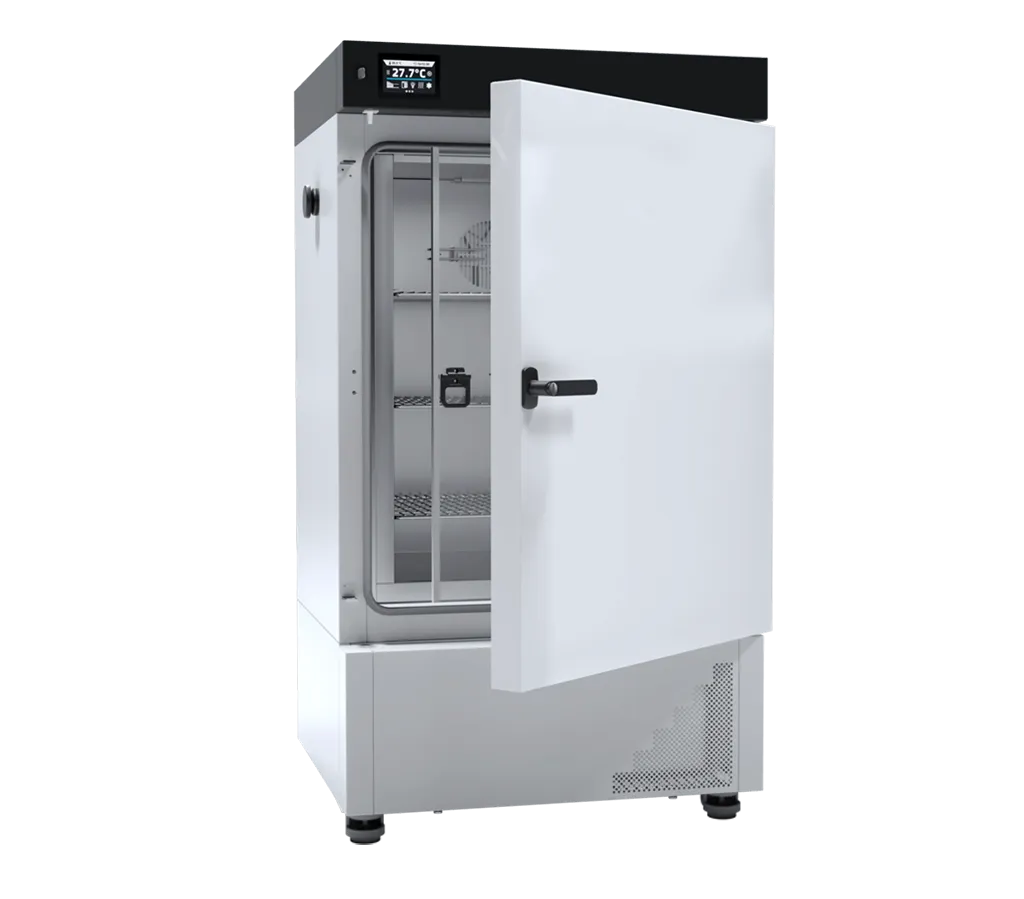

The ILW 240 is constructed for durability and safety, featuring an interior made of acid-resistant stainless steel (DIN 1.4301). The double-door system?consisting of a solid external door and an internal glass door?allows researchers to monitor samples without disturbing the internal atmosphere. Safety is further enhanced with a physical door lock, an open-door alarm, and over-temperature protection (Class 2.0 or 3.3).

Datasheet

Specifications

General Specifications

  • Model: ILW 240 (Smart / Smart PRO)

  • Manufacturer: POL-EKO

  • Air Convection: Forced

  • Chamber Capacity: 245 Liters

  • Working Capacity: 245 Liters

  • Refrigerant: R290 (GWP=3)

  • Sterilization / Cleaning: Acid-proof stainless steel interior (DIN 1.4301)

Performance Data

  • Temperature Range (Smart): 0 to +70°C (Optional: -10 to +70°C)

  • Temperature Range (Smart PRO): 0 to +100°C (Optional: -10 to +100°C)

  • Temperature Resolution: 0.1°C

  • Temperature Fluctuation (at 37°C): +/- 0.2°C

  • Temperature Variation (at 37°C): +/- 0.3°C

  • Temperature Protection (Smart): Class 2.0 (DIN 12880) / Class 3.3 (Optional)

  • Temperature Protection (Smart PRO): Class 3.3 (DIN 12880)

Dimensions & Loading

  • Internal Dimensions (W x H x D): 600 x 800 x 510 mm

  • External Dimensions (W x H x D): 820 x 1430 x 780 mm

  • Shelves (Standard / Max): 3 / 10

  • Max Shelf Workload: 25 kg (Standard) / 100 kg (Reinforced PW version)

  • Max Unit Workload: 90 kg (Standard) / 300 kg (Reinforced W version)

  • Net Weight: 140 kg

Electrical & Control

  • Controller: Smart (4.3″ touch screen) or Smart PRO (7″ touch screen)

  • Connectivity: * Smart: LAN, USB (Data log recording)

    • Smart PRO: Wi-Fi, LAN, USB (Data/Event logs & program upload)

  • Memory:

    • Smart: 5 programs / 6 segments

    • Smart PRO: 40 programs / 100 segments

  • Voltage: 230V / 50-60 Hz

  • Nominal Power: 900 W

Standard Equipment

  • Interior: Acid-proof stainless steel (DIN 1.4301)

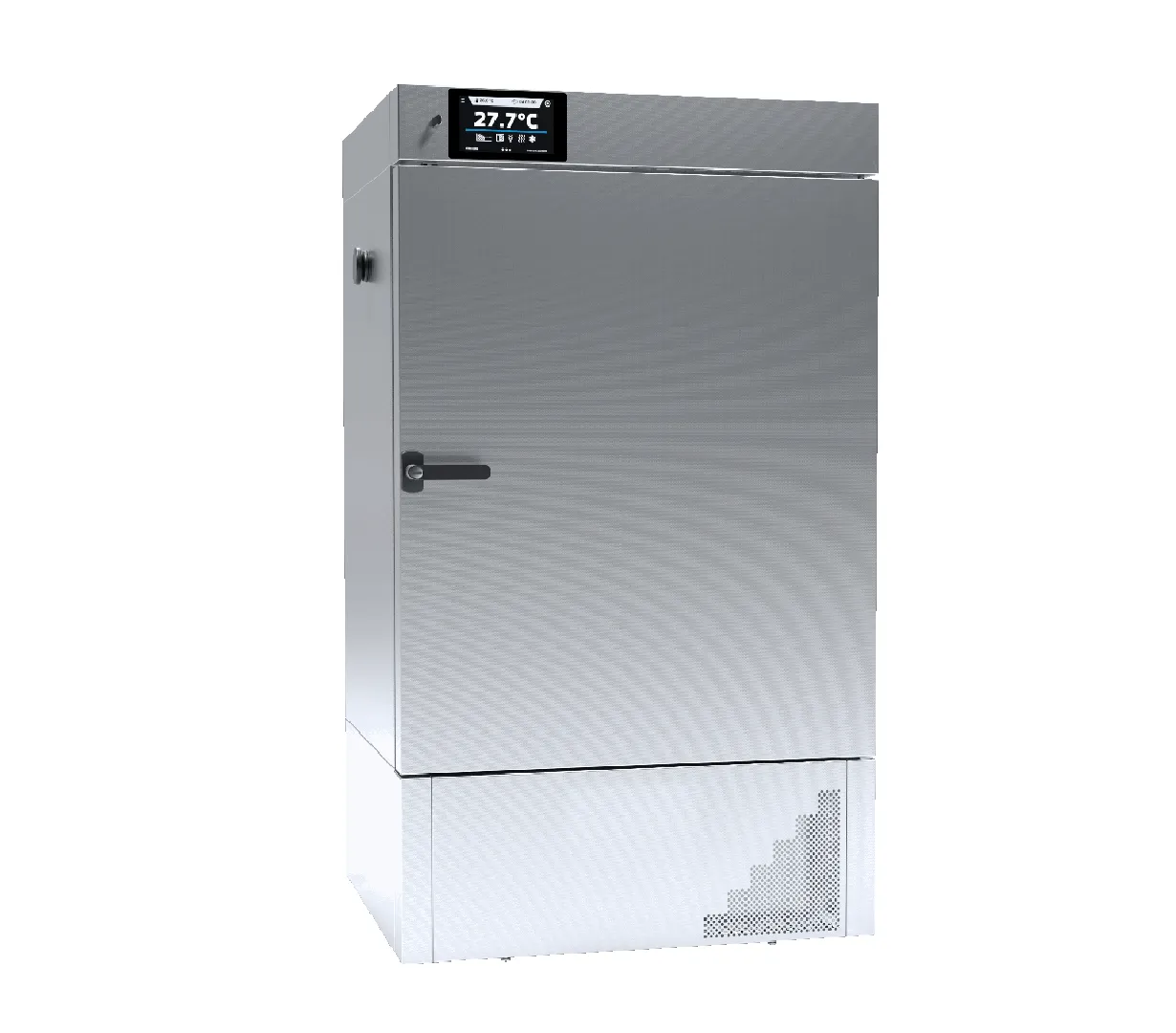

  • Housing: Powder-coated sheet (Standard) or Stainless steel linen finish (IG version)

  • Door Type: Double doors (solid external with lock, glass internal)

  • Mobility: Built-in castors

  • Accessories Included: Ø30 mm access port (left side), open door alarm, door lock, LabDesk software (Smart PRO).
