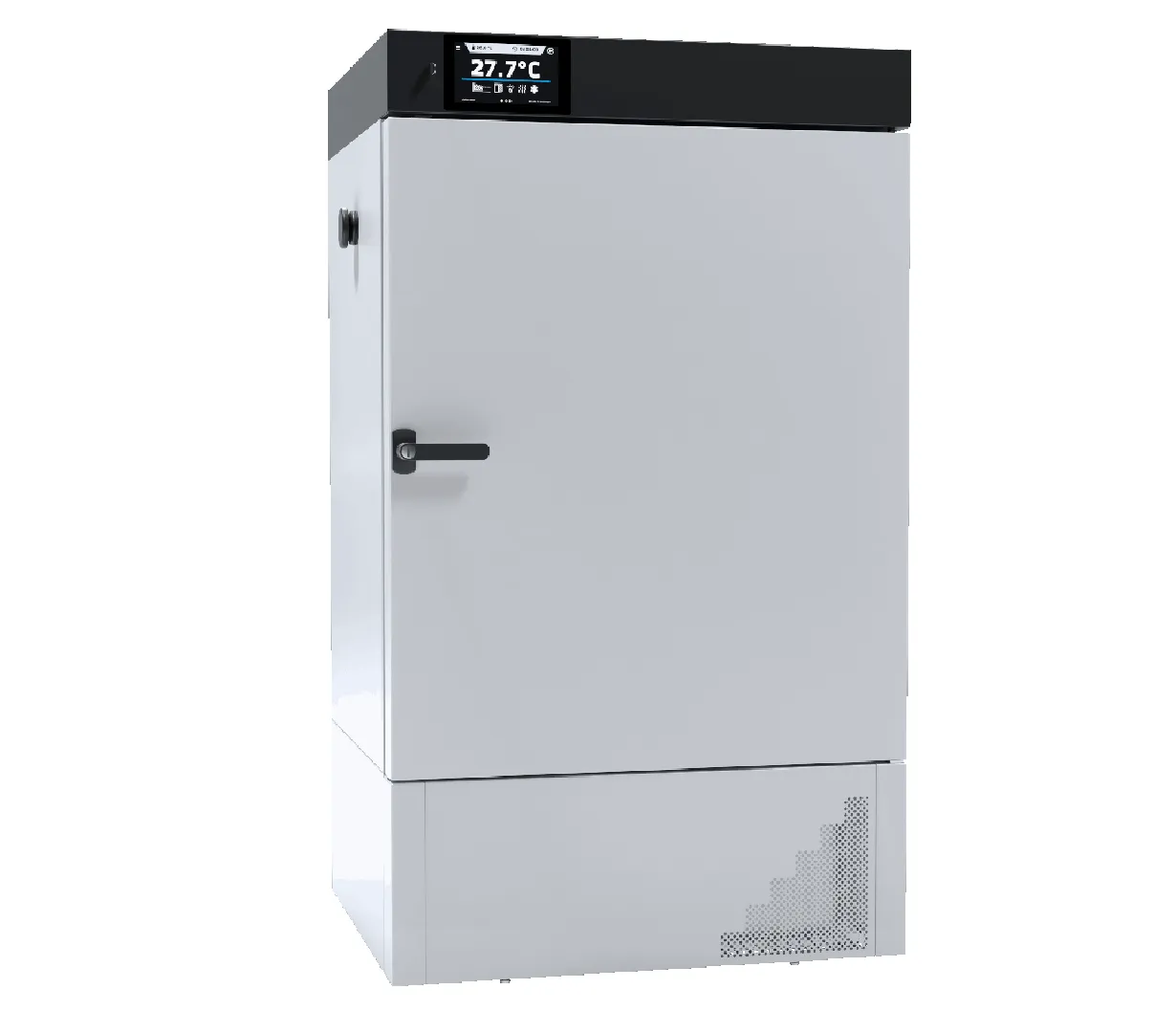

Climatic Chamber With Phytotron System KK 240 FIT P

The POL-EKO KK 240 FIT P is a high-performance 240-liter climatic chamber featuring a specialized Phytotron System (FIT) with overhead lighting panels (P). Engineered for botanical research, seed testing, and photostability studies, it provides synchronized control over temperature ($0^{circ}C$ to $+60^{circ}C$), humidity ($30%$ to $90%$), and light intensity. Managed by the advanced Smart PRO 7-inch touch-screen controller, this unit utilizes an ultrasonic humidifier to provide a stable, programmable “Perfect Environment” for complex plant growth simulations.

SKU: KK 240 FIT P Categories: , Brand: Product ID: 21391

Description

The KK 240 FIT P is a professional-grade environmental chamber from POL-EKO, specifically designed for applications that require the simultaneous control of temperature, humidity, and light. The “FIT P” version is distinguished by its overhead lighting panels, which provide vertical illumination from above the shelves. This makes it an ideal choice for plant biology, seedling development, and entomology, where mimicking natural sunlight from the zenith is critical for accurate research outcomes.Precision Climate EngineeringThe KK 240 FIT P ensures a highly stable interior climate for delicate biological samples:Temperature Control: Ranges from $0^{circ}C$ to $+60^{circ}C$ (lights off) and $+10^{circ}C$ to $+50^{circ}C$ (lights on).Humidity Management: Uses an ultrasonic humidifier to maintain relative humidity between 30% and 90%. This technology is more energy-efficient and generates less heat than traditional steam boilers, making it safer for sensitive plant tissues.Phytotron System (FIT P): Features standard type 840 daylight fluorescent tubes or optional specialized LED modules. Light intensity is dimmable in 10% increments and can reach up to 15,000 LUX (measured 25 cm below the light source), allowing for the simulation of specific sunrise, sunset, and day/night cycles.Advanced Smart PRO ControllerThe chamber is equipped with the top-tier Smart PRO controller, providing:7-inch Color Touch Screen: A clear, glove-friendly interface for monitoring current parameters and historical data in tabular or graphic form.Complex Programming: Memory for up to 40 user programs with 100 segments each, enabling the creation of intricate, multi-day environmental simulations.Data & Connectivity: Built-in Wi-Fi, LAN, and USB ports allow for easy data export and remote monitoring. An event registry tracks all user interactions and alarms for full traceability.Premium Construction and MobilityBuilt for durability, the interior is made of acid-proof stainless steel (DIN 1.4301), which is resistant to high humidity and easy to decontaminate. The unit features a double-door system (solid external door with lock and a glass internal door) to allow for sample viewing without compromising the internal environment. It comes standard with 3 stainless steel wire shelves (expandable to 10) and is mounted on castors with brakes for easy positioning within the laboratory.

Specifications

General Overview

  • Model: KK 400 FIT P Smart PRO

  • Manufacturer: POL-EKO

  • System Type: Phytotron (Over-shelf lighting + Temperature + Humidity)

  • Humidification: Ultrasonic humidifier

  • Chamber Capacity: 416 Liters

  • Working Capacity: 416 Liters

Performance Data

  • Temperature Range (Light OFF): $0text{ to }+60^{circ}text{C}$

  • Temperature Range (Light ON): $+10text{ to }+50^{circ}text{C}$

  • Temperature Resolution: $0.1^{circ}text{C}$

  • Temperature Variation (at 25°C, 60% RH): $+/- 2.0^{circ}text{C}$

  • Humidity Range: $30%text{ to }90%$

  • Humidity Resolution: $1.0%$

  • Humidity Variation (at 25°C, 60% RH): $+/- 5.0%$

  • Max Light Intensity: 15,000 lx (measured 25 cm below the light source)

Dimensions & Loading

  • Internal Dimensions (W x H x D): $800 times 1040 times 500 text{ mm}$

  • External Dimensions (W x H x D): $1020 times 1850 times 1010 text{ mm}$

  • Shelves (Standard / Max): 3 / 14

  • Max Shelf Workload: $10 text{ kg}$ (standard) / $100 text{ kg}$ (reinforced)

  • Max Unit Workload: $120 text{ kg}$

  • Net Weight: $185 text{ kg}$

Electrical & Control

  • Controller: Smart PRO (7″ full-color touchscreen)

  • Connectivity: Wi-Fi, LAN, USB (data log & program upload)

  • Voltage: 230V / 50-60 Hz

  • Nominal Power: 2250 W

  • Refrigerant: R290 (Eco-friendly, GWP=3)

  • Temperature Protection: Class 3.3 according to DIN 12880

Standard Equipment

  • Door Type: Double (solid external with lock, glass internal)

  • Interior: Acid-proof stainless steel (DIN 1.4301)

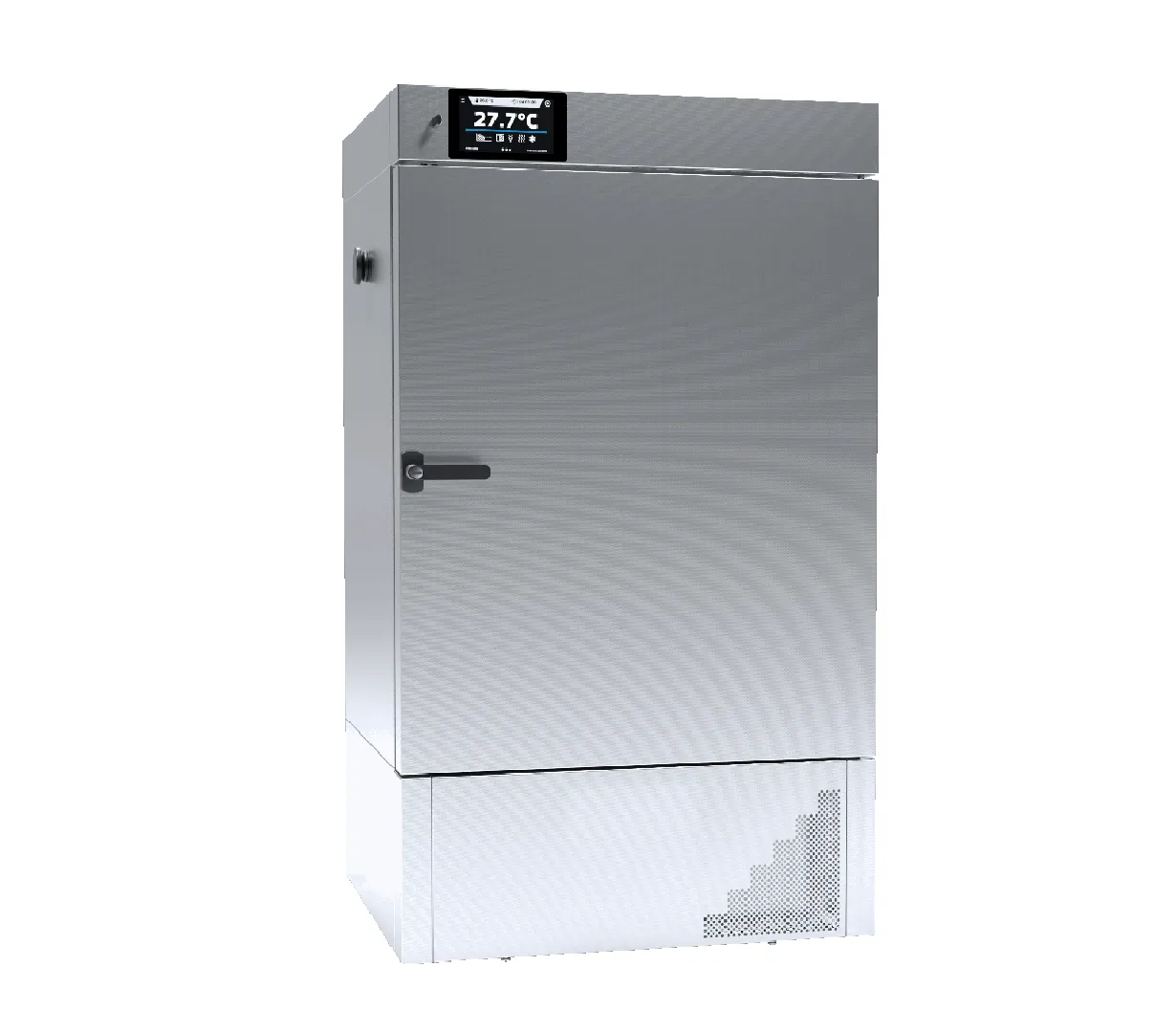

  • Exterior: Powder-coated sheet (standard) or Stainless steel linen finish (IG version)

  • Mobility: Castors for easy movement

  • Accessories: 30 mm access port, LabDesk software, LAN cable, deionized water container.
