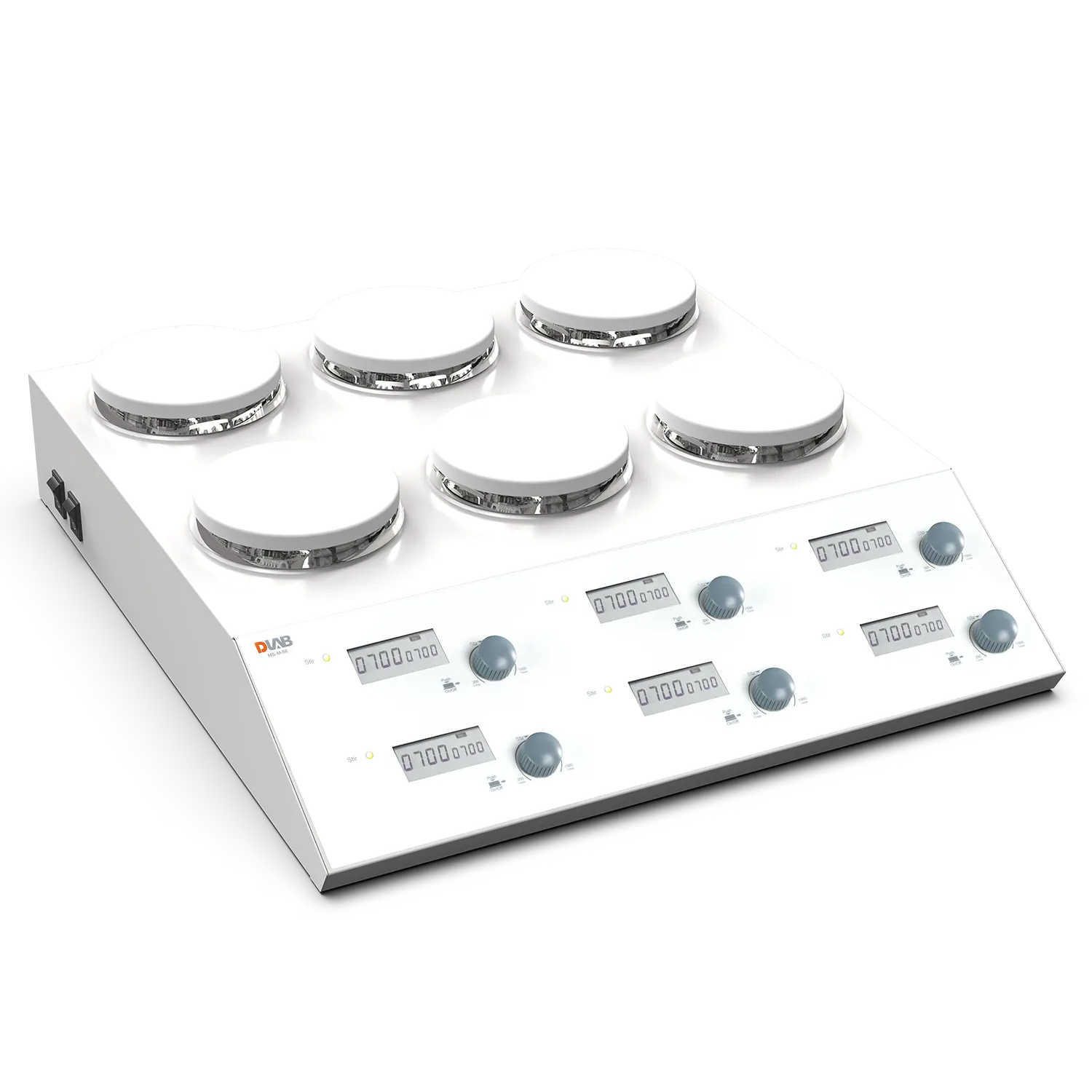

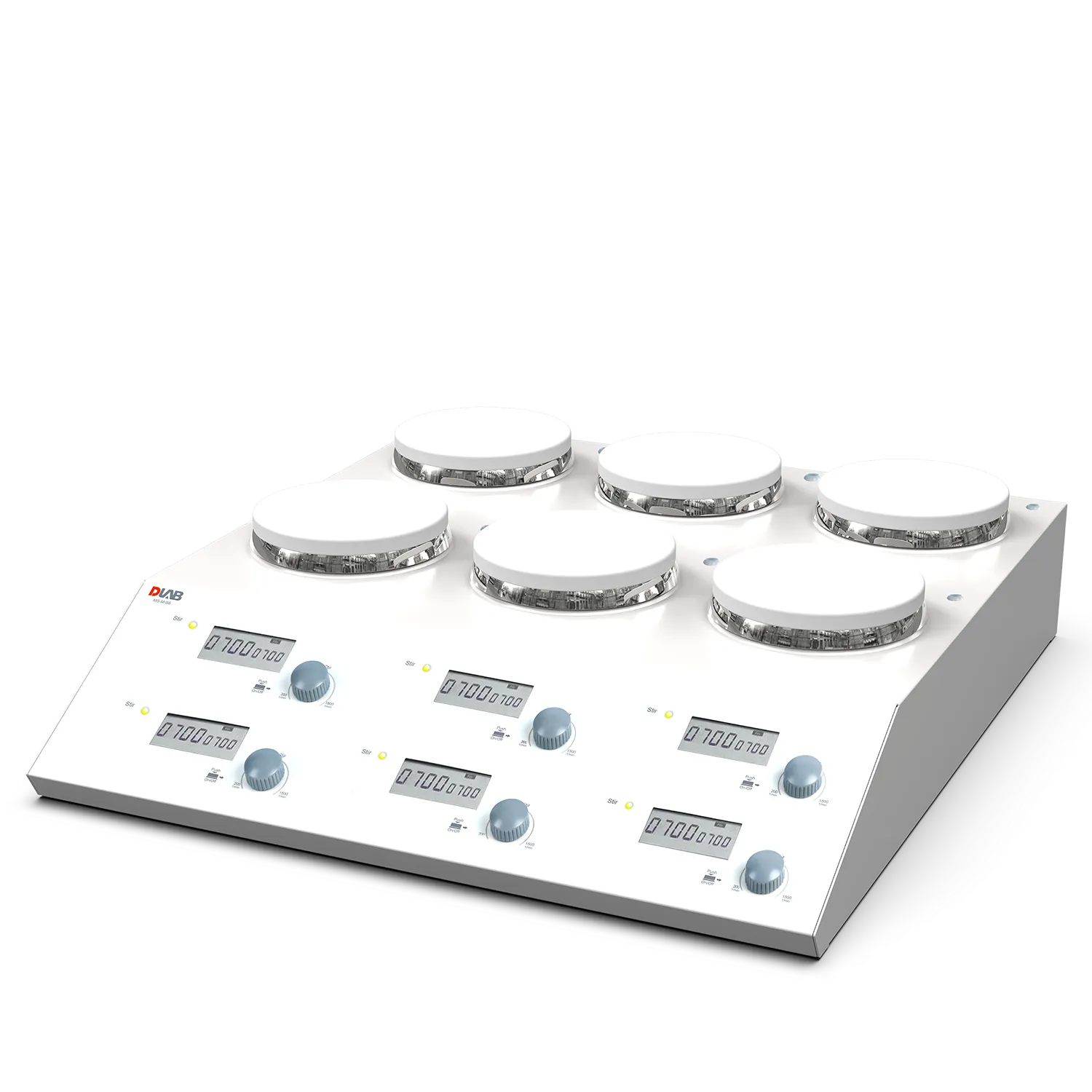

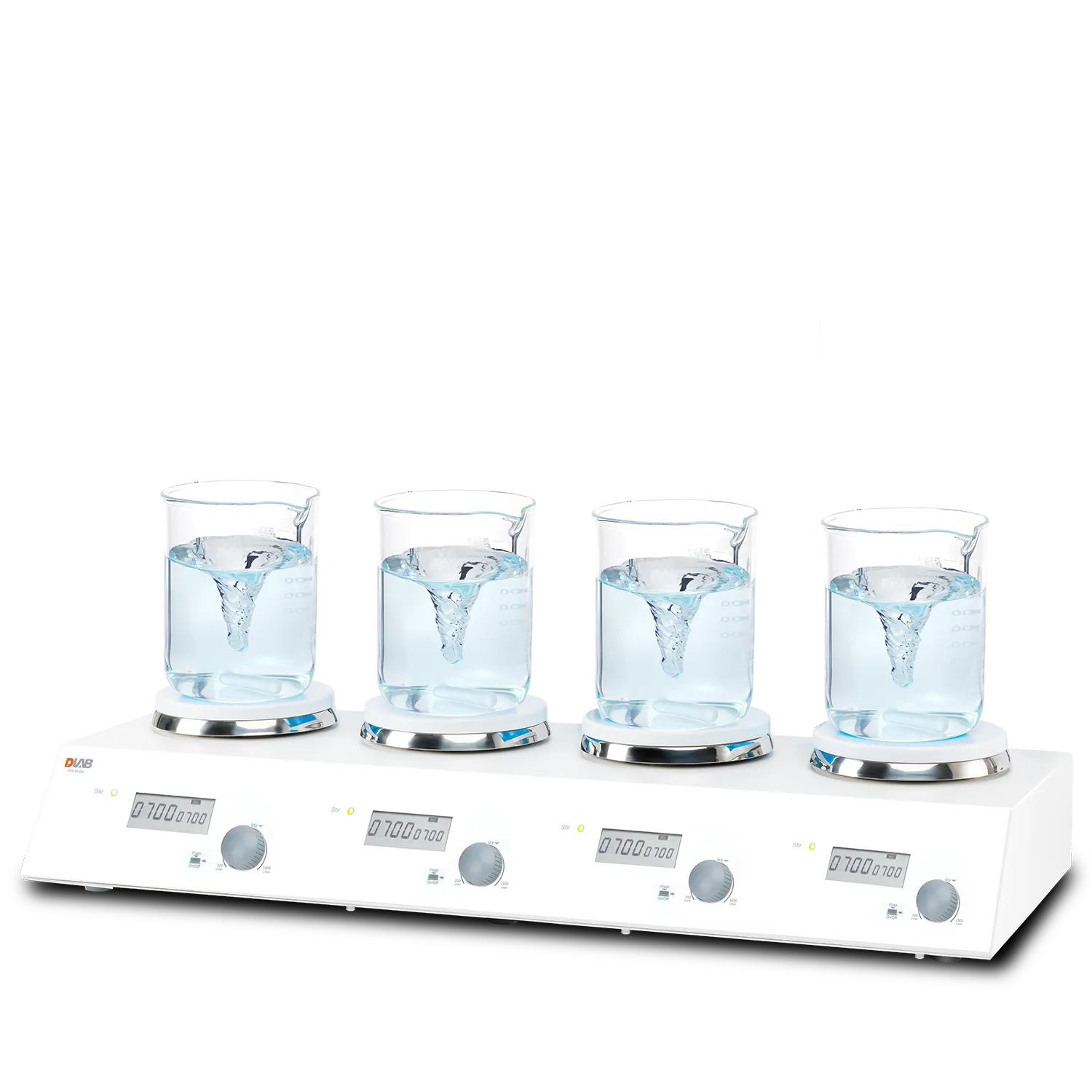

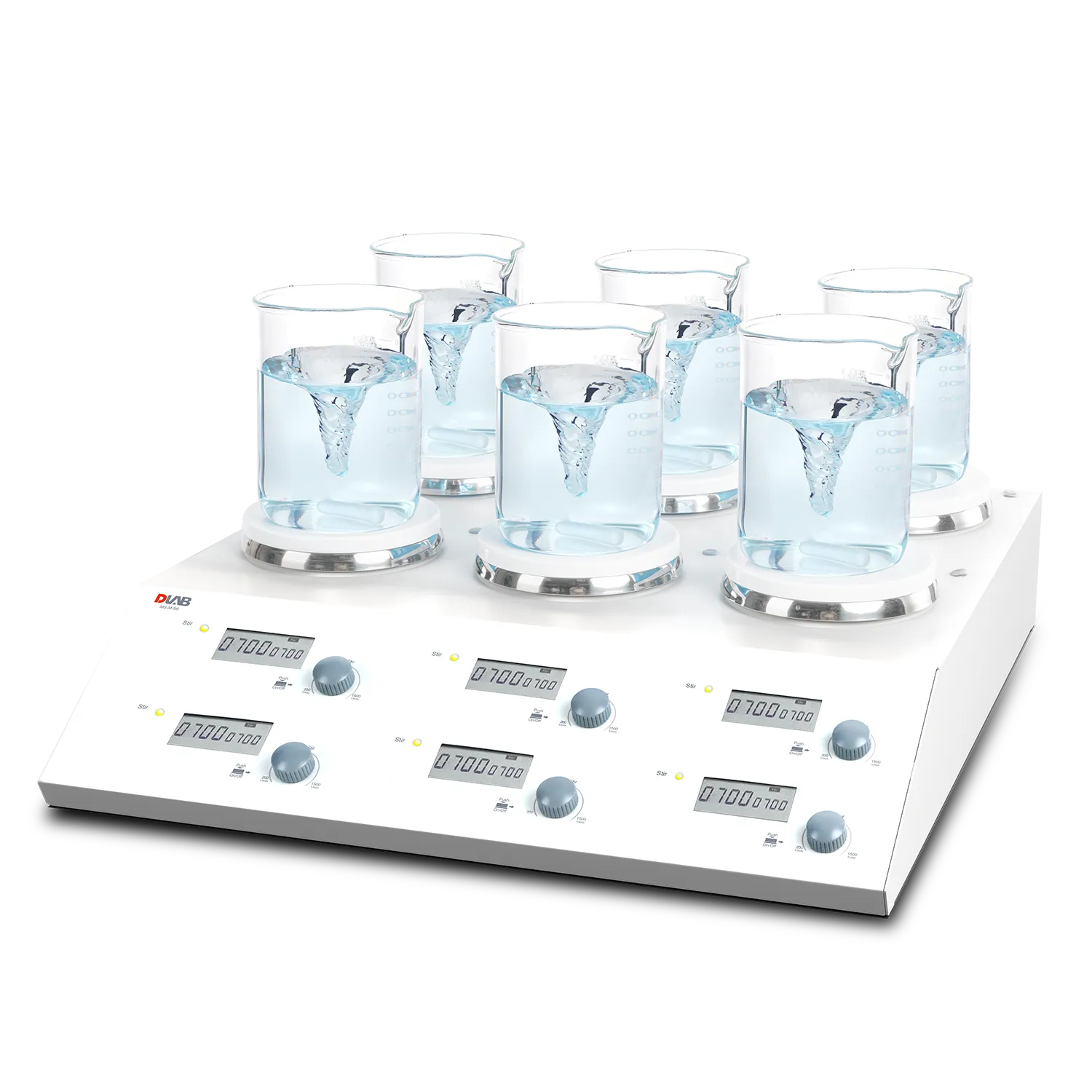

4/6 Channel LCD Digital Magnetic Stirrer
4/6 Channel LCD Digital Magnetic Stirrer - Image 2
4/6 Channel LCD Digital Magnetic Stirrer - Image 3
4/6 Channel LCD Digital Magnetic Stirrer - Image 4

4/6 Channel LCD Digital Magnetic Stirrer

The 4/6 Channel LCD Digital Magnetic Stirrer is a multi?position laboratory stirrer that allows independent control of speed and display for each channel. Designed with brushless motors and easy?to?read LCD screens, it supports efficient parallel stirring for multiple samples simultaneously.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: 8030271100 Categories: , , Product ID: 22010

Description

The 4/6 Channel LCD Digital Magnetic Stirrer is a versatile multi?channel laboratory device engineered for high?throughput stirring and simultaneous sample processing. Each of the four or six independent channels has its own LCD display and controls for start/stop, speed setting, and monitoring, enabling parallel experiments without interference. A spark?free brushless DC motor in each channel ensures maintenance?free, quiet, and stable operation, while the ceramic?coated aluminum work plates resist corrosion and enhance durability. This compact design saves bench space and accommodates a variety of reaction vessels, making it ideal for research labs, educational settings, and quality?control environments that require consistent and reproducible stirring performance.

Specifications

Key Features

  • 4 or 6 independently-controlled channels with separate start/stop, speed control and LCD display for parallel experiments.

  • Ceramic-coated aluminum work plates for corrosion resistance and durability.

  • Brushless DC motors — spark-free, long life and maintenance-free.

  • Compact, space-saving design integrating multiple channels in one unit.

  • Clear LCD displays real-time stirring speed for each channel.

  • Built-in safety features to protect samples and equipment during use.

Technical Specifications

  • Models: MS-M-S4 (4-channel), MS-M-S6 (6-channel).

  • Work plate diameter per channel: Ø134 mm.

  • Work plate material: Aluminum with ceramic coating.

  • Maximum stirring volume (H₂O): 3 L per channel.

  • Speed range: 200 – 1500 rpm.

  • Max magnetic stir bar length: 40 mm.

  • Motor output power: 5 W × number of channels.

  • Voltage / Frequency: 100-240 V, 50/60 Hz.

  • Protection class: IP21.

  • Dimensions (approx):

    • 4-channel: ~701 × 265 × 127 mm

    • 6-channel: ~564 × 523 × 127 mm

  • Weight (approx):

    • 4-channel: ~8.7 kg

    • 6-channel: ~12.7 kg

  • Operating conditions: 5 – 40 °C, ≤80 % RH.

Datasheet


Download Datasheet

Accessories

View Accessories
