Description

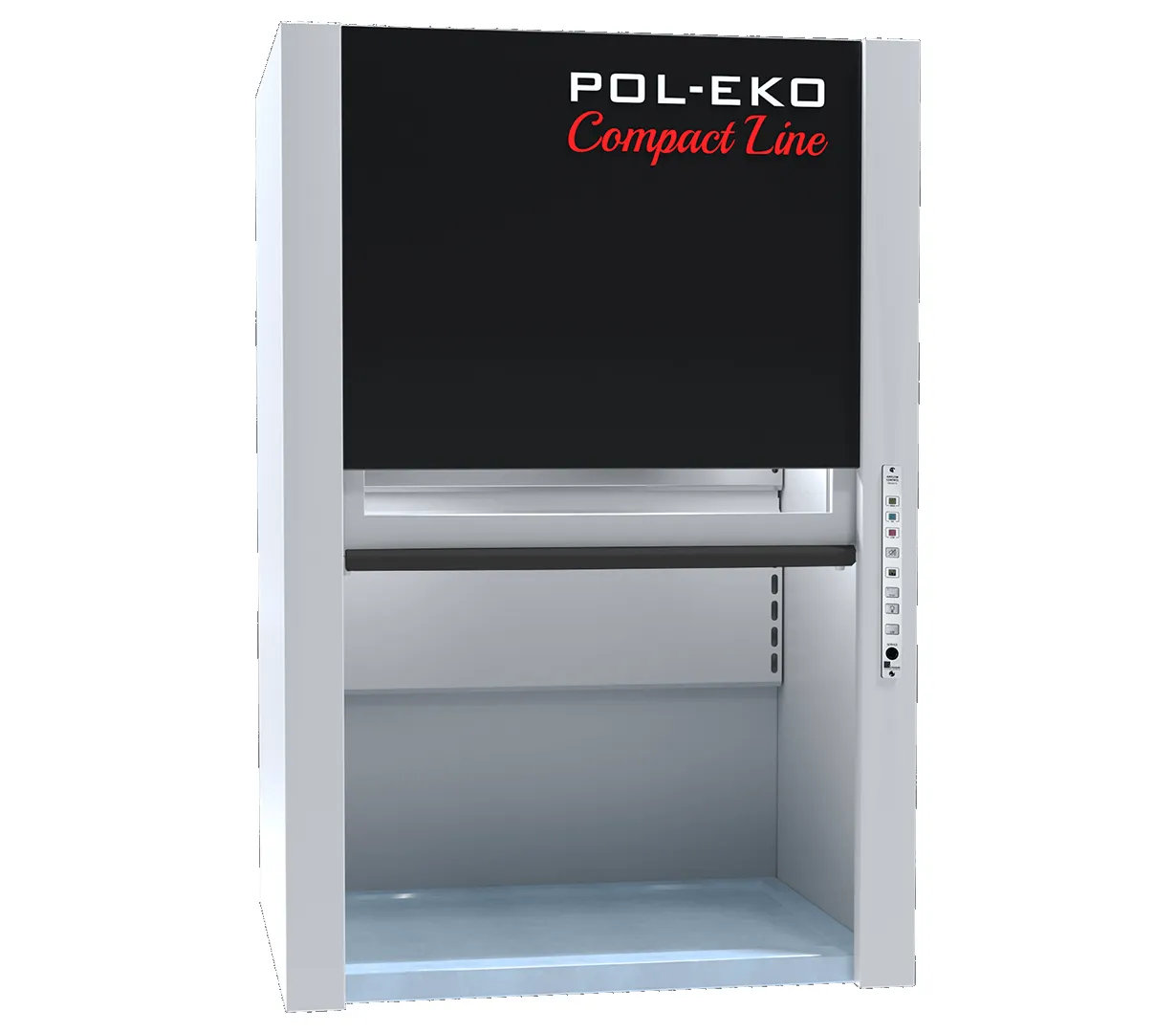

The POL-EKO DCL 800 is engineered specifically for facilities that require a professional-grade fume hood but lack the space for a full floor-standing unit. Designed to be mounted directly onto an existing laboratory table, it provides a high-security environment for chemical analysis, sample preparation, and the compounding of medications.Advanced Ventilation in a Compact Frame:Despite its smaller size, the DCL 800 utilizes the same high-end engineering as larger models:Double Rear Wall System: Active extraction slots at the top and bottom of the chamber ensure that vapors?whether they are lighter or heavier than air?are removed without creating turbulence or “dead zones.”5Airflow Monitoring: A standard Schneider FM 550-A-0-E monitoring set provides continuous oversight of face velocity.6 Integrated visual and audible alarms notify the operator immediately if airflow drops below the safe threshold ($0.3text{–}0.5 text{ m/s}$), ensuring compliance with EN 14175.Emergency Safety: A decompression flap in the ceiling provides an immediate pressure release path in the event of an uncontrolled chemical reaction.7Ergonomic and Durable Design:Construction: Built entirely from galvanized steel finished with chemically resistant epoxy powder paint, the DCL 800 is durable and easy to decontaminate.Smart Sash Window: The toughened glass sash is balanced by a counterweight for smooth operation, with a safety lock at 8$500 text{ mm}$.9 It also features horizontal sliding glass panes for precision access without fully opening the sash.10+1Utility Integration: The front panel is pre-equipped with two 11$230text{V}$ electrical sockets (IP44) and two water spouts with high-quality valves.12 An optional ceramic sink ($280 times 80 text{ mm}$) can be integrated into the worktop.Visibility: Linear LED lighting is installed outside the working chamber behind an insulating glass pane, protecting the light source from chemical corrosion while providing superior illumination of the workspace.13
Specifications
Tabletop Fume Hood CompactLine DCL 800 Specifications
The CompactLine DCL 800 is the most space-efficient model in the DCL series, specifically designed for small laboratories or stations with limited bench space. Despite its smaller footprint, it maintains the full safety standards of the larger units, featuring a robust galvanized steel construction and a dual-wall extraction system compliant with EN 14175.
Technical Parameters
-
Recommended Airflow: 400 – 600 m3/h
-
Air Velocity: 0.3 – 0.5 m/s
-
Nominal Power: 46 W
-
Voltage: 230 VAC 50Hz
-
Air Outlet Diameter: 200 mm
-
Lighting: External linear LED (> 800 LUX)
-
Sound Level: < 54 dB
Physical and Material Data
-
Overall Dimensions (W x H x D): 800 x 1235 x 700 mm
-
Working Space Dimensions (W x H x D): 734 x 1000 x 430 mm
-
Housing Material: Galvanized steel with chemically resistant epoxy powder coating
-
Internal Chamber: Epoxy-coated galvanized steel (options for Polypropylene or Phenolic Resin)
-
Worktop: Optional (Monolithic Ceramics, Phenolic Resin, or Stainless Steel)
-
Window: 5mm toughened glass, manually operated with counterweight and sliding panes
-
Safety Sash Height: Maximum opening 810 mm; working lock at 500 mm
Functional and Safety Features
-
Compact Double-Wall Extraction: Features the signature double rear wall design that creates exhaust slots at two levels. This ensures that even in a smaller chamber, dead zones are eliminated and both light and heavy gases are cleared efficiently.
-
Airflow Monitoring System: Integrated Schneider FM 550 controller provides a digital readout of face velocity and triggers an audible/visual alarm if airflow becomes insufficient.
-
Pressure Safety: A dedicated decompression flap is located in the ceiling to safely vent sudden pressure increases, protecting the glass sash and the operator.
-
External Illumination: LED lighting is mounted above the glass ceiling, outside the workspace, to prevent contact with corrosive vapors and ensure ease of maintenance.
-
Utility Integration: The unit is equipped with two 230V splash-proof sockets and valves for water or gas, conveniently located on the front pillars for easy access without reaching into the hood.
-
Non-Wood Construction: The entire structure is made of non-flammable, chemically resistant materials, ensuring durability in harsh chemical environments.
