Description
The OS40?Pro LCD Digital Overhead Stirrer delivers reliable and precise stirring performance for demanding laboratory applications, including chemical synthesis, pharmaceutical research, and industrial mixing. It offers a broad speed range from 50?rpm up to 2200?rpm with ?3?rpm control accuracy, and its LCD display shows both set and actual speed as well as torque trends for real?time monitoring of changes in sample viscosity. Powered by a durable brushless DC motor, this overhead stirrer maintains constant speed even with viscosity variation and prevents accidental spillage thanks to smooth start?up and safety circuits that respond to overload or stall conditions. Additional features include remote PC control and data transmission, auto?restart after power loss, and strong torque capacity suitable for stirring up to 40?L of liquid.
Specifications
OS40-Pro LCD Digital Overhead Stirrer Specifications
The OS40-Pro is a high-capacity digital overhead stirrer designed for intensive mixing of medium to high-viscosity liquids. It is equipped with a high-resolution LCD display and a robust motor to ensure accuracy and safety in research and industrial laboratories.
Technical Parameters
-
Max. Stirring Quantity (H2O): 40 Liters
-
Speed Range: 50 – 2200 RPM
-
Speed Display Accuracy: ±3 RPM
-
Max. Torque: 60 Ncm
-
Max. Viscosity: 50,000 mPas
-
Chuck Clamping Range Diameter: 0.5 – 10 mm
-
Motor Type: Brushless DC motor
-
Motor Input Power: 120 W
-
Motor Output Power: 100 W
-
Power Consumption: 120 W
Physical and Material Data
-
Unit Dimensions (W x D x H): 83 x 220 x 186 mm
-
Unit Weight: 2.8 kg
-
Protection Class: IP21
-
Voltage and Frequency: 100-240V, 50/60 Hz
-
Permissible Ambient Temperature: 5 – 40°C
-
Permissible Relative Humidity: 80% RH
Functional and Safety Features
-

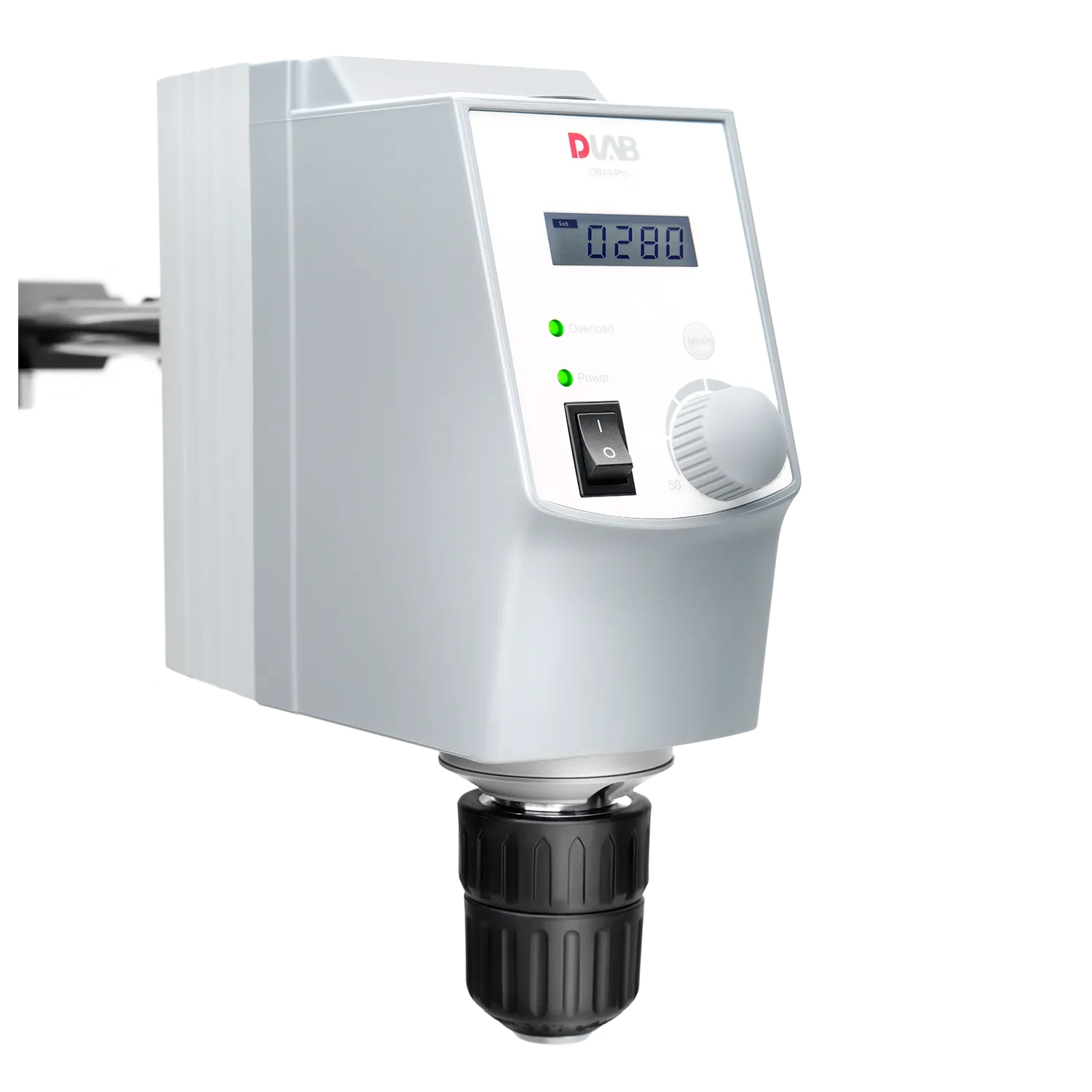

LCD Digital Display: Provides real-time and precise monitoring of both the set speed and actual stirring speed.
-
Constant Speed Control: Advanced microprocessor technology ensures the set speed is maintained even if the viscosity of the sample changes.
-
Maintenance-Free Drive: The brushless DC motor is designed for explosion-proof, quiet, and long-term reliable operation.
-
Overload Protection: Automatically stops the unit and displays a warning to prevent motor damage during high-resistance mixing.
-
Through-Shaft Design: Allows the stirrer shaft to pass through the motor head, enabling easy adjustment of the paddle position.
-
PC Connectivity: Features an RS232 interface for remote control and data logging via external software.
