Description

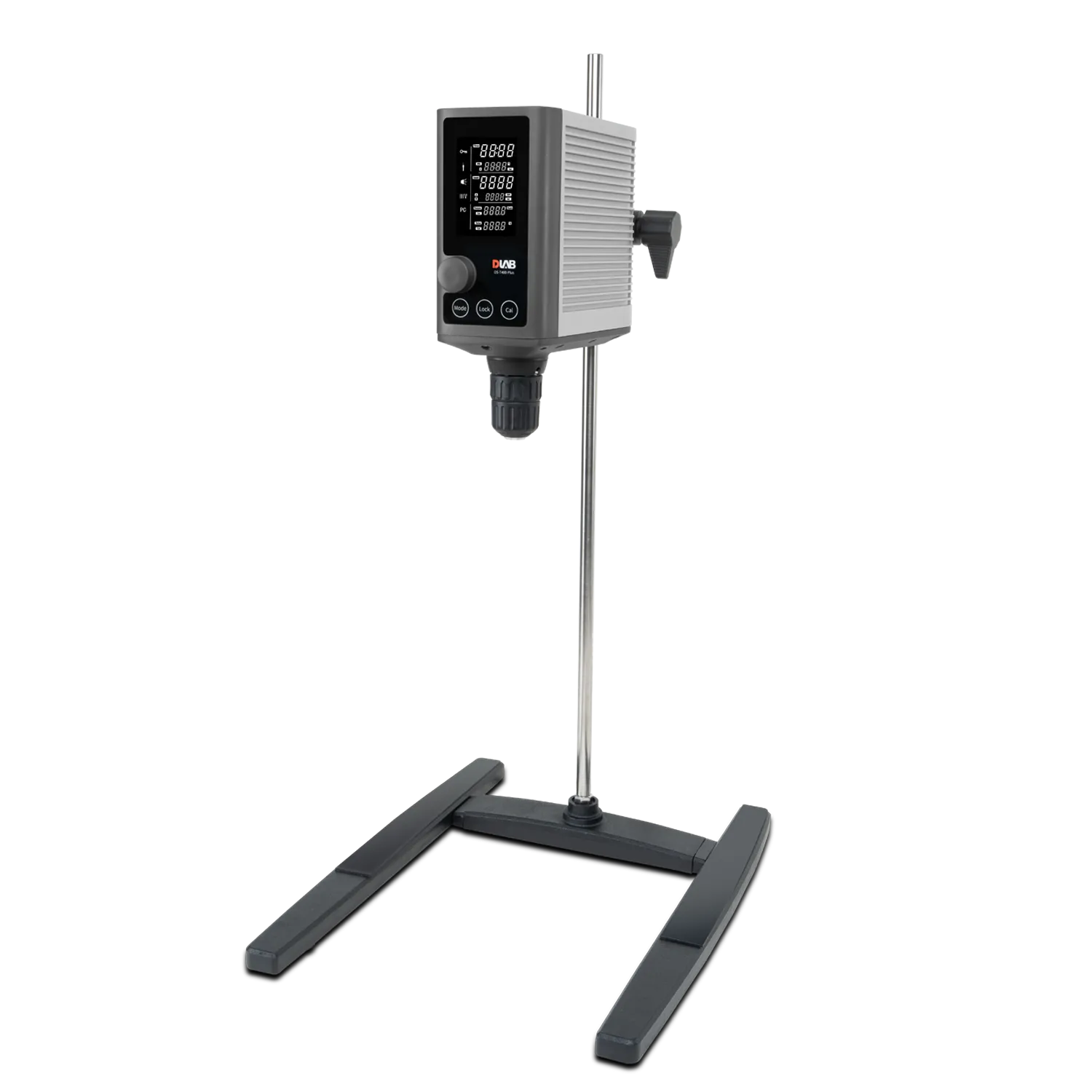

The OS?T400?Plus Overhead Stirrer delivers robust and reliable mixing for medium to high?viscosity liquids in laboratory and production environments. It offers precision speed control with forward/reverse operation and automatic torque adjustment to maintain consistent stirring even as sample viscosity changes. An easy?to?read LCD screen displays speed, torque, timing, and temperature when using an external sensor, while programmable timer functions support extended mixing protocols. Built?in safety features such as overload protection and a safety lock prevent accidental changes during operation and help ensure secure, continuous stirring. The stirrer?s ?through?the?top? paddle design allows quick vessel changes, and audible alerts signal timers and error conditions. This overhead stirrer is suitable for large?scale experimental workflows, quality?control labs, and industrial mixing tasks.
Specifications
OS-T400-Plus Overhead Stirrer Specifications
The OS-T400-Plus is a heavy-duty LCD digital overhead stirrer designed for high-volume and high-viscosity applications. It features a dual-gear system to optimize performance for either extreme torque or high-speed mixing, making it suitable for large-batch laboratory and pilot plant operations.
Technical Parameters
-
Max. Stirring Quantity (H2O): 100 Liters
-
Speed Range Gear A: 10 – 400 RPM
-
Speed Range Gear B: 50 – 2000 RPM
-
Max. Torque: 400 Ncm
-
Max. Viscosity: 150,000 mPas
-
Motor Type: Brushless DC motor
-
Motor Input Power: 180 W
-
Motor Output Power: 170 W
-
Total Power: 300 W
-
Speed Display: LCD
-
Torque Display: LCD
-
Time Settings Range: 1 minute – 99 hours 59 minutes
-
External Temperature Sensor: PT1000 (0 – 100°C)
-
Chuck Clamping Range Diameter: 0.5 – 10 mm
Physical and Material Data
-
Unit Dimensions (W x H x D): 101 x 270 x 264 mm
-
Unit Weight: 5.2 kg
-
Protection Class: IP21
-
Voltage and Frequency: 100-240V, 50/60 Hz
-
Permissible Ambient Temperature: 5 – 40°C
-
Permissible Relative Humidity: 80% RH
Functional and Safety Features
-
Dual Gear Transmission: Allows for higher torque at lower speeds (Gear A) or higher speeds for less viscous fluids (Gear B).
-
Multi-Parameter LCD: Displays speed, torque, time, and temperature simultaneously for comprehensive process monitoring.
-
Constant Speed Technology: Microprocessor control automatically adjusts torque to maintain the set speed as viscosity changes.
-
Safety Lock: Prevents accidental changes to settings during critical operations.
-
Directional Control: Features the ability to switch between forward and reverse rotation for thorough mixing.
-
Through-Shaft Design: Enables easy height adjustment of the stirring paddle without moving the motor head.
-
Overload Protection: Automatically stops the motor and displays a fault code if the torque exceeds safety limits
