Description

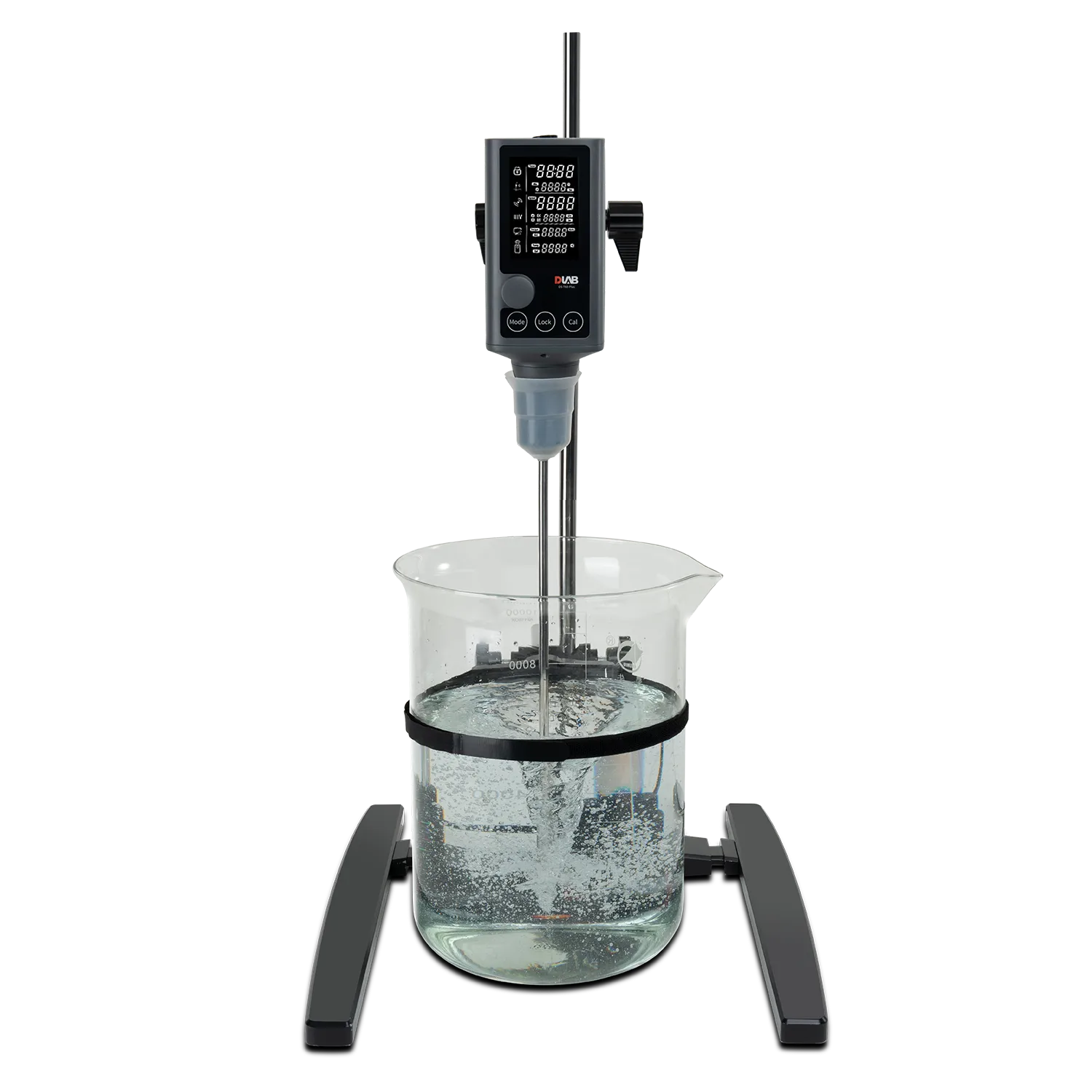

The OS?T40?Plus / OS?T60?Plus Overhead Stirrer delivers reliable, controlled mixing for medium to large sample volumes with adjustable stirring speed and programmable timing. Built with an intuitive LCD screen, the unit displays real?time speed, torque, timing, and temperature data, and supports an external temperature sensor for accurate sample monitoring. Its safety lock prevents accidental changes during operation, while the through?the?top paddle design makes container placement and removal simple. The stirrer maintains constant speed by automatically adjusting torque in response to changes in sample viscosity, and also allows forward/reverse rotation for versatile mixing patterns. Additional features include an audible buzzer for end?of?timer notifications and built?in safety protections for secure performance in laboratory workflows.
Specifications
OS-T40-Plus and OS-T60-Plus Overhead Stirrer Specifications
These overhead stirrers are designed for high-viscosity liquid mixing and intensive stirring tasks. They feature high torque, precise electronic control, and advanced safety mechanisms for reliable laboratory operation.
Technical Parameters
-
Max. Stirring Quantity (H2O): 40 Liters (OS-T40-Plus) / 60 Liters (OS-T60-Plus)
-
Speed Range: 50 – 2200 RPM
-
Speed Display Accuracy: ±3 RPM
-
Max. Torque: 40 Ncm (OS-T40-Plus) / 60 Ncm (OS-T60-Plus)
-
Viscosity Max.: 50,000 mPas (OS-T40-Plus) / 100,000 mPas (OS-T60-Plus)
-
Chuck Clamping Range Diameter: 0.5 – 10 mm
-
Motor Type: Brushless DC motor
-
Overload Protection: Automatic stop
-
Data Connector: RS232
Physical and Material Data
-
Dimensions (W x D x H): 83 x 220 x 186 mm
-
Weight: 2.8 kg
-
Protection Class: IP21
-
Voltage and Frequency: 100-240V, 50/60 Hz
-
Permissible Ambient Temperature: 5 – 40°C
-
Permissible Relative Humidity: 80% RH
Functional and Safety Features
-
LCD Display: Provides clear monitoring of set and actual speeds as well as torque trends for viscosity changes.
-
Microprocessor Technology: Maintains constant speed regardless of changes in sample viscosity during the stirring process.
-
Brushless DC Motor: Offers maintenance-free, explosion-proof, and quiet operation with a long service life.
-
Safety Protection: Features automatic overload protection to ensure the motor is not damaged during high-resistance mixing.
-
Through-Shaft Design: Allows for easy adjustment of the stirring paddle height without moving the motor head.
