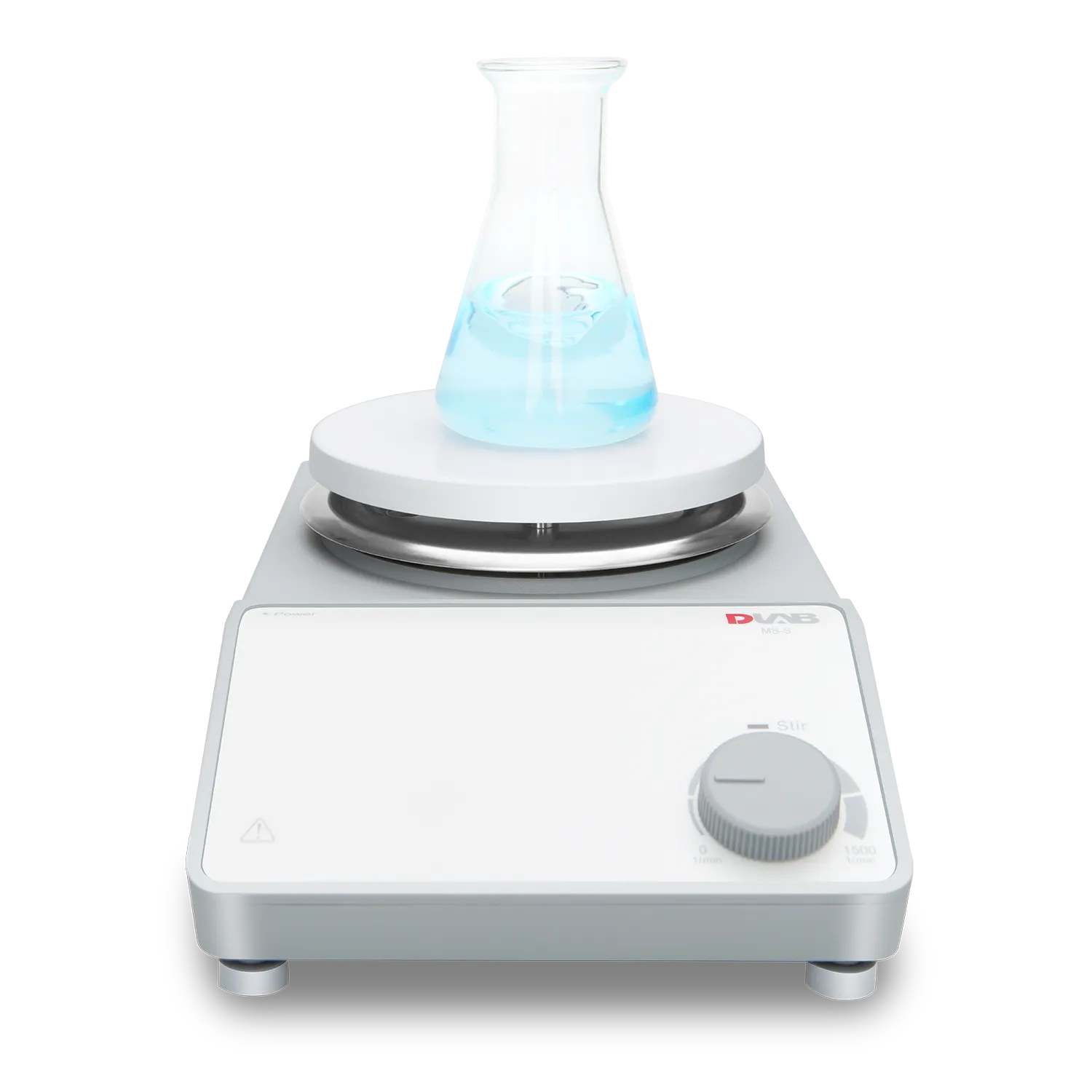

MS7-S 7″ Square Magnetic Stirrer

MS7-S 7 Inch Square Magnetic Stirrer Specifications

The MS7-S is a robust, non-heating analog magnetic stirrer designed for large-volume mixing. It features a spacious 7-inch square work plate and is engineered for high durability in industrial and research laboratory environments.¹

Technical Parameters

• Stirring Speed Range: 0 – 1500 RPM²





• Speed Display: Scale³





• Max. Stirring Quantity (⁴$H_{2}O$): 10 Liters⁵





• Max. Magnetic Bar Length: 80 mm⁶





• Motor Type: Brushless DC motor

• Motor Input Power: 18 W

• Motor Output Power: 10 W

• Power Consumption: 30 W

Physical and Material Data

• Work Plate Dimension: 184 x 184 mm (7 inch)⁷





• Work Plate Material: Stainless steel with ceramic coating

• Unit Dimensions: 215 x 360 x 112 mm⁸





• Unit Weight: 3.8 kg⁹





• Protection Class: IP21¹⁰





• Voltage and Frequency: 100-120V / 200-240V, 50/60 Hz¹¹





• Permissible Ambient Temperature: 5 – 40°C

• Permissible Relative Humidity: 80% RH¹²





Functional and Safety Features

• Large Square Work Plate: The 7-inch surface area provides stability for large beakers and flasks.

• Ceramic Coating: The stainless steel plate is treated with a ceramic coating for high resistance to chemicals and mechanical wear.¹³





• Powerful Stirring: Equipped with a high-torque motor and strong magnetic coupling capable of mixing up to 10 liters of water.

• Maintenance-Free Drive: The brushless DC motor ensures long-term operational reliability and quiet performance.

• Stepless Speed Adjustment: Features an analog dial for smooth and intuitive control of stirring speeds across the entire range.
