Description

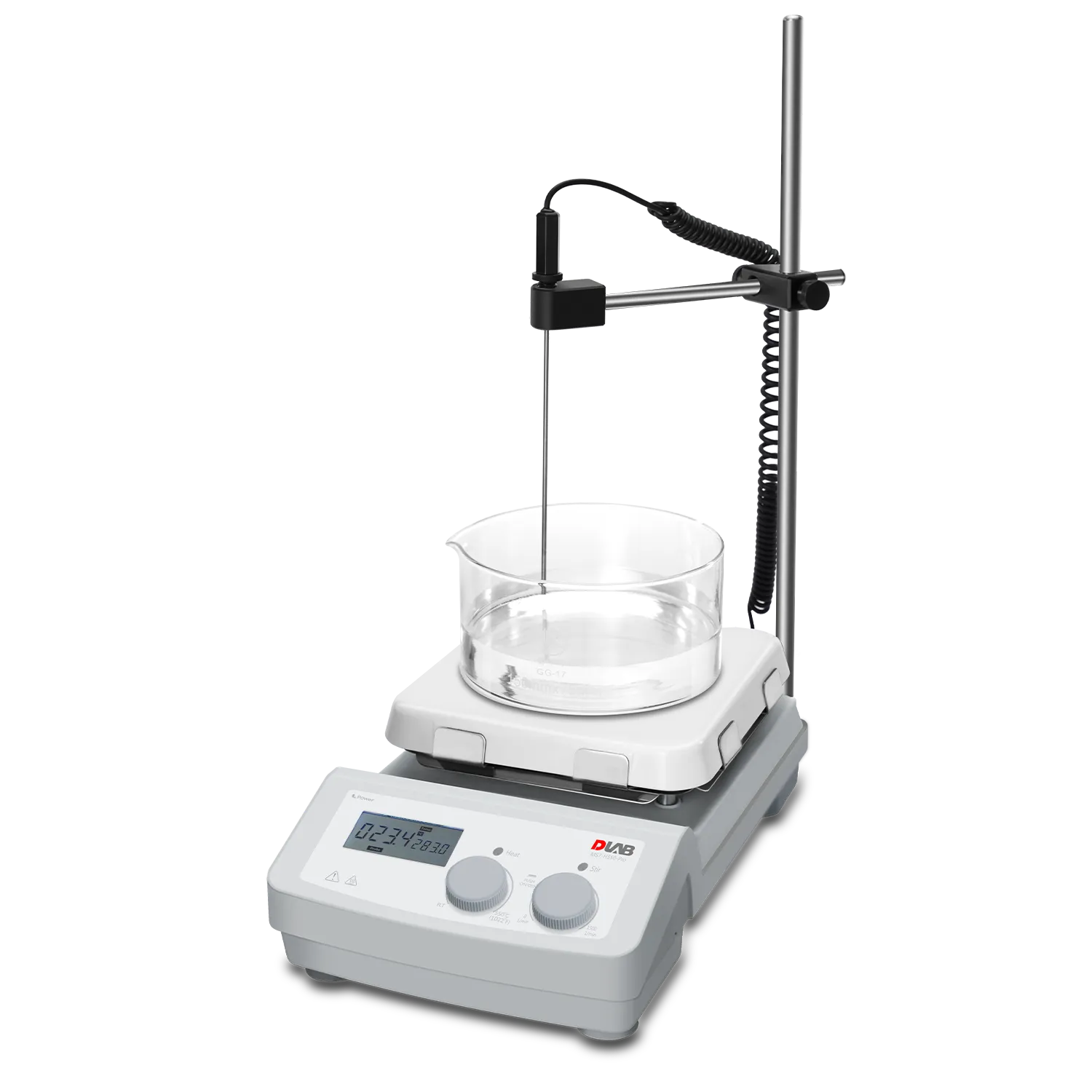

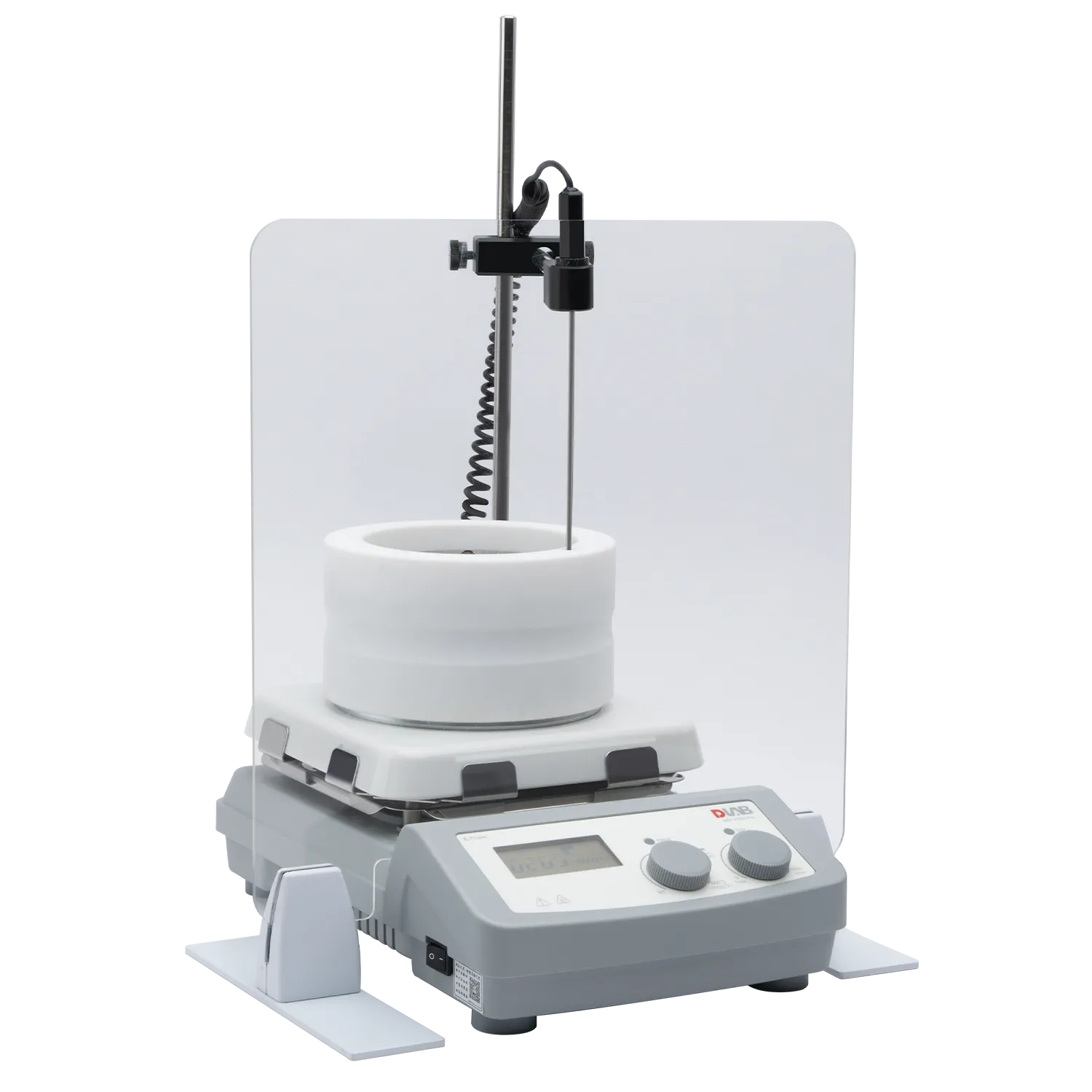

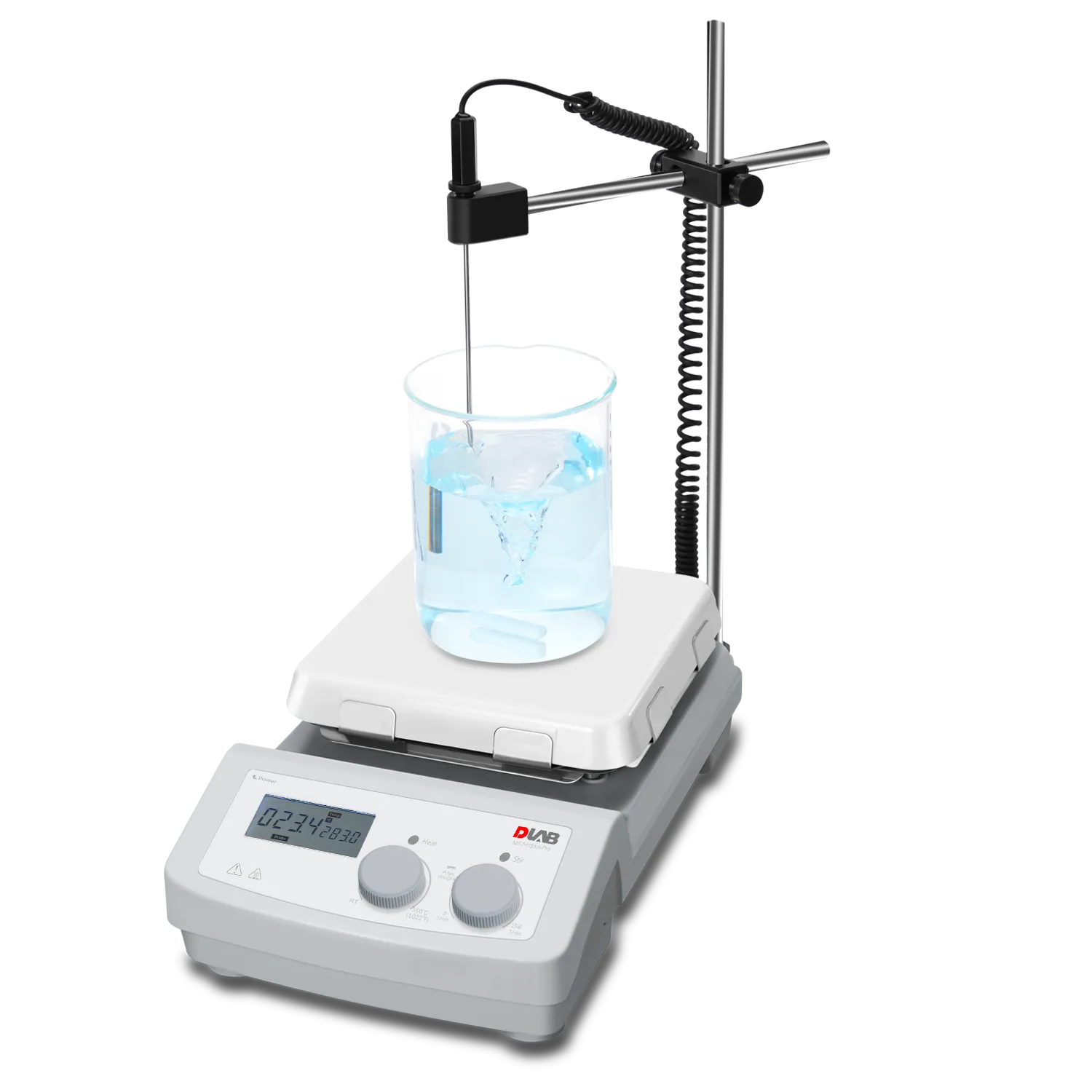

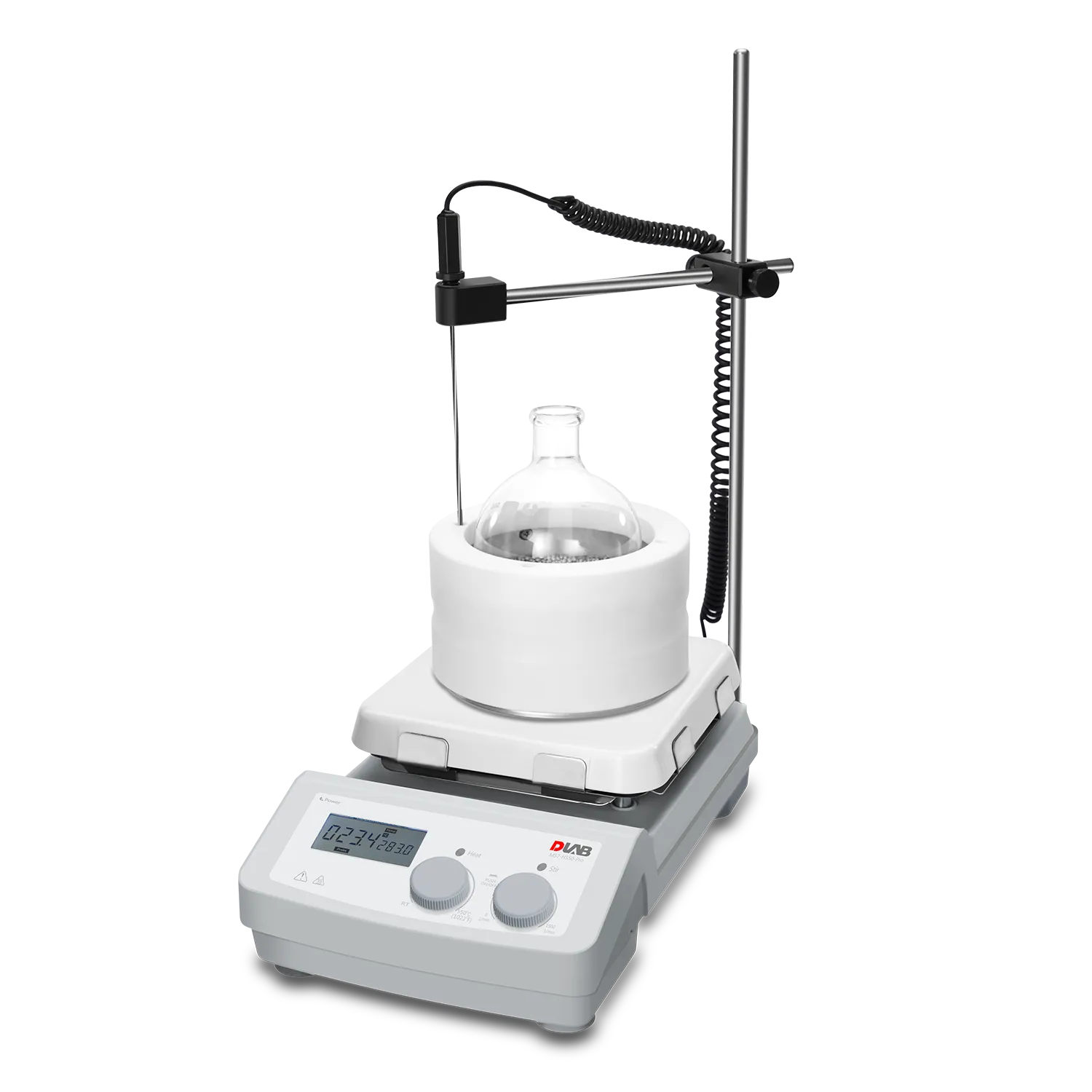

The MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer with 7 Inch Ceramic Plate delivers reliable and versatile performance for demanding laboratory tasks. Equipped with a large 7-inch glass-ceramic hotplate, it offers excellent chemical resistance and efficient heat transfer with a maximum temperature of 550 ?C under PID temperature control. The brushless DC motor provides smooth and stable stirring across a wide speed range up to 1500 rpm, while the bright LCD display shows both actual and set values for temperature and speed in real time. Built-in safety features include overheating protection and a ?HOT? warning indicator when the plate exceeds 50 ?C. Additionally, an external PT1000 sensor option and RS232 connectivity allow for precise liquid temperature measurement and PC-based control or data logging. Durable construction and intuitive digital controls make this hotplate stirrer suitable for synthesis, sample preparation, analytical work, and educational labs.
Specifications
MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer Specifications
The MS7-H550-Pro is a high-performance digital hotplate stirrer featuring a square glass-ceramic work plate. It is specifically designed for demanding applications in chemical synthesis and physical analysis that require high temperatures and precise control.
Â
Technical Parameters
-
Heating Temperature Range: Room temperature to 550°C
Â
-
Temperature Control Accuracy: ±1°C (with external sensor)
-
Temperature Display Accuracy: ±0.1°C
-
Stirring Speed Range: 100 – 1500 RPM
Â
-
Speed Display Resolution: ±1 RPM
Â
-
Max. Stirring Quantity: 20 Liters
Â
-
Max. Magnetic Bar Length: 80 mm
-
Heating Output: 1000 W
Â
-
Motor Type: Brushless DC motor
Â
-
External Temperature Sensor: PT1000
Â
-
Safety Temperature Cut-off: 580°C
Â
Physical and Material Data
-
Work Plate Dimension: 184 x 184 mm (7 inch)
Â
-
Work Plate Material: Glass Ceramic
Â
-
Unit Dimensions: 215 x 360 x 112 mm
-
Unit Weight: 4.5 kg
-
Protection Class: IP21
Â
-
Data Connector: RS232
Â
-
Permissible Ambient Temperature: 5 – 40°C
-
Permissible Relative Humidity: 80% RH
Â
Functional and Safety Features
-
Glass Ceramic Work Plate: Provides exceptional chemical resistance and efficient heat transfer while being easy to clean.
Â
-
Dual LCD Display: Simultaneously shows the set and actual values for both temperature and stirring speed.
Â
-
External Temperature Control: Direct monitoring and control of the liquid medium when using the PT1000 sensor.
Â
-
Residual Heat Warning: A “HOT” warning light flashes if the plate temperature exceeds 50°C, remaining active even if the unit is turned off.
Â
-
Remote Control: RS232 interface allows for PC control and data transmission for automated processes.
