Description

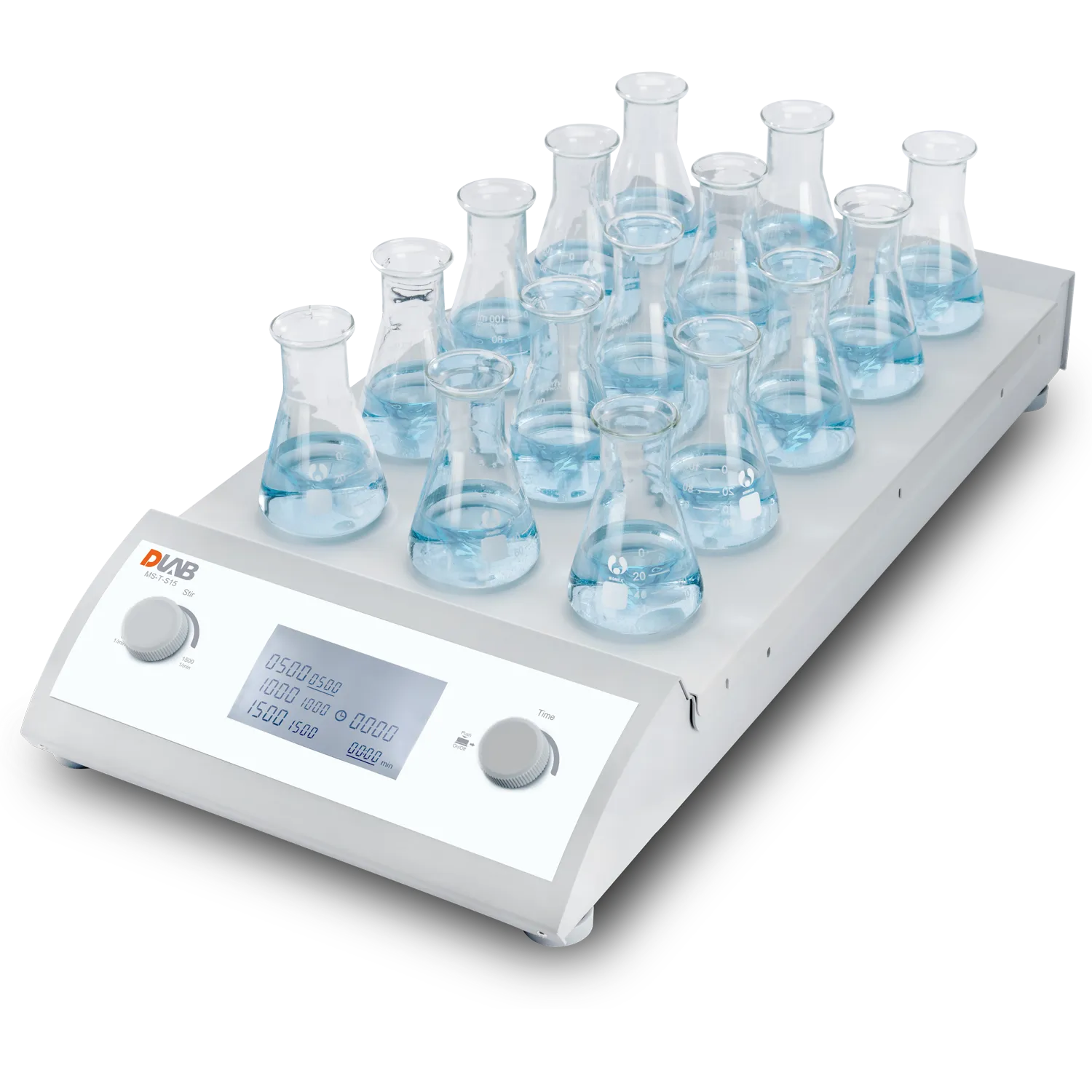

The MS?T?S15 15?Position Magnetic Stirrer is a high?throughput laboratory instrument designed for simultaneous stirring of up to 15 samples, making it ideal for analytical, biochemical, environmental, and quality?control applications. Each group of five positions is controlled independently across three channels, allowing users to set different speeds and timers for each batch of samples with ease. The unit features a maintenance?free brushless DC motor and powerful magnetic drives for stable, reproducible stirring up to 1500?rpm. An easy?to?read LCD display shows speed and time settings, while the aluminum work plate is laser engraved for corrosion resistance and slip prevention. With compact dimensions and robust construction, the MS?T?S15 boosts productivity in labs handling multiple simultaneous reactions.
Specifications
MS-T-S15 15-Position Magnetic Stirrer Specifications
The MS-T-S15 is a high-efficiency multi-position stirrer designed for high-throughput laboratory tasks.1 It features 15 stirring positions on a single platform, ensuring synchronized stirring speeds to provide identical conditions for batch sample processing.2
Technical Parameters
-
Stirring Positions: 15
-
Max. Stirring Quantity per Position (3$H_{2}O$): 0.4 Liters4
-
Total Max. Stirring Quantity: 6 Liters
-
Speed Range: 0 – 1100 RPM5
-
Speed Display: Scale
-
Motor Type: Brushless DC motor6
-
Motor Rating Input: 12 W
-
Motor Rating Output: 4 W
-
Max. Magnetic Bar Length: 40 mm7
Physical & Material Data
-
Work Plate Dimension: 280 x 450 mm
-
Work Plate Material: Stainless steel with silicone film
-
Unit Dimensions: 280 x 622 x 65 mm
-
Unit Weight: 5.0 kg
-
Protection Class: IP42
-
Voltage and Frequency: 100-120V / 200-240V, 50/60 Hz
-
Permissible Ambient Temperature: 5 – 40°C8
-
Permissible Relative Humidity: 80% RH
Functional & Safety Features
-
Synchronized Stirring: All positions are driven simultaneously to guarantee that every sample is subjected to the exact same stirring parameters.
-
Skid Resistance: The work plate is covered with a silicone film to ensure that containers remain stable and do not slide during operation.
-
Corrosion Resistance: The stainless steel plate with silicone coating provides protection against common laboratory chemical spills.
-
Low Profile Design: The thin, ergonomic housing allows for easy placement inside climate chambers or on crowded laboratory benches.
-
Quiet and Maintenance-Free: The brushless DC motor is designed for silent operation and long-term durability without the need for servicing.9
