Description

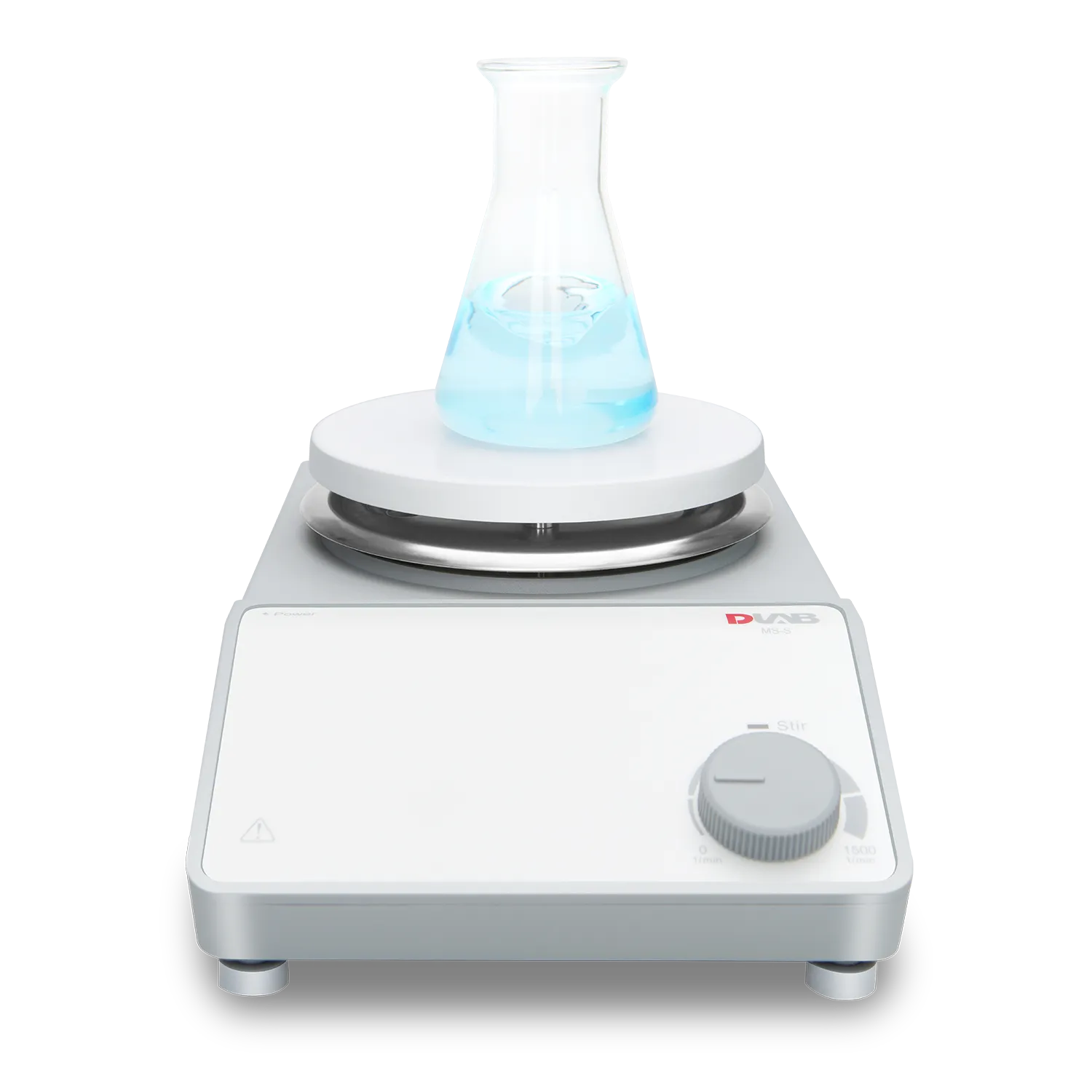

The MS?S Magnetic Stirrer is designed for efficient and consistent mixing in research, educational, and industrial laboratories. Featuring a maintenance?free brushless DC motor, it provides stable stirring performance up to 1500?rpm and can handle large solution volumes?up to 20?L of water. The ceramic?coated stainless steel work plate resists corrosion and chemical wear, ensuring long?term durability and easy cleaning. Simple controls and a compact footprint make it easy to operate and integrate into any lab workflow. Built with robust materials and engineered for dependable performance, the MS?S Magnetic Stirrer is ideal for routine solution preparation, dissolution, and mixing tasks.
Specifications
MS-S Magnetic Stirrer Specifications
The MS-S is a standard analog magnetic stirrer designed for everyday laboratory mixing tasks.1 It is built for reliability and simplicity, featuring a robust motor and a high-performance work plate suitable for a wide range of chemical and biological applications.
Technical Parameters
-
Stirring Speed Range: 0 – 1500 RPM2
-
Speed Display: Scale3
-
Max. Stirring Quantity ($H_{2}O$): 20 Liters4
-
Max. Magnetic Bar Length: 80 mm5
-
Motor Type: Brushless DC motor6
-
Motor Input Power: 18 W
-
Motor Output Power: 10 W
-
Total Power: 30 W7
Physical & Material Data
-
Work Plate Dimension: 135 mm8
-
Work Plate Material: Stainless steel with ceramic coating9
-
Unit Dimensions: 160 x 280 x 85 mm10
-
Unit Weight: 2.8 kg11
-
Protection Class: IP42
-
Voltage and Frequency: 100-120V / 200-240V, 50/60 Hz12
-
Permissible Ambient Temperature: 5 – 40°C13
-
Permissible Relative Humidity: 80% RH14
Functional & Safety Features
-
High Stirring Capacity: Capable of handling volumes up to 20 liters, making it suitable for larger batch preparations.15
-
Ceramic Coated Plate: The stainless steel work plate is coated with ceramic to provide excellent chemical resistance and easy cleaning.16
-
Electronic Speed Control: Features a constant speed mechanism that maintains stability even when the viscosity of the liquid changes.17
-
Maintenance-Free Drive: The brushless DC motor is designed for long-term service life without the need for internal maintenance.18
-
Compact Footprint: Designed to maximize bench space while providing a stable and secure base during high-speed operation.
