Description

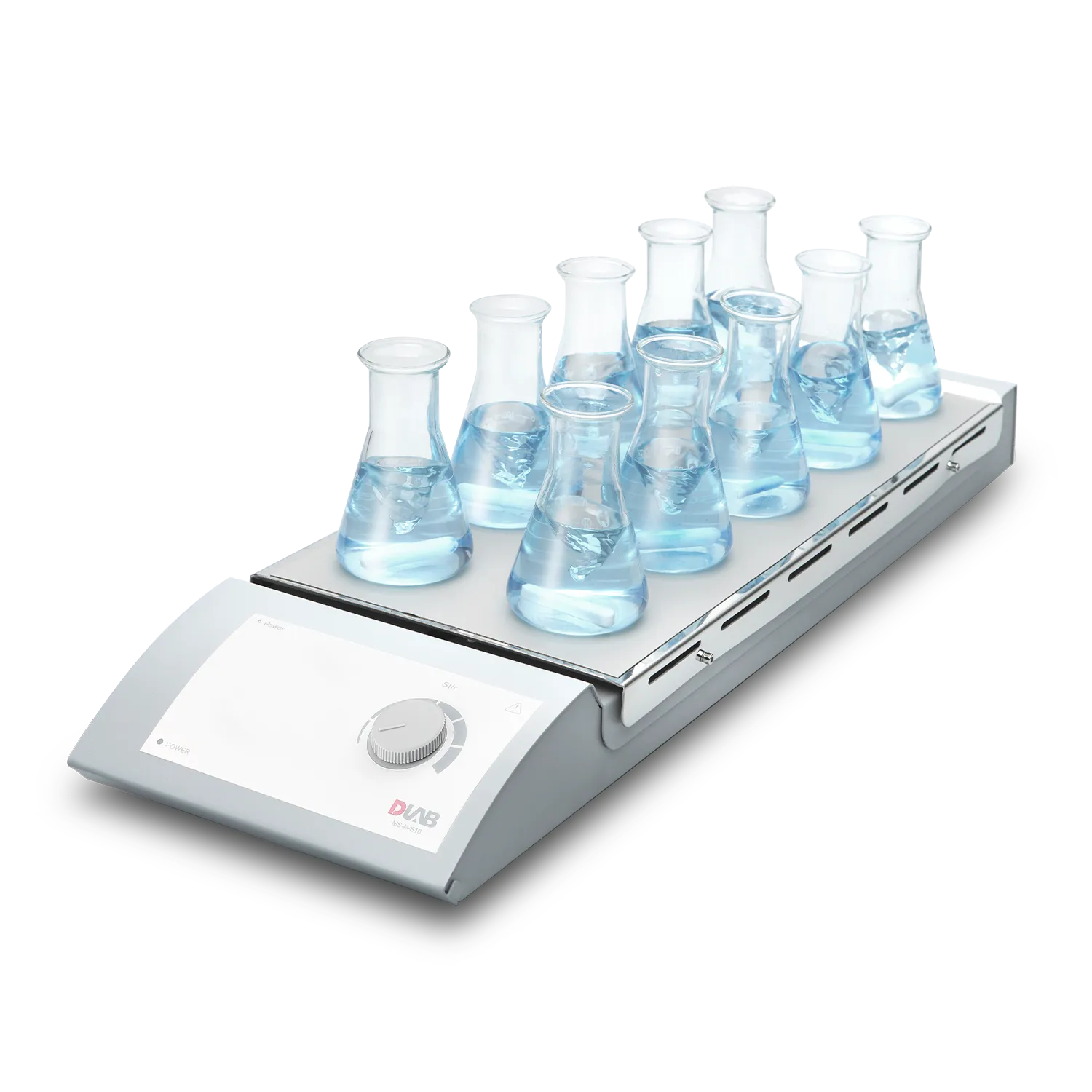

The MS?M?S10 10?Position Magnetic Stirrer is a reliable and space?saving instrument ideal for laboratories that need to mix multiple samples at once. Engineered with a maintenance?free brushless DC motor, it offers smooth and stable stirring across ten independent positions with adjustable speeds from 0 to 1100?rpm. The stainless steel work plate is fitted with a silicone cushion to provide strong skid resistance and accommodate a wide range of laboratory containers, maximizing benchtop space and workflow efficiency. Designed for everyday use in research, education, and quality control settings, this multi?position stirrer helps save time and enhances productivity in parallel experimental procedures.
Specifications
MS-M-S10 10-Position Magnetic Stirrer Specifications
The MS-M-S10 is a specialized multi-position magnetic stirrer designed for high-efficiency batch processing. It features 10 stirring positions on a single platform, ensuring synchronized stirring speeds for consistent results across multiple samples while maintaining a space-saving footprint.1
Technical Parameters
-
Stirring Positions: 10
-
Max. Stirring Quantity per Position ($H_{2}O$): 0.4 Liters
-
Total Max. Stirring Quantity: 4 Liters
-
Speed Range: 0 – 1100 RPM2
-
Speed Display: Scale
-
Motor Type: Brushless DC motor3
-
Motor Rating Input: 12 W4
-
Motor Rating Output: 4 W5
-
Max. Magnetic Bar Length: 40 mm
Physical & Material Data
-
Work Plate Dimension: 180 x 450 mm6
-
Work Plate Material: Stainless steel with silicone film7
-
Unit Dimensions (W x D x H): 182 x 622 x 65 mm
-
Unit Weight: 3.2 kg
-
Protection Class: IP42
-
Voltage: 100-120V / 200-240V8
-
Frequency: 50/60 Hz9
-
Permissible Ambient Temperature: 5 – 40°C10
-
Permissible Relative Humidity: 80% RH11
Functional & Safety Features
-
Synchronized Stirring: All 10 positions are driven by a single motor system to ensure every sample is stirred at the exact same speed.
-
Anti-Slip Surface: The stainless steel plate is covered with a high-quality silicone film to provide skid resistance and protect against chemical spills.12
-
Maintenance-Free Drive: Utilizes a brushless DC motor that offers long-term durability and silent operation without the need for internal servicing.13
-
Stepless Speed Control: Allows for smooth and stable adjustment of stirring speeds to accommodate varying liquid viscosities.14
-
Compact Design: The low-profile housing is designed to fit easily inside incubators or fume hoods where vertical space may be limited.
