Description

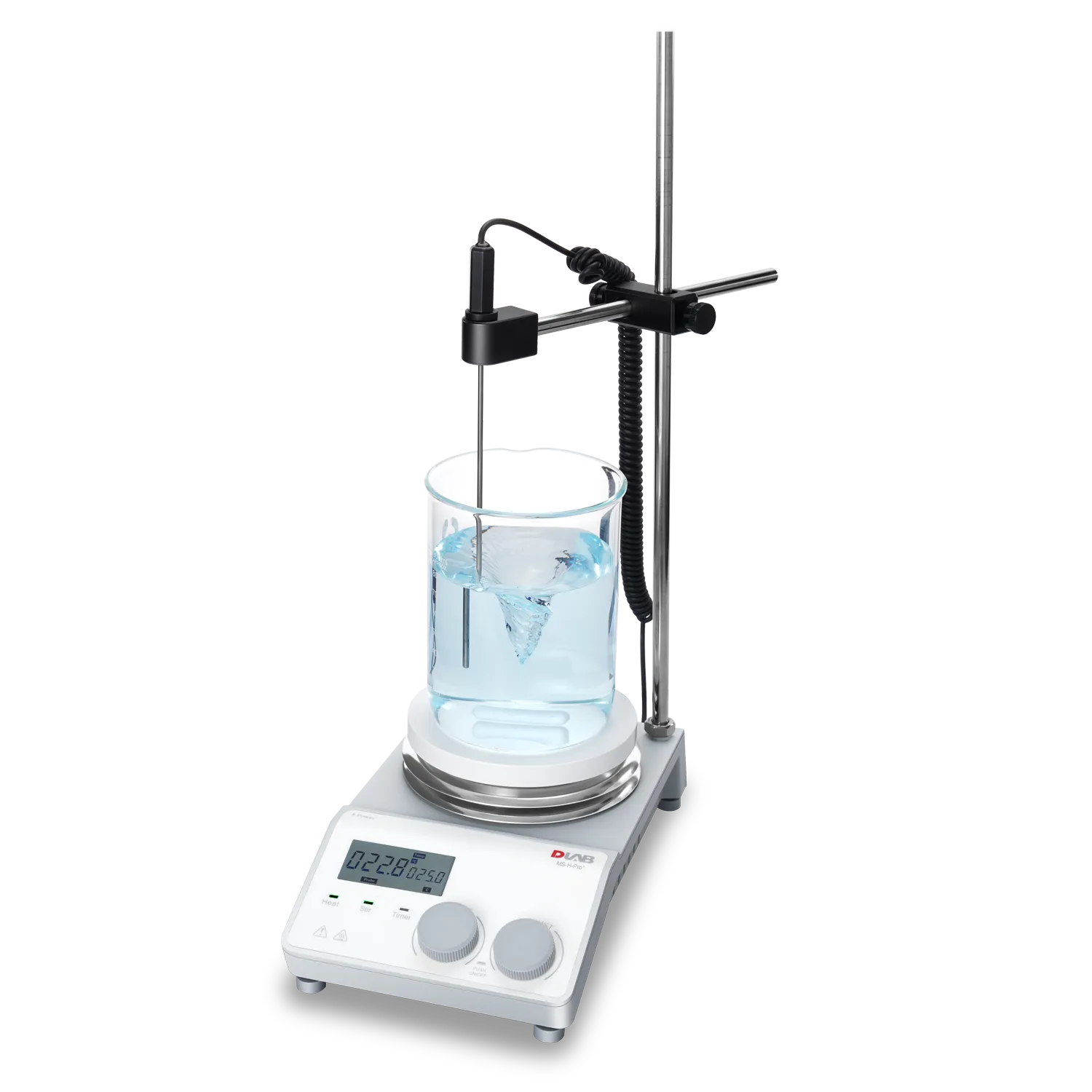

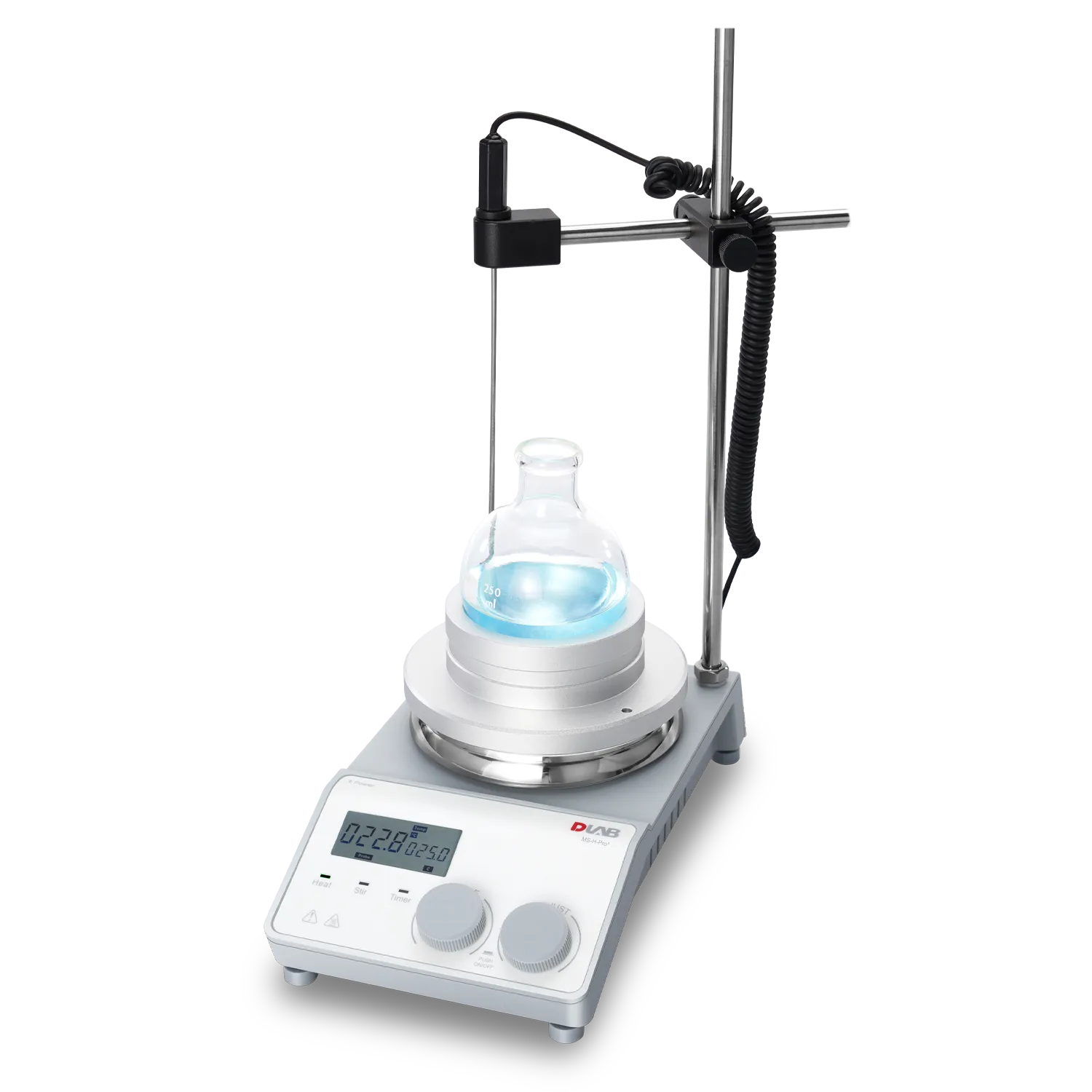

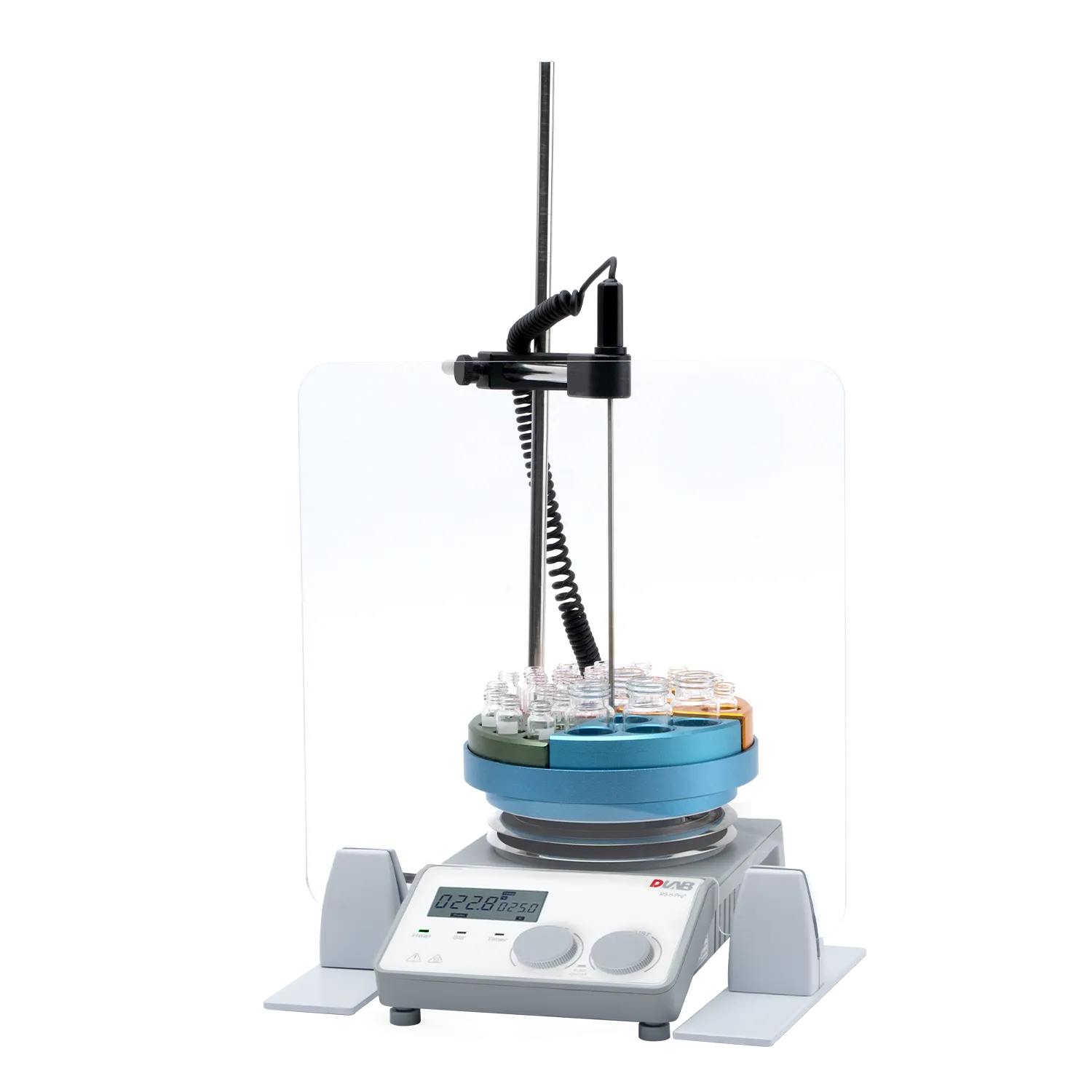

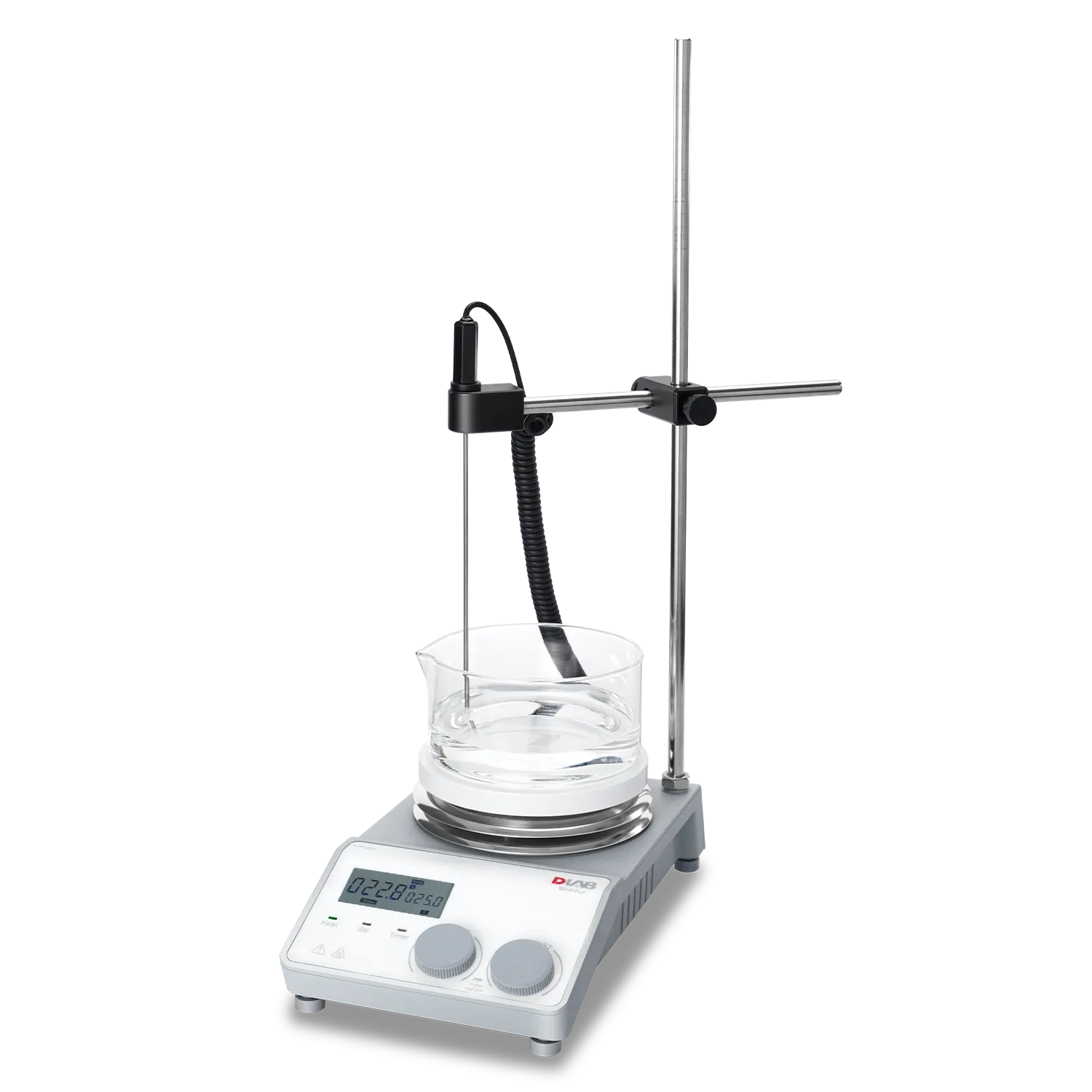

The MS?H?Pro+ LCD Digital Magnetic Hotplate Stirrer combines reliable magnetic stirring with accurate heating in a robust laboratory instrument. It features a brushless DC motor that is maintenance?free and spark?free, ensuring long service life and dependable performance. The digital temperature control reaches up to 340??C and the speed control goes up to 1500?rpm, with an LCD display showing actual temperature and stirring speed for precise adjustment. A large stirring capacity of up to 20?L of water allows handling of substantial sample volumes. Built?in safety circuits provide overheating protection, and a ?HOT? warning flashes when the surface temperature exceeds 50??C, even after shutdown. External temperature control using a PT1000 sensor enhances measurement accuracy, while the ceramic?coated stainless steel work plate offers excellent chemical resistance. Remote PC control and data transmission are also available, making this stirrer adaptable to modern laboratory workflows.
Specifications
MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer Specifications
The MS-H-Pro+ is a technically advanced digital hotplate stirrer widely used in chemical synthesis, bio-pharmaceuticals, and physical analysis. It features a fully closed assembly to prevent liquid spillage and utilizes PID technology for precise thermal control.
Technical Parameters
-
Heating Temperature Range: Room temp. to 340°C (1°C increments)
-
Temperature Control Accuracy: ±1°C (below 100°C) or ±1% (above 100°C)
-
Temperature Display Accuracy: ±0.1°C
-
Stirring Speed Range: 100 – 1500 RPM
-
Speed Display Resolution: ±1 RPM
-
Max. Stirring Quantity ($H_{2}O$): 20 Liters
-
Max. Magnetic Bar Length: 80 mm
-
Heating Output: 500 W
-
Motor Type: Brushless DC motor (Maintenance-free and explosion-proof)
-
External Temperature Sensor: PT1000 (Accuracy: ±0.2°C)
-
Over Temperature Protection: 360°C or 420°C (Hardware cut-off)
Physical & Material Data
-
Work Plate Dimension: Ø 135 mm (5 inch)
-
Work Plate Material: Stainless steel with ceramic coating
-
Unit Dimensions (W x D x H): 160 x 280 x 85 mm
-
Unit Weight: 2.8 kg
-
Protection Class: IP42
-
Data Connector: RS232 (for PC control and data logging)
-
Permissible Ambient Temp/Humidity: 5 – 40°C, 80% RH
Functional & Safety Features
-
Dual LCD Display: High-resolution screen showing set and actual temperatures and stirring speed.
-
Residual Heat Warning: A “HOT” indicator flashes when the plate exceeds 50°C, even if the unit is turned off.
-
Automatic Sensor Identification: Automatically detects and switches to PT1000 mode when the external probe is connected.
-
Closed Construction: Fully enclosed aluminum alloy housing protects internal components from accidental liquid spills.
-
Safety Circuits: Independent safety circuits automatically stop heating if the secure temperature limit is exceeded.
