Description
The POL-EKO SRW 750 is designed for environments where volume and speed cannot be compromised. Its 749-liter internal capacity allows for the sterilization of large-scale laboratory instruments, industrial parts, or massive batches of glassware.8 The Forced Air (W) system is powered by high-performance fans that circulate air continuously; this is critical in a unit of this size to prevent thermal stratification and ensure that items on the bottom shelf reach the same temperature as those at the top.9Advanced Safety & Intelligent Workflow:The SRW 750 is equipped with the Smart controller, focusing on high-level automation and user protection:10Automatic Door Lock: For maximum operator safety, the dual-door system mechanically locks at the start of a sterilization program.11 It remains sealed until the cycle is successfully finished and the internal temperature is safe for the operator.Pre-Set Sterilization Modes: The unit includes factory-preloaded programs (12$160^{circ}C$, 13$180^{circ}C$, and 14$200^{circ}C$) and a specialized mode for the mass disinfection of PPE and masks.15GLP Compliance: An internal memory logs all process parameters and event histories.16 Data can be exported via USB or monitored remotely over a LAN network for institutional auditing.17+1Process Visualization: The signature “Alarm Bar” provides a color-coded visual status of the current cycle, visible from across the facility.Robust Industrial Construction:The chamber is manufactured from acid-proof stainless steel (DIN 1.4301), designed to withstand the stress of rapid thermal expansion in a large-scale unit. The ventilation air-flap is automatically managed by the controller, staying closed during the sterilization phase to maintain a sealed environment.18 Given its size, the SRW 750 is standardly equipped with heavy-duty castors for easy positioning and leveling within the laboratory or sterile processing department.19+1Primary Applications:Central Sterile Supply Departments (CSSD): Large-scale sterilization of surgical and orthopedic sets.Industrial Manufacturing: Rapid drying and sterilization of large production components.Biotechnology & Pharma: Decontamination of massive batches of production-line vials and containers.Public Health: High-volume disinfection of documents, protective gear, and textiles.20
Specifications

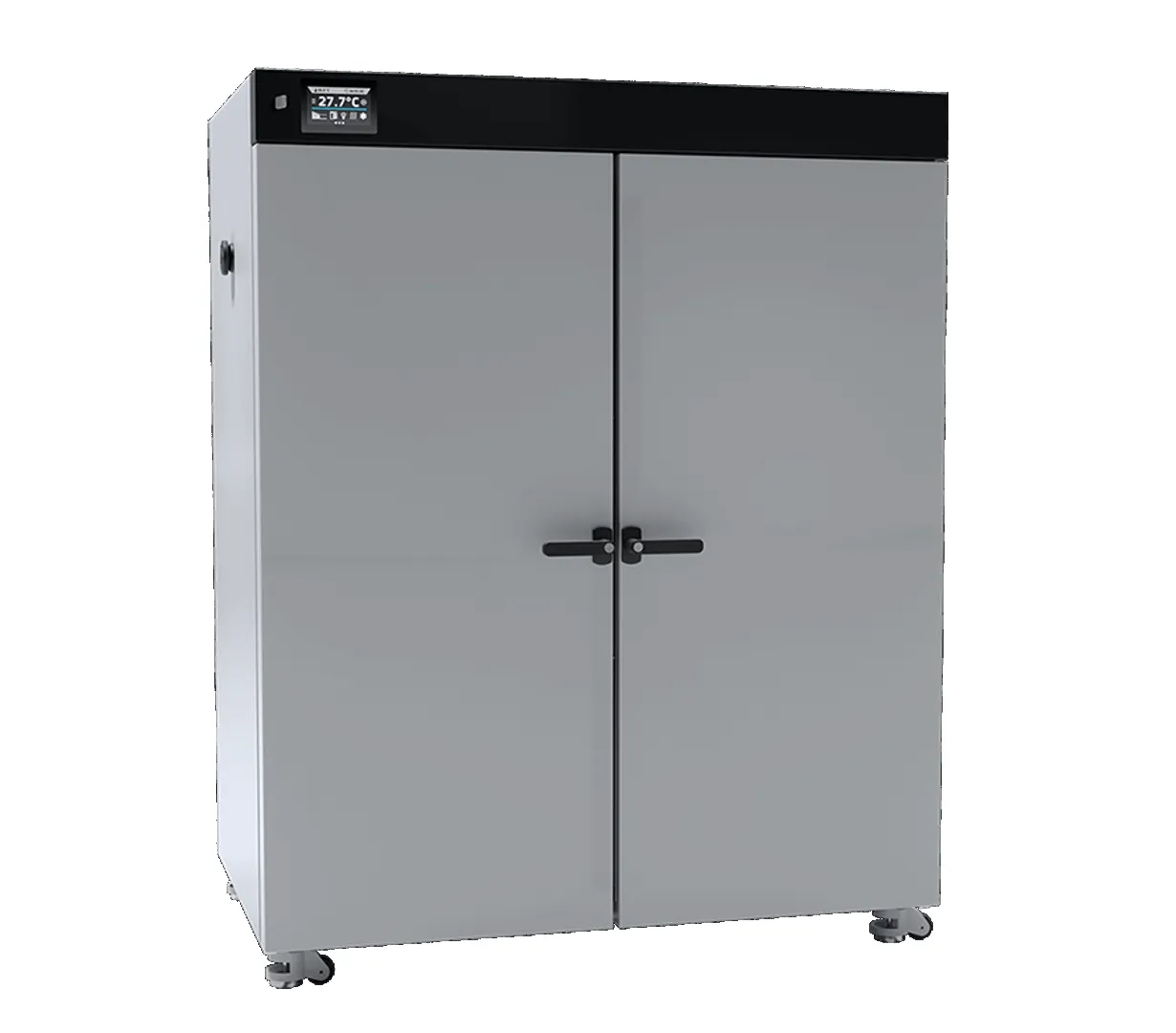

POL-EKO Laboratory Sterilizer SRW 750 Full Specifications
The SRW 750 is a high-capacity, professional laboratory sterilizer with a 749-liter volume. It uses forced air convection to ensure rapid heating and excellent temperature uniformity throughout its large chamber. It is specifically designed for high-volume dry heat sterilization of laboratory glassware, tools, and heat-resistant materials at temperatures up to +250°C.
Physical & Capacity Data
-
Chamber Capacity (Gross): 749 Liters
-
Working Capacity: 749 Liters
-
External Width: 1260 mm
-
External Height: 1600 mm
-
External Depth: 880 mm (excludes 50 mm power cable)
-
Internal Width: 1040 mm
-
Internal Height: 1200 mm
-
Internal Depth: 600 mm
-
Net Weight: 260 kg
-
Standard Shelves: 5 (Stainless steel wire INOX)
-
Maximum Shelves: 16
-
Max Shelf Workload: 25 kg (Reinforced shelf option: 100 kg)
-
Max Unit Workload: 140 kg
-
Access Port: Ø30 mm (standard on the left wall)
-
Door Type: Double solid doors (Viewing windows optional)
-
Mobility: Built-on castors included for easy transport
Performance & Heating
-
Temperature Range: +5°C above ambient to +250°C
-
Temperature Resolution: every 0.1°C
-
Temperature Fluctuation (at 105°C): ± 0.6°C
-
Temperature Variation (at 105°C): ± 2.5°C
-
Air Convection: Forced (Fan-assisted; speed adjustable 10% to 100%)
-
Safety Features: Automatic door lock during cycles; air-flap (Ø60 mm) closes automatically upon program start.
Electrical & Build
-
Voltage: 400V 3/N (50/60 Hz)
-
Nominal Power: 5500 W
-
Interior Material: Acid-proof stainless steel (DIN 1.4301)
-
Housing Material: Powder-coated sheet or polished stainless steel (INOX/G)
-
Warranty: 24 months
Controller Variant Features
Smart Controller (Standard)
-
Display: 4.3″ Full-color touch screen (responsive to laboratory gloves).
-
Programs: 3 factory pre-set sterilization programs (including mask/document presets) and 5 user programs.
-
Connectivity: LAN and USB ports for data export and process validation.
-
Security: Class 2.0 (DIN 12880) temperature protection (Class 3.1 optional).
Smart PRO Controller (Advanced Upgrade)
-
Display: 7.0″ Full-color touch screen.
-
Connectivity: LAN, USB, and integrated WiFi.
-
Programs: 40 user programs (100 segments each).
-
User Accounts: Administrator and individual User levels with password protection.
-
Data Log: Detailed graphic/tabular view with 12 months of internal storage.
-
Security: Class 3.1 (DIN 12880) temperature protection as standard.
