Laboratory Sterilizer SRW 115

POL-EKO Laboratory Sterilizer SRW 53 The SRW 53 is a professional 56-liter hot-air sterilizer designed for high-efficiency thermal processing and glassware sterilization. Utilizing forced air convection (fan-assisted) and a temperature range of ambient +5?C to +250?C, it provides rapid heat-up times and exceptional temperature stability. Managed by the Smart 4.3-inch color touchscreen controller, it features an automatic door-locking system for maximum safety and pre-installed sterilization cycles. Its acid-proof stainless steel interior and digital data logging make it a top-tier choice for medical, pharmaceutical, and industrial laboratories.

SKU: SRW 115 Categories: , Brand: Product ID: 21648

Description

The POL-EKO SRW 53 is engineered for laboratories that prioritize speed and thermal consistency. With its 56-liter capacity, this benchtop unit is ideal for smaller facilities that require a quick turnaround for sterilized instruments.5 Unlike natural convection models, the SRW 53 features a high-efficiency fan that forces air circulation, significantly reducing the time required to reach sterilization temperatures and ensuring there are no “cold spots” inside the chamber.6+1Safety and Intelligent Control:The SRW 53 utilizes the Smart controller, which integrates high-level safety features with a user-friendly 4.3-inch touchscreen:7Automatic Door Lock: For operator protection, the door mechanically locks the moment a sterilization cycle begins.8 It remains locked until the program is successfully completed and the temperature is within a safe range.Specialized Sterilization Modes: The unit includes factory-preloaded programs (9$160^{circ}C$, 10$180^{circ}C$, and 11$200^{circ}C$) and a dedicated program for the disinfection of personal protective equipment (PPE).12Compliance and Logging: All process data is stored in the internal memory and can be exported via USB or LAN for GLP-compliant record-keeping.13Visual Status: The built-in “Alarm Bar” allows the operator to monitor the process status from across the room via a color-coded light strip.14Durable and Ergonomic Build:The interior is crafted from acid-proof stainless steel (DIN 1.4301), designed to withstand the stress of rapid heating and cooling cycles.15 The air-flap (ventilation chimney) is automatically managed by the controller, closing during the sterilization phase to ensure a perfectly sealed environment.16 The unit comes standard with two stainless steel wire shelves, providing ample organization for laboratory glassware and tools.17+1Primary Applications:Pharmaceuticals: Sterilization of production-line vials and testing glassware.Dental & Medical Clinics: Rapid sterilization of surgical instruments.Quality Control: Fast drying and thermal testing of industrial components.Research Labs: Preparation of dry tools for aseptic microbiology work.

Specifications

POL-EKO Laboratory Sterilizer SRW 115 Full Specifications

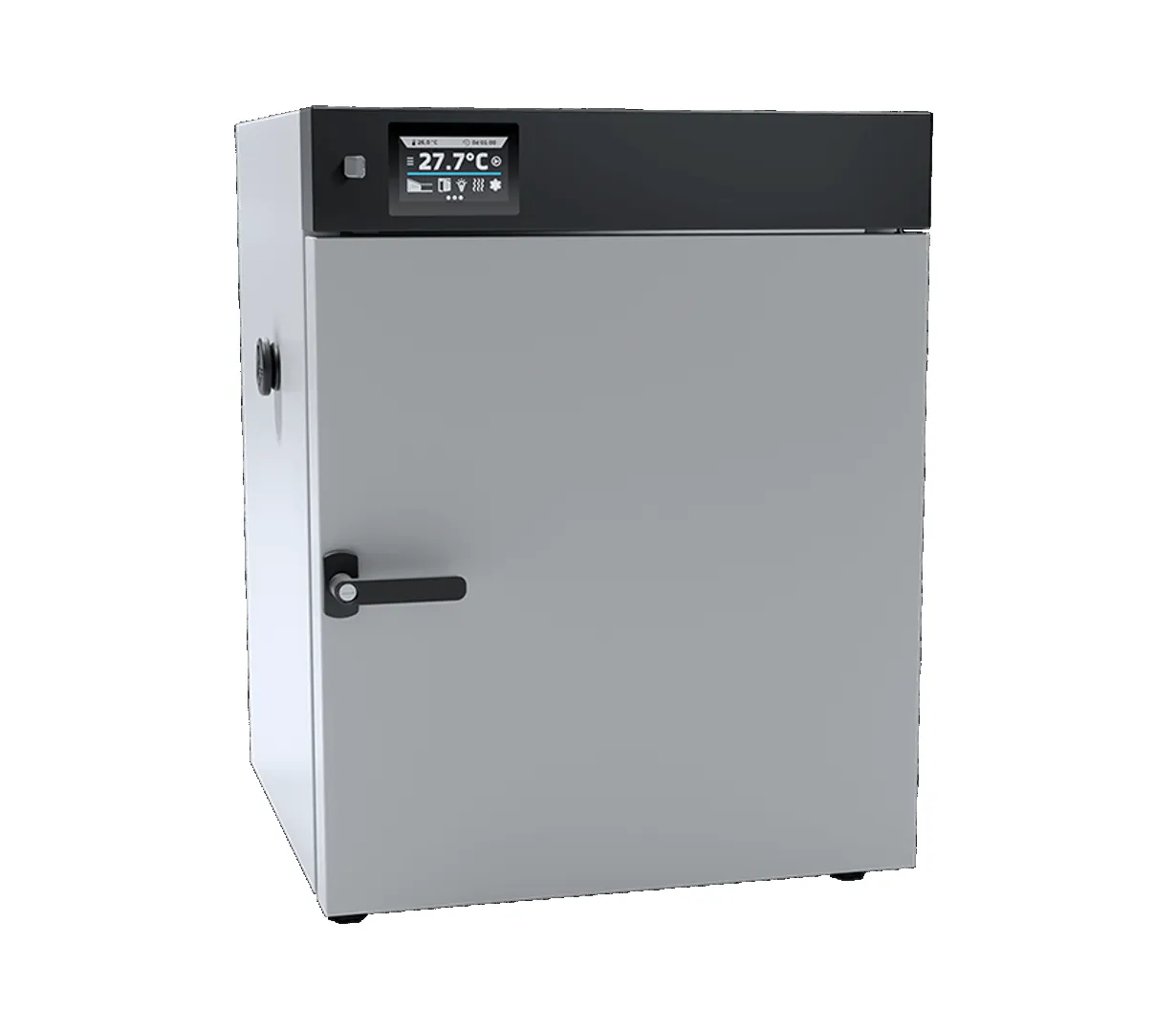

The SRW 115 is a professional forced air convection laboratory sterilizer with a 112-liter capacity. Unlike the natural convection SRN series, the SRW models use a fan-assisted system to ensure faster heating, more precise temperature uniformity, and rapid recovery after the door is opened. It is specifically designed for high-efficiency dry heat sterilization of laboratory glassware and tools up to +250°C.





Physical & Capacity Data

  • Chamber Capacity (Gross): 112 Liters


  • Working Capacity: 112 Liters


  • External Width: 660 mm

  • External Height: 850 mm


  • External Depth: 710 mm (excludes 50 mm power cable)

  • Internal Width: 460 mm

  • Internal Height: 530 mm

  • Internal Depth: 440 mm

  • Net Weight: 65 kg


  • Standard Shelves: 2 (Stainless steel wire INOX)


  • Maximum Shelves: 7


  • Max Shelf Workload: 25 kg (Reinforced shelf option: 50 kg)


  • Max Unit Workload: 60 kg


  • Access Port: Ø30 mm (located on the left wall)


  • Door Type: Solid (Optional viewing window available)



Performance & Heating

  • Temperature Range: +5°C above ambient to +250°C


  • Temperature Resolution: every 0.1°C


  • Temperature Fluctuation (at 105°C): ± 0.2°C


  • Temperature Variation (at 105°C): ± 2.0°C


  • Air Convection: Forced (Fan speed adjustable from 0% to 100%)


  • Safety Lock: Automatic door locking during sterilization cycles



Electrical & Build

  • Voltage: 230V, 50/60 Hz


  • Nominal Power: 2500 W


  • Interior Material: Acid-proof stainless steel (DIN 1.4301)

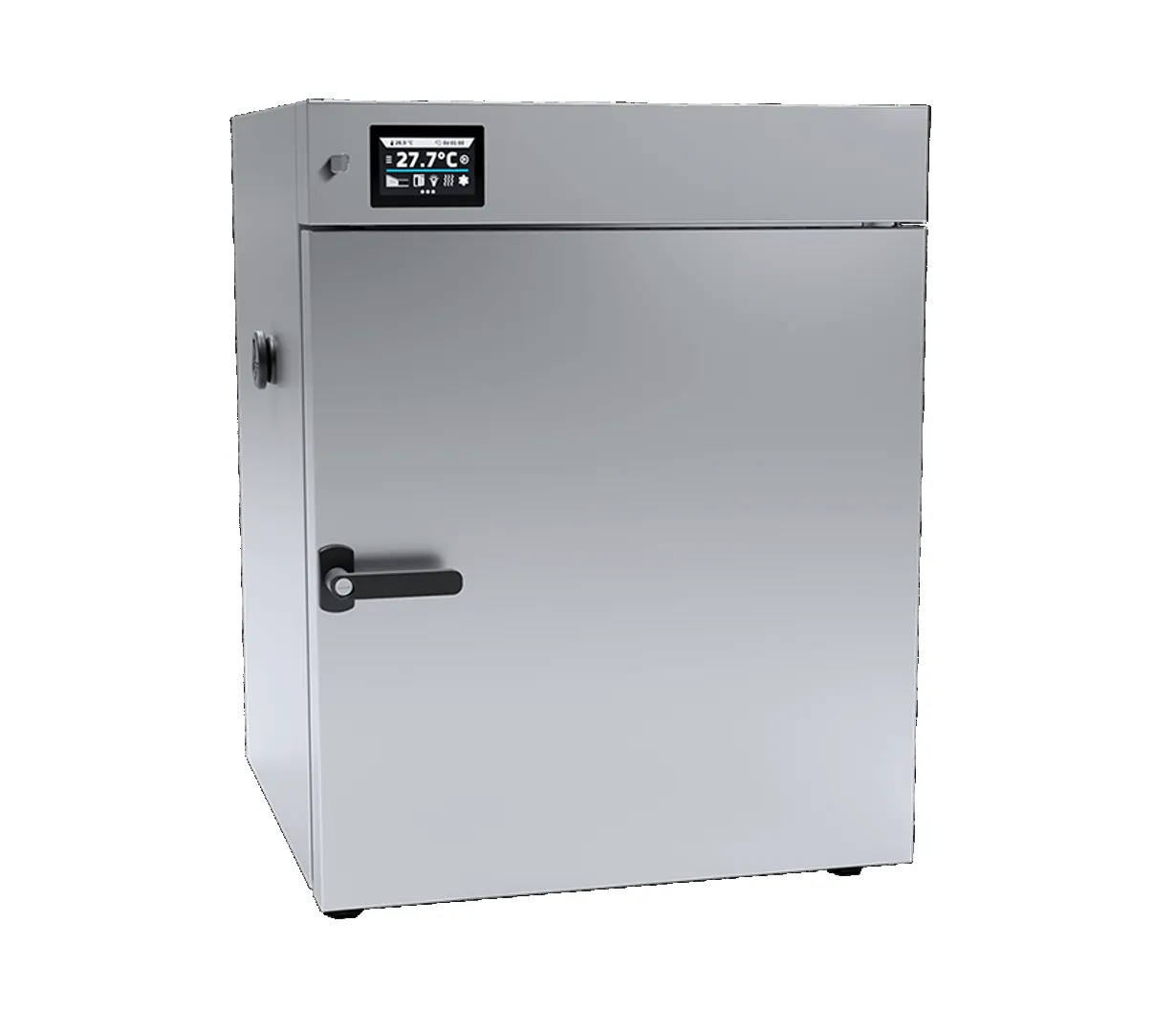

  • Housing Material: Powder-coated sheet or polished stainless steel


  • Warranty: 24 months



Controller Variant Features

Smart Controller (Standard)

  • Display: 4.3″ Full-color touch screen


  • Programs: 3 factory preloaded (including mask/document disinfection) + 5 user programs


  • Connectivity: LAN, USB ports for data export


  • Security: Class 2.0 (DIN 12880) temperature protection



Smart PRO Controller (Advanced Upgrade)

  • Display: 7.0″ Full-color touch screen

  • Connectivity: LAN, USB, and integrated WiFi

  • Programming: 40 user programs (100 segments each)

  • Data Log: Stores up to 10,000 data records per user (12 months storage)

  • Security: Class 3.1 (DIN 12880) temperature protection
