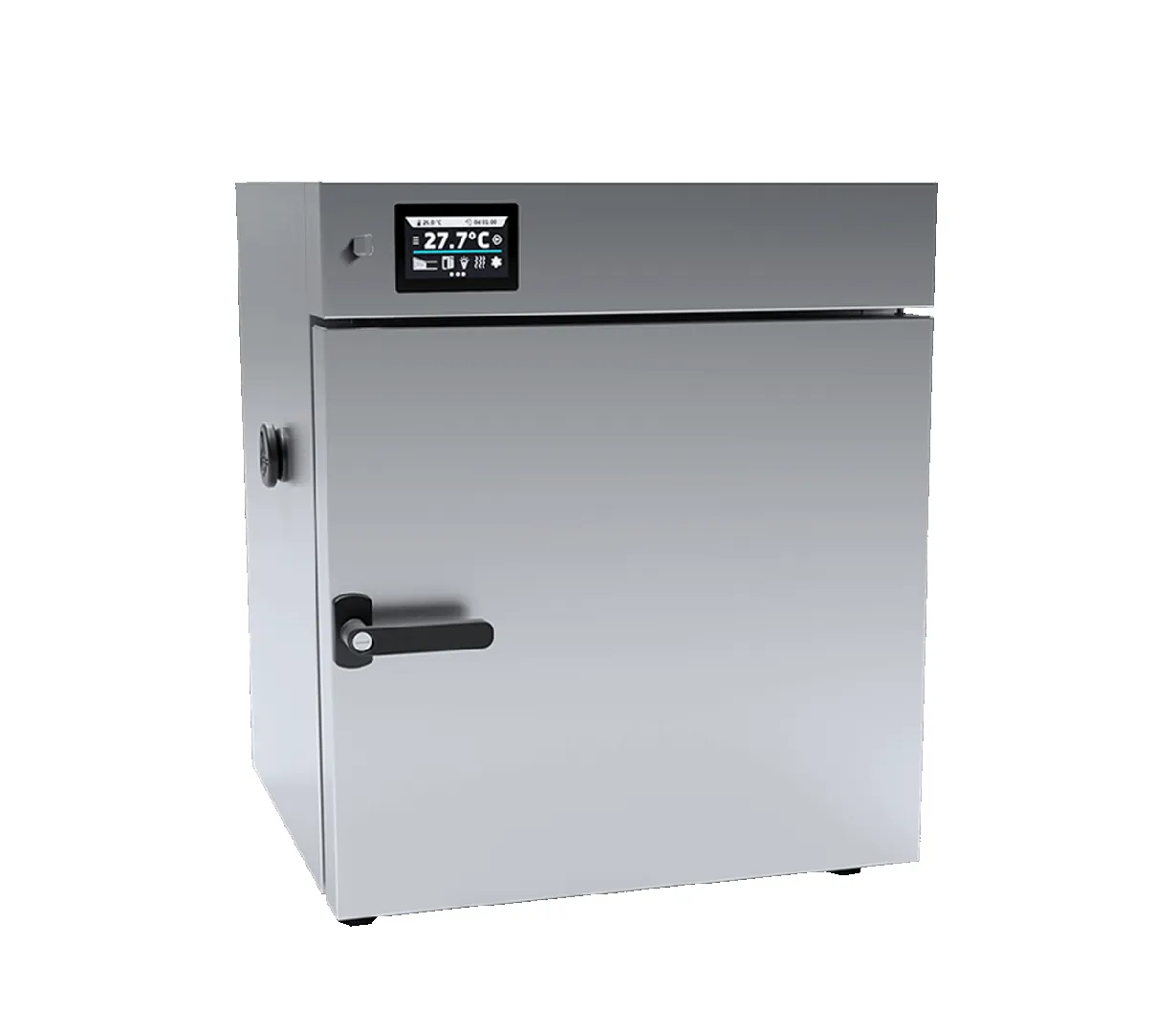

Laboratory Sterilizer SRN 53

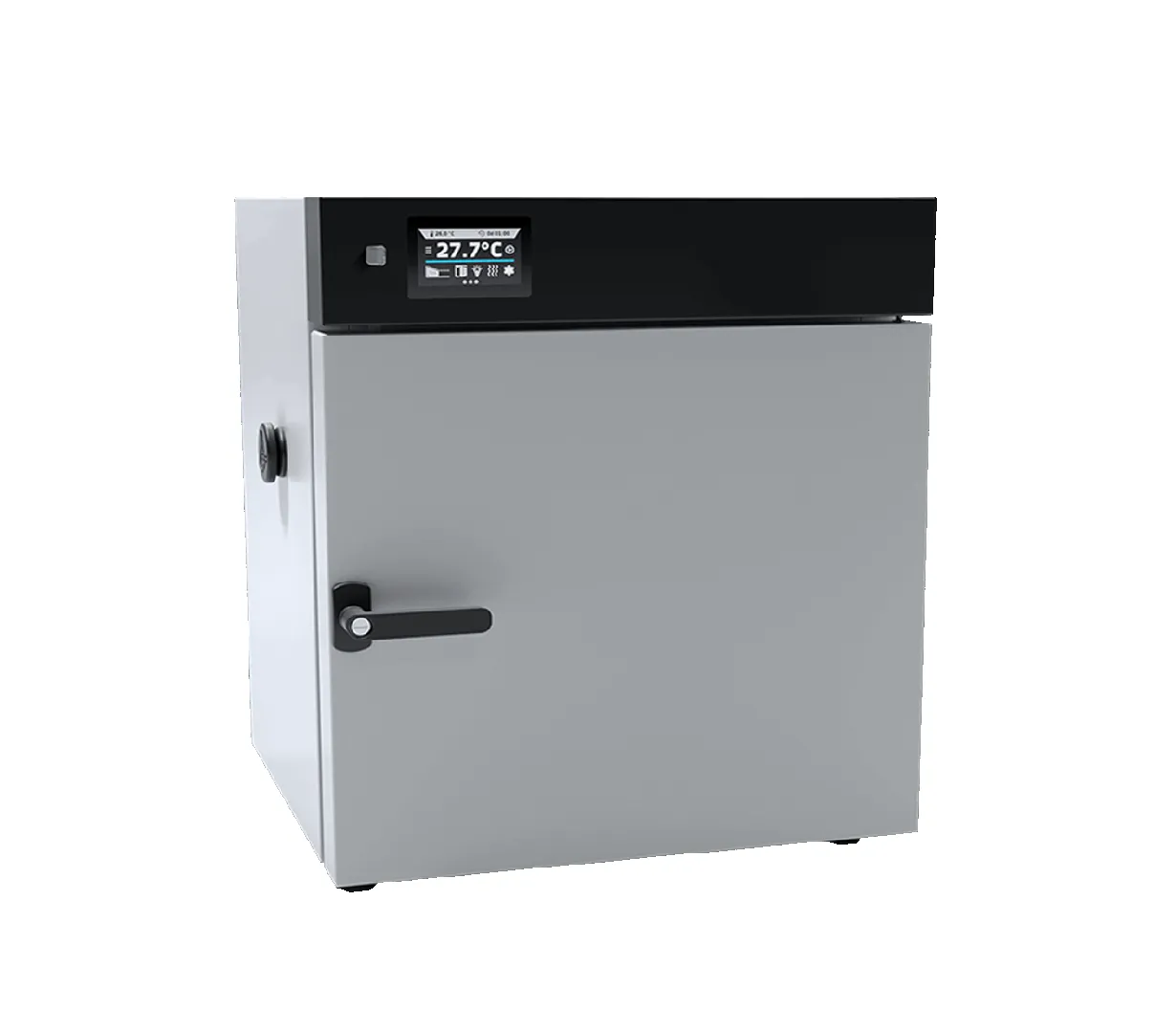

Laboratory Sterilizer SRN 53 - Image 2

Laboratory Sterilizer SRN 53

POL-EKO Laboratory Sterilizer SRN 53 The SRN 53 is a professional 56-liter hot-air sterilizer designed for precision thermal processing. Operating with natural air convection and a temperature range of ambient +5?C to +250?C, it is optimized for the sterilization of laboratory instruments and glassware. Equipped with the Smart 4.3-inch touchscreen controller, it features automatic door locking during cycles, a closed-loop air-flap system, and pre-set sterilization programs (including a dedicated mask sterilization mode). Its acid-proof stainless steel interior and GLP-compliant data logging make it a reliable choice for medical, industrial, and research laboratories.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: SRN 53 Categories: , Brand: Product ID: 21644

Description

The POL-EKO SRN 53 is a specialized thermostatic device engineered for repeatable and safe hot-air sterilization. With a 56-liter capacity, it is an ideal size for individual laboratory stations or clinics. The “N” in its name signifies Natural Convection, meaning air circulates within the chamber without the use of a fan, which is beneficial for sterilizing very light powders or delicate items that could be disturbed by forced air.
+2

Smart Control & Specialized Programs: The unit is managed by the Smart controller, featuring a 4.3-inch clear color touchscreen. A key safety feature of the SRN series is the automatic door lock, which engages as soon as a sterilization program begins. The door can only be opened once the cycle is successfully completed or manually aborted, preventing accidental exposure to high temperatures.
+2

Pre-set Programs: Includes three factory-preloaded sterilization cycles and space for 20 user-defined programs.

Mask Sterilization: Features a dedicated program for the disinfection of N95, FFP2, and surgical masks, supported by specialized internal racks (optional).

Data Management: Features an internal memory for data and event storage, with easy export via USB or LAN ports.

Safety and Construction: The SRN 53 is built for the rigors of high-heat environments. The interior is made of acid-proof stainless steel (DIN 1.4301), and the unit includes a Class 2.0 over-temperature protection system (upgradable to Class 3.1). During the sterilization process, the air-flap (ventilation chimney) closes automatically to ensure a sealed environment and uniform heat distribution.
+2

Primary Applications:

Medical & Dental: Sterilization of heat-resistant surgical instruments and glassware.

Microbiology: Preparation of dry tools and containers for aseptic work.

General Lab Work: Drying and thermal conditioning of laboratory glassware.

Emergency Preparedness: Disinfection of protective masks and documents.

Specifications

POL-EKO Laboratory Sterilizer SRN 53 Full Specifications

The SRN 53 is a compact, benchtop laboratory sterilizer with a 56-liter capacity. It utilizes natural air convection and dry heat to safely sterilize laboratory glassware and instruments. This model is specifically engineered for precision, featuring an automatic door-locking mechanism that engages during sterilization cycles to ensure maximum safety.





Physical & Capacity Data

  • Chamber Capacity (Gross): 56 Liters



  • Working Capacity: 56 Liters



  • External Width: 590 mm



  • External Height: 710 mm



  • External Depth: 620 mm (excludes 50 mm power cable)

  • Internal Width: 400 mm



  • Internal Height: 390 mm



  • Internal Depth: 360 mm



  • Net Weight: 50 kg



  • Standard Shelves: 2 (Stainless steel wire INOX)



  • Maximum Shelves: 5



  • Max Shelf Workload: 25 kg (Reinforced shelf option: 50 kg)



  • Max Unit Workload: 40 kg



  • Access Port: Ø30 mm (located on the left wall)



  • Door Type: Solid (Optional door with viewing window available)



Performance & Heating

  • Temperature Range: +5°C above ambient to +250°C



  • Temperature Resolution: every 0.1°C



  • Temperature Fluctuation (at 105°C): ± 0.4°C



  • Temperature Variation (at 105°C): ± 2.0°C



  • Air Convection: Natural



  • Sterilization Programs: 3 factory preloaded programs + 5 user-definable programs

Electrical & Build

  • Voltage: 230V, 50/60 Hz



  • Nominal Power: 1700 W



  • Interior Material: Acid-proof stainless steel (DIN 1.4301)



  • Housing Material: Powder-coated sheet or polished stainless steel



  • Warranty: 24 months



Controller Features (Smart)

The SRN 53 is exclusively equipped with the Smart controller, optimized for dry heat sterilization protocols.



  • Display: 4.3″ Full-color touch screen (responsive to laboratory gloves).



  • Automatic Security: The door locks automatically when a cycle starts and remains locked until the program is completed or manually safely aborted.



  • Ventilation Control: The air-flap/ventilation chimney closes automatically upon starting the sterilization program.

  • Connectivity: LAN and USB ports for data transfer and recording.



  • Memory: Internal memory for programs and event registry.



  • Protection: Class 2.0 (DIN 12880) over-temperature protection as standard (Class 3.1 optional).

Datasheet

Download  SRN 53 Smart Datasheet
