Description

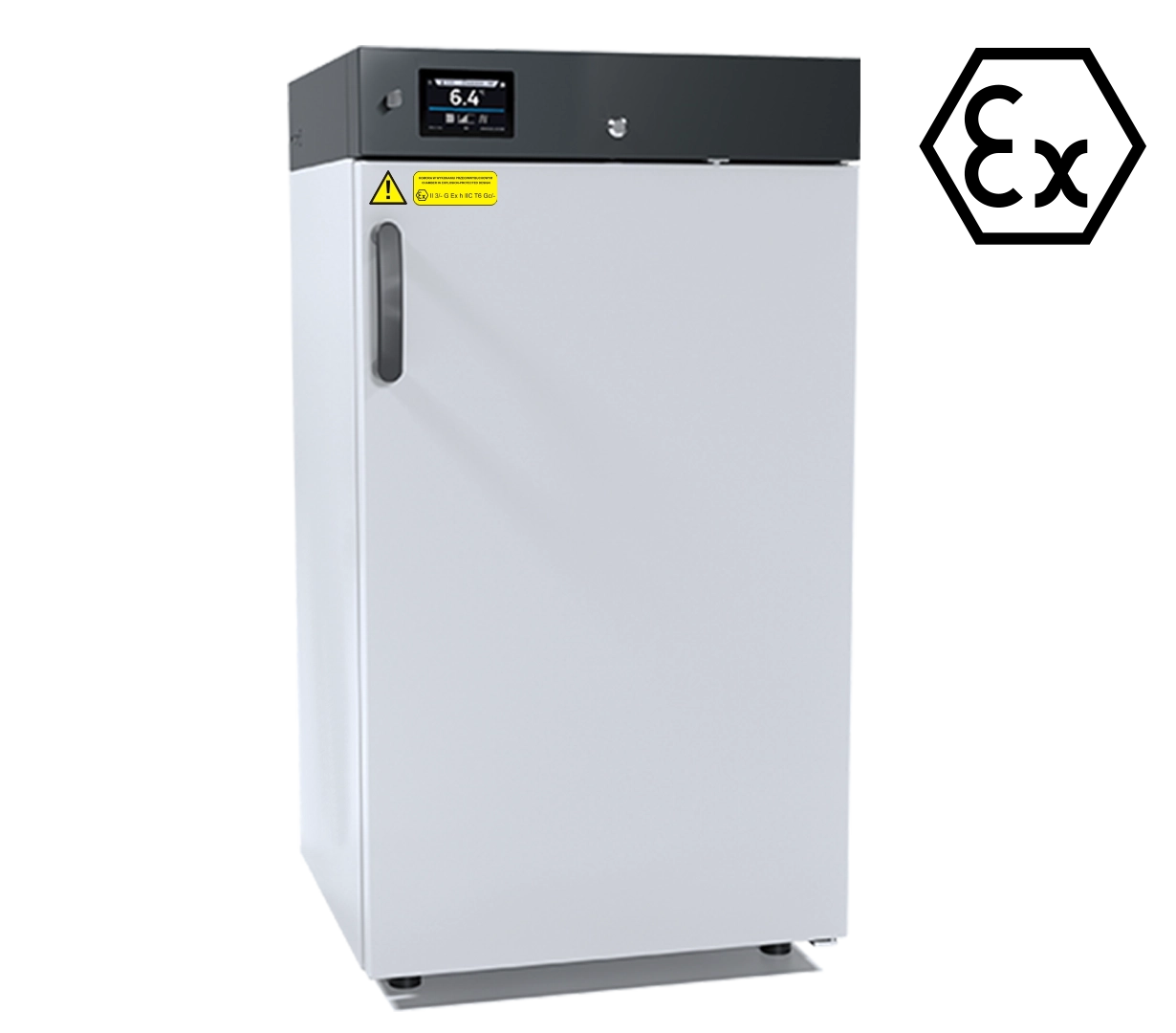

The Laboratory Refrigerator CHL 3 ATEX is a high-performance, explosion-protected cold storage solution engineered specifically for hazardous environments where flammable gases, vapors, or combustible dust may be present. Certified to meet ATEX safety standards, this refrigerator delivers dependable, uniform cooling while minimizing ignition risks, making it ideal for use in chemical plants, refineries, pharmaceutical facilities, oil & gas laboratories, and other industrial settings.
Designed to maintain a stable temperature range of 0 ?C to +15 ?C, the CHL 3 ATEX supports safe storage of temperature-sensitive samples, chemicals, reagents, and other materials requiring controlled refrigeration. The unit?s forced air circulation system ensures even temperature distribution throughout the chamber, reducing hot spots and enhancing overall temperature stability.
Control and monitoring are managed through a microprocessor-based touchscreen controller engineered for intuitive operation and precise temperature regulation. All electrical components and user interfaces are adapted to comply with ATEX safety criteria, reducing the potential for sparks and ensuring safe performance in classified zones.
The interior is equipped with internal LED lighting for clear visibility and stainless-steel wire shelves that provide durable, adjustable storage. Standard safety features include an open-door alarm to alert users to accidental openings or temperature excursions and a door lock to secure valuable contents. An external access port enables integration with optional sensors or third-party monitoring devices.
Constructed with robust materials and designed to withstand the demands of hazardous work environments, the CHL 3 ATEX combines laboratory-grade performance with enhanced safety. Its explosion-protected design allows laboratories and industrial facilities to implement critical refrigeration solutions where standard equipment may pose a risk, delivering reliability, precision, and compliance in one certified system.
Specifications
POL-EKO Laboratory Refrigerator CHL 3 ATEX Full Specifications
The CHL 3 ATEX is a 200-liter laboratory refrigerator specifically engineered for the safe storage of volatile, flammable, and explosive substances. It features a spark-proof interior certified under the ATEX Directive 2014/34/EU, ensuring safety in environments where an explosive atmosphere may form inside the chamber.
ATEX Certification & Safety Details
-
Certification Marking: II 3/- G Ex h IIC T6 Gc/-
-
Internal Zone: Rated for Zone 2 explosive atmospheres inside the chamber.
-
External Rating: The housing is not designed for use in explosive zones; only the interior chamber is explosion-protected.
-
Ignition Protection: “Ex h” construction using non-sparking components to eliminate potential ignition sources.
-
Temperature Class: T6, ensuring the interior remains safe for substances with an auto-ignition temperature of 85°C or higher.
-
Gas Group: IIC, suitable for the most hazardous gases, including hydrogen and acetylene.
Physical & Capacity Data
-
Chamber Capacity (Gross): 208 Liters
-
Working Capacity: 171 Liters
-
External Width: 610 mm
-
External Height: 1100 mm
-
External Depth: 650 mm (excludes 50 mm power cable)
-
Internal Width: 480 mm (max 520 mm)
-
Internal Height: 860 mm
-
Internal Depth: 420 mm (max 480 mm)
-
Net Weight: 72 kg
-
Standard Shelves: 3 (Stainless steel wire INOX)
-
Maximum Shelves: 4
-
Max Shelf Workload: 10 kg
-
Max Unit Workload: 40 kg
-
Access Port: Ø30 mm (located on the left wall, spark-sealed)
-
Door Type: Solid (Lockable as standard)
Performance & Cooling
-
Temperature Range: 0°C to +15°C
-
Temperature Resolution: every 0.1°C
-
Temperature Fluctuation (at 4°C): ± 0.4°C
-
Temperature Variation (at 4°C): ± 0.7°C
-
Air Convection: Forced (Fan-assisted with spark-proof motor)
-
Defrosting: Automatic
Electrical & Build
-
Voltage: 230V, 50/60 Hz
-
Nominal Power: 250 W
-
Refrigerant: R1234ze (GWP=7)
-
Interior Material: Available in Stainless steel (DIN 1.4016) or Acid-proof stainless steel (DIN 1.4301)
-
Housing Material: Powder-coated sheet or polished stainless steel
Controller Features (Smart)
ATEX units are equipped with the Smart controller to ensure compliance with specialized safety regulations while providing robust data management.
-
Display: 4.3″ Full-color touch screen (designed for use with laboratory gloves).
-
Data Logging: Internal memory records up to 10,000 measurements for 6 months.
-
Connectivity: LAN and USB ports for direct data export and reporting.
-
Alarms: Visual and acoustic alerts for temperature deviation, power failure, and open door.
-
Protection: Class 1.0 (DIN 12880) over-temperature protection as standard.
