Description
The Laboratory Incubator CLN?240 is a professional, high-capacity incubator designed to provide stable, uniform temperature conditions for a wide range of laboratory applications. With a 240?L chamber, it supports incubation of biological samples, microbial culture growth, enzyme reactions, material testing, and other controlled-temperature laboratory procedures requiring reliability and precision.
The incubator operates within a temperature range from +5??C above ambient up to +100??C, providing flexibility for low- and high-temperature incubation processes. Its natural air convection system ensures even temperature distribution throughout the chamber, minimizing thermal gradients and supporting reproducible results.
Temperature control and monitoring are managed via a microprocessor PID controller with a user-friendly touchscreen interface, offering precise temperature regulation and clear real-time display of actual and set values. External sensor access ports allow optional integration with monitoring devices for enhanced data recording and quality assurance.

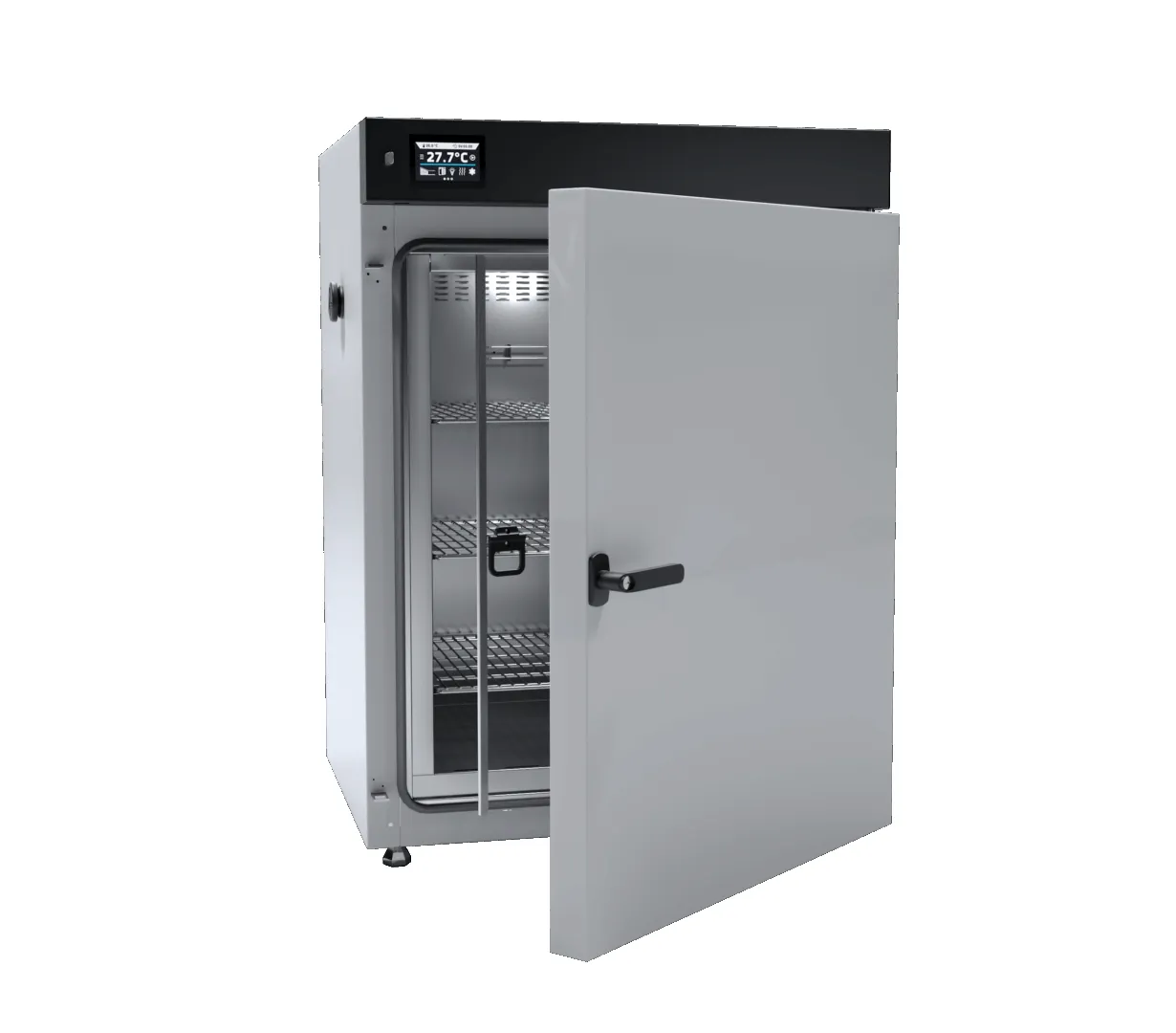

The interior features stainless-steel wire shelves, offering flexible and hygienic sample placement, while internal LED lighting provides excellent visibility. Safety and usability are enhanced with an open-door alarm to alert users to unintended access or temperature deviations and a secure door lock to protect valuable contents.
Compact yet robust, the CLN?240 is suitable for research laboratories, clinical facilities, quality control departments, and industrial R&D centers requiring large-volume, reliable, and precisely controlled incubation solutions. Its combination of capacity, uniform temperature distribution, and intuitive operation supports efficient laboratory workflows for both routine and specialized incubation tasks.
Specifications
POL-EKO Laboratory Incubator CLN 240 Full Specifications
The CLN 240 is a large-capacity laboratory incubator (245 liters) utilizing natural air convection. It is specifically designed for incubating delicate samples sensitive to dehydration, such as microbiological cultures, antibody tests, and pharmaceutical stability samples.
Physical & Capacity Data
-
Chamber Capacity (Gross): 245 Liters
-
Working Capacity: 245 Liters
-
External Width: 820 mm
-
External Height: 1140 mm
-
External Depth: 770 mm (excludes 50 mm power cable)
-
Internal Width: 600 mm
-
Internal Height: 800 mm
-
Internal Depth: 510 mm
-
Net Weight: 118 – 126 kg
-
Standard Shelves: 3 (Stainless steel wire INOX)
-
Maximum Shelves: 10
-
Max Shelf Workload: 25 kg
-
Max Unit Workload: 90 kg
-
Reinforced Shelf Version (Optional): 100 kg
-
Reinforced Unit Version (Optional): 300 kg
-
Access Port: Ø30 mm (located on the left wall)
-
Door Type: Double (solid external door and internal glass door)
Performance & Heating
-
Temperature Range: $5°C$ above ambient up to $+100°C$
-
Temperature Resolution: every $0.1°C$
-
Temperature Fluctuation (at 37°C): $pm 0.3°C$
-
Temperature Variation (at 37°C): $pm 0.8°C$
-
Air Convection: Natural (Gravity)
-
Air-flap: Manual, Ø60 mm (rear chimney)
Electrical & Build
-
Voltage: 230V, 50/60 Hz (115V option available)
-
Nominal Power: 850 W
-
Interior Material: Acid-proof stainless steel to DIN 1.4301
-
Housing Material: Powder-coated sheet (Standard) or Stainless steel linen finish (IG version)
-
Warranty: 24 months
Controller Variant Features

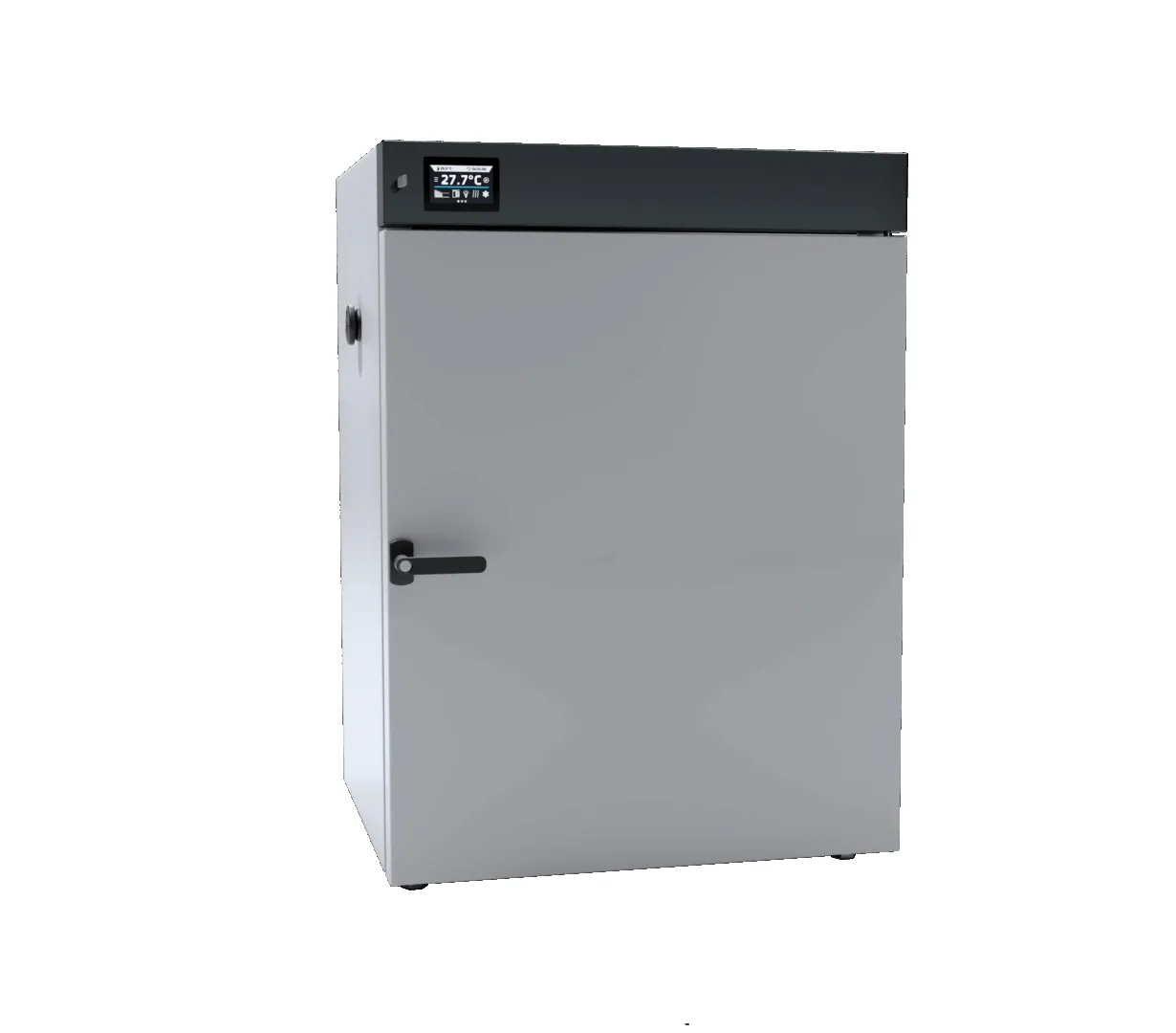

Smart Controller (Standard)
-
Display: 4.3″ Full-color touch screen
-
Connectivity: LAN and USB ports
-
Programs: 5 user programs (6 segments each)
-
Data Log: Internal memory for 10,000 data points (stored for 6 months)
-
Security: Class 2.0 (DIN 12880) temperature protection (Class 3.1 optional)
-
Keypad: Numeric

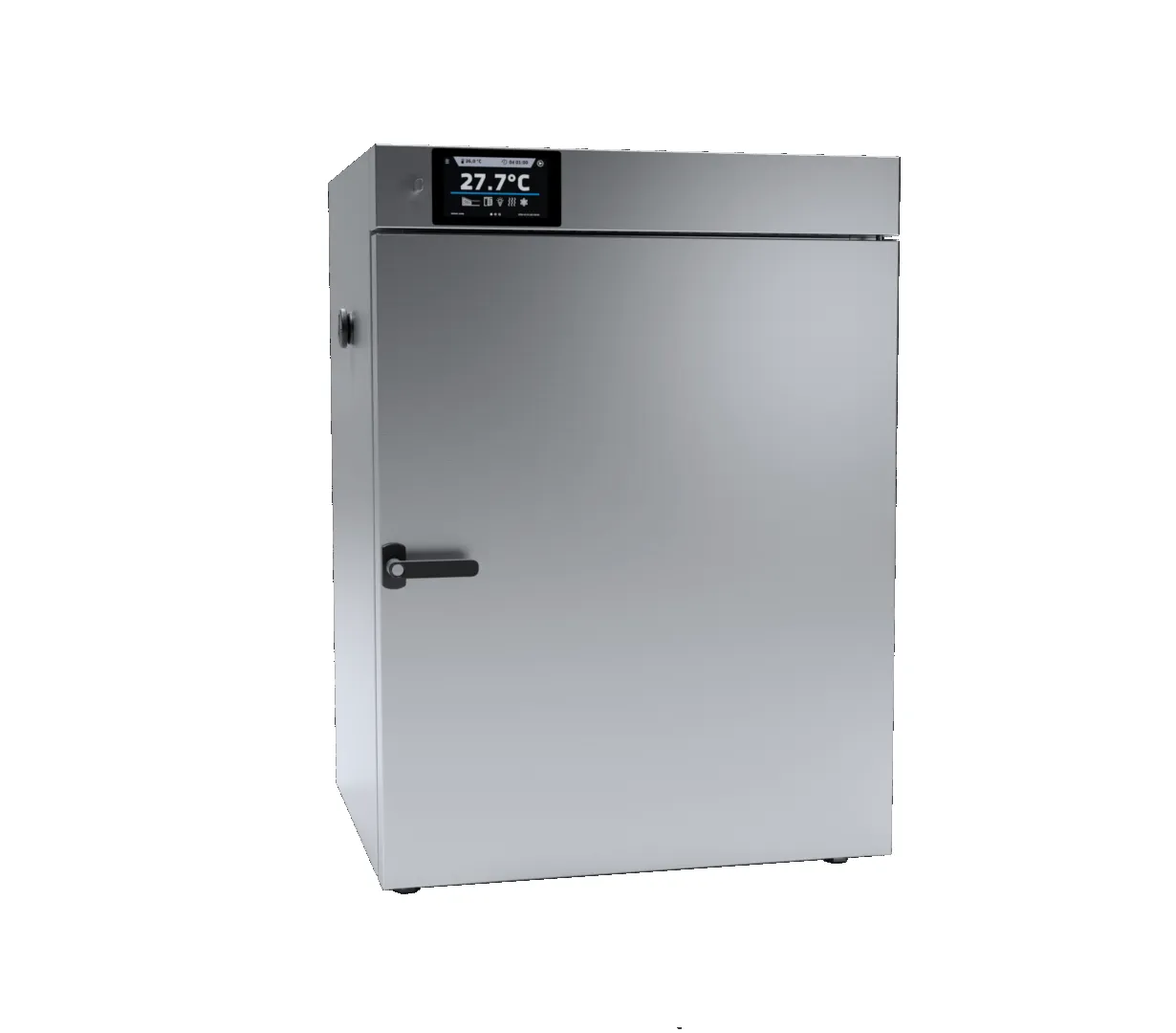

Smart PRO Controller (Advanced Upgrade)
-
Display: 7.0″ Full-color touch screen
-
Connectivity: LAN, USB, and integrated WiFi
-
Programs: 40 user programs (100 segments each)
-
User Accounts: Up to 5 user accounts (Admin/Super-Admin roles)
-
Security: Class 3.1 (DIN 12880) temperature protection
-
Software: Includes LabDesk for remote management and PC data export
-
Keypad: Alphanumeric
-
Data Log: 10,000 data points (stored for 12 months)
