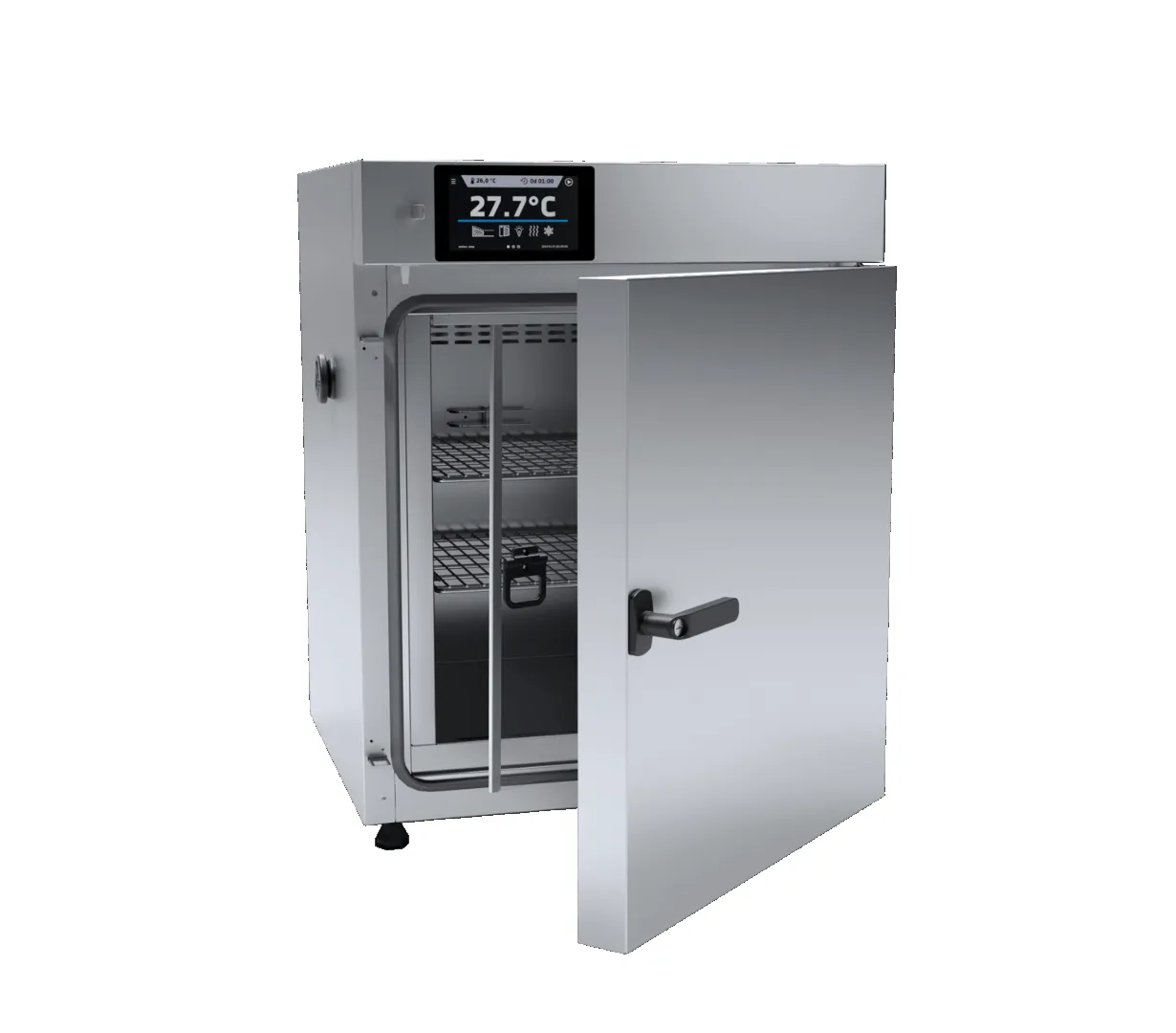

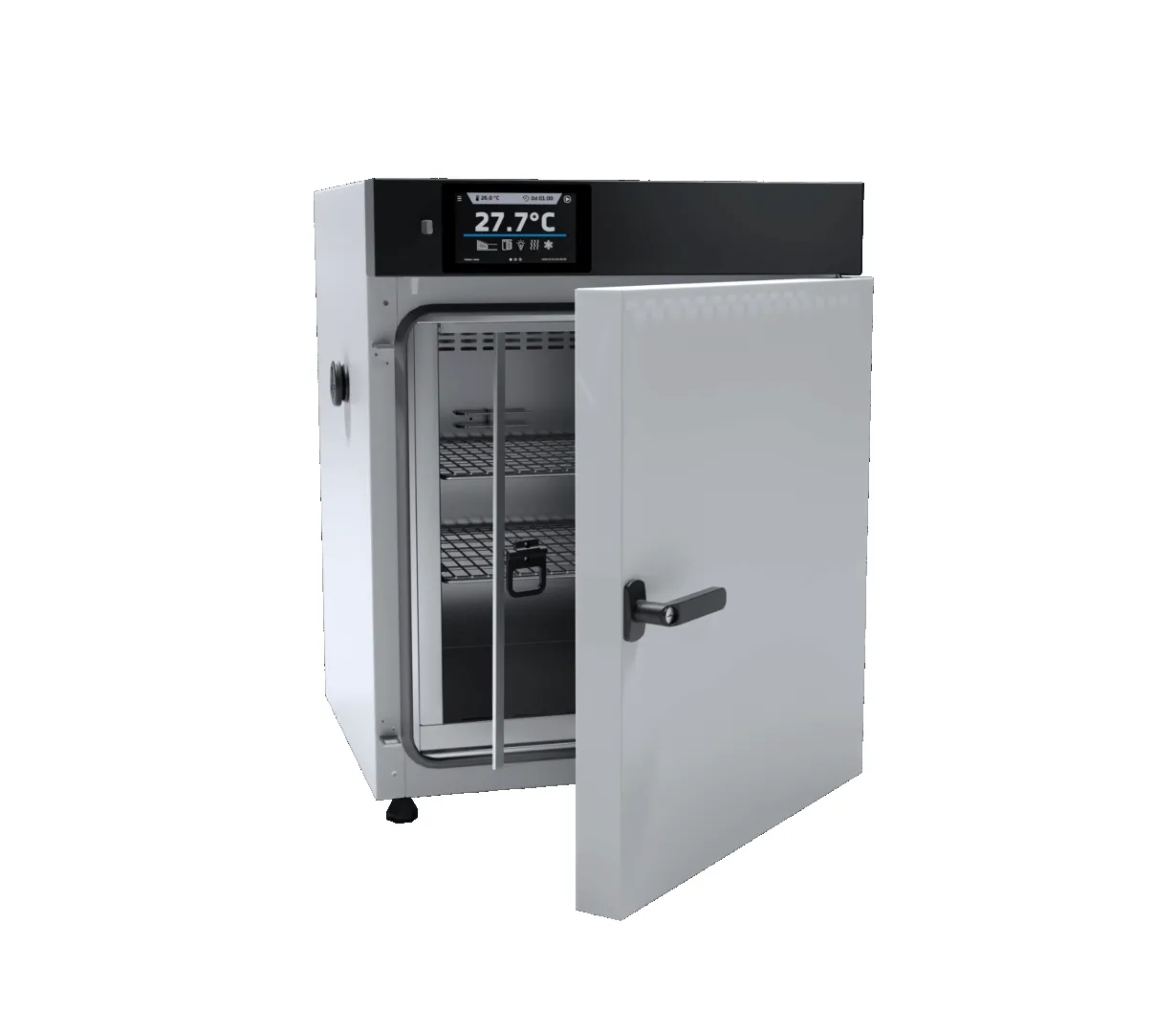

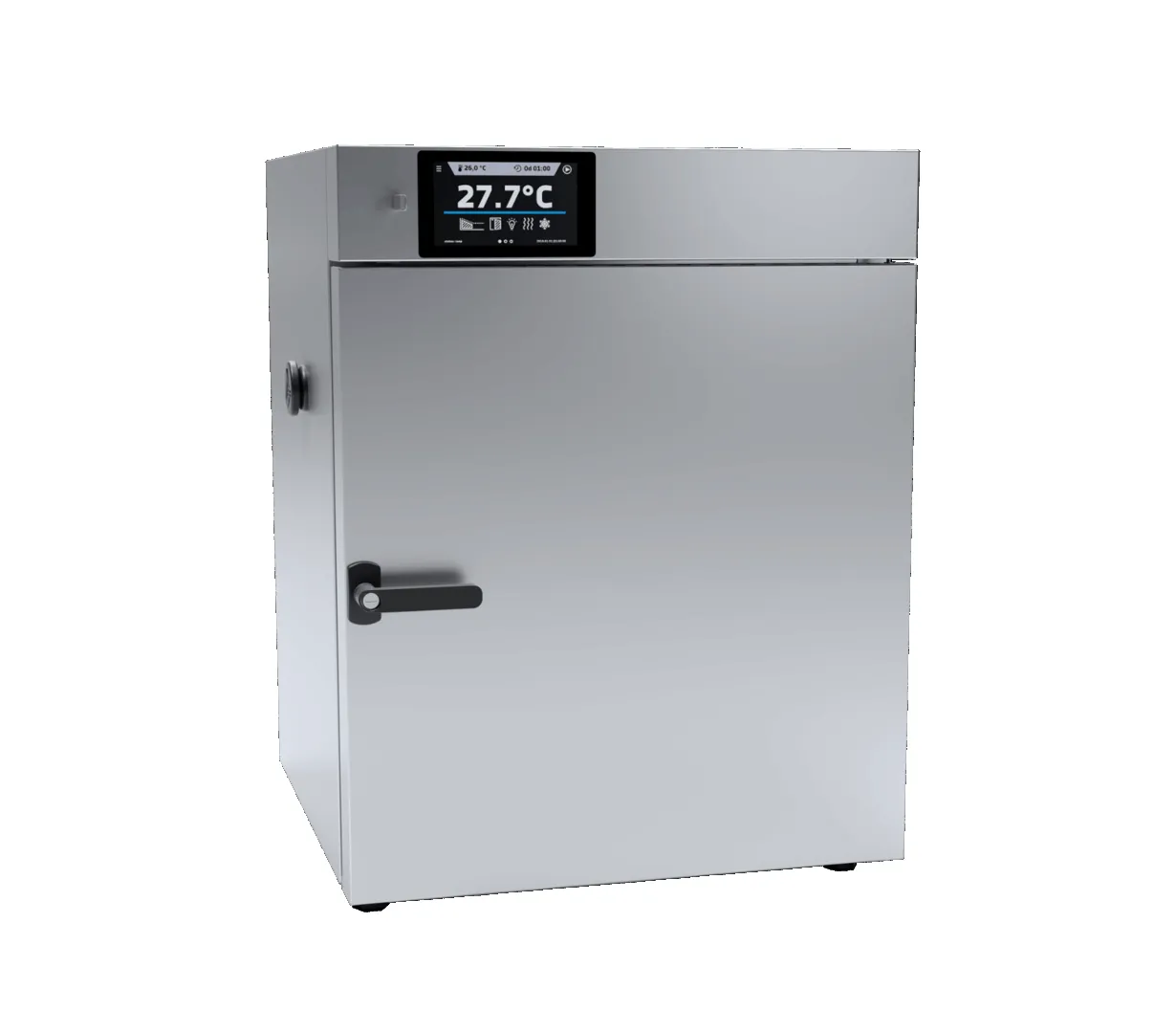

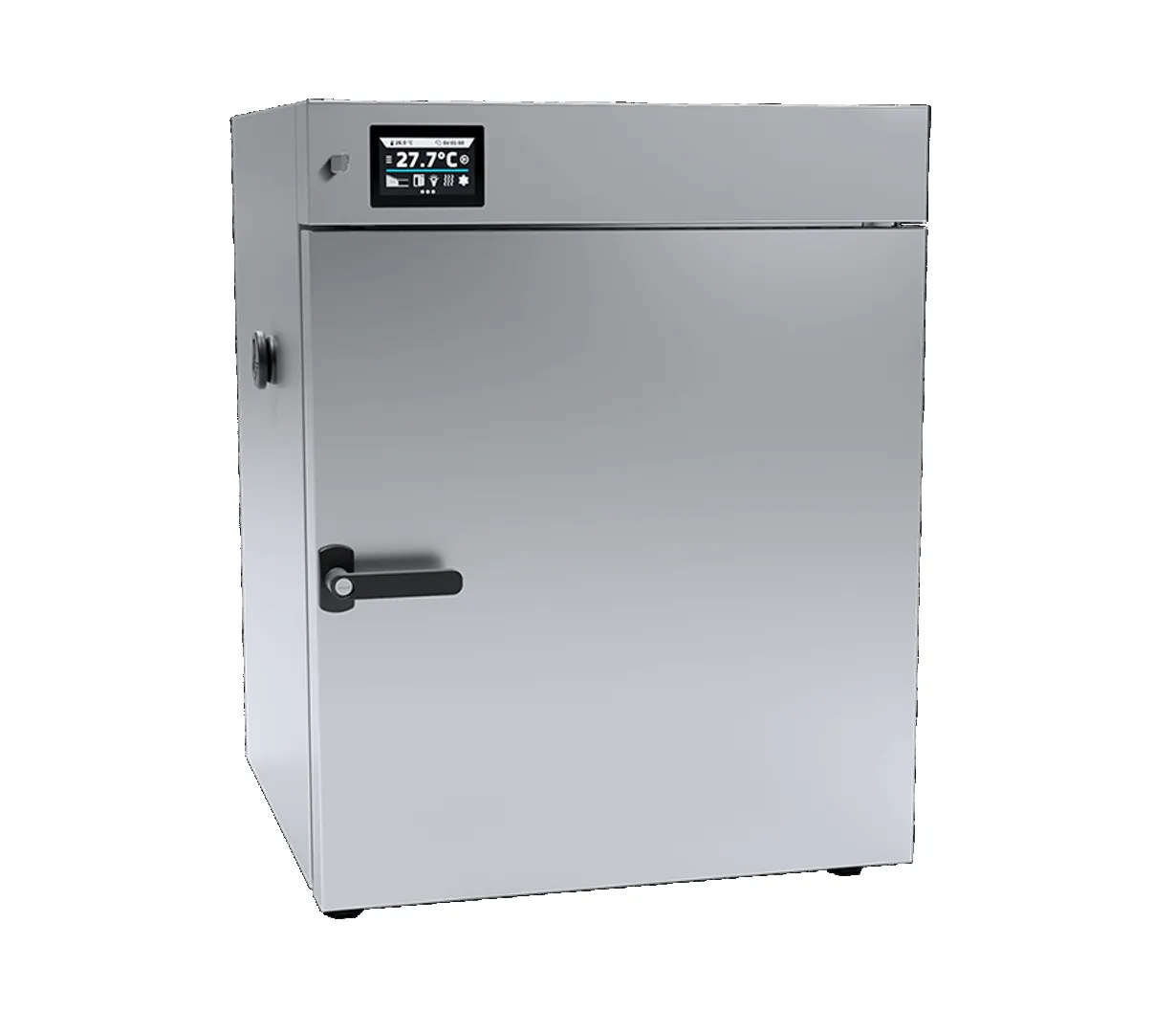

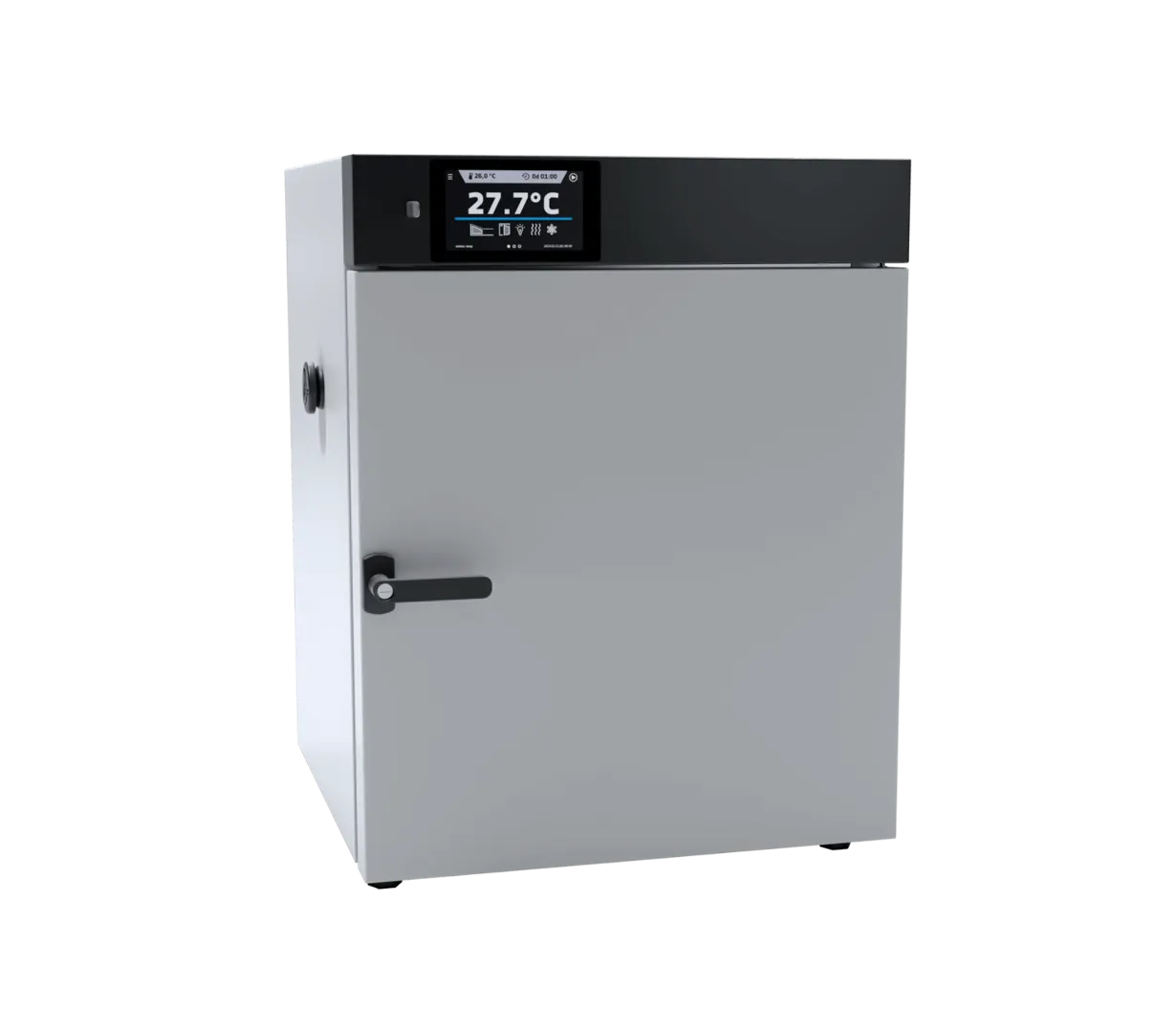

Laboratory Incubator CLN 115
Laboratory Incubator CLN 115 - Image 2
Laboratory Incubator CLN 115 - Image 3
Laboratory Incubator CLN 115 - Image 4
Laboratory Incubator CLN 115 - Image 5

Laboratory Incubator CLN 115

A versatile laboratory incubator with 115?L capacity and a temperature range from +5??C above ambient up to +100??C. Designed for precise and stable incubation of biological samples, cultures, and test materials, it features natural air convection, a microprocessor PID touchscreen controller, internal LED lighting, stainless?steel wire shelves, open?door alarm, door lock, and external sensor ports ? ideal for research, clinical, and industrial laboratory applications.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: CLN 115 Categories: , , Brand: Product ID: 21345

Description

The Laboratory Incubator CLN?115 is a high?performance incubator designed to provide stable, uniform temperature conditions for a wide range of laboratory applications. With a spacious 115?L chamber capacity, it supports biological sample incubation, microbial culture growth, enzyme reactions, material testing, and other controlled temperature processes that demand reliable performance.

This incubator operates across a broad temperature range from +5??C above ambient up to +100??C, offering flexibility for both low?temperature conditioning and elevated temperature incubations within a single unit. Its natural air convection system ensures even heat distribution throughout the chamber, minimizing temperature gradients and improving reproducibility of results.

Temperature control and monitoring are managed through an advanced microprocessor PID controller with an intuitive interface, allowing precise temperature settings and easy observation of real?time conditions. External access ports provide the option to connect third?party sensors or additional monitoring devices, enhancing data capture and compliance with laboratory quality standards.

The interior includes stainless?steel wire shelves, which allow flexible arrangement of samples and easy cleaning. Internal LED lighting ensures excellent visibility inside the chamber, while safety and convenience features ? such as an open?door alarm and a secure door lock ? protect valuable contents and alert users to unintended access or temperature deviations.

Robust in design and reliable in operation, the CLN?115 is ideal for research laboratories, clinical facilities, quality control environments, and industrial laboratories where controlled incubation conditions, capacity, and ease of use are essential. Its combination of performance, storage volume, and intuitive operation supports efficient workflows for both routine and specialized laboratory tasks.

Specifications

POL-EKO Laboratory Incubator CLN 115 Full Specifications

The CLN 115 is a 112-liter laboratory incubator utilizing natural air convection (no fan).1 This makes it ideal for incubating delicate samples that are sensitive to drying out or for processes where airflow might disrupt the material.2






Physical & Capacity Data

  • Chamber Capacity (Gross): 112 Liters3





  • Working Capacity: 112 Liters4





  • External Width: 660 mm5





  • External Height: 850 mm6





  • External Depth: 710 mm (excludes 50 mm power cable)

  • Internal Width: 460 mm7





  • Internal Height: 540 mm8





  • Internal Depth: 450 mm9





  • Net Weight: 65 kg10





  • Standard Shelves: 2 (Stainless steel wire INOX)11





  • Maximum Shelves: 712





  • Max Shelf Workload: 25 kg13





  • Max Unit Workload: 60 kg14





  • Reinforced Shelf Version (Optional): 50 kg15





  • Reinforced Unit Version (Optional): 120 kg16





  • Access Port: Ø30 mm (located on the left wall)17





  • Door Type: Double (solid external door and internal glass door)18





Performance & Heating

  • Temperature Range: 19$5°C$ above ambient up to 20$+100°C$





  • Temperature Resolution: 21$0.1°C$





  • Temperature Fluctuation (at 37°C): 22$pm 0.2°C$





  • Temperature Variation (at 37°C): 23$pm 0.8°C$





  • Air Convection: Natural (Gravity)24





  • Air-flap: Manual, Ø40 mm25





Electrical & Build

  • Voltage: 230V, 50/60 Hz26





  • Nominal Power: 450 W27





  • Interior Material: Acid-proof stainless steel to DIN 1.430128





  • Housing Material: Powder-coated sheet (Standard) or Stainless steel linen finish (IG version)29





  • Warranty: 24 months30





Controller Variant Features

Smart Controller (Standard)

  • Display: 4.3″ Full-color touch screen31





  • Connectivity: LAN, USB ports32





  • Programs: 5 user programs (6 segments each)

  • Data Log: 10,000 measurements (stored for 6 months)33





  • Security: Class 2.0 (DIN 12880) temperature protection34





  • Features: Open door alarm, visual and sound alarms, quick change of parameters35





Smart PRO Controller (Advanced Upgrade)36





  • Display: 7.0″ Full-color touch screen37





  • Connectivity: LAN, USB, and integrated WiFi38





  • Programs: 40 user programs (100 segments each)39





  • User Accounts: Up to 5 user accounts (Admin/Super-Admin roles)40





  • Security: Class 3.1 (DIN 12880) temperature protection41





  • Software: Includes LabDesk for remote management and PC data export42





  • Features: Advanced tabular and graphic data view, NFC login, 12-month data log43

Datasheet

Download CLN 115 Smart datasheet

Download CLN 115 Smart PRO datasheet
