Laboratory Freezer ZLN-T 200

Laboratory Freezer ZLN-T 200

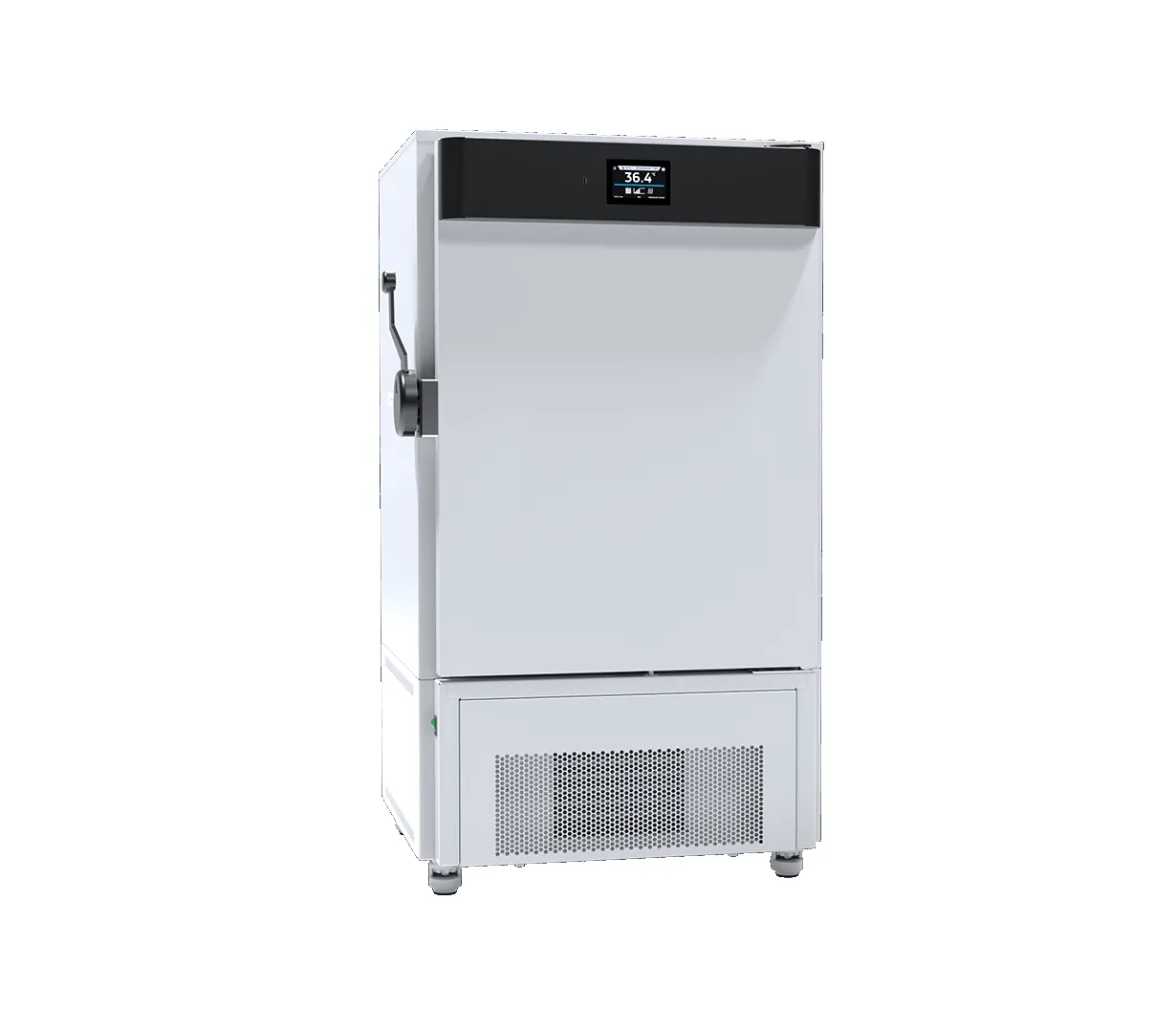

POL-EKO Laboratory Freezer ZLN-T 200
The ZLN-T 200 is a high-performance 210-liter laboratory freezer engineered for secure storage and research applications.3 Operating with a temperature range of 4$-40^{circ}C$ to 5$0^{circ}C$, it utilizes natural air convection to provide a stable, vibration-free cooling environment.6 Managed by the Smart 4.3-inch touchscreen (or the 7-inch Smart PRO), it features multi-segment programming, an “Alarm Bar” for status monitoring, and integrated data logging via USB/LAN.7 Its acid-proof stainless steel interior and robust insulation make it a reliable solution for clinical, pharmaceutical, and industrial laboratories.8

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: ZLN-T 200 Categories: , Brand: Product ID: 21683

Description

The POL-EKO ZLN-T 200 is built for laboratories that require consistent sub-zero temperatures without the air turbulence of forced-air systems. Its 210-liter chamber (180-liter working capacity) is ideal for storing easily decomposing materials, biological samples, and pre-freezing tasks.9 The Natural Convection system ensures a quiet operating environment and prevents the dehydration of samples that can occur with high-velocity airflow.Intelligent Monitoring & Data Security:The ZLN-T 200 is equipped with advanced controllers to ensure sample integrity:10Smart Controller (Standard): Features a 4.3-inch color touchscreen, 5 user programs, and a built-in event registry.11Smart PRO Controller (Optional): Designed for strictly regulated environments, providing a 7-inch touchscreen, 40 user programs, and Wi-Fi connectivity.12 It is 21 CFR Part 11 ready with a full audit trail.Visual Safety: The signature “Alarm Bar” light strip allows you to check the freezer’s status (Cooling, Stable, or Alarm) from across the room.13Industrial Build and Safety:The interior is crafted from acid-proof stainless steel (DIN 1.4301) for maximum chemical resistance and easy decontamination.14 The unit uses eco-friendly R290 refrigerant and features high-density polyurethane foam insulation to maintain temperature even during short power outages.15 Safety features include an open-door alarm, a physical door lock, and an access port (16$emptyset$20 mm) for external temperature validation probes.17+2Primary Applications:Life Sciences: Long-term storage of samples, biological materials, and plasma.18Pharmaceutical: Storage of vaccines and temperature-sensitive chemical reagents.19Industrial Testing: Frost resistance tests for building materials like concrete and wood.20Medical: Pre-freezing biological components before specialized processing.21

Specifications

POL-EKO Laboratory Freezer ZLN-T 200 Full Specifications

The ZLN-T 200 is a high-capacity laboratory freezer designed for professional deep-freezing and long-term storage of biological samples, plasma, and research materials down to 1$-40°C$.2





Physical & Capacity Data

  • Chamber Capacity (Gross): 210 Liters3





  • Working Capacity: 180 Liters4





  • External Width: 820 mm5





  • External Height: 1380 mm6





  • External Depth: 810 mm (excludes 50 mm power cable)

  • Internal Width: 450 mm (max 520 mm)7





  • Internal Height: 770 mm8





  • Internal Depth: 520 mm (max 530 mm / 550 mm depending on internal configuration)9





  • Net Weight: 120 kg10





  • Standard Shelves: 2 (Full shelves with hole)11





  • Maximum Shelves: 412





  • Max Shelf Workload: 10 kg13





  • Max Unit Workload: 65 kg14





  • Reinforced Shelf Version (Optional): 50 kg15





  • Reinforced Unit Version (Optional): 130 kg16





  • Access Port: Ø20 mm (located on the left wall)17





  • Castors: Included as standard equipment

Performance & Cooling

  • Temperature Range: 18$-40°C$ to 19$0°C$





  • Temperature Resolution: 20$0.1°C$





  • Temperature Fluctuation (at -20°C): 21$pm 0.5°C$





  • Temperature Variation (at -20°C): 22$pm 2.5°C$





  • Air Convection: Natural (Gravity)23





  • Refrigerant: R290 (GWP = 3)24





  • Insulation Type: Polyurethane foam25





  • Defrosting: Manual

Electrical & Build

  • Voltage: 230V, 50/60 Hz (115V option available)26





  • Nominal Power: 450 W27





  • Door Type: Solid, lockable28





  • Interior Material (Standard): Stainless steel to DIN 1.4016 (C/CS Smart versions)29





  • Interior Material (Premium): Acid-proof stainless steel to DIN 1.4301 (P/PS Smart versions)30





  • Housing Material: Powder-coated sheet or polished stainless steel31





  • Warranty: 24 months32





Controller Variant Features

Smart Controller (Standard)

  • Display: 4.3″ Full-color touch screen33





  • Connectivity: LAN, USB ports for data transfer34





  • Internal Memory: Storage for 5 user programs (6 segments each)

  • Security: Class 2.0 (DIN 12880) temperature protection (Class 3.2 available as option)

  • Data Log: 10,000 measurements (stored for 6 months)

  • User Interface: Numeric keyboard, Dashboard-style data view

Smart PRO Controller (Advanced Upgrade)35





  • Display: 7.0″ Full-color touch screen36





  • Connectivity: LAN, USB, and integrated WiFi37





  • Internal Memory: Storage for 40 user programs (100 segments each)38





  • User Accounts: Up to 5 user accounts (Admin/Super-Admin roles)39





  • Security: Class 3.2 (DIN 12880) temperature protection

  • Data Recording: Advanced tabular and graphic data view (stored for 12 months)40





  • Software: Includes LabDesk software for remote management and data export41





  • User Interface: Alphanumeric keyboard, visual Alarm Bar, Quick Note feature42

Datasheet

Download ZLN-T 200 Smart Datasheet

Download ZLN-T 200 Smart PRO Datasheet
