Fume Hood CompactLine DCL 1800 LM
Fume Hood CompactLine DCL 1800 LM - Image 2
Fume Hood CompactLine DCL 1800 LM - Image 3

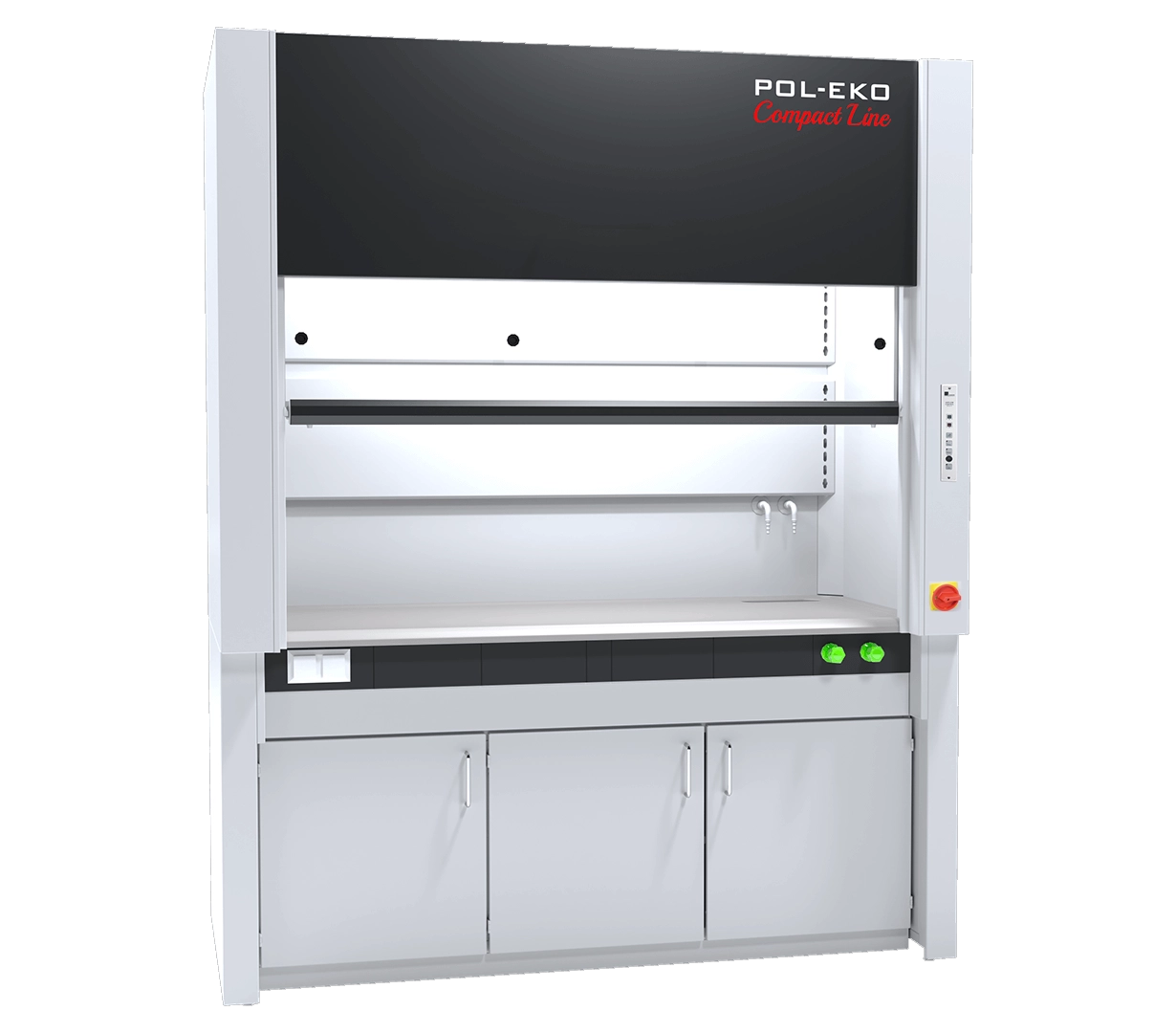

Fume Hood CompactLine DCL 1800 LM

POL-EKO CompactLine DCL 1800 LM Fume Hood The DCL 1800 LM is a high-capacity 1800 mm wide ducted laboratory fume hood designed for superior operator protection from hazardous chemical vapors and dust. It features a robust galvanized steel construction with a phenolic resin interior and a monolithic ceramic worktop with a marine edge to contain spills. Utilizing a double rear-wall system for optimized air extraction and a manual sash with counterweight safety locks, it is compliant with PN-EN 14175. The unit includes a standard Schneider airflow monitoring system to ensure a constant safe face velocity of 0.3?0.5 m/s.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: DCL 1800 LM Categories: , , Brand: Product ID: 21697

Description

The POL-EKO DCL 1800 LM is engineered for laboratories that require the largest possible footprint for intensive chemical analysis and synthesis. With a 1750 mm internal width, it provides ample space for large-scale glassware, rotary evaporators, or multiple reaction vessels. The phenolic resin lining is a high-performance composite that resists a vast range of aggressive laboratory chemicals, making it a reliable standard for pharmaceutical, petrochemical, and general research institutions.

Advanced Safety & Airflow Management:

Double Rear Wall System: To handle the large volume of the 1800 mm chamber, this system extracts air through both upper and lower slots. This effectively removes both light (rising) and heavy (sinking) vapors, preventing hazardous “dead zones” or air turbulence that could lead to contaminant escape.

Schneider Airflow Monitoring: Each unit is equipped with a Schneider FM 550-A-0-E controller. It provides real-time tracking of the face velocity and alerts the user via audible and visual alarms if the airflow becomes insufficient for safety.
+1

Manual Protect Sash: The tempered glass sash is balanced by a precision counterweight system for effortless movement. It features a safety mechanical lock at the 500 mm position to ensure optimal protection during work, with a maximum opening height of 810 mm.
+1

Superior Ergonomics and Build Quality: The unit is constructed from 1.5 mm galvanized steel (zero wood-based materials) and coated with chemically resistant epoxy powder paint. The standard monolithic ceramic worktop is chosen for its extreme durability and features a raised rim to manage liquid spills. It includes an integrated ceramic sink (250 x 95 mm), water spouts from BROEN with front-panel controls, and energy-saving LED lighting separated from the working chamber by a protective glass pane.
+1

Primary Applications:

Large-Scale Synthesis: Managing multiple flasks or reaction workstations simultaneously.

Analytical Chemistry: Housing large laboratory equipment such as automated samplers or chromatography systems.

Industrial QC: Daily heavy-duty testing of industrial chemicals.

Research & Development: Providing a safe, shared workspace for complex, multi-stage experiments.

Specifications

Fume Hood CompactLine DCL 1800 LM Specs

The DCL 1800 LM is a wide-format laboratory fume hood (nominal 1800 mm width) featuring an internal working chamber finished with Max Resistance phenolic resin composite. This material provides a highly durable surface with broad chemical resistance, making it an excellent all-purpose choice for general chemical and biological research.



  • Internal Chamber Material: Max Resistance phenolic resin composite



  • Worktop Material: Monolithic ceramics with an integrated marine edge (Standard)



  • External Dimensions (W x H x D): 1880 x 2325–2600 x 960 mm



  • Working Space Dimensions (W x H x D): 1750 x 1220 x 750 mm (Window width: 1565 mm)

  • Front Window: Toughened glass, manually operated with a counterweight; opens upwards with a lock at 500 mm (max opening 810 mm), including horizontal sliding glass panels.



  • Airflow Management: Double back-wall system with upper and lower extraction slots to remove vapors of varying densities without turbulence.



  • Monitoring System: Schneider FM 550-A-0-E controller with an air velocity sensor (compliant with EN 14175).



  • Lighting: Energy-saving linear LED lighting, separated from the working chamber by a glass pane.



  • Standard Fittings:

    • 2 x Water spouts with front-panel valves (BROEN)



    • 1 x Ceramic sink (280 x 80 mm)



    • 2 x Electrical sockets (230V, 50Hz, IP44)



  • Safety Features: * Decompression safety flap in the ceiling.



    • Protection system to prevent uncontrolled window drops.

  • Recommended Airflow: 900 – 1500 m³/h



  • Exit Air Duct Diameter: Ø 250 mm



  • Nominal Power: 82 W



  • Voltage: 230V, 50Hz



  • Warranty: 24 months



  • Construction: Frame and housing made entirely of galvanized steel with epoxy powder coating (no wood-based materials).



Key Performance Highlights

  • Maximum Surface Area: The 1750 mm internal width provides the largest standard horizontal workspace in the CompactLine series, suitable for sprawling equipment or multiple simultaneous projects.



  • Impact & Chemical Resistance: The phenolic resin (LM) lining is more mechanically robust than ceramic tiles (CR) and offers better resistance to a variety of solvents compared to epoxy-coated steel (SS).

  • Operator Protection: Integrated Schneider controls provide constant monitoring of face velocity, ensuring the hood operates within safe safety parameters (typically 0.3 – 0.5 m/s).

Datasheet

Download Compact Line DCL-1800 LM Datasheet
