Description

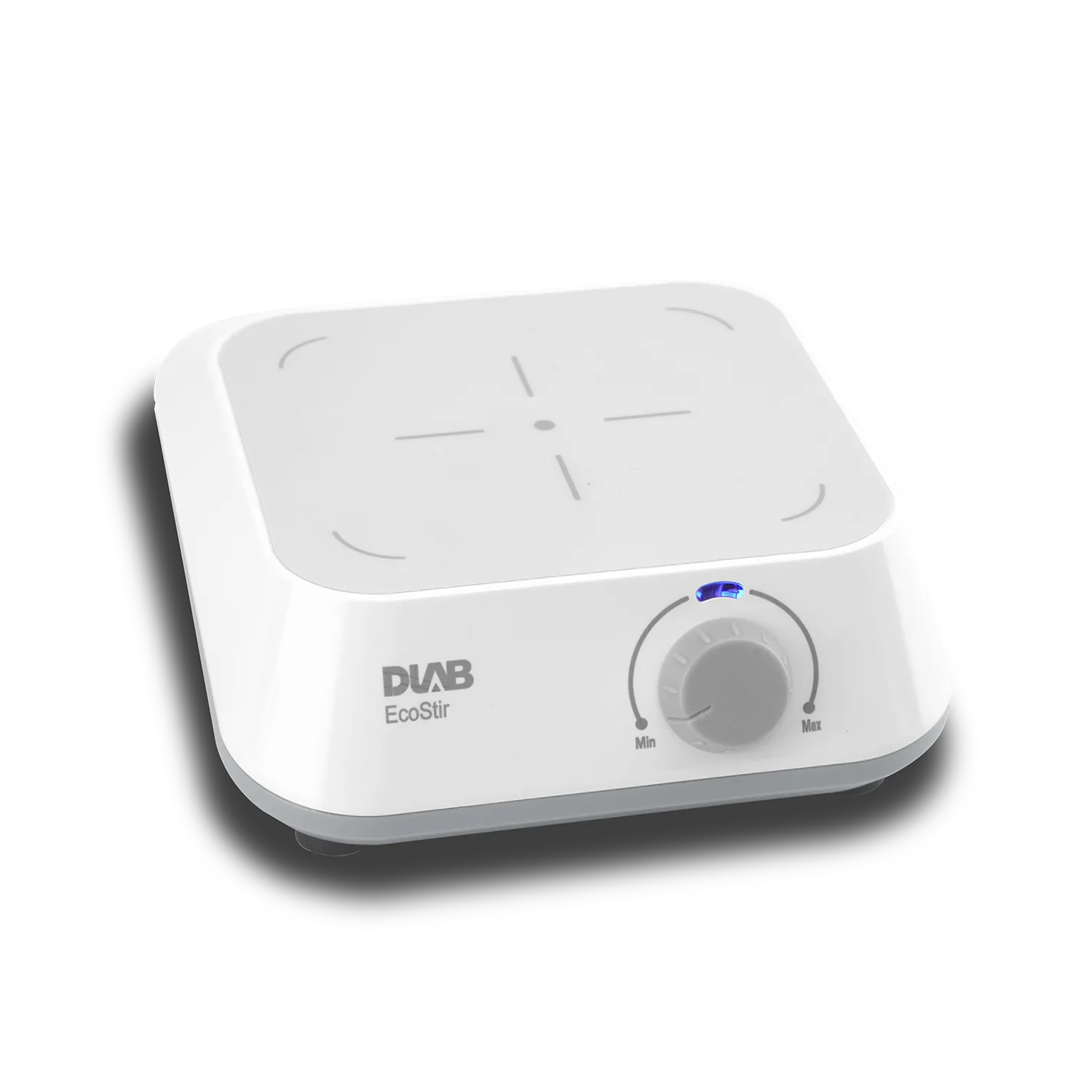

The EcoStir Square Plate Magnetic Stirrer is a reliable lab instrument designed for efficient magnetic stirring of liquids up to 1.5?L. Its square PET work plate provides excellent chemical resistance and a compact footprint ideal for benchtop use. The stirrer uses a maintenance?free brushless DC motor to generate a stable magnetic field that supports smooth stirring in a wide speed range from approximately 300?rpm to 2000?rpm. An integrated electrode holder and clamp allow easy attachment of pH sensors or other probes, enhancing versatility for tasks such as water and environmental monitoring, drug or food analysis, and routine sample mixing. With a simple analog speed control and robust construction, the EcoStir delivers consistent performance for a variety of laboratory workflows.
Specifications
DLAB EcoStir Square Plate Magnetic Stirrer Specs
The EcoStir square plate version is an economical and compact magnetic stirrer specifically designed for stable stirring in electrochemistry and water monitoring applications. It features a chemical-resistant PET top and includes a dedicated sensor holder.
-
Work Plate Dimensions: 120 x 115 mm (Square)
-
Work Plate Material: PET (Polyethylene terephthalate)
-
Max. Stirring Quantity (H2O): 1.5 Liters
-
Speed Range: 300 – 2000 rpm
-
Speed Setting: Stepless rotary knob with scale
-
Motor Type: Maintenance-free brushless DC motor
-
Motor Output Power: 1.2 W
-
Total Power: 7.2 W
-
Max. Magnetic Bar Length: 40 mm
-
Protection Class: IP21
-
Voltage: 100-240V, 50/60 Hz (DC 12V adapter included)
-
Dimensions (W x D x H): 150 x 144 x 54 mm
-
Weight: 0.3 kg
-
Permissible Ambient Conditions: 5 – 40°C, 80% RH
Core Features & Included Accessories
-

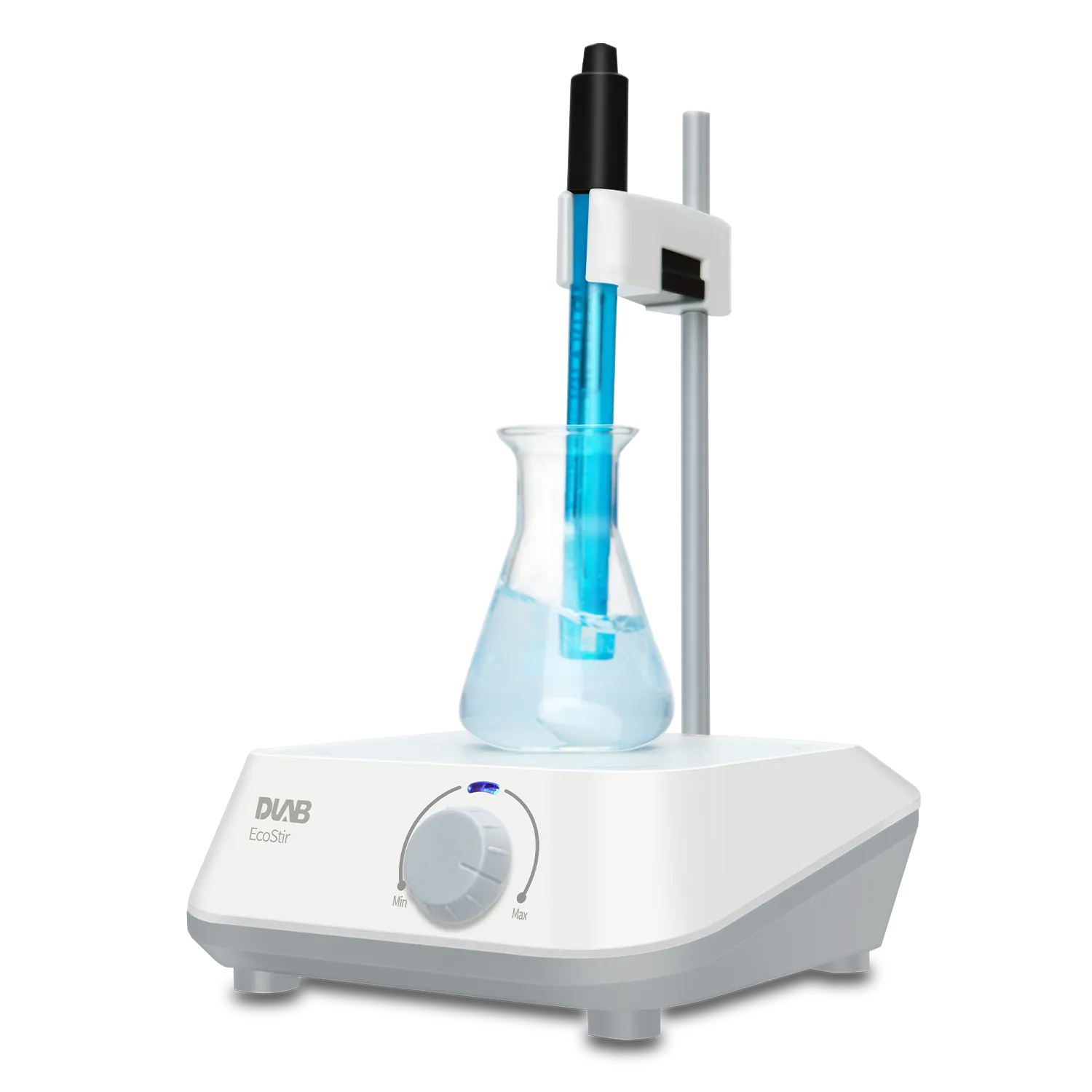

Sensor Integration: Comes standard with a probe holder and clamp to hold pH electrodes or other sensors directly in the sample.
-
Chemical Resistance: The PET work plate provides excellent protection against most common laboratory acids and bases.
-
Quiet Operation: Designed for silent and vibration-free performance, which is essential for stable electrochemical readings.
-
Field Use Ready: The 12V DC power compatibility and lightweight design make it ideal for mobile laboratories and environmental testing.
-

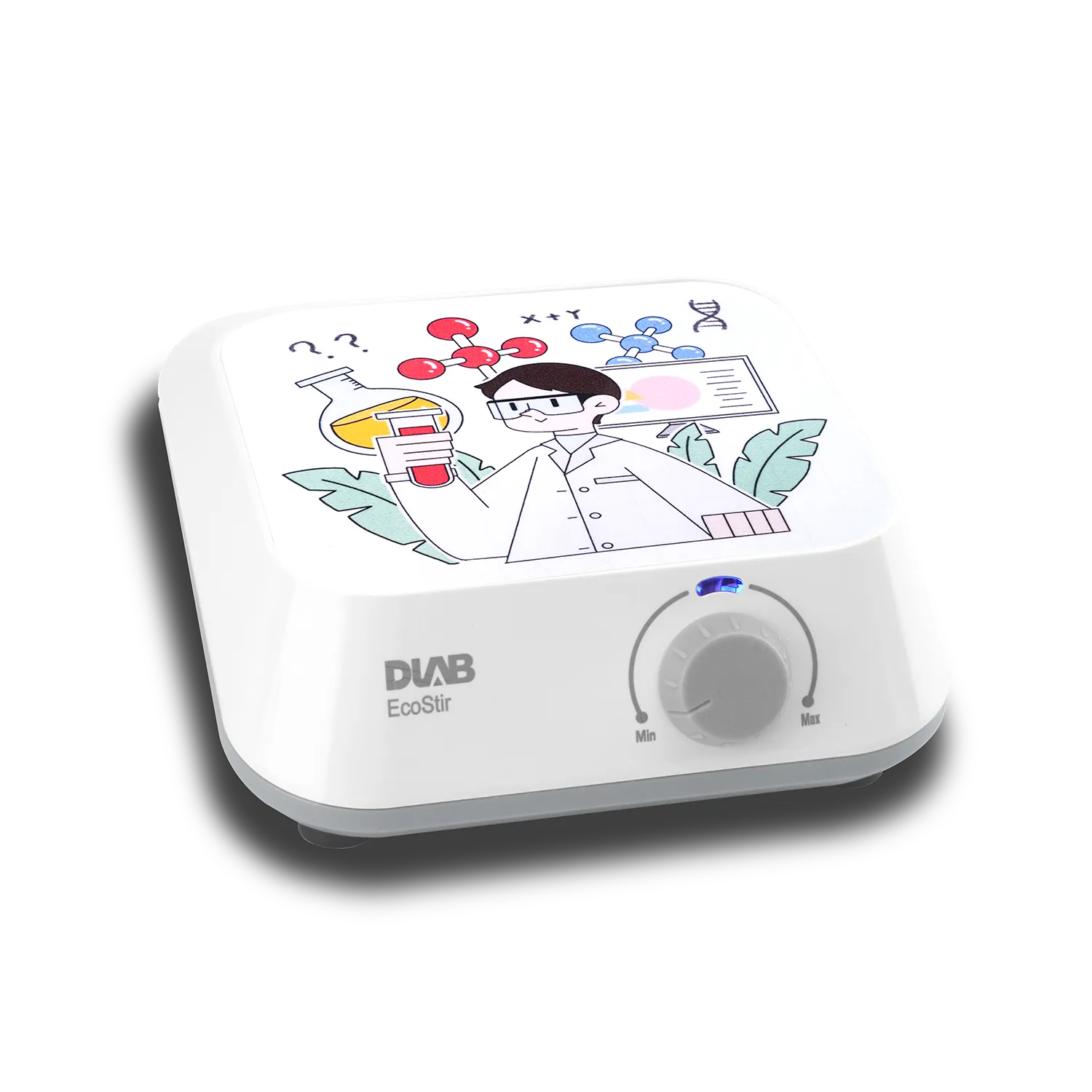

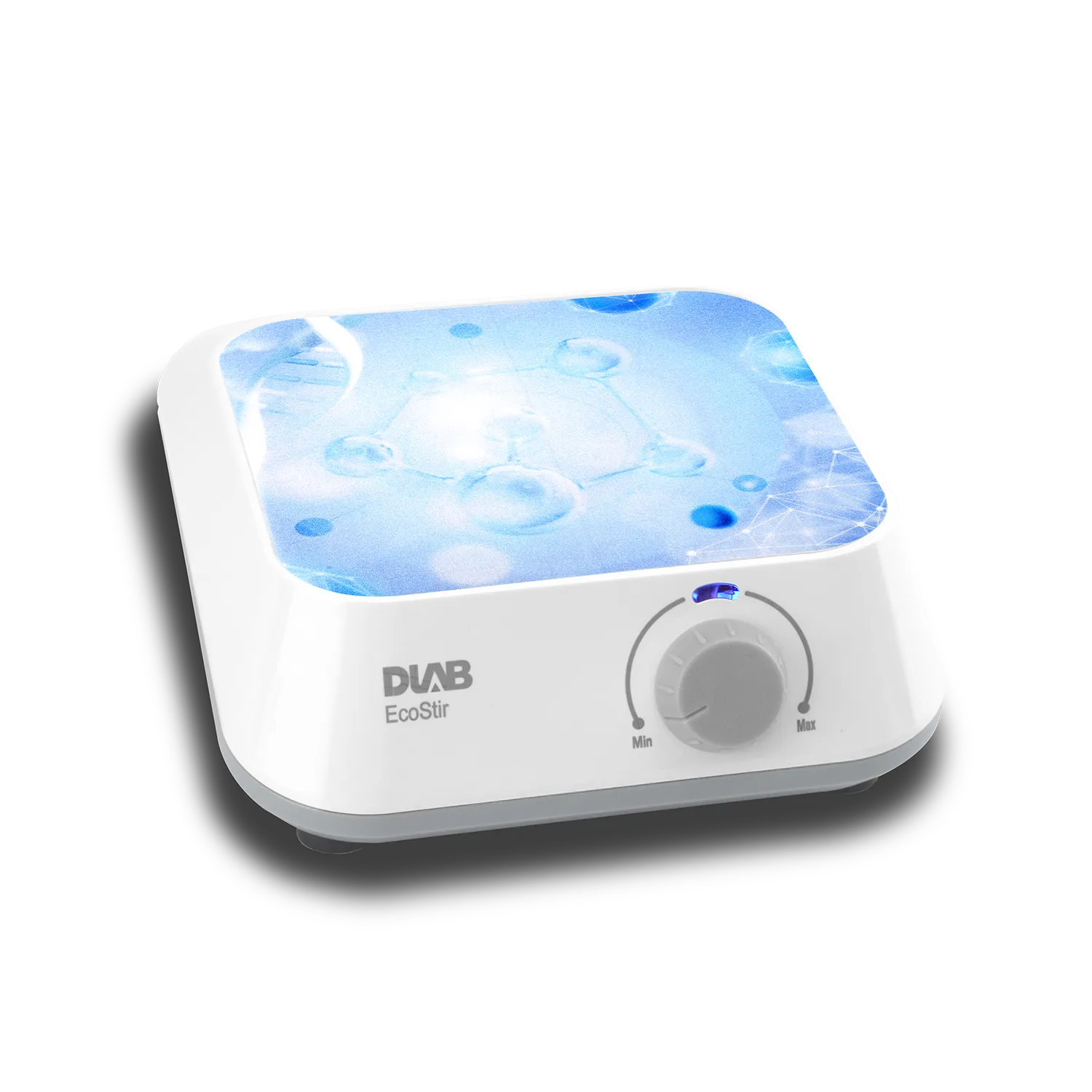

DIY Customization: Often supplied with colorful stickers to allow for personal branding or easy identification in the lab.
