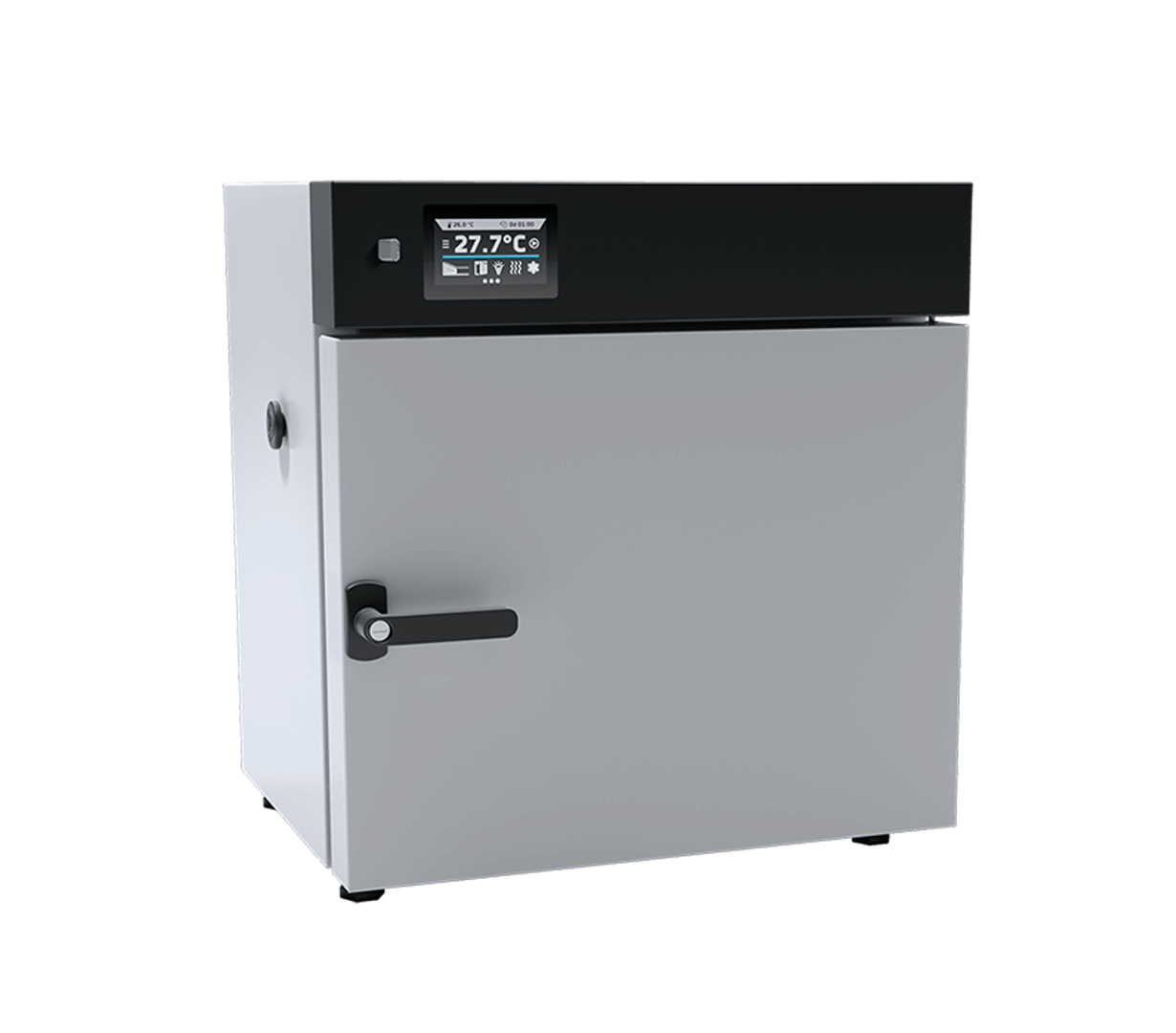

Drying Oven SLWN 32
Drying Oven SLWN 32 - Image 2

Drying Oven SLWN 32

POL-EKO Laboratory Drying Oven SLWN 32 The SLWN 32 is a professional 32-liter benchtop drying oven designed for gentle heating, glassware drying, and sample preparation. Utilizing natural air convection and a wide temperature range of ambient +5?C to +300?C, it provides a stable thermal environment without the use of a fan, preventing sample dispersal. Managed by the Smart 4.3-inch touchscreen controller, it features intuitive programming, an “Alarm Bar” for visual status monitoring, and integrated data logging via USB/LAN. Its high-grade acid-proof stainless steel interior and compact design make it a perfect fit for pharmacies, research labs, and clinical settings.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: SLWN 32 Categories: , Brand: Product ID: 21677

Description

The POL-EKO SLWN 32 is designed for high-precision laboratory tasks where “quiet” air is a necessity. Unlike forced-air models, the SLWN series relies on Natural Convection (N), where air circulates through the chamber via thermal buoyancy (gravity). This makes the unit the ideal choice for drying fine-grained chemical powders, light biological tissues, or delicate electronic components that could be scattered or contaminated by high-velocity fan air.Smart Control and Data Integrity:Despite its compact size, the SLWN 32 does not compromise on technology. It is equipped with the Smart controller, which offers:User-Friendly Interface: A 4.3-inch color touchscreen that displays current and set parameters clearly, even from a distance.5Complex Profiles: Users can program multi-segment temperature-time profiles, including adjustable ramps and loop functions for automated testing cycles.6Connectivity: Built-in USB and LAN ports allow for the easy export of data logs and event registries, ensuring your processes meet GLP (Good Laboratory Practice) standards.7Visual Alerts: The integrated “Alarm Bar” uses color-coded light strips to show the oven’s status at a glance: Blue (Heating), Green (Stable), or Red (Alarm).Superior Build Quality and Safety:The chamber is manufactured from acid-proof stainless steel (DIN 1.4301), providing excellent resistance to chemicals and high temperatures.8 For safety, the oven includes Class 2.0 over-temperature protection (according to DIN 12880), which automatically cuts the heater if the temperature exceeds safe limits.9 The unit also features an adjustable $emptyset$40 mm air-flap to control the exhaust of moisture and a $emptyset$9 mm access port for external validation sensors.+1Primary Applications:Powder Drying: Moisture removal from fine chemical or pharmaceutical powders.Biological Samples: Gentle drying of plant tissues or paper-based samples.Electronics: Curing and thermal testing of lightweight components.General Laboratory: Sterilization and drying of glassware where fan noise is undesirable.

Specifications

POL-EKO SLWN 32 Drying Oven Specifications

The SLWN 32 is a compact 32-liter laboratory oven that combines forced air convection with a nitrogen blow system. It is specifically designed for applications requiring an anaerobic environment to prevent sample oxidation, such as moisture determination in coal (ISO 589:2003) or the heat treatment of sensitive electronic components.

  • Air Convection: Forced (Fan-assisted)



  • Inert Atmosphere: Nitrogen blow system (includes connections, valves, and rotameter)



  • Chamber Capacity: 32 Liters



  • Working Capacity: 32 Liters



  • Temperature Range: +5°C above ambient to +300°C



  • Temperature Resolution: 0.1°C



  • Temperature Fluctuation at 105°C: ±0.3°C



  • Temperature Variation at 105°C: ±2.0°C



  • Controller: Microprocessor PID (Smart or Smart PRO)



  • Display: 4.3″ touch screen (Smart) or 7″ touch screen (Smart PRO)



  • Internal Dimensions (W x H x D): 400 x 320 x 250 mm



  • External Dimensions (W x H x D): 590 x 640 x 520 mm



  • Shelves (Standard / Max): 1 / 3



  • Max. Shelf Workload: 10 kg



  • Max. Total Unit Workload: 30 kg



  • Interior Material: Acid-proof stainless steel (DIN 1.4301)

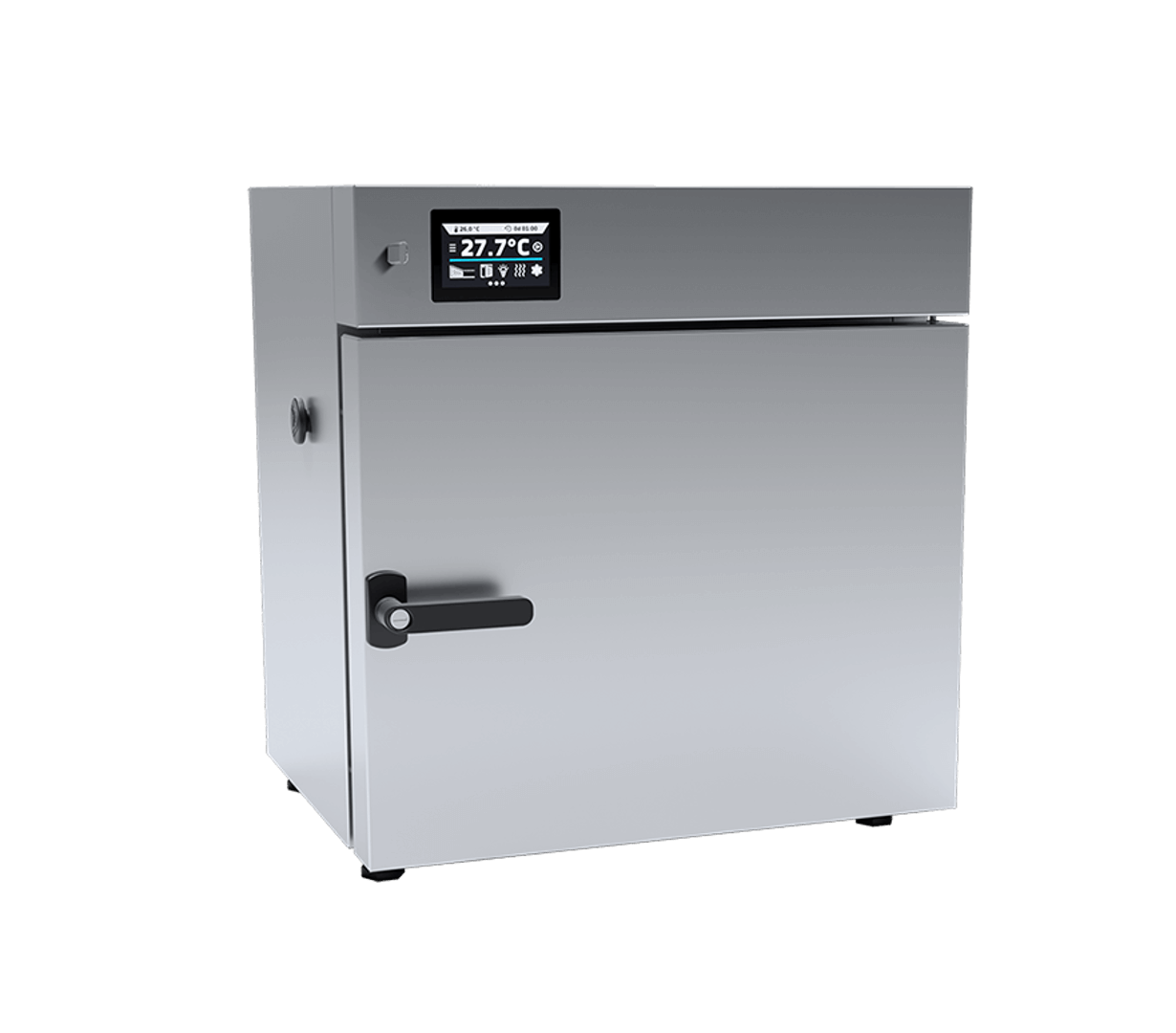

  • Housing Material: Powder coated sheet (Standard) or Stainless steel linen finish (IG version)



  • Connectivity: LAN and USB ports (Wi-Fi standard on Smart PRO)



  • Nominal Power: 1200 W

  • Voltage: 230V, 50/60 Hz



  • Weight: 35 kg



Nitrogen Configuration Versions

  • SLWN1 32: Includes a laboratory rotameter that can be officially calibrated for precise gas flow monitoring.



  • SLWN2 32: Includes a technical rotameter (non-calibratable) for routine inert gas purging.



Core Functionality & Safety

  • Inert Gas Purging: Nitrogen is introduced to purge oxygen and moisture, which is critical for protecting materials prone to oxidation at high temperatures.



  • ISO 589:2003 Compliance: Designed to meet standards for coal analysis requiring drying at 105°C–110°C with a nitrogen flow rate of approximately 15 times the chamber capacity per hour.



  • Access Port: Features a standard Ø9 mm access port on the left side for introducing external validation probes.



  • Integrated Alarms: Standard features include an open-door alarm, temperature sensor fail alarm, and a physical door lock for sample security.

Datasheet

Download Drying Oven SLWN 32 datasheet
